Bj-22b Fire Fighting Equipment Diesel Engine Driven Portable Solar Irrigation Water Well Submer /Pressure Boosting Pump Electric Fire Hydrant Sprinkler Pump

Customization:	Available
After-sales Service:	Technical Guidance
Warranty:	One-Year Warranty

Product Description

Overview
Specification
After Sales Service
Company Profile
FAQ

Basic Info.

Model NO.

EDJ 50/6-5.5-8.6-2

Max.Head

110m-150m

Max.Capacity

>400 L/min

Driving Type

Motor

Impeller Number

Single-Stage Pump

Working Pressure

High Pressure Pump

Influent Type of Impeller

Single Suction Pump

Position of Pump Shaft

Horizontal Pump

Pump Casing Combined

Horizontal Split Pumps

Mounting Height

Suction Centrifugal

Impeller

Open

Usage

Pump, Pumps, Circulating Pump

Transport Package

Wooden Case Packaging

Specification

1200*1200*1780

Trademark

TS pump

Origin

Zhejiang. Wenzhou

Production Capacity

50000pieces/Year

Packaging & Delivery

Package Size

1200.00cm * 1100.00cm * 1560.00cm

Package Gross Weight

130.000kg

Lead Time

15 days (1 - 10 Sets)
To be negotiated ( > 10 Sets)

Product Description

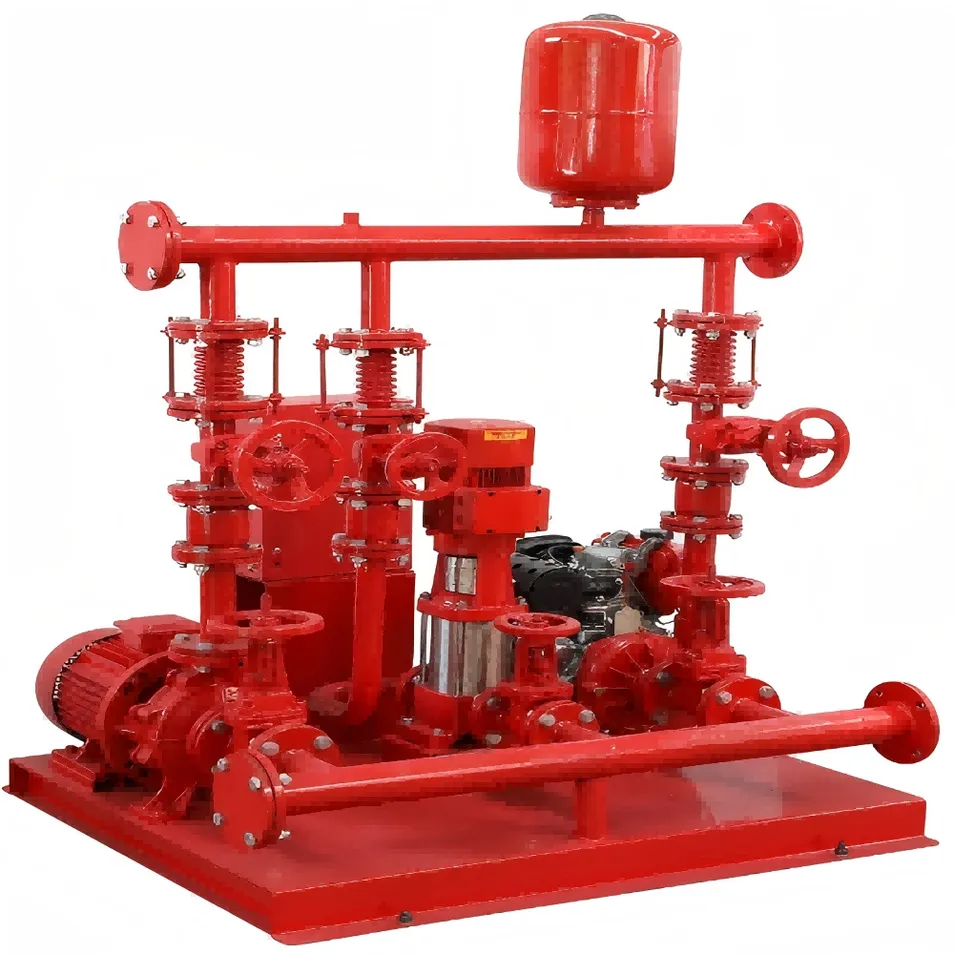

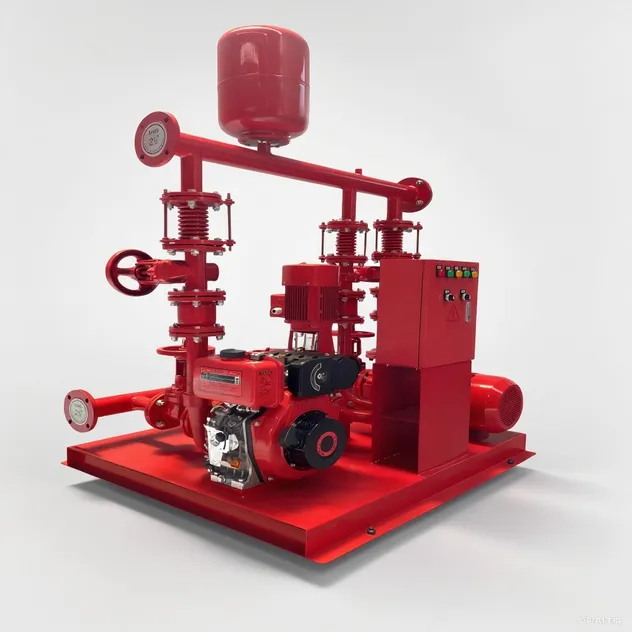

Fire-fighting Dual-Power Pump Set

Advantages of Our Fire-Fighting Dual-Pump Set.Our fire-fighting dual-pump set is designed to address the strict demands of emergency fire suppression scenarios, integrating reliability, efficiency, and adaptability.Uninterrupted Operation for Critical Emergencies.Flexible Adaptation to Diverse Working Conditions.

Specification

Applications
1.High-Rise Buildings & Super High-Rise Complexes
2. Large-Scale Industrial Facilities
3.Key Public Infrastructure
4.Large Commercial & Logistics Spaces
5.Hospitals, Schools & Temporary Water Supply

Key Configurations
Dual Main Fire Pumps: Horizontal/vertical centrifugal pumps (optimized for fire-fighting water, anti-clogging and corrosion-resistant).
- Material: Cast iron or 304 stainless steel (adapts to different water quality to extend service life).
Undercarriage: Material: Seamless steel pipes (pressure rating ≥1.6 MPa, resistant to high pressure from fire pumps
manual gate valve: excellent sealing performance and low leakage risk

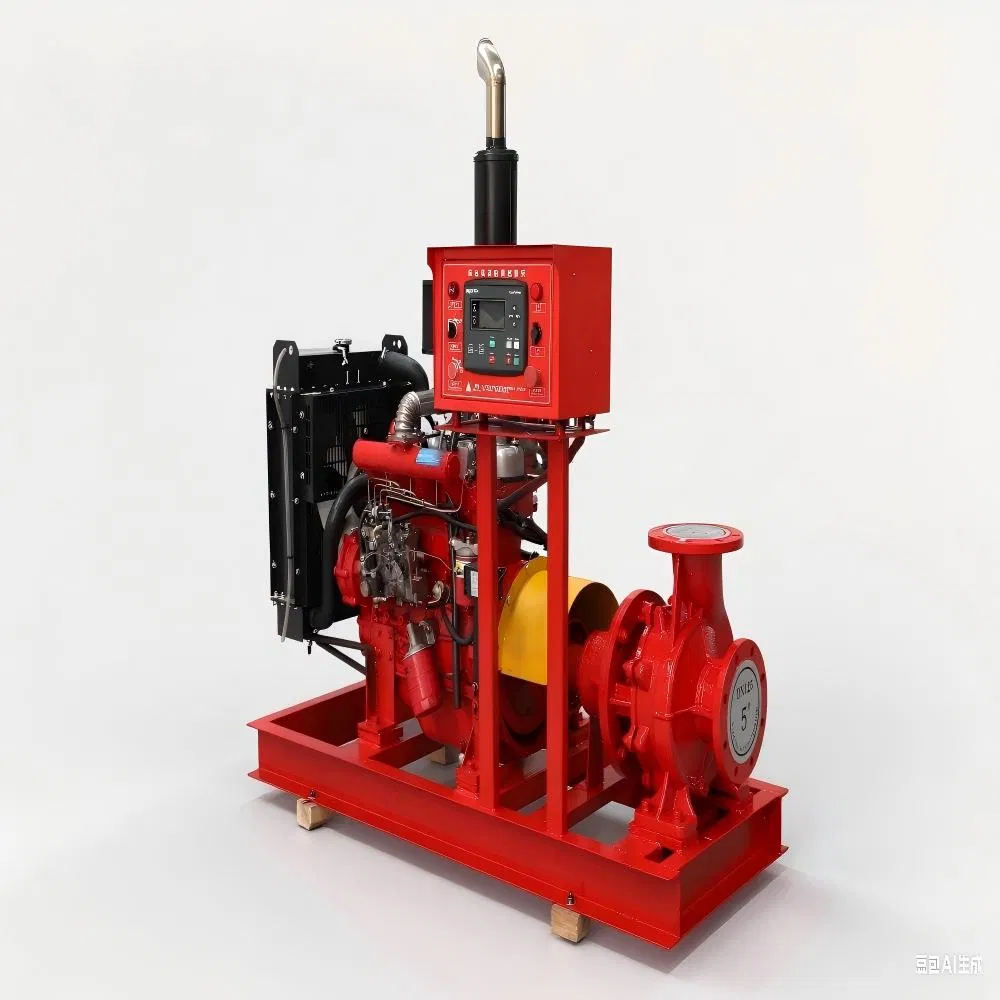

Diesel Engine:High-Power Diesel Engine. suitable for high-flow fire-fighting pumps

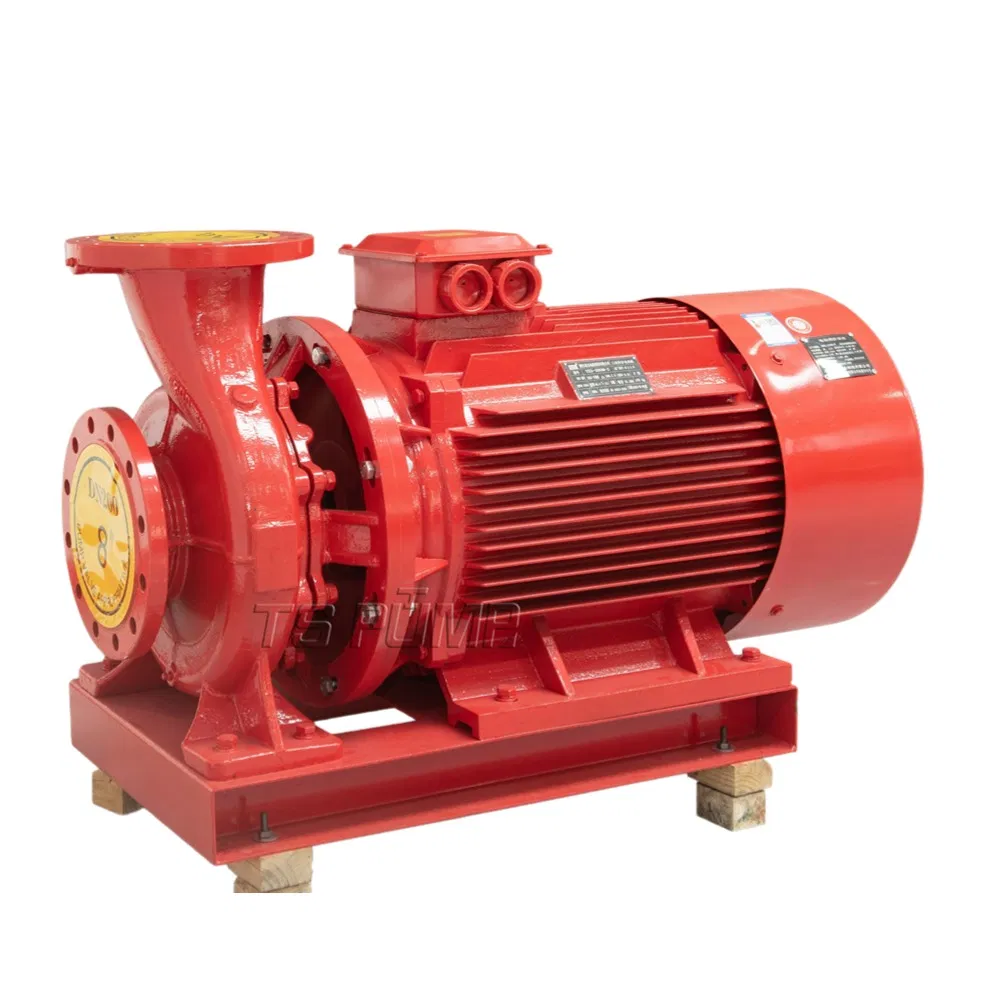

Induction Motor:The rated power of the electric motor usually ranges from 15kW to 200kW for fire-fighting pump sets, featuring high efficiency and energy savings.
Jockey Pump:It has pressure boosting and pressure stabilizing performance.

product advantages

Dual-power fire pump sets are core equipment designed specifically to ensure the reliability of fire-fighting water supply. Their advantages revolve around three core goals: "uninterrupted water supply", "adaptation to complex fire scenarios", and "improved emergency response efficiency
I. Core Advantage: Extremely High Water Supply Reliability, Eliminating the Risk of "Supply Interruption"
II. Operational Advantage: Adapting to Complex Fires, Flexibly Adjusting Water Supply Parameters
III. Practical Advantage: Convenient Maintenance + Strong Environmental Adaptability, Reducing Management Costs

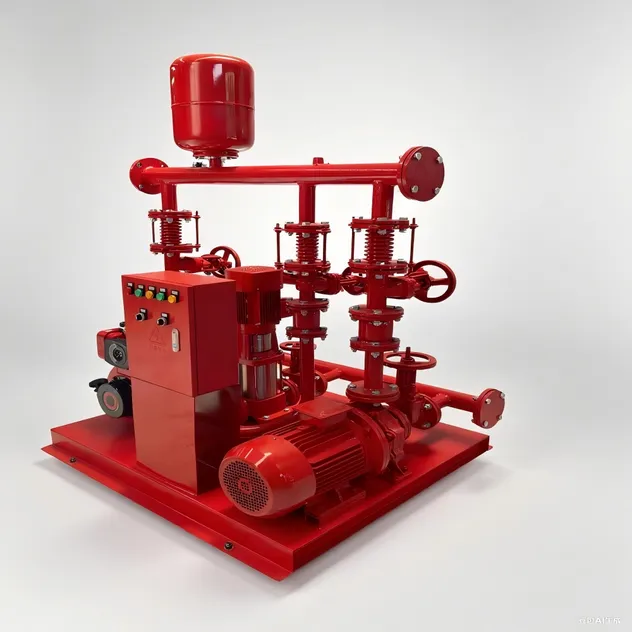

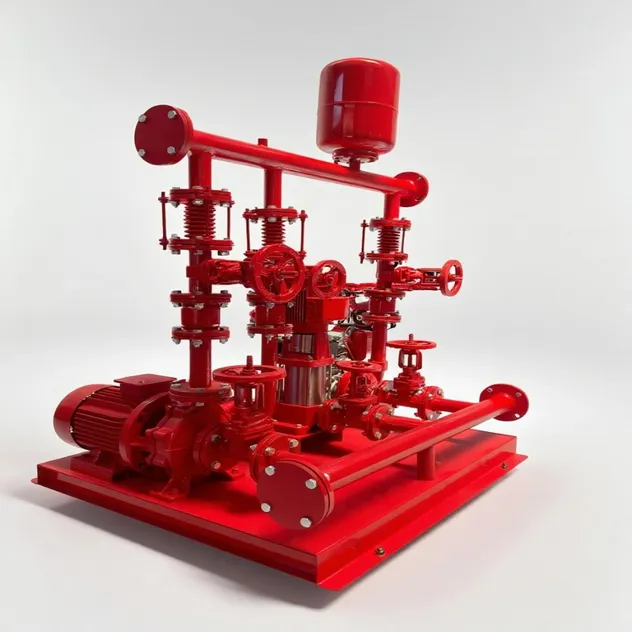

right elevation

left elevation

front elevation

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

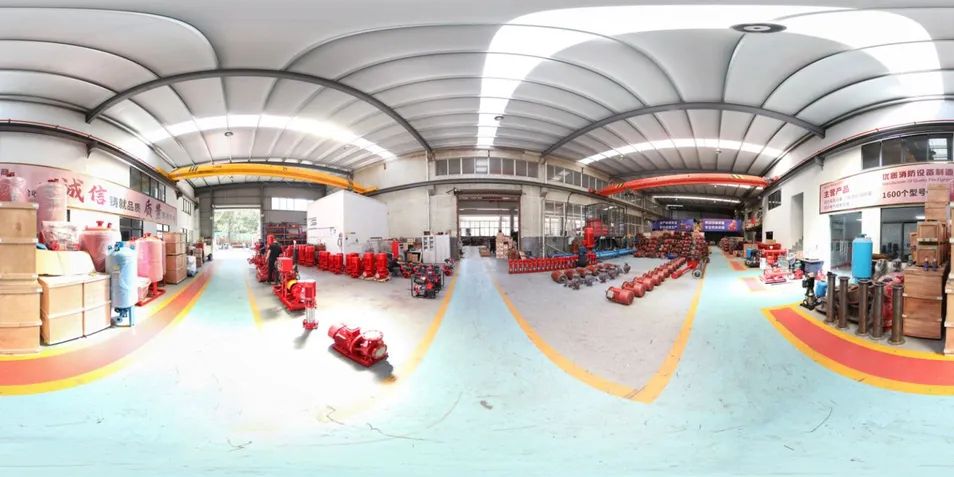

Company Profile

Shanghai Tengsheng Pump Manufacturing Co., Ltd.

company mainly produces fire pumps, centrifugal pumps, heating and chilled water circulation pumps, domestic water pressure boosting pumps, and intelligent variable frequency control cabinets. It has obtained the national ISO 9001 certification.

Why Choose Us?

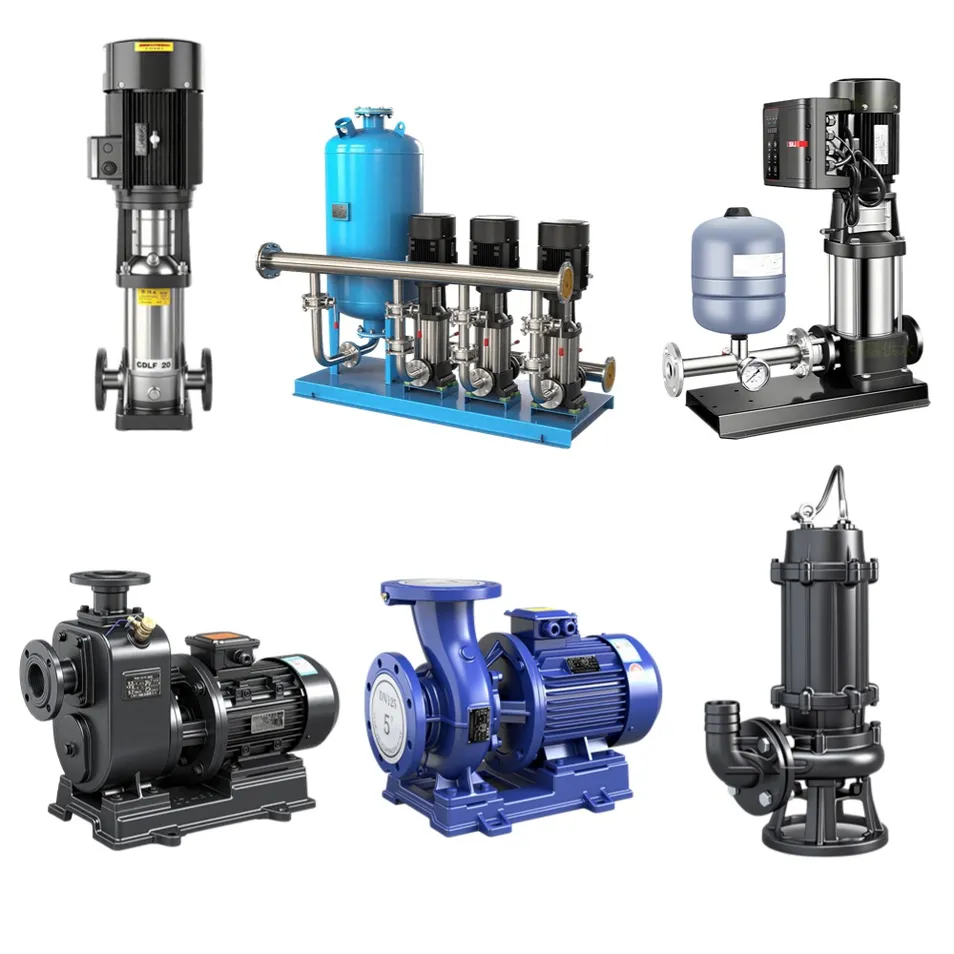

Other Products

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions

circulation pump
sewage pump
centrifugal pump
sewage pump
Self-Priming Pump

Product Specifications:

EDJ Dual-Power Pump Set	Q	H	Electrie Fire Pump	Electrie Fire Pump	Diesel Engine Fire Pump	Electeic Jockey Pump
EDJ Dual-Power Pump Set	Q	H	Electrie Fire Pump	Electrie Fire Pump	Diesel Engine Fire Pump	Electeic Jockey Pump
	GPM	Bar


EDJ 50/6-5.5-8.6-2	50	6	ISW 32-200/40 5.5HP	XA 32-250/55 7.5HP	DISW32-250/55 8.6HP	CDL1-15 1HP
EDJ 50/7-7.5-10-2	50	7	ISW 40-210/55 7.5HP	XA 32-250/75 10HP	DISW2-250/75 10HP	CDL1-15 1HP
EDJ 50/8-10-12-3	50	8	ISW 40-210/75 10HP	XA 32-250/110 15HP	DISW32-250/110 12HP	CDL1-15 1HP
EDJ 50/9-10-27-3	50	9	ISW 40-210/75 10HP	XA 32-250/150 20HP	DISW 32-250/150 27HP	CDL1-17 15HP
EDJ 100/7-10-10-2	100	6-7	ISW 32-250/75 10HP	XA 32-250/75 10HP	DISW 32-250/75 10HP	CDL2-11 15HP
EDJ 100/8-15-27-3	100	8	ISW 40-200/110 15HP	XA 32-250/150 20HP	DISW 32-250/150 27HP	CDL2-3 2HP
EDJ 100/9-17.5-27-3	100	9	ISW 40-250/130 17.5HP	XA 40-250/185 25HP	DISW 40-250/185 27HP	CDL2-3 2HP
EDJ 120/7-10-12-3	120	7	ISW 32-250/75D 10HP	XA 32-250/75 10HP	DISW 32-250/75 12HP	CDL2-3 2HP
EDJ 150/7-15-12-3	150	7	ISW 40-250/110 15HP	XA 40-250/110 15HP	DISW40-250/110 12HP	CDL4-10 3HP
EDJ 120/7-10-12-3	120	7	ISW 32-250/75D 10HP	XA 32-250/75H 10HP	DISW32-250/75H 12HP	CDL2-13 2HP
EDJ 150/7-15-12-3	150	7	ISW 40-250/110 15HP	XA 40-250/110 15HP	DISW 40-250/110 12HP	CDL4-10 3HP
EDJ 200/6-20-27-3	200	6	ISW 50-250/150 20HP	XA 50-250/150 20HP	DISW 50-250/150 27HP	CDL4-10 3HP
EDJ 200/7-25-27-3	200	7	ISW 50-250/185 25HP	XA 50-250/185 25HP	DISW 50-250/185 27HP	CDL4-10 3HP
EDJ 200/8-30-32-3	200	8	ISW 50-250/220 30HP	XA 50-250/220 30HP	DISW 50-250/220 32HP	CDL4-12 3HP
EDJ 200/9-40-38-4	200	9		XA 50-250/300 40HP	DISW 50-250/300 38HP	CDL4-12 3HP
EDJ 200/10-50-58-4	200	10		XA 50-315/370 50HP	DISW 50-315/370 58HP	CDL4-14 4HP
EDJ 250/7-25-27-4	250	7	ISW 50-250/185 25HP	XA 50-250/185 25HP	DISW 50-250/185 27HP	CDL4-12 3HP
EDJ 300/6-25-27-4	300	6	ISW 50-250/185 25HP	XA 50-250/185 25HP	DISW 50-250/185 27HP	CDL8-6 3HP
EDJ 300/7-30-32-4	300	7	ISW 50-250/220 30HP	XA 50-250/220 30HP	DISW 50-250/220 32HP	CDL8-8 4HP
EDJ 300/8-40-38-4	300	8		XA 50-250/300 40HP	DISW 50-250/300 38HP	CDL8-8 4HP
EDJ 300/10-50-58-5.5	300	9-10		XA 50-315/370 50HP	DISW 50-315/370 58HP	CDL8-12 5.5HP
EDJ 350/7-30-32-4	350	7	ISW 50-250/220 30HP	XA 50-250/220 30HP	DISW 50-250/220 32HP	CDL8-8 4HP
EDJ 400/6-30-32-4	400	6	ISW 65-250/220 30HP	XA 65-250/220 30HP	DISW 65-250/220 32HP	CDL8-8 4HP
EDJ 400/7-40-38-5.5	400	7	ISW 65-250/300 40HP	XA 65-250/300 40HP	DISW 65-250/300 38HP	CDL8-8 4HP
EDJ 400/8-50-58-5.5	400	8	ISW 65-250/370 50HP	XA 65-250/370 50HP	DISW 65-250/370 58HP	CDL8-10 5.5HP
EDJ 400/9-60-61-7.5	400	9	ISW 65-315/450 60HP	XA 65-315/450 60HP	DISW 65-315/450 61HP	CDL8-12 5.5HP
EDJ 500/7-40-38-5.5	500	6-7	ISW 65-250/300 40HP	XA 65-250/300 40HP	DISW 65-250/300 38HP	CDL12-8 7.5HP
EDJ 500/8-50-58-7.5	500	8	ISW 65-250/370 50HP	XA 65-250/370 50HP	DISW 65-250/370 58HP	CDL12-8 7.5HP
EDJ 500/9-60-61-7.5	500	9	ISW 65-315/450 60HP	XA 65-315/450 60HP	DISW 65-315/450 61HP	CDL12-9 7.5HP
EDJ 500/11-75-75-7.5	500	10-11	ISW 65-315/550 75HP	XA 65-315/550 75HP	DISW 65-315/550 75HP	CDL12-12 10HP

FAQ

Q: What’s the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.

Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
