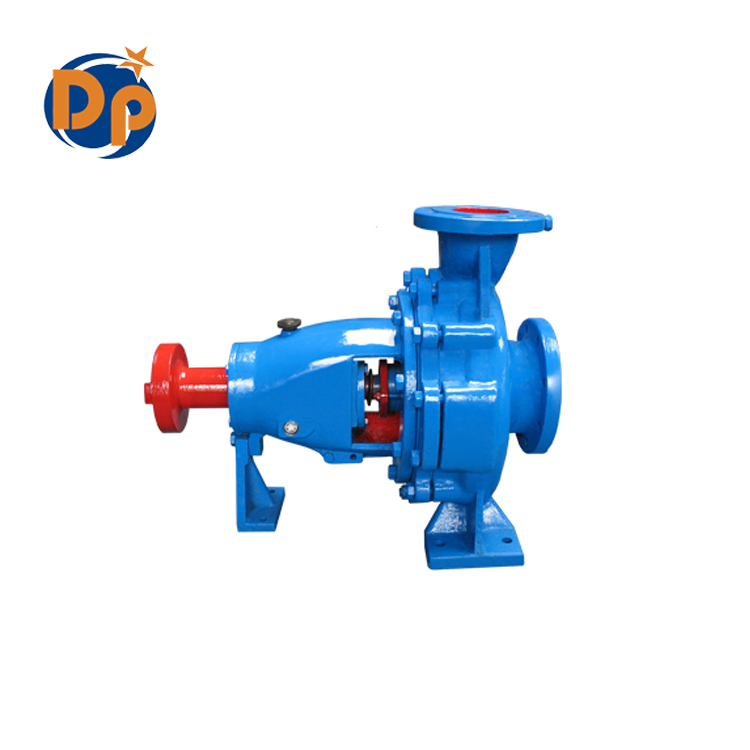

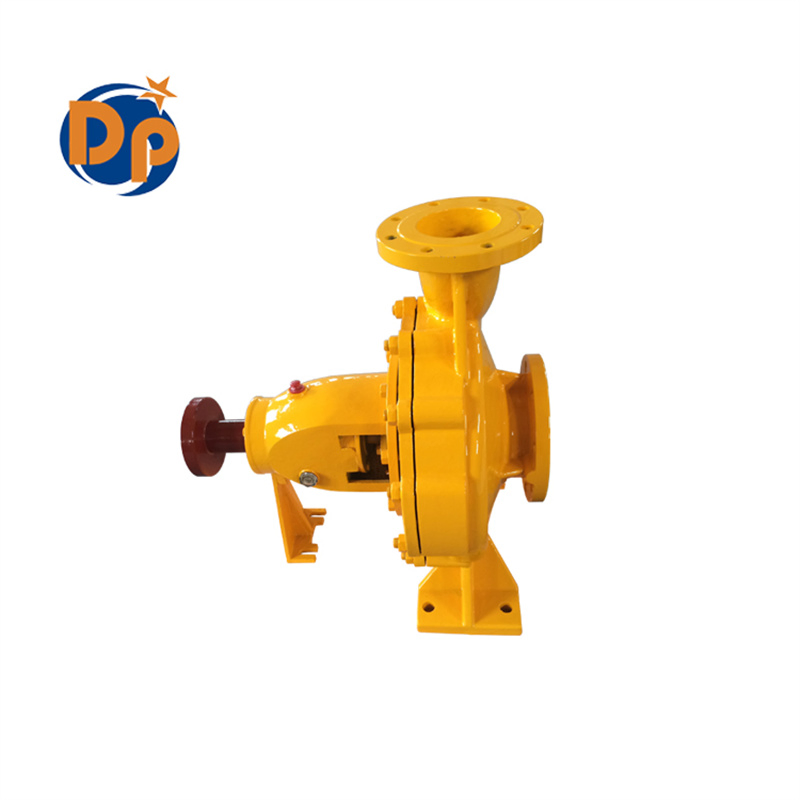

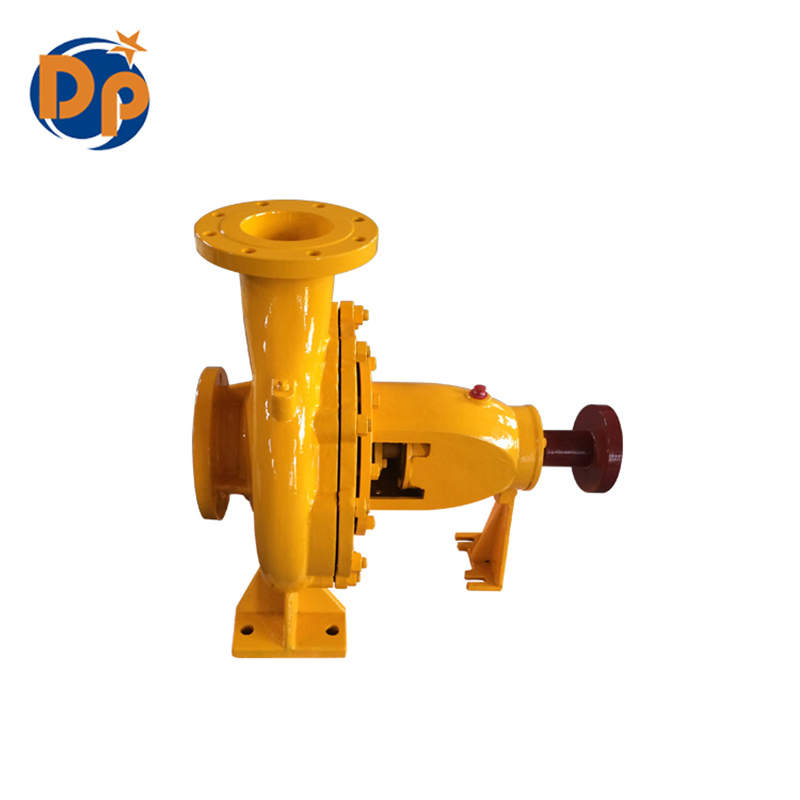

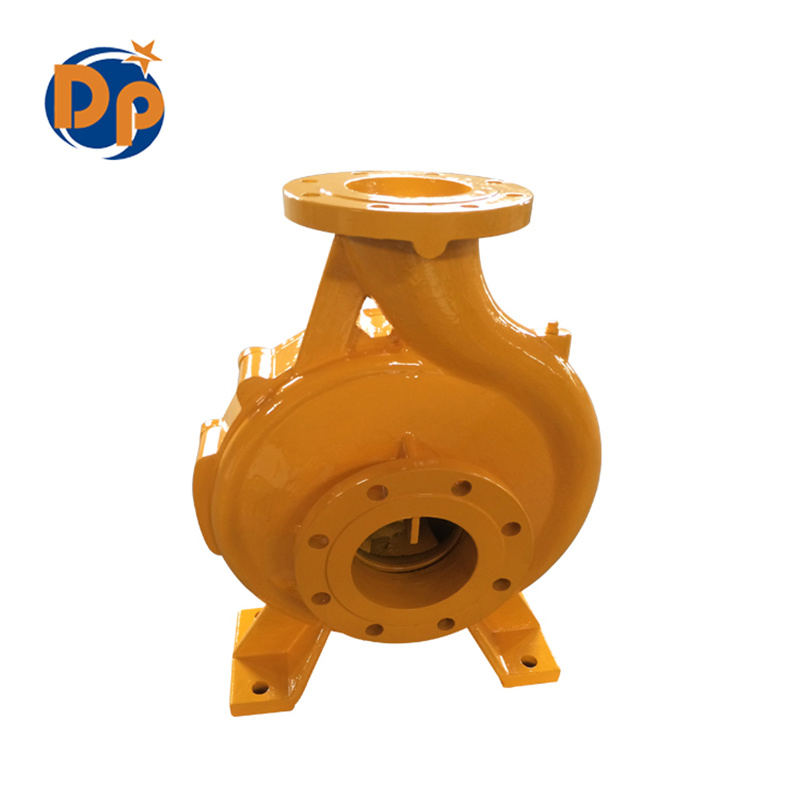

Is Type Bare Shaft End Suction Centrifugal Water Pump for Fire Fighting

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.	IS	Max.Capacity	>400 L/min
Driving Type	Motor / Diesel	Impeller Number	Single-Stage Pump
Working Pressure	High Pressure Pump	Position of Pump Shaft	Horizontal Pump
Usage	Clean Water Transfer	Voltage	220V/380V/410V/460V/High Voltage
Frequency	50Hz / 60Hz	Package Size	173.00cm * 65.00cm * 111.00cm
Gross Weight	607.000kg	HS Code	8413709990

Product Description

General Application Water Pump Small Booster Pump. These serial centrifugal water pumps are single stage suction cantilever centrifugal pumps. They are specifically designed to deliver clean water and liquids with physical and chemical properties similar to clean water.

Applications

Domestic water boosters
Sprinkler / Firefighting
Water treatment plants
Seawater pumping
Chemical / Processing
Food processing
Irrigation & Agriculture
Heavy duty industrial use
Mines & Construction sites
General water transfer

Technical Data

Up to 160m Head

Up to 250 L/sec Discharge

1600 kPa Pressure Rating

Key Features

Heavy duty oil lubricated taper roller bearings
Superior hydraulic design for higher efficiencies
Lower running costs and reduced maintenance
Heavy duty design type 316 shaft
High strength cast iron bearing housing
Mechanical seals fitted as standard
Double curvature impeller blades
Taper mounted impeller for easy removal
Replaceable stainless steel or bronze wear rings
Viton "O" ring body seals as standard

Model Notation

IS 65-40-200 A
IS - Model Series
65 - Inlet Diameter (mm)
40 - Outlet Diameter (mm)
200 - Nominal Impeller Diameter (mm)
A - Sign of cut impeller (O, A, B, C, Z available)

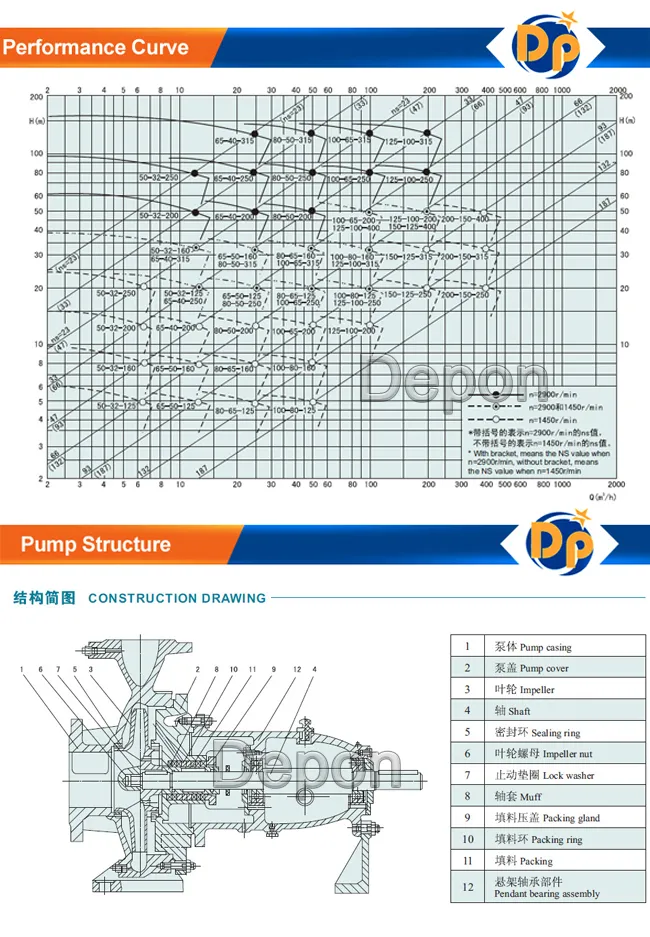

Models & Performance

Model	Flow (m³/h)	Head (m)	Speed (r/min)	Power (kw)	Inlet (mm)	Outlet (mm)
IS50-32-125	12.5	20	2900	2.2	50	32
IS50-32-160	12.5	32	2900	3	50	32
IS65-50-125	25	20	2900	3	65	50
IS80-65-160	50	32	2900	7.5	80	65
IS100-80-160	100	32	2900	15	100	80
IS125-100-200	200	50	2900	45	125	100
IS150-125-315	200	32	1450	30	150	125
IS200-150-400	400	50	1450	90	200	150

Frequently Asked Questions

What is the Minimum Order Quantity (MOQ)?

A trial sample order is acceptable to test the quality and performance of our pumps.

What are the available payment terms?

We accept T/T, L/C, D/P, D/A, or other terms as per customer requirements.

How long is the warranty period for the pumps?

We provide a one-year warranty for our pumps, depending on the specific working condition details.

What is the standard delivery time?

The delivery time usually ranges from 7 to 30 days, depending on the order quantities.

Do you provide OEM branding services?

Yes, we welcome OEM brand requests and can customize according to your specifications.

What information is needed for a pump solution?

To provide the best solution, please offer details regarding flow rate, head, liquid type, and power requirements.
