Impeller Number
Single-Stage Pump
Working Pressure
Middle Pressure Pump
Influent Type
Single Suction Pump
Shaft Position
Horizontal Pump
Pump Casing
Radial Split Casing
Mounting Height
Suction Centrifugal
Usage
Pump, Pumps, Circulating Pump, Chemical Pump
Manufacturer Level
Top Level
Shaft Sealing
Mechanical Seal and Packing
Pump Arrangement
Pipe Hung, Horizontal
Transmission
Direct Coupled, Gear Box, V-Belts, Universal Joint
Flange Standard
Customized

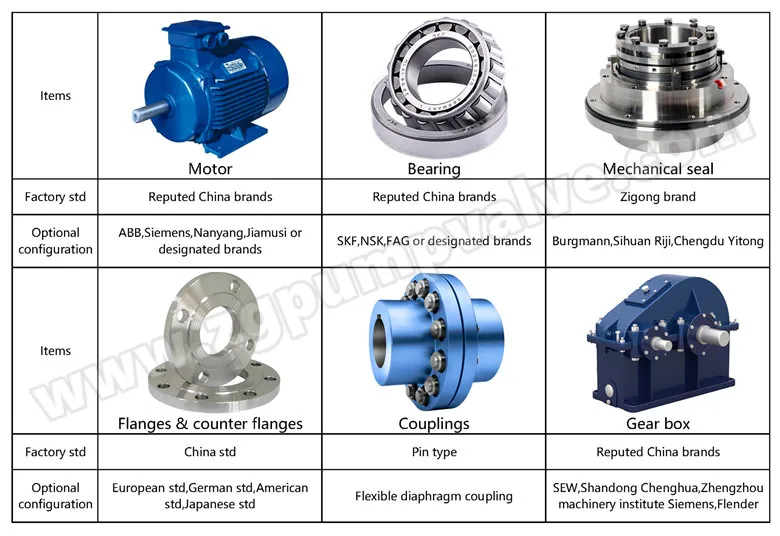

Motor Brand
ABB, Siemens or Reputed Brands
Pump Bearing
SKF, NSK or Reputed Brands
Brief introduction:

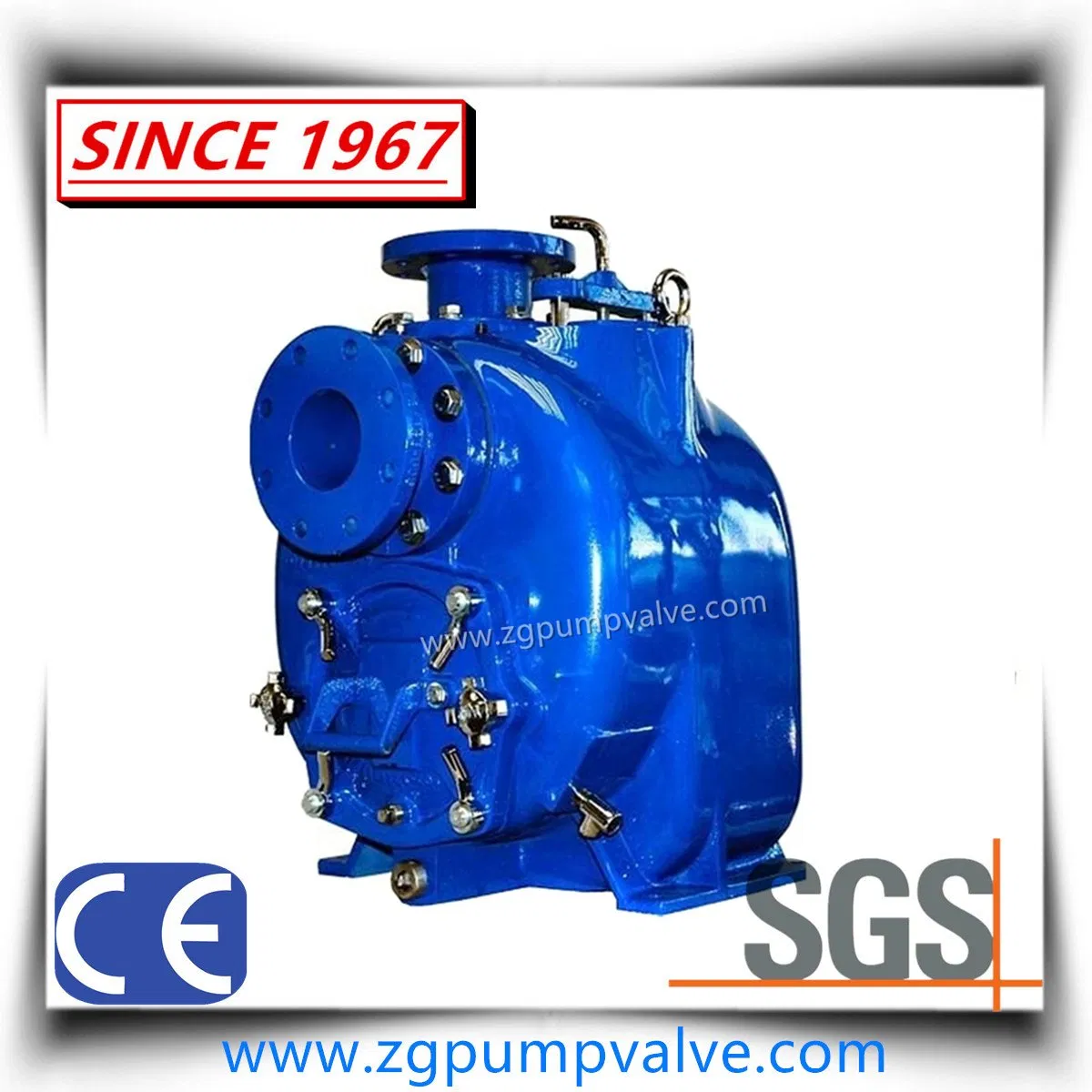

Our T series non-clogging self-priming centrifugal pump has introduced the latest technology and process. The product has the features of novel structure, reliable performance, unique mechanical seal structure of lubricating oil, no clogging blade and replaceable lining plate.

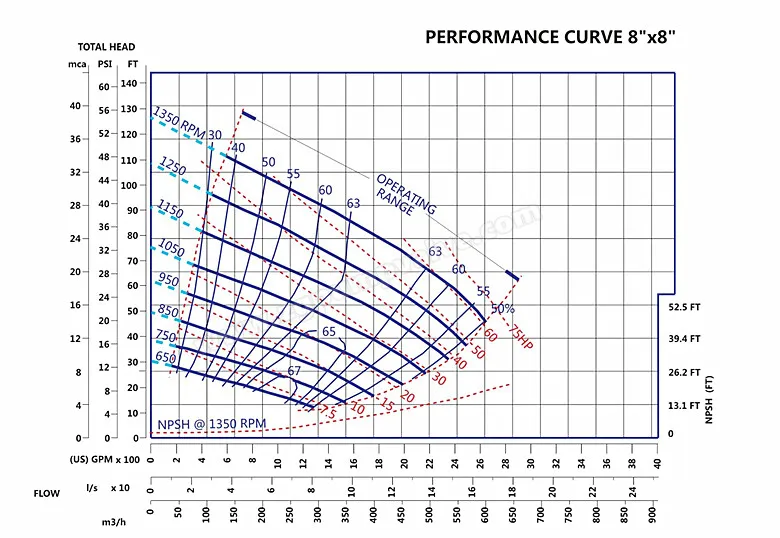

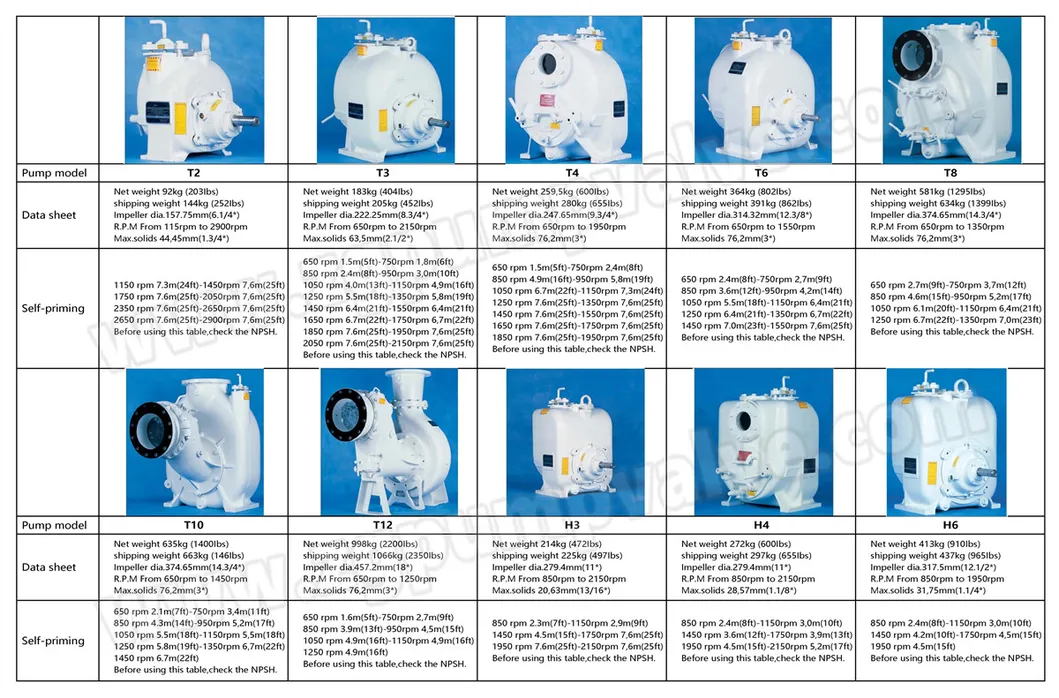

T series pumps are divided into eight specifications from Φ50 to Φ350, with performance range from flow rate to 1500m³/h and head of 10 to 68m. By cutting the outside diameter of impeller and changing the speed, it can meet various demands of users.
T series self-priming pump is widely used in municipal sewage, industrial waste water treatment engineering and all kinds of waste water classification or centralized treatment system, used for conveying belt slightly corroded or liquid containing a lot of solid particles.
Features:
◈ 1. Beautiful appearance, compact structure, reliable performance.
◈ 2. It has a strong self-priming ability, does not need to install the bottom valve.
◈ 3. Non-clogging, non-winding, with a strong ability of debris flow.
◈ 4. Unique lubrication-type mechanical seal cavity structure, seal reliable use.
◈ 5. Dismountable drainage hole structure ensures the ability to remove debris in time.
◈ 6. Special flap valve structure can make the pump start secondly in time to discharge liquid.
◈ 7. Can be mixed with gas and liquid output in short time.
◈ 8. Low speed, stable operation, long service life, easy maintenance.
◈ 9. Advanced pressure protection device ensures safe operation.

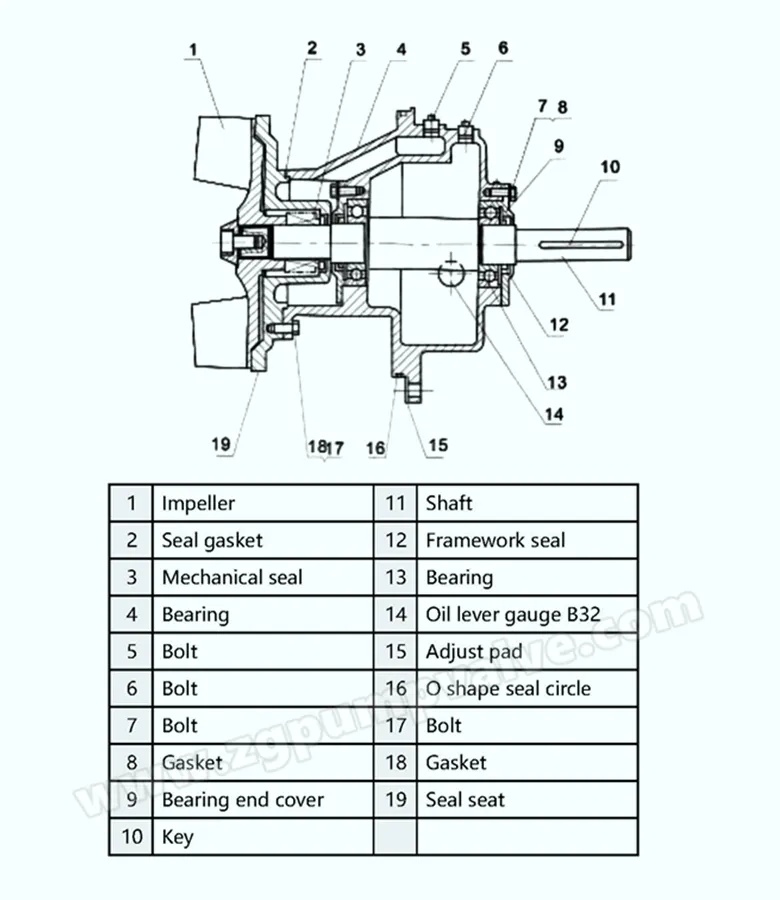

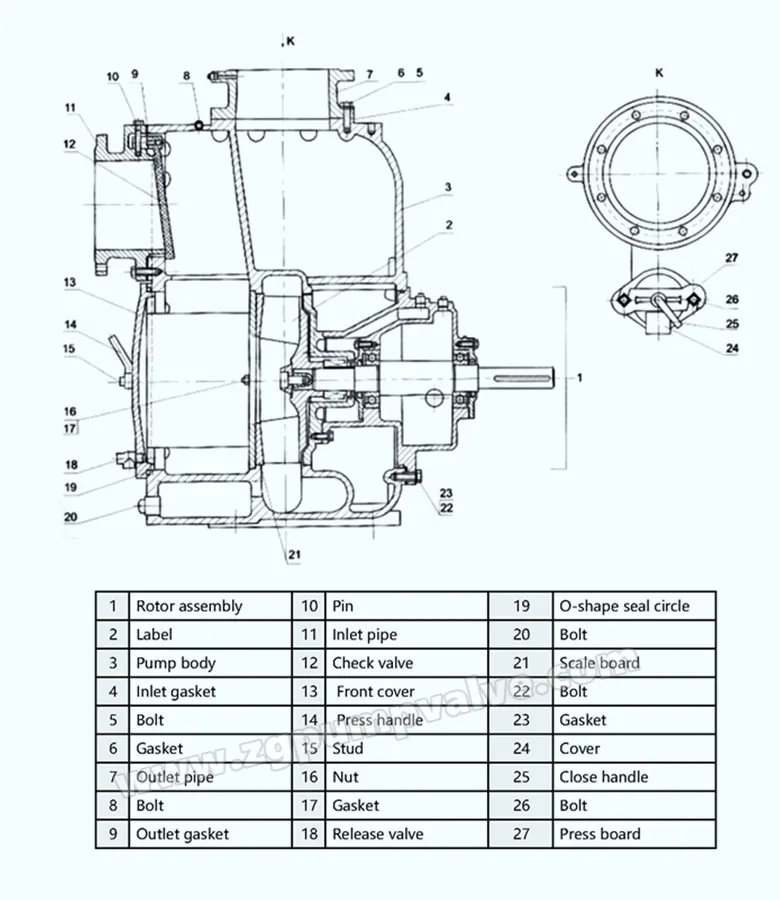

Structure & Rotor parts:
There is a big vortex chamber playing an important role. It is no need to equip check valve in the inlet and outlet to sewage efficiency when pump operates completely.
Application:
✔ a. Municipal project, sewage project, instruction project.
✔ b. Chemical medium with acid or alkali, slurry. Viscosity≤100centipoise, Solid content≤30%.
✔ c. Sewage transportation in hospitals, hotels, etc.
✔ d. Classification of municipal sewage treatment factory and concentrate treatment systems engineering.
✔ e. Transportation of factory and contaminated water.
FAQ
1. What is the primary advantage of the T series self-priming pump?
It features a strong self-priming ability that eliminates the need for a bottom valve and a non-clogging design suitable for liquids with high solid content.
2. What are the available specifications for these pumps?
The pumps come in eight specifications ranging from Φ50 to Φ350, with flow rates up to 1500m³/h and heads between 10m and 68m.
3. Can this pump handle corrosive liquids?
Yes, it is widely used for conveying slightly corroded liquids or industrial waste water containing significant solid particles.
4. What kind of motor and bearing brands are used?
We utilize high-quality components from reputed brands such as ABB or Siemens for motors, and SKF or NSK for bearings.
5. Is the maintenance of this pump complicated?
No, the design includes a dismountable drainage hole and a compact structure, ensuring stable operation and easy maintenance.
6. What is the maximum solid content the pump can handle?
The pump can handle slurry with a solid content of up to 30% and a viscosity of up to 100 centipoise.
