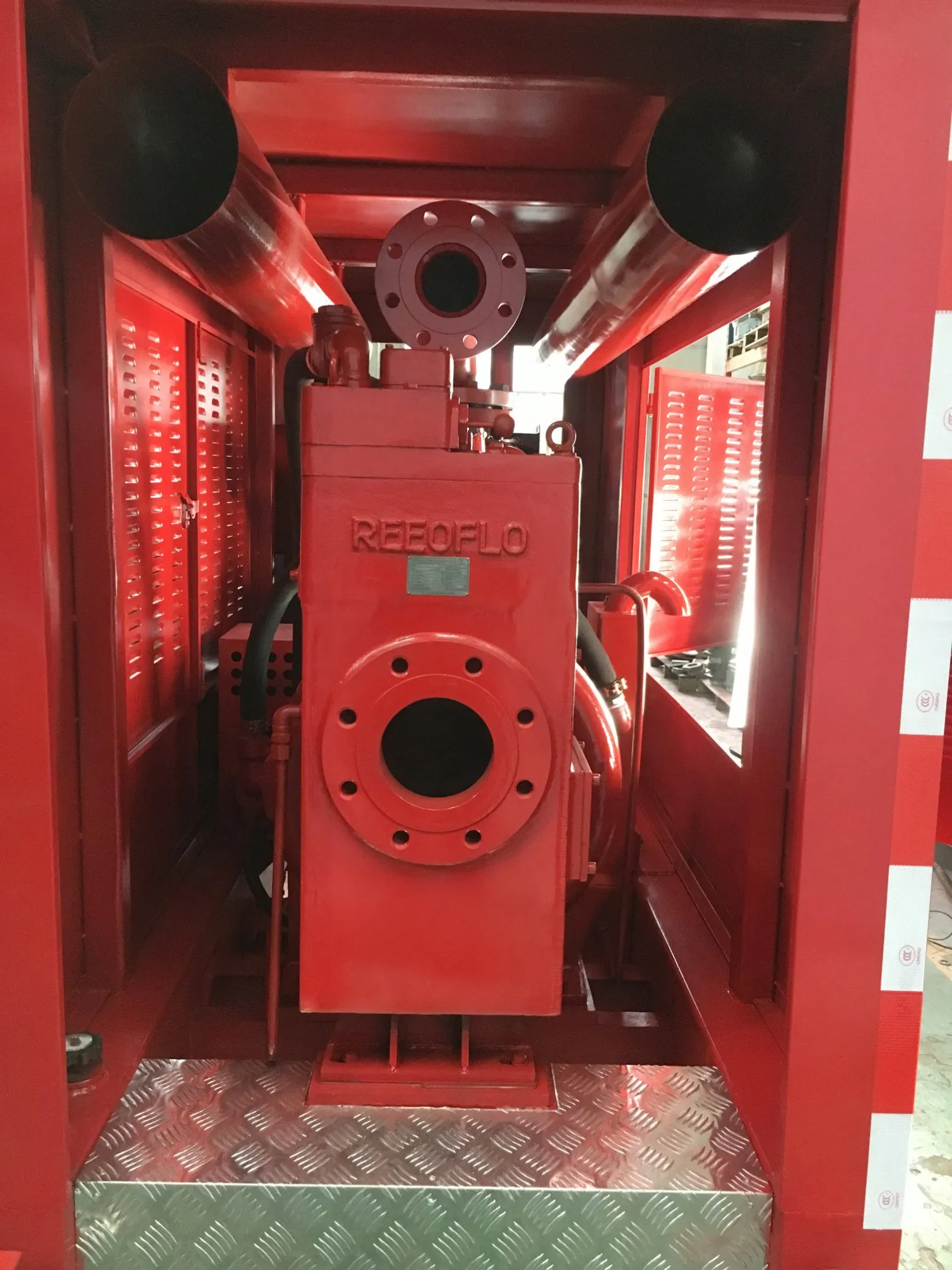

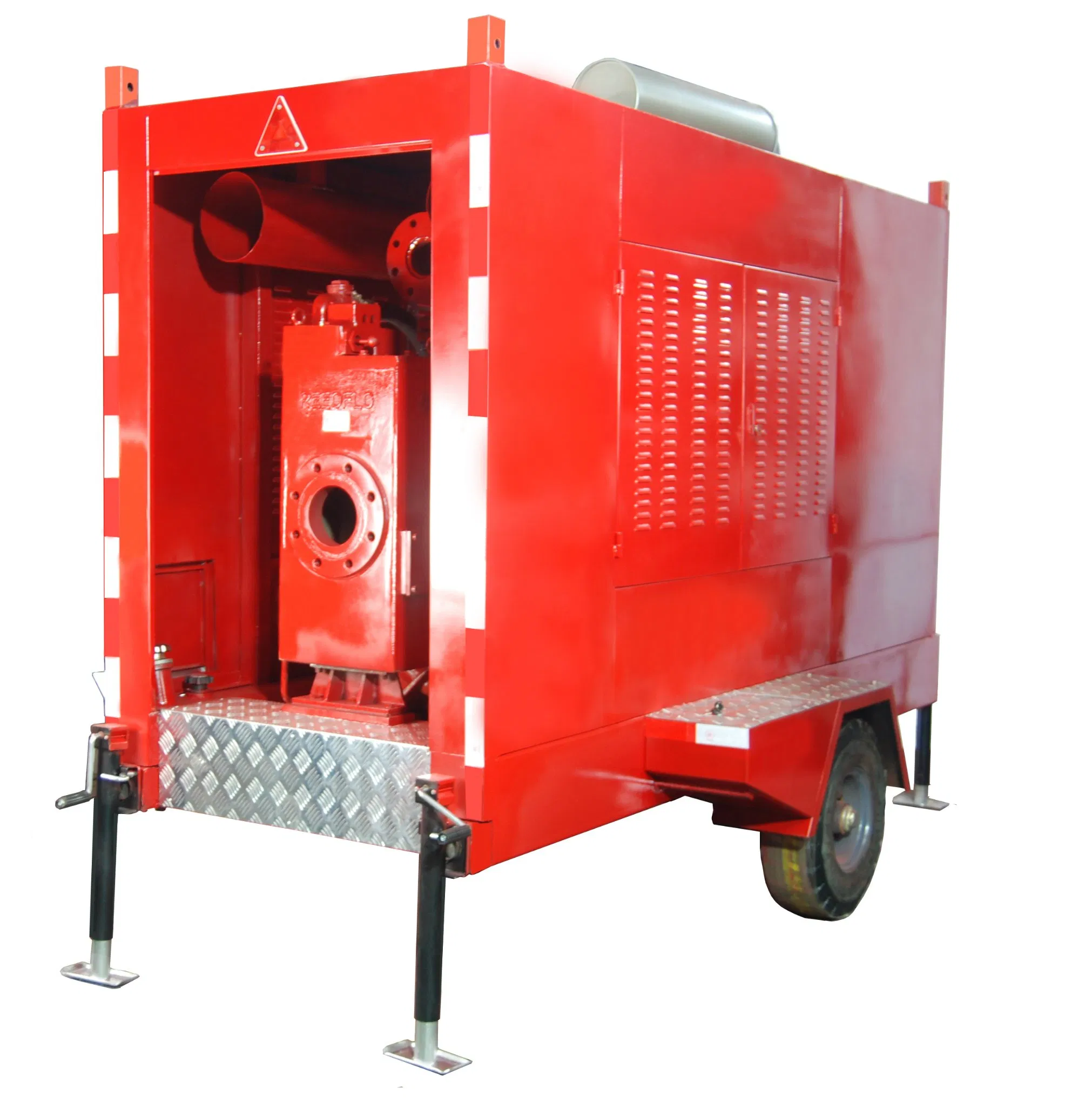

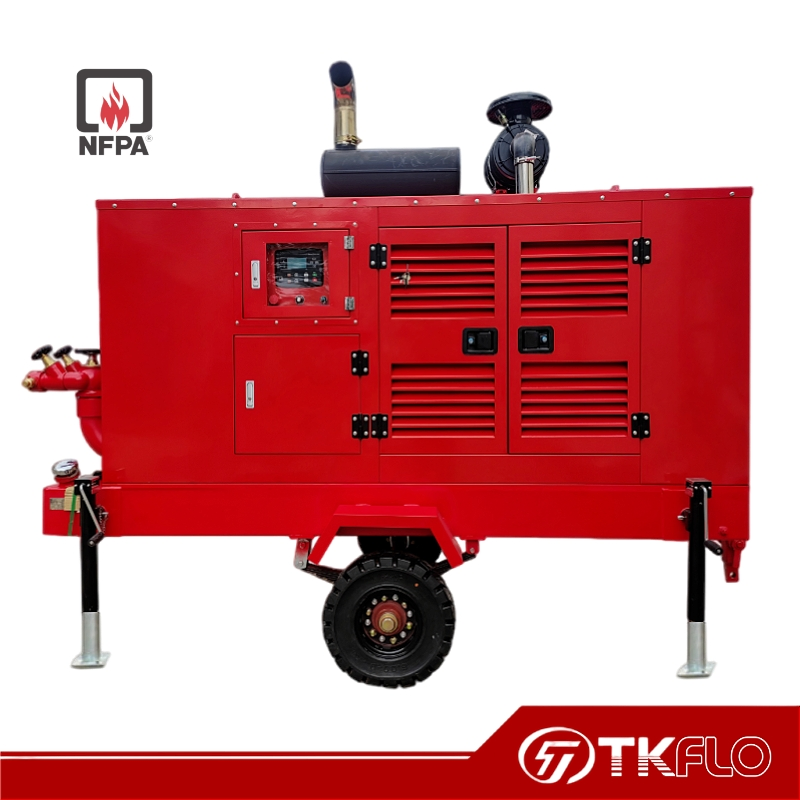

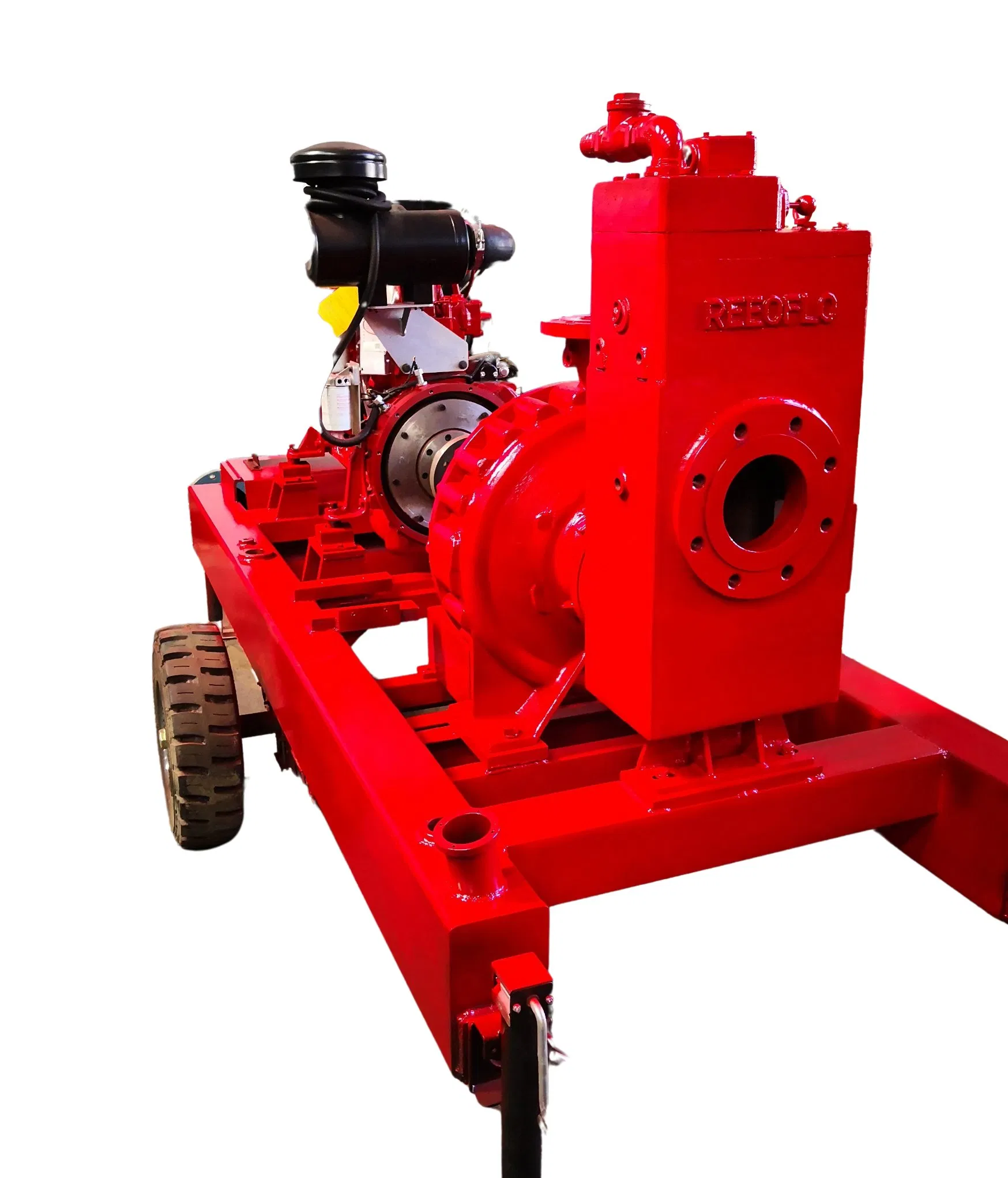

8 Inch Self-Priming Diesel Engine Centrifugal Hydraulic Fire Fighting Pump

1 / 5

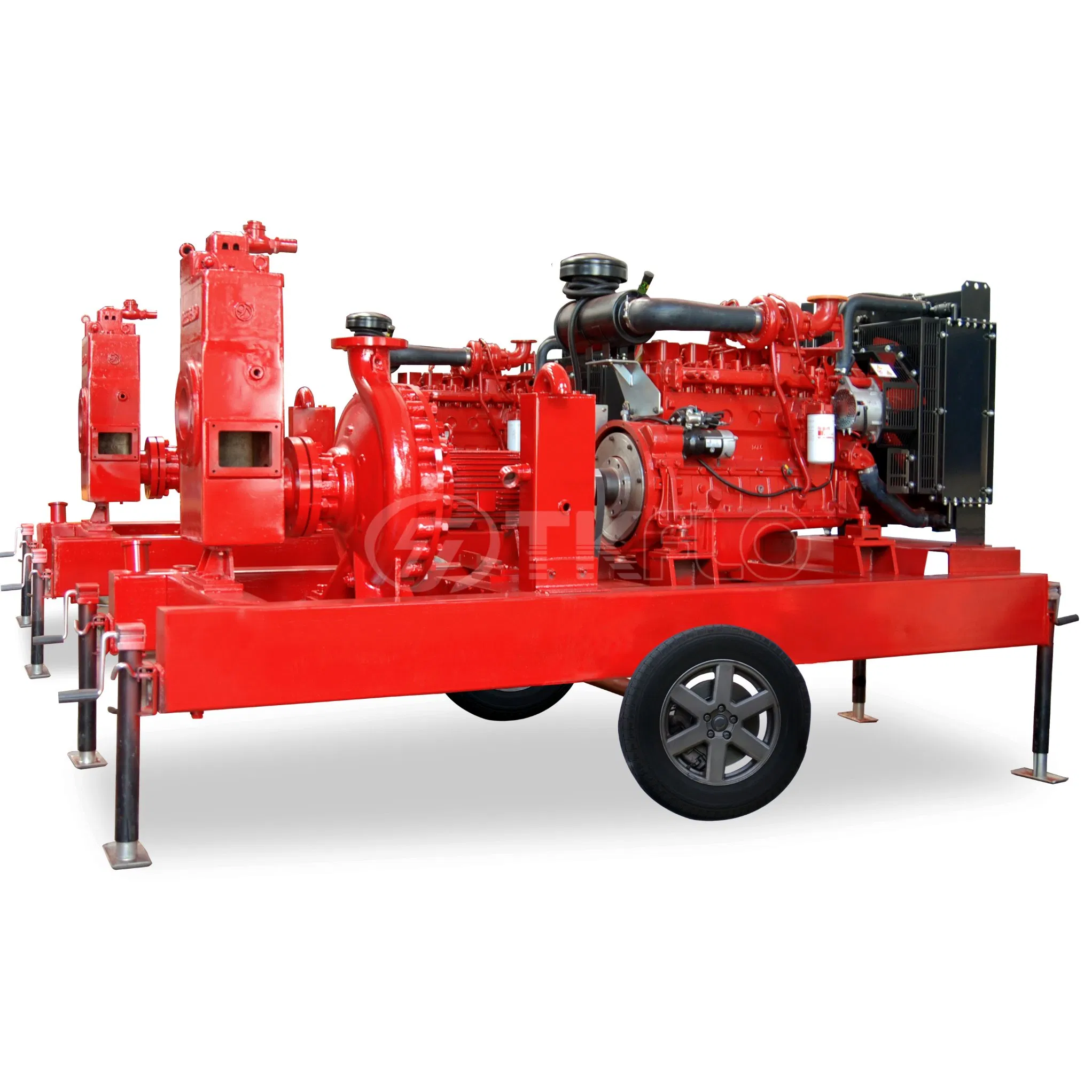

8 Inch Self-Priming Diesel Engine Centrifugal Hydraulic Fire Fighting Pump

Customization:	Available
After-sales Service:	Installation, Commission, Spare Part
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

SPDW

Max. Head

80-110m

Max. Capacity

>400 L/min

Driving Type

Diesel Engine

Material

Cast Iron

Structure

Heavy Duty

Suction Head

9.5m

Theory

Centrifugal Pump

Media

Water

Application

Fire Fighting, Chemical, Emergency

Product Description

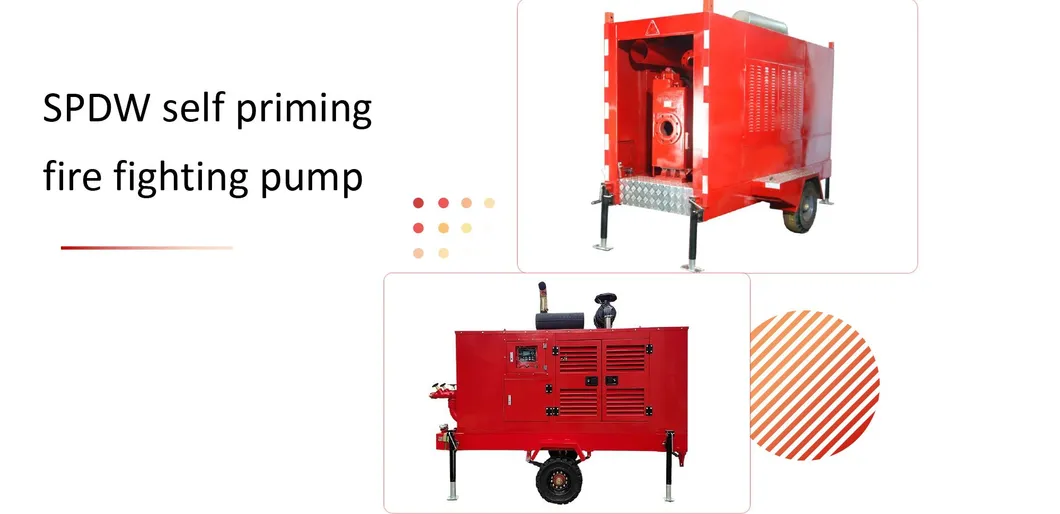

The SPDW series Movable Diesel Engine self-priming Water Pumps are designed specifically for fire fighting and emergency fluid transfer. This series can efficiently transport clean, neutral, and corrosive mediums containing particles, solving traditional self-priming pump limitations. Featuring a unique dry running structure, it allows for automatic startup and restart without the need for initial liquid priming.

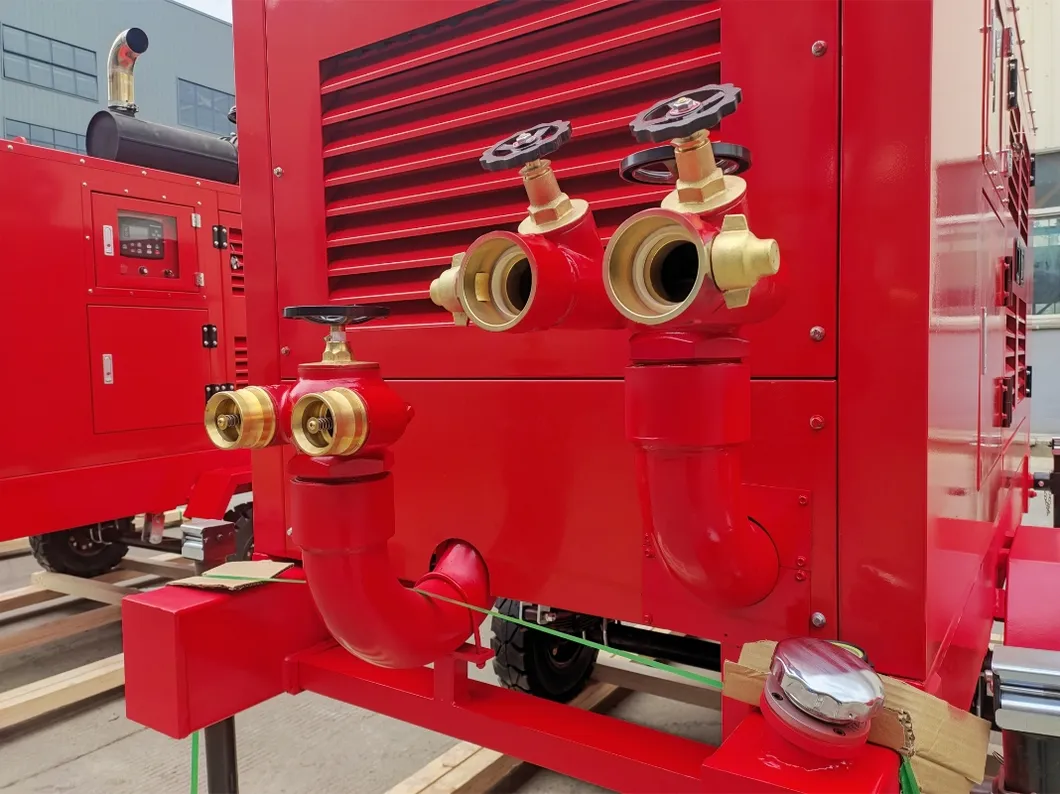

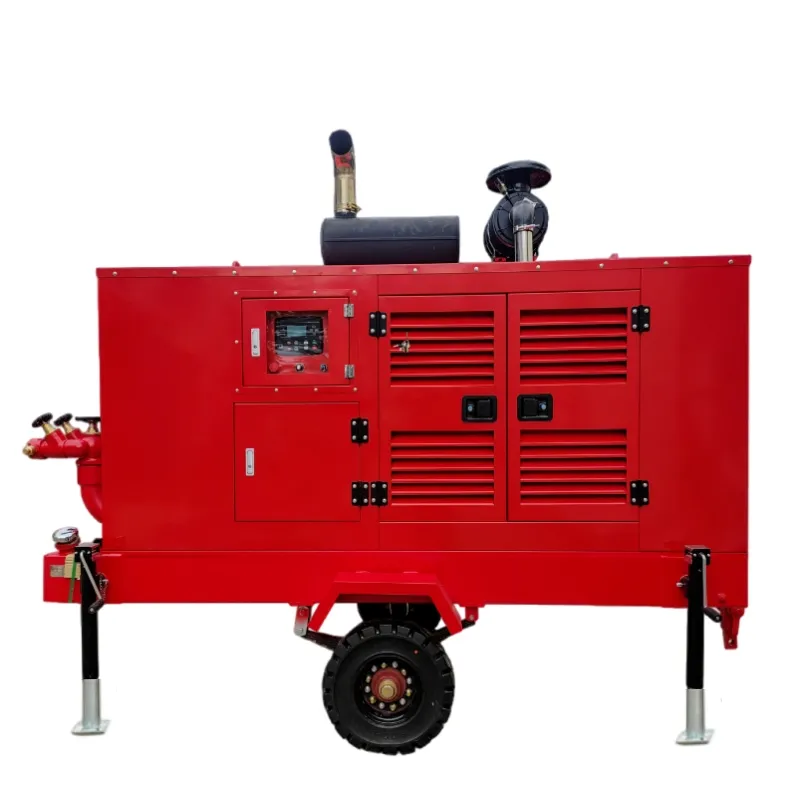

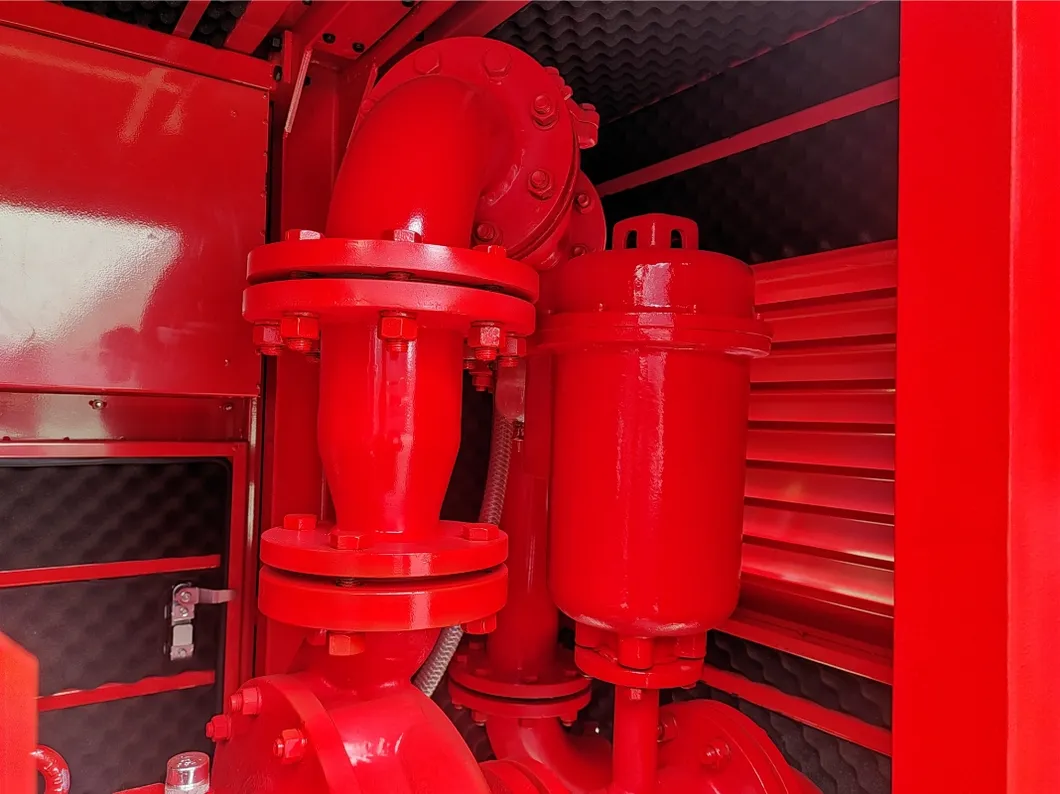

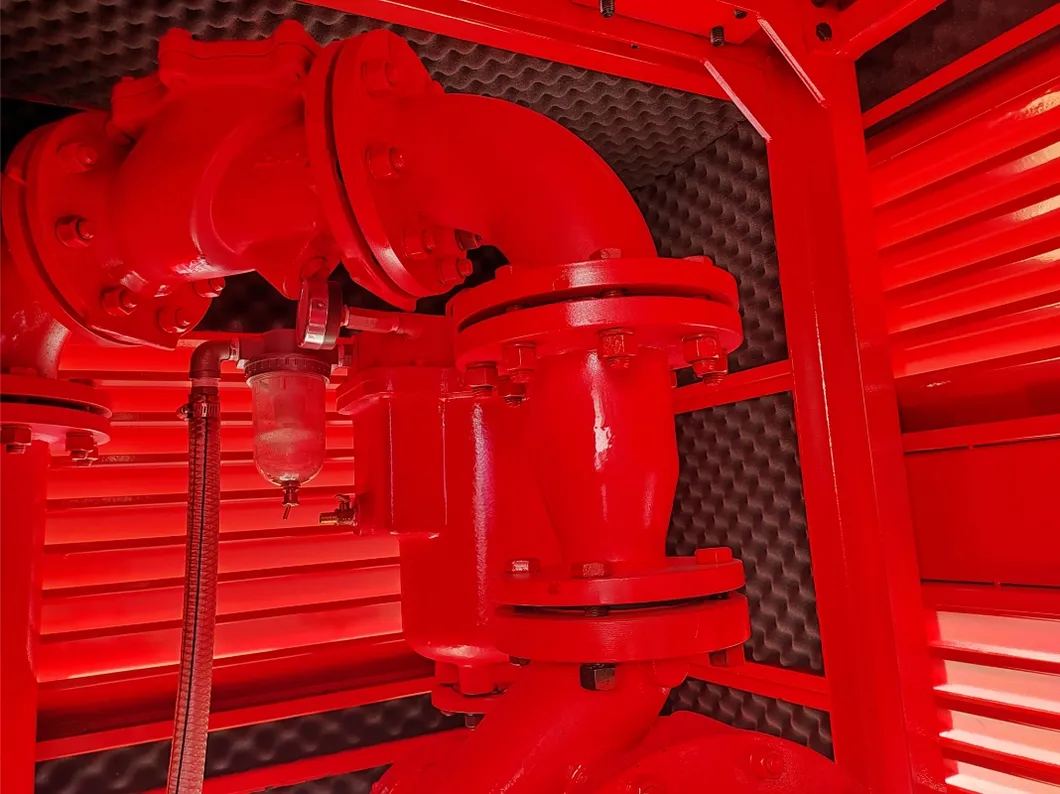

Detailed Product View

Technical Parameters

Specification	SPDW-150	SPDW-200	SPDW-300	SPDW-400
Engine Power (KW/rpm)	36/1800	60/1800	163/1800	330/1800
Max Flow (M3/h)	400	600	1200	2500
Max Head (m)	44	65	54	76
Solids Handling (mm)	48	52	65	75

Our Core Advantages

Superior Suction Power: Vertical suction lift reaches up to 9.5 meters in under 1 minute.

Instant Startup: Quick start and restart capability without pre-feeding water.

Solids Handling: Capable of passing large solid particles up to 75mm, suitable for deep well dewatering.

Built-in Durability: Heavy-duty internal bearings and dry running ability ensure long-term 24/7 reliability.

Market Applications

● Building & Construction

● Water & Waste Systems

● Quarries & Mining

● Emergency Water Control

● Docks, Ports & Harbors

Packaging & Quality

Package Size: 1600.00cm * 1500.00cm * 2000.00cm

Gross Weight: 120.000kg

Frequently Asked Questions

What is the maximum suction head of this pump?

The SPDW series features a high-performance suction lift that can reach up to 9.5 meters.

Does the pump require water priming before every start?

No, thanks to its unique dry running structure, the pump supports automatic startup and restart without needing initial liquid.

What size of solids can the pump handle?

Depending on the specific model, the pump can handle solid particles ranging from 40mm up to 75mm.

Is the unit portable for different job sites?

Yes, we offer both double-wheel and single-wheel designs to allow for easy movement across various working environments.

What certifications do these pumps hold?

Our manufacturing processes are certified under ISO 9001-2015, ISO 14001, and ISO 45001 international standards.

What materials are available for the pump construction?

We offer a variety of materials including Cast Iron, Stainless Steel, Ductile Iron, and Duplex Stainless Steel to suit different fluid conditions.
