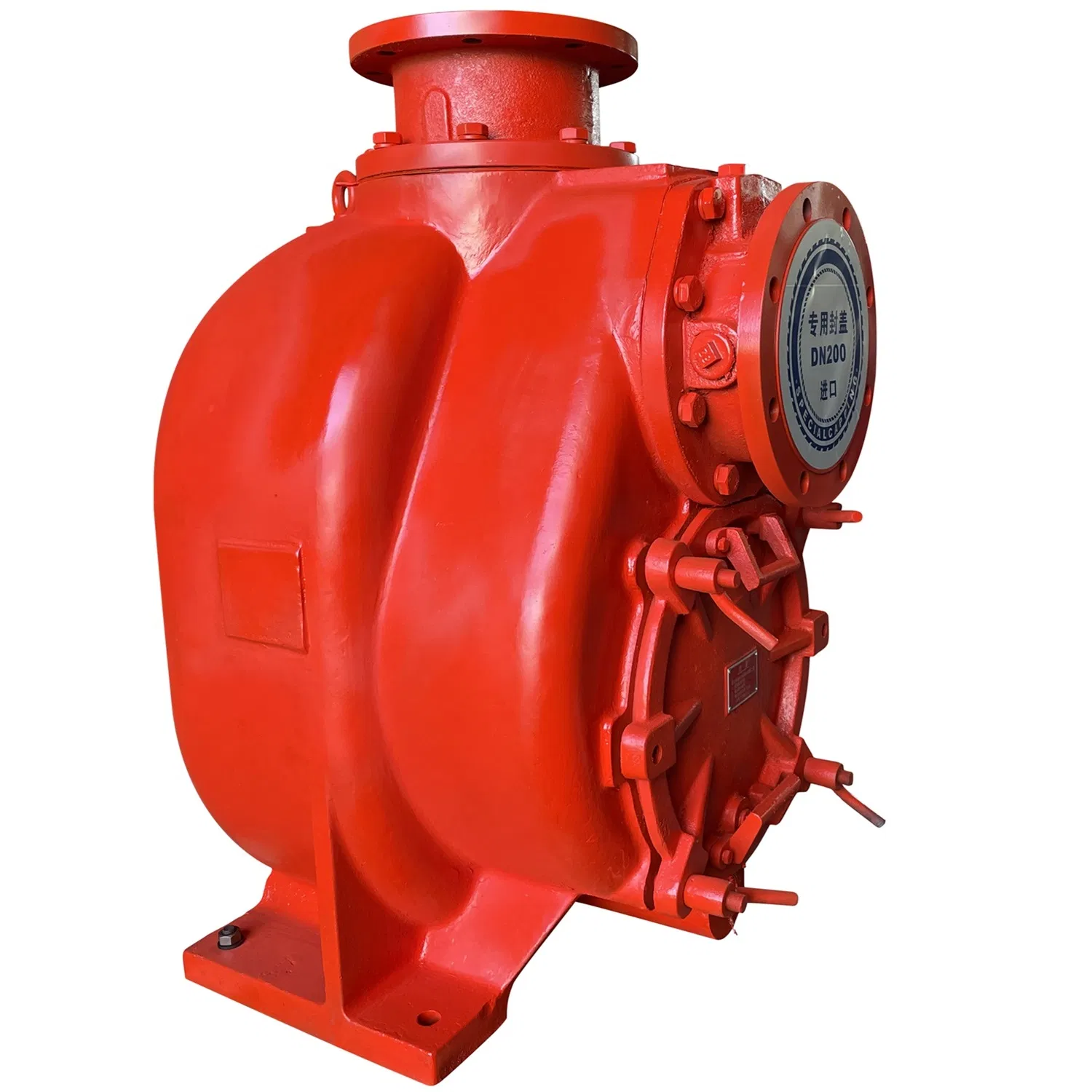

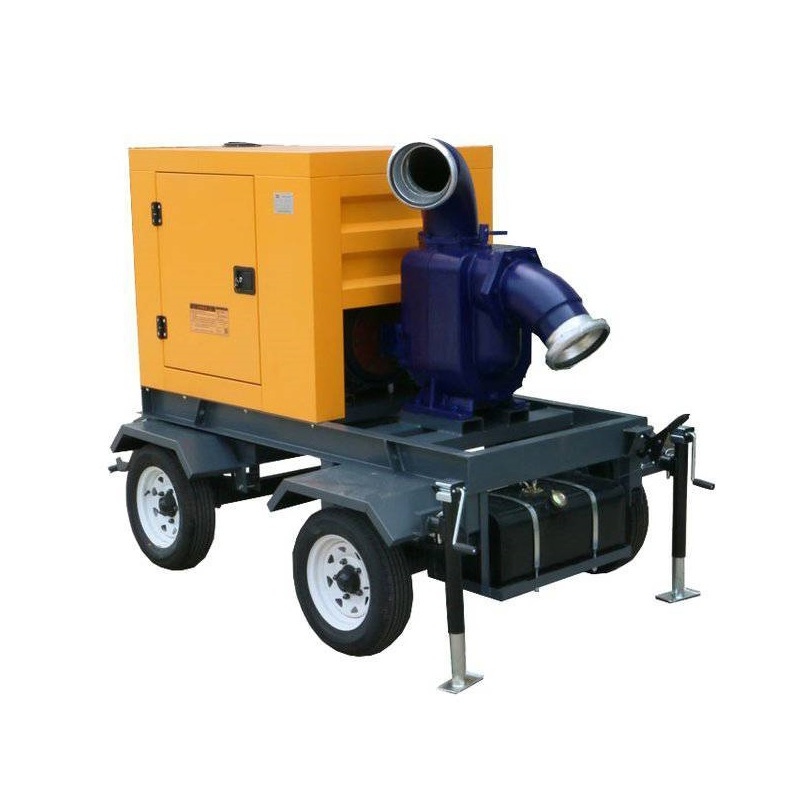

SCP series self priming sewage pump is a kind of specialized sewage disposal equipment, designed with super strong anti-clogging and impurity disposal capability. It can be used to dispose ultra long fiber impurities and more than 3 inch solid, this trash pump is also widely used in irrigation, flood drainage and underground water drainage fields.
| Model | SCP Series | ZK Series |
| Inlet and Outlet Dia | 2 inch, 3 inch, 4 inch, 6 inch, 8 inch, 10 inch, 12 inch | 6 inch, 8 inch, 10 inch,12 inch,14 inch |
| Flow Rate | 0-1275 m3/h | 0-1500 m3/h |
| Head | 0-42 m | 0-20m |
| Max Suction Lift | 7.6 m | 7.6 m |
| Max Solids | 76.2 mm | 80 mm |
| Speed | 650-2900 rpm | 850-2150 rpm |
| Power | 1-125 HP | 40-200 HP |
| Materail | Cast iron, Stainless steel 304/316/316L | |

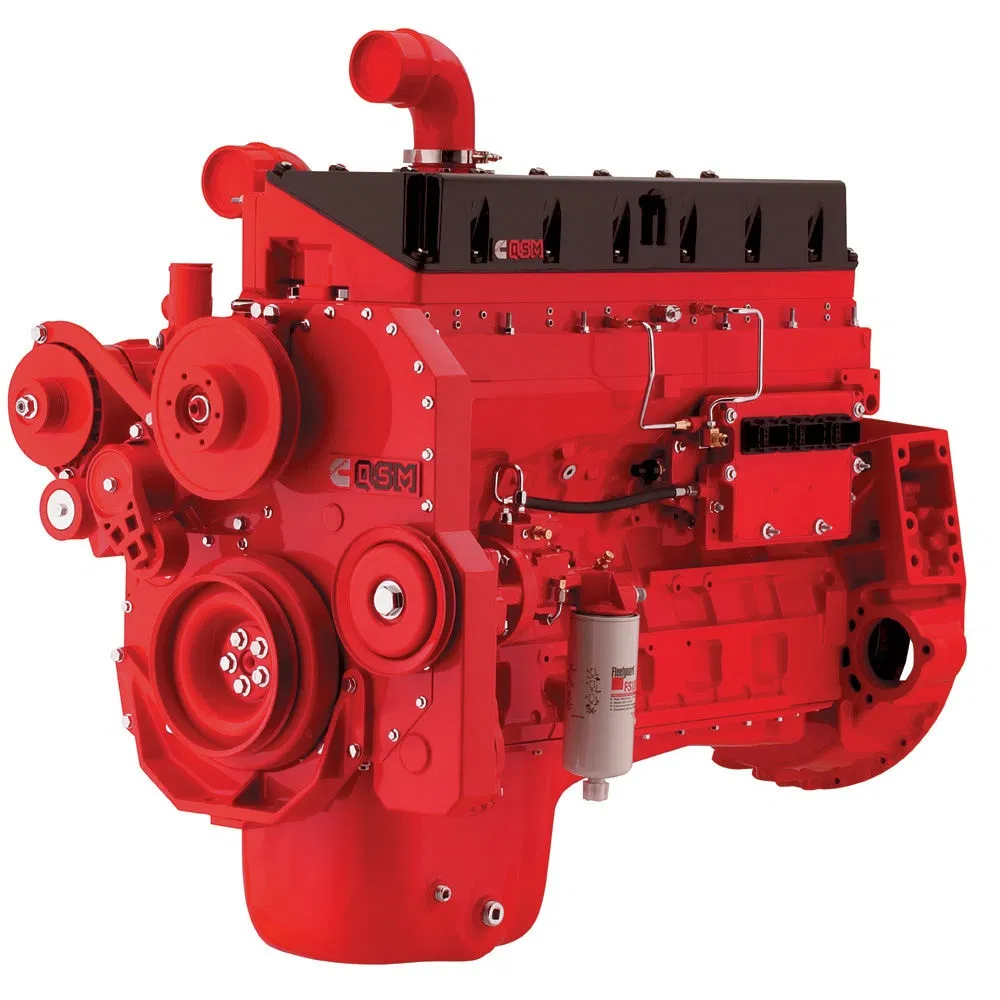

| Fuel | Diesel engine, gas engine or electric motor | |

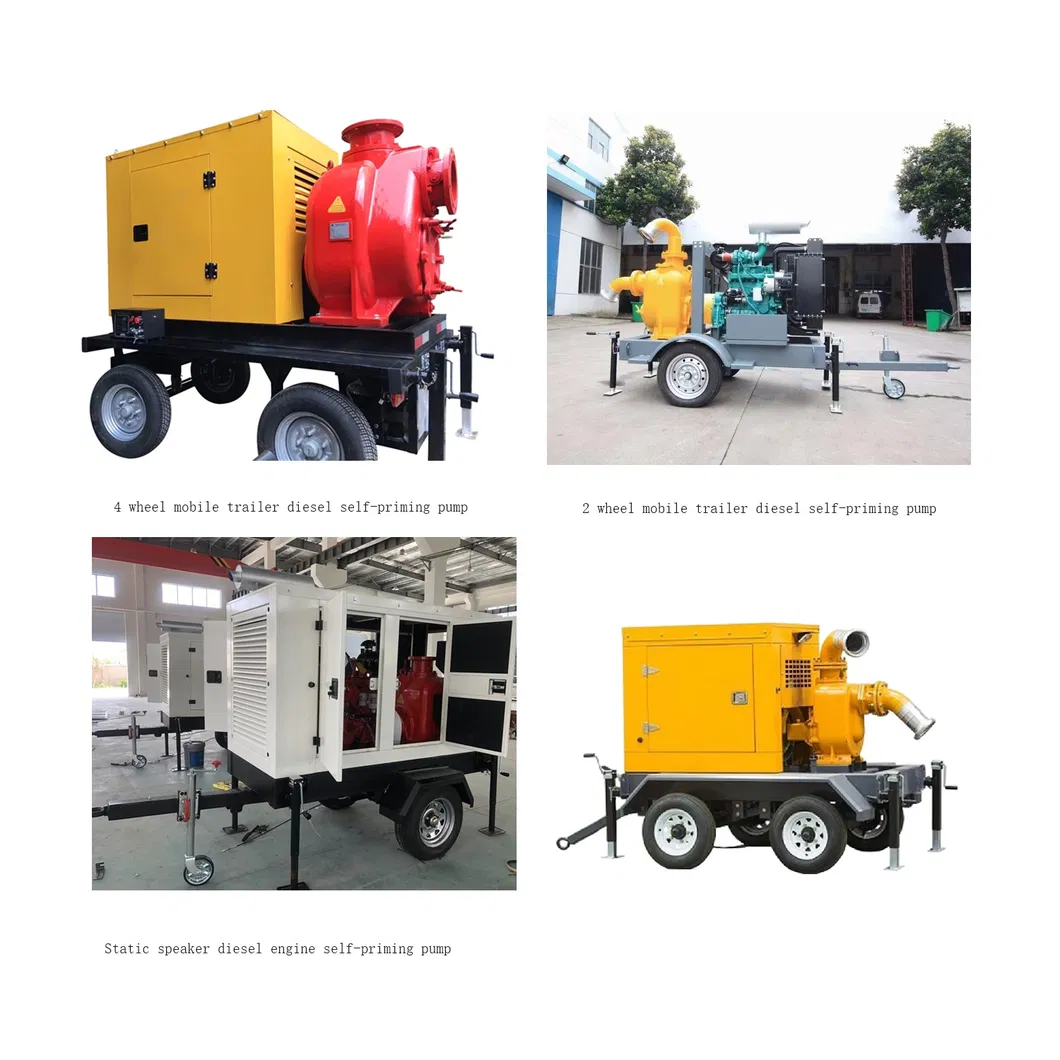

| Accessories | 2 or 4 wheels trailer, silence-box, control panel, base plate and so on. | |
| Model | Max.Flow (m³/h) | MAX. Head (m) | MAX. Suction Head (m) | Inlet & Outlet (inch) |
| SCP-2 | 46 | 36 | 7.6 | 2 |
| SCP-3 | 100 | 35 | 7.6 | 3 |
| 100ZWC100-20 | 100 | 24 | 5 | 4 |
| SCP-4 | 160 | 35 | 7.6 | 4 |
| 150ZWC180-14 | 200 | 20 | 5 | 6 |
| 150ZWC180-20 | 20 | 25 | 5 | 6 |
| SCP-6 | 330 | 30 | 7.6 | 6 |
| SP6-250 | 340 | 29 | 8.5 | 6 |
| 200ZWC280-14 | 300 | 18 | 5 | 8 |
| 200ZWC280-20 | 300 | 25 | 5 | 8 |
| SCP-8 | 600 | 30 | 7.6 | 8 |
| SP8-300 | 550 | 25 | 8.5 | 8 |
| 250ZWC420-20 | 500 | 25 | 5 | 10 |
| SCP-10 | 800 | 20 | 7 | 10 |
| SP10-305 | 800 | 20 | 8.5 | 10 |
| 300ZZWC800-14 | 900 | 15 | 5 | 12 |
| SCP-12 | 1000 | 20 | 8.5 | 12 |
| SP12-305 | 100 | 18 | 8.5 | 12 |
| SP14-40 | 1500 | 25 | 8.5 | 14 |
| 400ZSC1800-14 | 2000 | 18 | 8.5 | 16 |
