TPOW series double suction centrifugal pump is primarily designed for transporting water or liquids with physical and chemical properties similar to water. Featuring two suction inlets on the impeller, it delivers exceptionally large flow rates. This high-performance pump is ideal for urban flood drainage, power stations, water supply systems, agricultural irrigation, water plants, pumping stations, and industrial water circulation systems including HVAC and fire fighting.
| Pump Model | Capacity | Head (m) | Speed (r/min) | Power (kw) | Eff. (%) | NPSHr (m) | Weight (kg) | ||
|---|---|---|---|---|---|---|---|---|---|
| m3/h | L/S | Shaft | Motor | ||||||
| TPOW80-220 | 66.5 | 18.5 | 12.8 | 1480 | 2.9 | 4 | 81 | 1.7 | 181 |
| TPOW80-220A | 71 | 17 | 10.8 | 1480 | 2.6 | 3 | 80 | 1.7 | 181 |
| TPOW80-220B | 55 | 15.5 | 9 | 1480 | 1.7 | 3 | 78 | 1.7 | 181 |
| TPOW80-220 | 134.5 | 37.4 | 51 | 2950 | 23.1 | 37 | 81 | 3.5 | 181 |

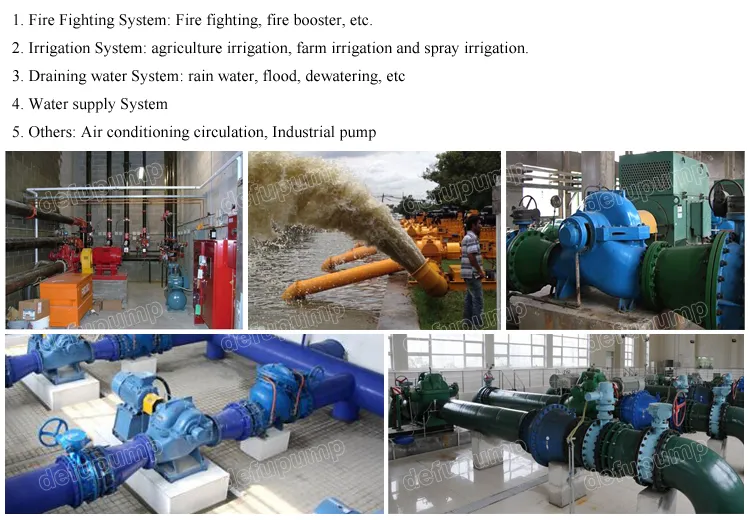

A: It is widely used for urban flood drainage, water plants, irrigation, power station water supply, and industrial cooling or heating circulation systems.
A: We offer various material options including Cast Iron, SS304, and SS316 to suit different liquid properties and environments.
A: The standard TPOW series can handle liquid temperatures up to 120°C, with specific configurations allowing up to 150°C.

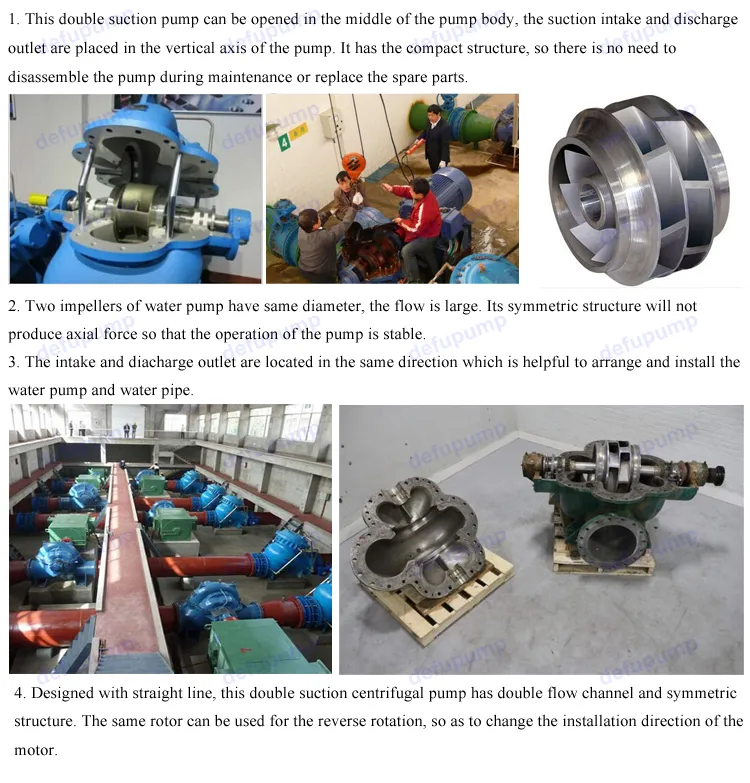

A: The double suction impeller allows water to enter from both sides, significantly increasing the flow capacity and improving hydraulic balance compared to single suction pumps.
A: Depending on your requirements, we provide either traditional Packing Seals or modern Mechanical Seals for leak-proof operation.
A: All pumps are packed in professional export-grade plywood cases to ensure they are protected from damage during sea or land transport.
