750 Gpm Horizontal Double Suction Fire Pump Fire Fighting Equipment

Customization:	Available
After-sales Service:	Online Service
Warranty:	12-24 Months

Send Inquiry

Product Description

Basic Information

Model NO.

XBD-SOW

Max.Head

>150m

Max.Capacity

300-400 L/min

Driving Type

Motor

Impeller Number

Single-Stage Pump

Working Pressure

High Pressure Pump

Influent Type

Double-Suction Pump

Pump Shaft

Horizontal Pump

Impeller Material

SS304/SS316/SS316L/2205

Voltage

380V 660V 400V 415V

Frequency

50Hz

Origin

China

📦

Packaging & Delivery:
Package Size: 130.00cm * 100.00cm * 120.00cm
Gross Weight: 300.000kg

Product Description

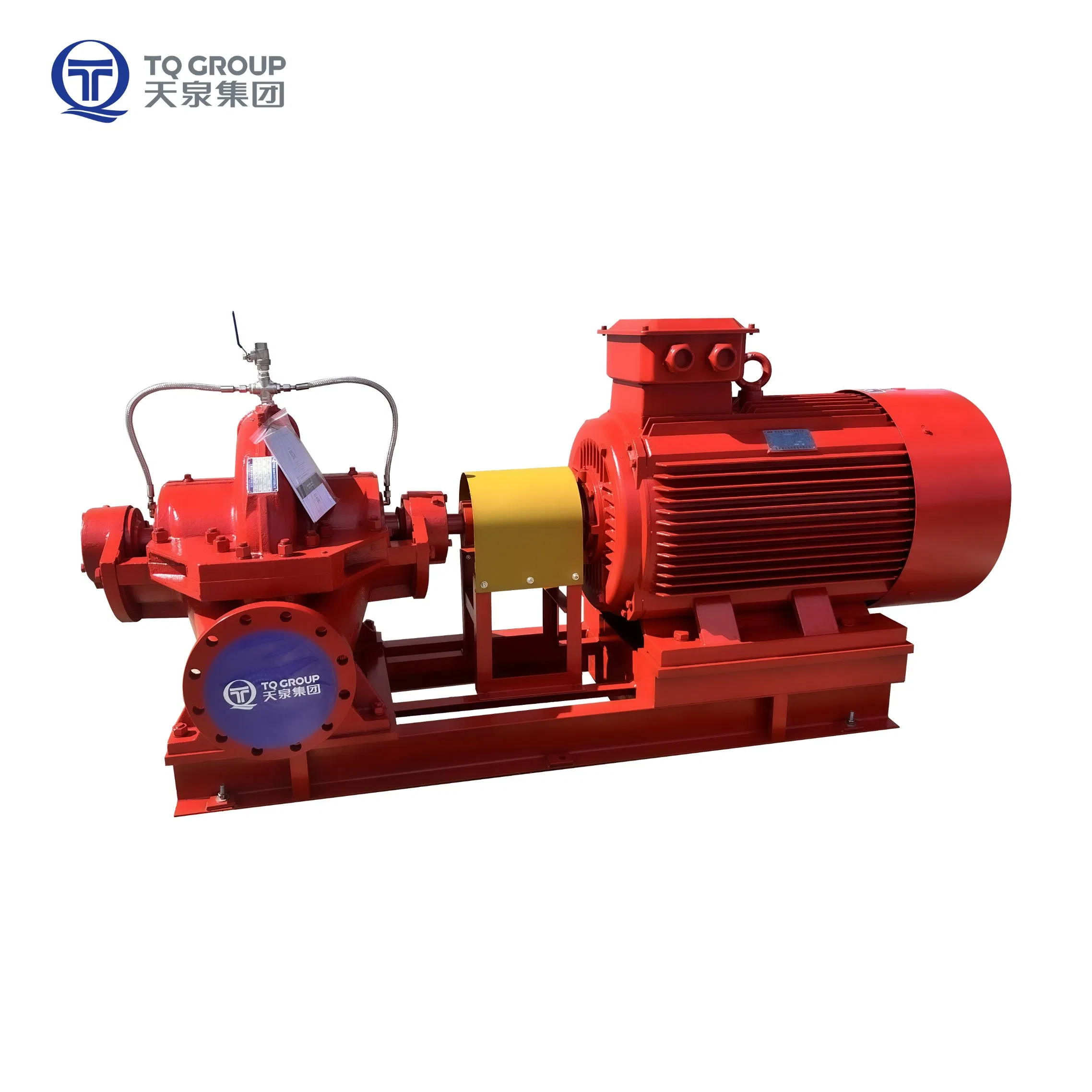

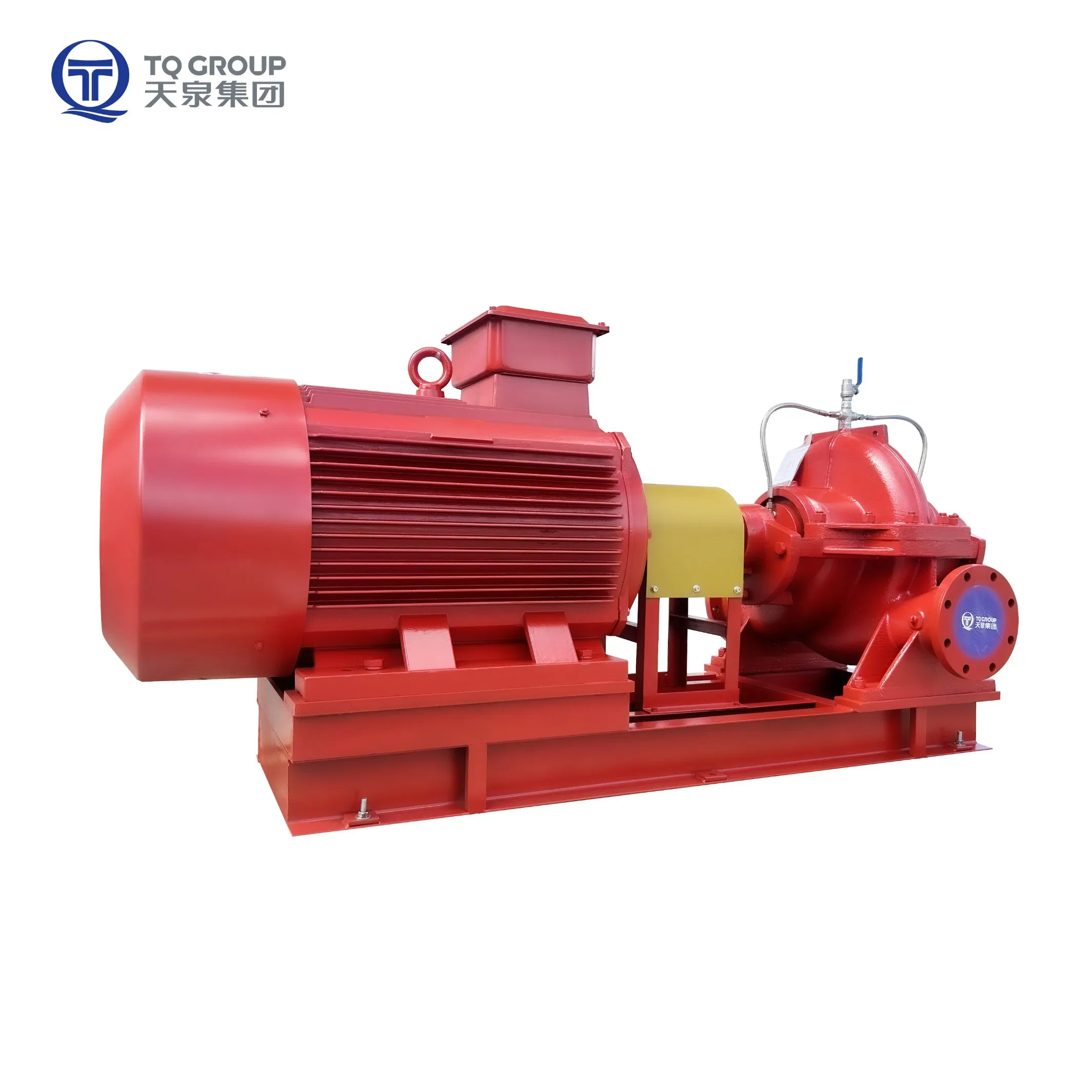

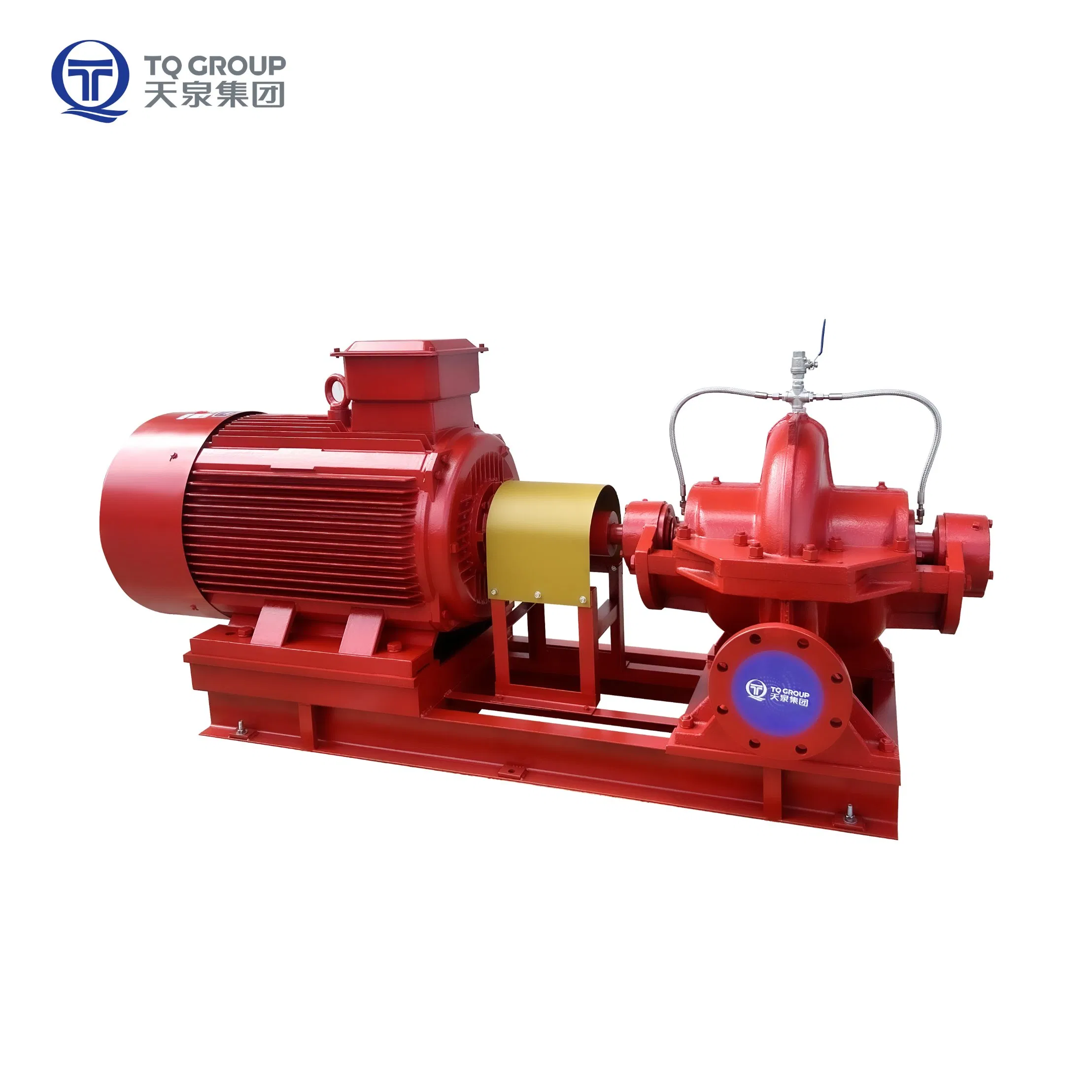

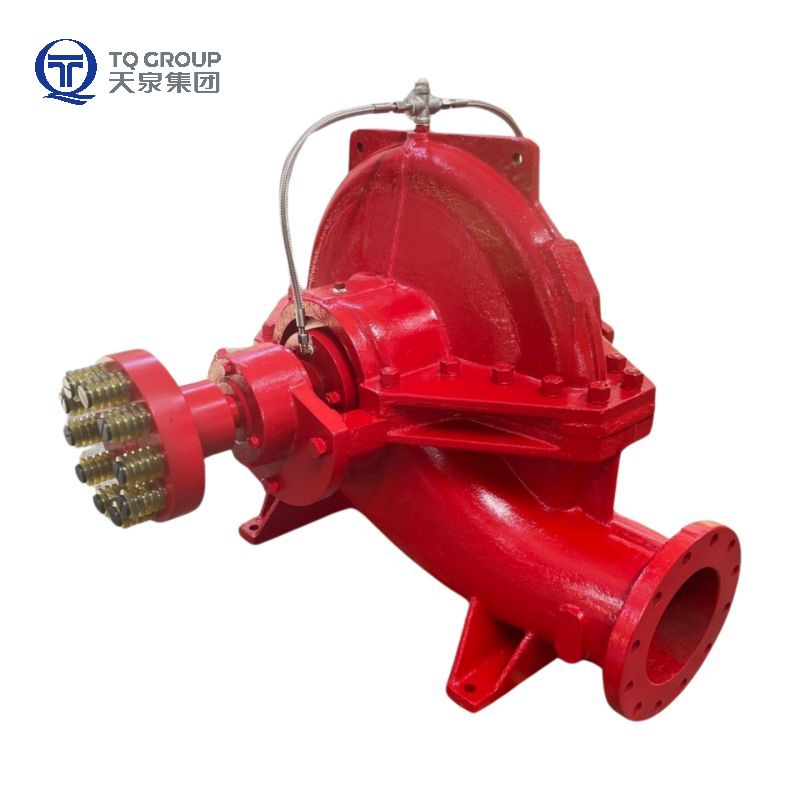

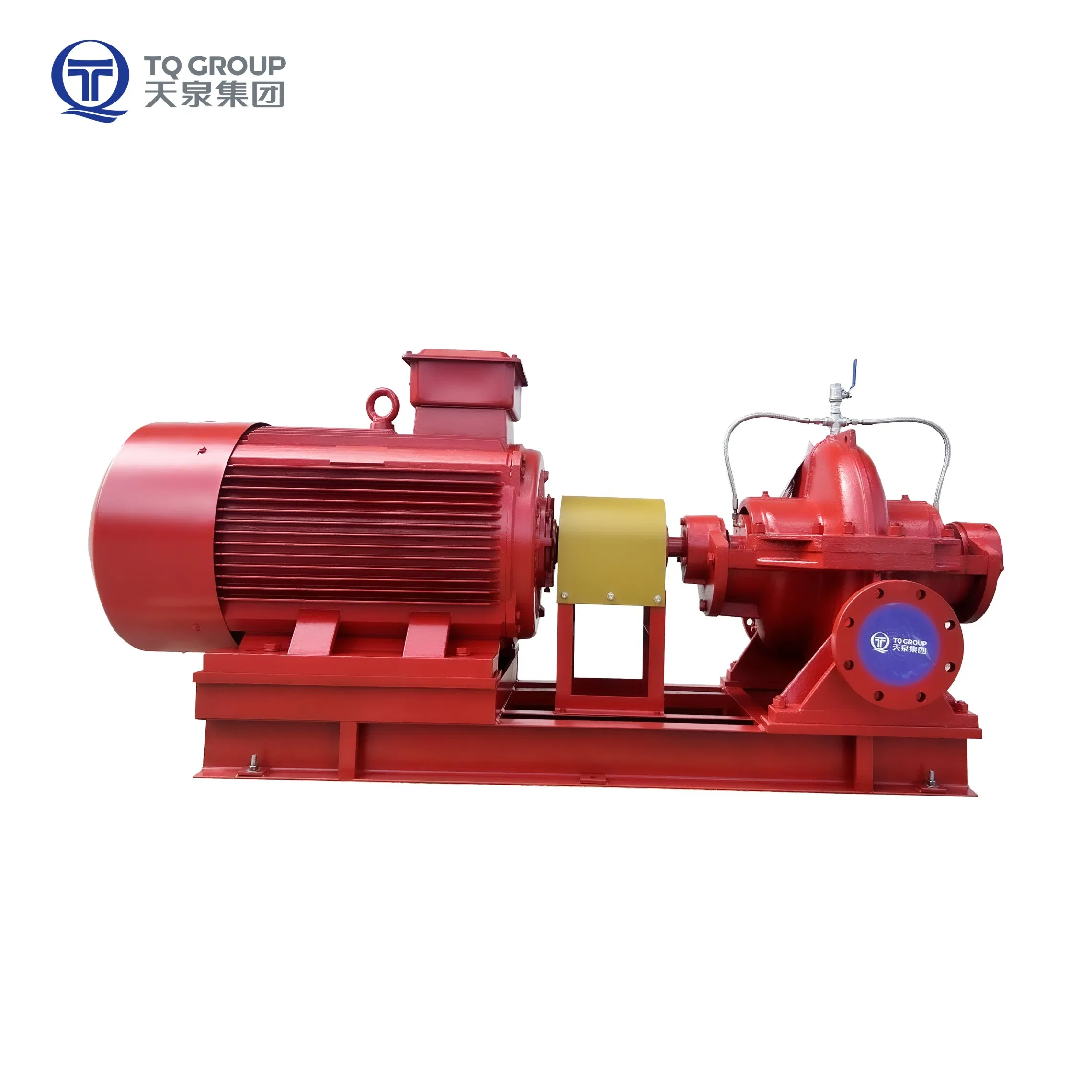

XBD-SOW Horizontal Single Stage Double Suction Split Case Fire Pump is renowned for its high flow capacity. It is an essential component for industrial fire protection systems, including fire hydrant extinguishing systems and automatic sprinkler systems.

⚙️

Key Features:

Flow rate range: 110L/s to 420L/s
Motor power: Up to 400KW
High-quality 304 stainless steel impellers
20CR13 Grade shafts
Equipped with YE3 low-voltage electric AC motors

Application Areas

Ideally suited for high-demand environments including:

• Power Plants & Industrial Factories
• Logistics Centers & Warehouses
• Ports & Maritime Facilities
• Coal Mines & Infrastructure Projects

Technical Parameters

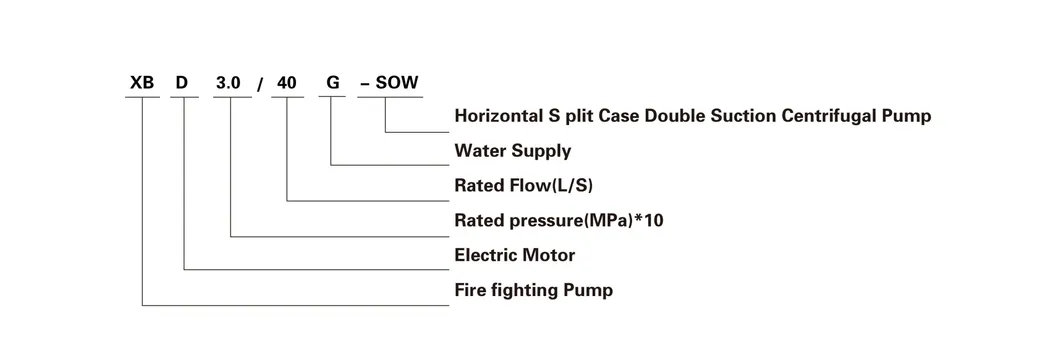

No.	Model	Inlet/Outlet (DIN)	Rated Capacity (L/s)	Rated Pressure (MPa)	Motor Power (kW)	Rated Speed (r/min)
1	XBD9.0/110G-SOW	200/150	110	0.9	185	1450
2	XBD4.5/120G-SOW	200/150	120	0.45	90	1450
3	XBD6.0/120G-SOW	200/150	120	0.6	132	1450
4	XBD7.0/120G-SOW	200/150	120	0.7	132	1450
5	XBD8.8/120G-SOW	200/150	120	0.88	200	1450
10	XBD10.0/130G-SOW	200/150	130	1	250	1450
20	XBD12.2/150G-SOW	250/200	150	1.22	315	1450
30	XBD7.0/200G-SOW	300/250	200	0.7	220	1450
40	XBD8.0/280G-SOW	300/250	280	0.8	355	1450
50	XBD4.5/420G-SOW	400/350	420	0.45	400	1450

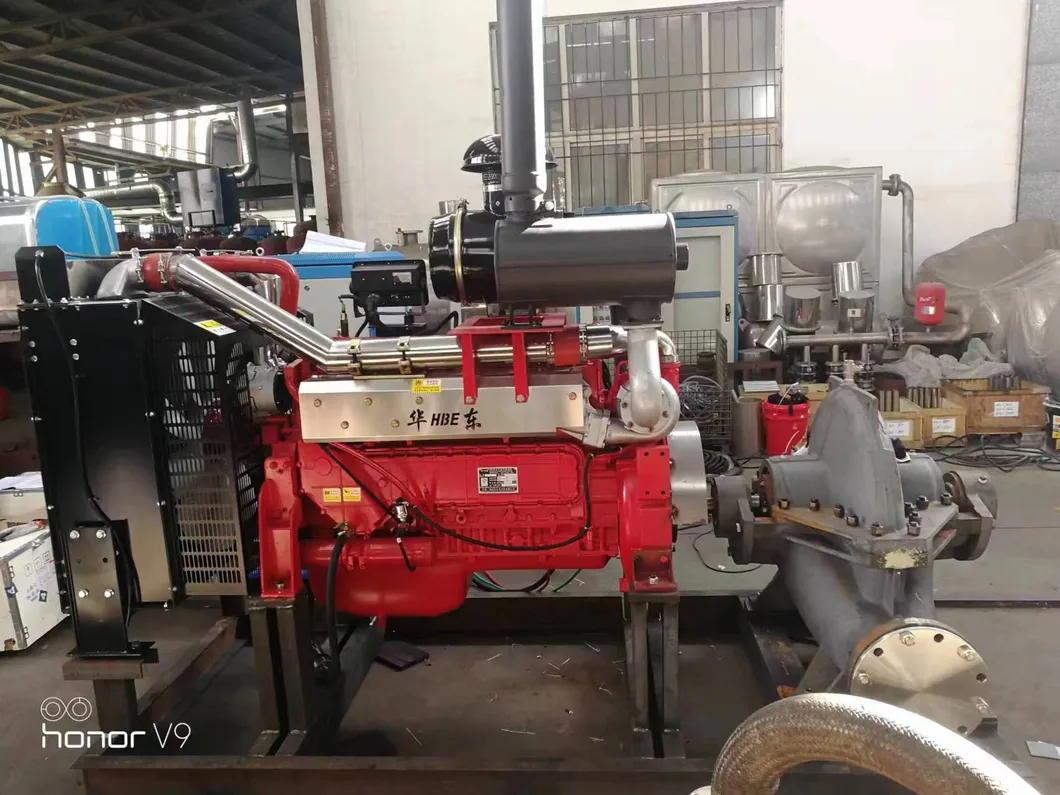

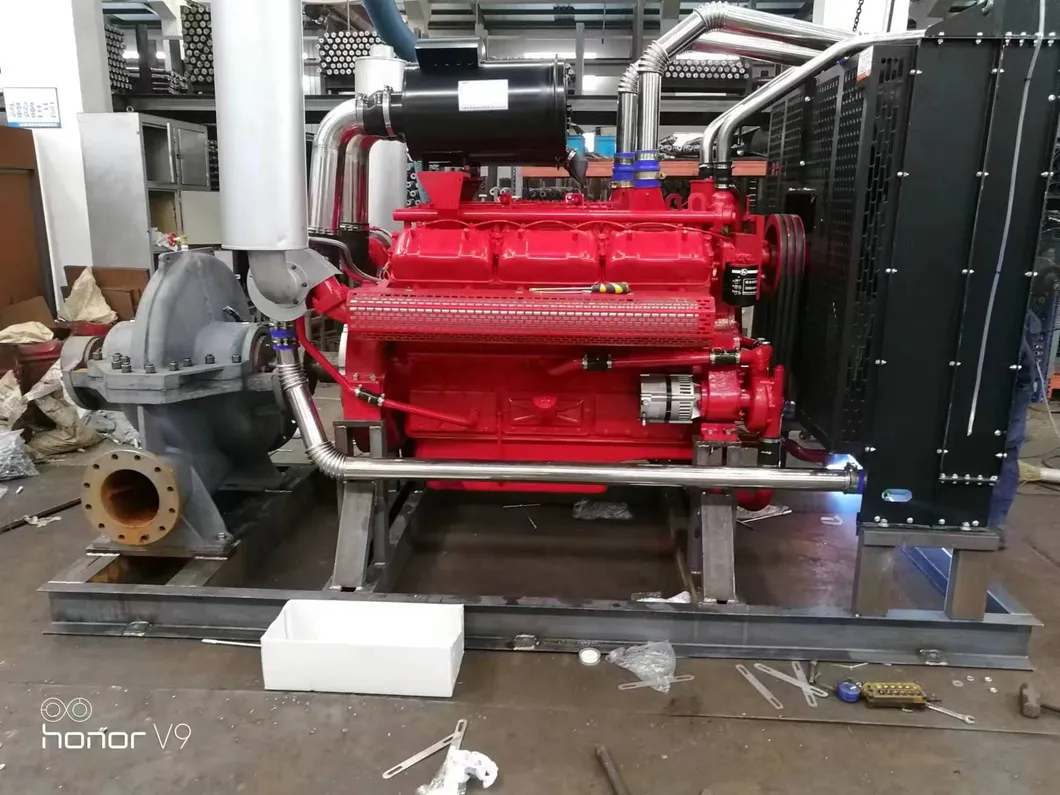

Detailed Product Gallery

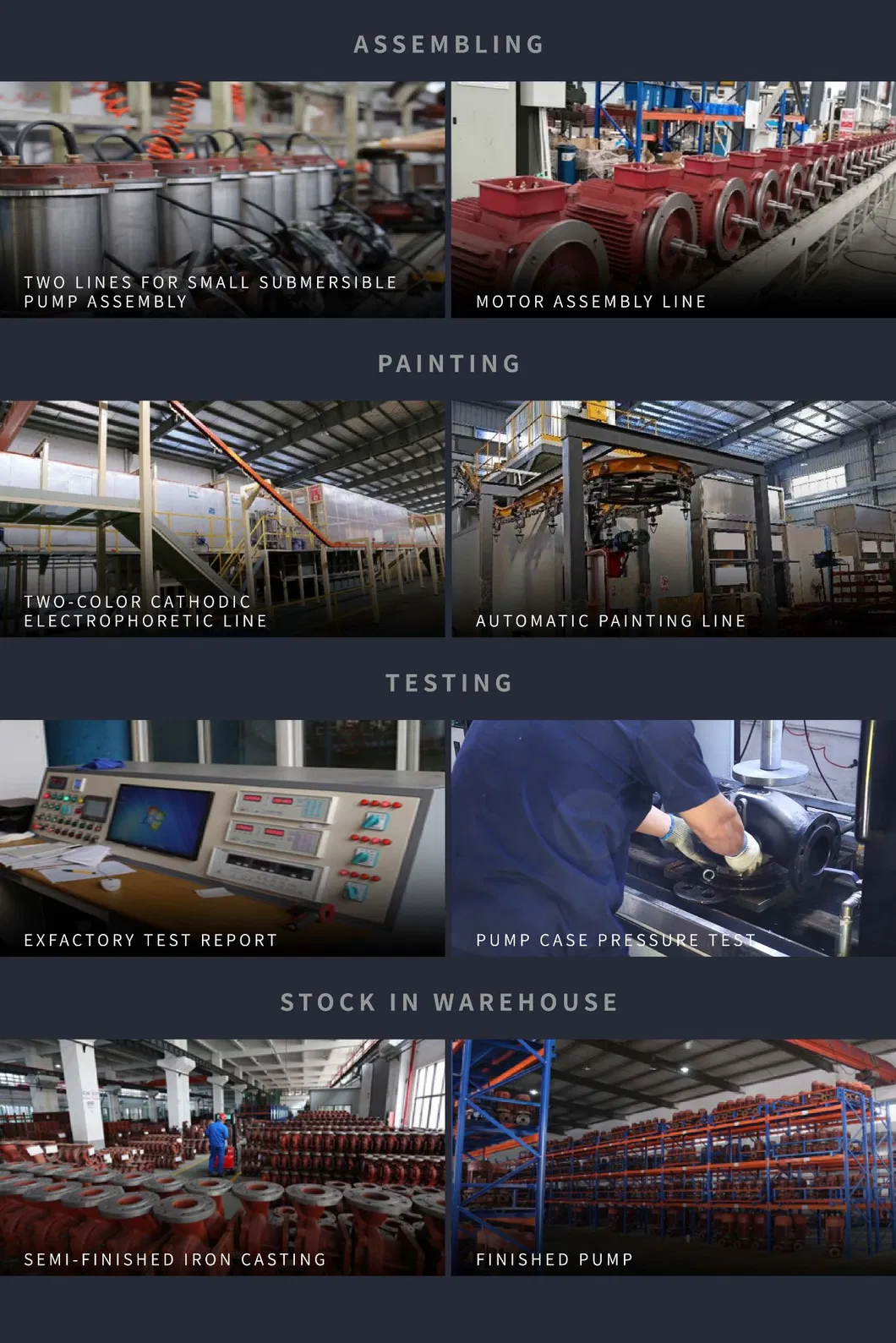

Structure & Production

Frequently Asked Questions

What is the main advantage of a double suction pump?

The double suction design allows for a much higher flow rate compared to single suction pumps and balances the axial forces on the impeller, resulting in more stable operation and a longer service life.

What materials are used for the impellers?

The standard impeller material is 304 Stainless Steel (SS304), but we also offer SS316, SS316L, and 2205 Duplex Stainless Steel to suit different fluid requirements.

Is this pump suitable for high-rise building fire protection?

Yes, with a maximum head exceeding 150m and high-pressure capabilities, the XBD-SOW is perfect for fire hydrant and sprinkler systems in high-rise facilities.

What motor is used in this fire pump system?

The system is equipped with high-efficiency YE3 low-voltage electric AC motors, ensuring reliable start-up and consistent performance during emergencies.

Does the pump meet international standards?

The XBD-SOW series is designed to comply with CE and various fire protection specifications, ensuring safety and performance in industrial applications.

What is the typical lead time and packaging?

The pumps are securely packed in robust wooden cases for international shipping. Lead times vary by model, but standard sizes are typically processed efficiently.
