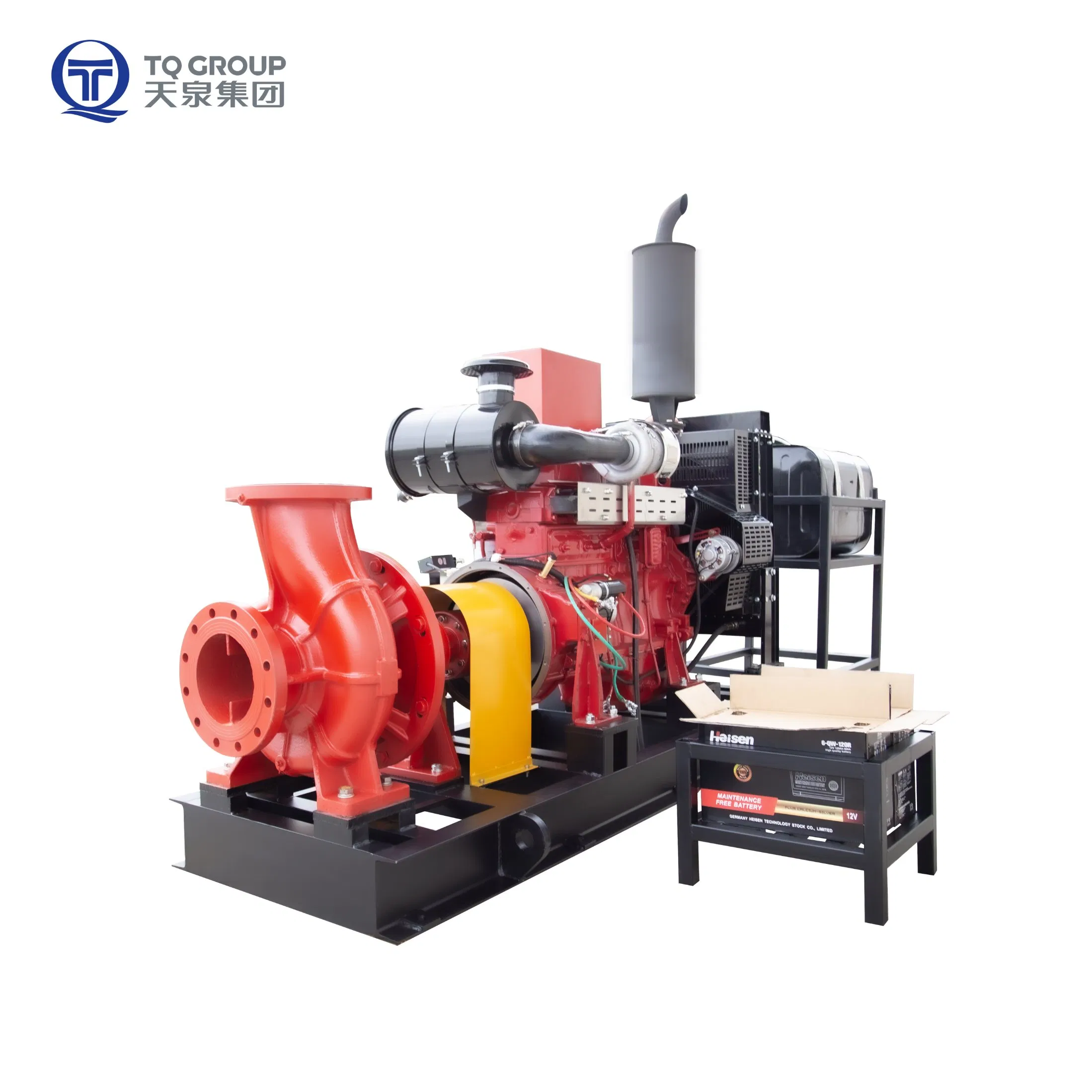

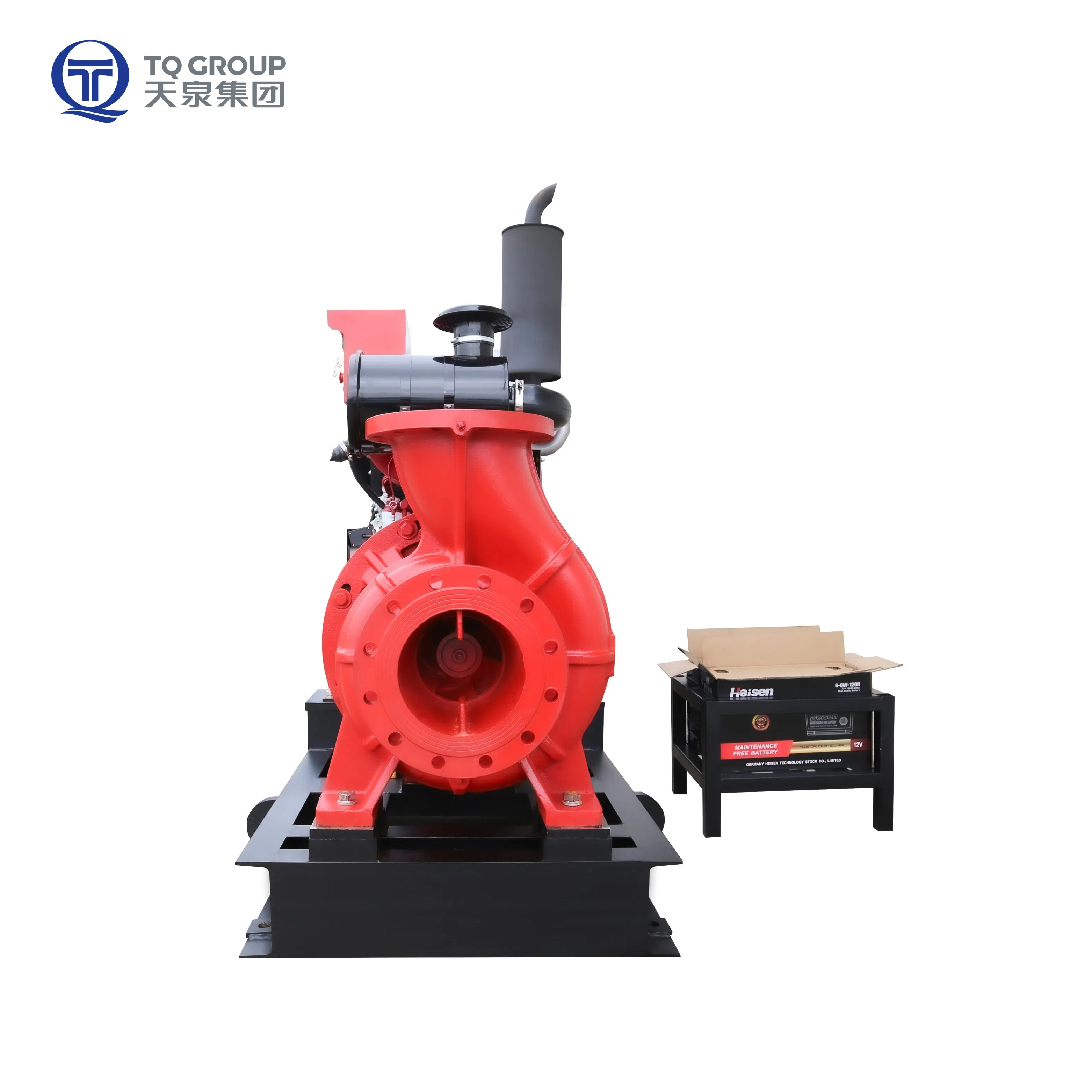

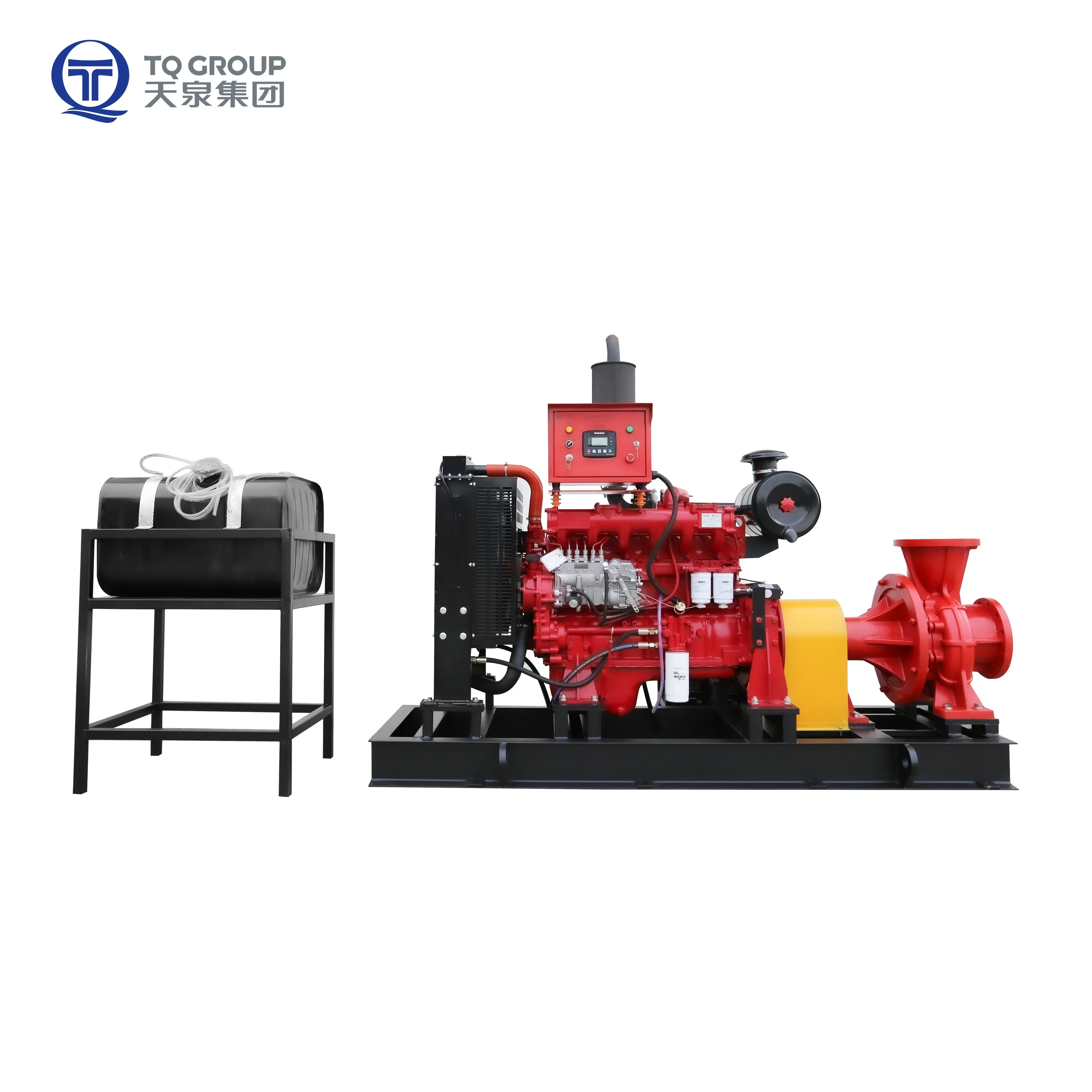

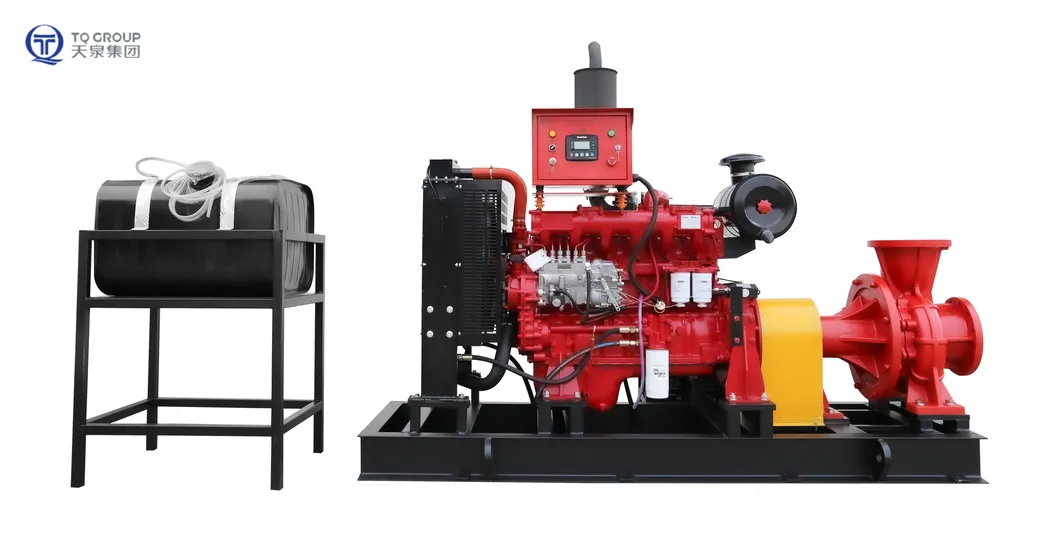

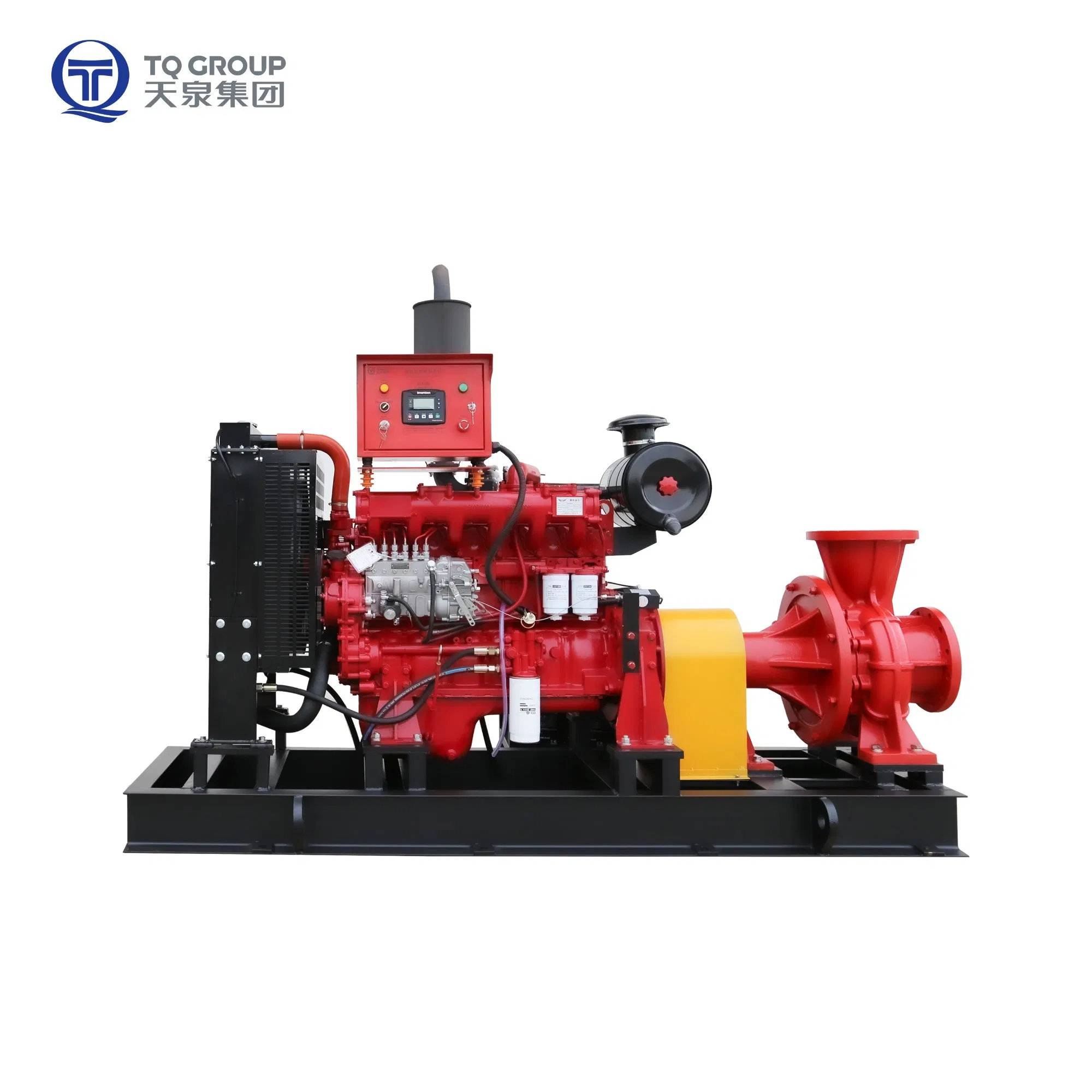

600gpm Ductile Iron Nfpa 20 Edj Fire Pump Supplier with Brass Impeller

1 / 5

600gpm Ductile Iron Nfpa 20 Edj Fire Pump Supplier with Brass Impeller

Customization:	Available
Max.Head:	110m-150m
Max.Capacity:	300-400 L/min

Send Inquiry

Product Description

i Basic Information

Model NO.

600GPM/XBC-TQW

Driving Type

Diesel Engine

Material

Cast Iron

Structure

Single-stage Pump

Assembly

Pipeline Pump

Start Up

Diesel Engine

Type

Fire Pump

Industry

Mechanical Pump

Media

Water

Performance

Automatic Pump

Theory

Centrifugal Pump

Impeller Material

Bronze/Brass/Stainless Steel

Certification

CCCF

Pump Structure

Horizontal Single Stage End Suction

Diesel Engine Speed

3000rpm

Cooling Way

Water Cooled

★ Product Description

Diesel engine-driven fire pumps are vital for providing a reliable water supply in emergency situations, especially when electrical power is unreliable or unavailable, ensuring effective fire suppression in various locations.

TECHNICAL SPECS

Flow: up to 227m³/h (1000GPM)
Head: up to 120m (174 PSI)
Speed: 3000RPM
Pump Type: Horizontal Single Stage End Suction Pump

APPLICATION

Standby fire pump in fire fighting systems.
Safety assurance for hospitals, schools, airports, and public buildings.
Industrial facilities, commercial buildings, and critical fire protection areas.
Boosting water pressure from city mains, tanks, or reservoirs.

KEY FEATURES

Meets NFPA20 performance requirements (rated point, 1.5x flow point, power, shut off point).
Achieves 3000 RPM speed paired with high-performance bare shaft end.
Wet parts made of stainless steel or brass; 2cr13 shafts and ss304 impellers for corrosion resistance.

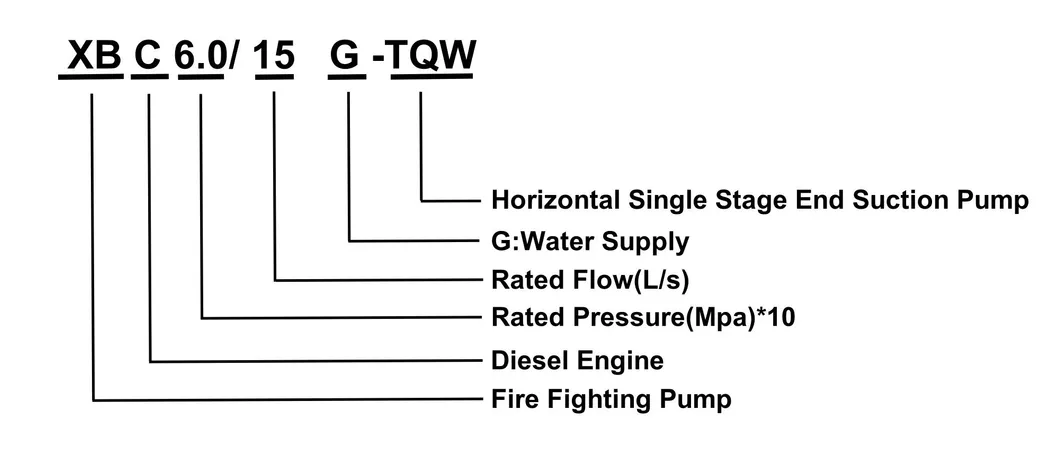

? Model Meaning

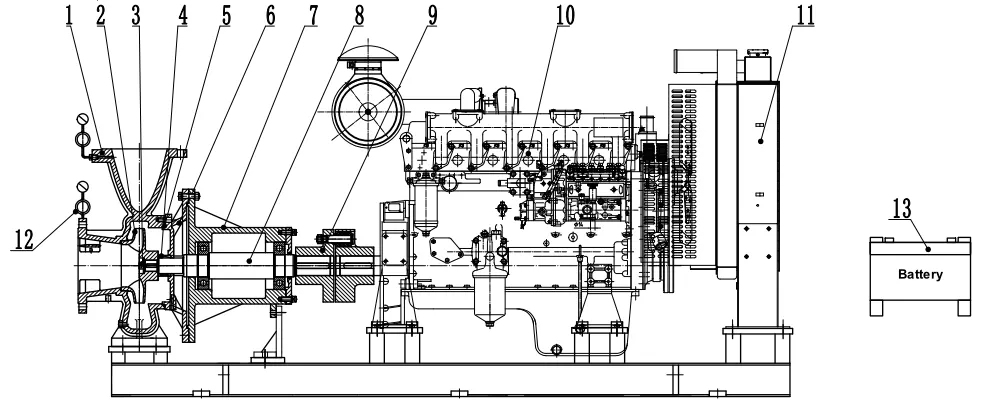

⚙ Product Structural Drawing

Item No.	Part Name	Item No.	Part Name
1	Pump Body	8	Shaft
2	Impeller	9	Coupling
3	Impeller Nuts	10	Diesel Engine
4	Mechanical Sealing	11	Cooling Tank
5	O-Seal Ring	12	Pressure Gauge
6	Pump Cover	13	Battery
7	Suspension components	-	-

📷 Detailed Photos & Components

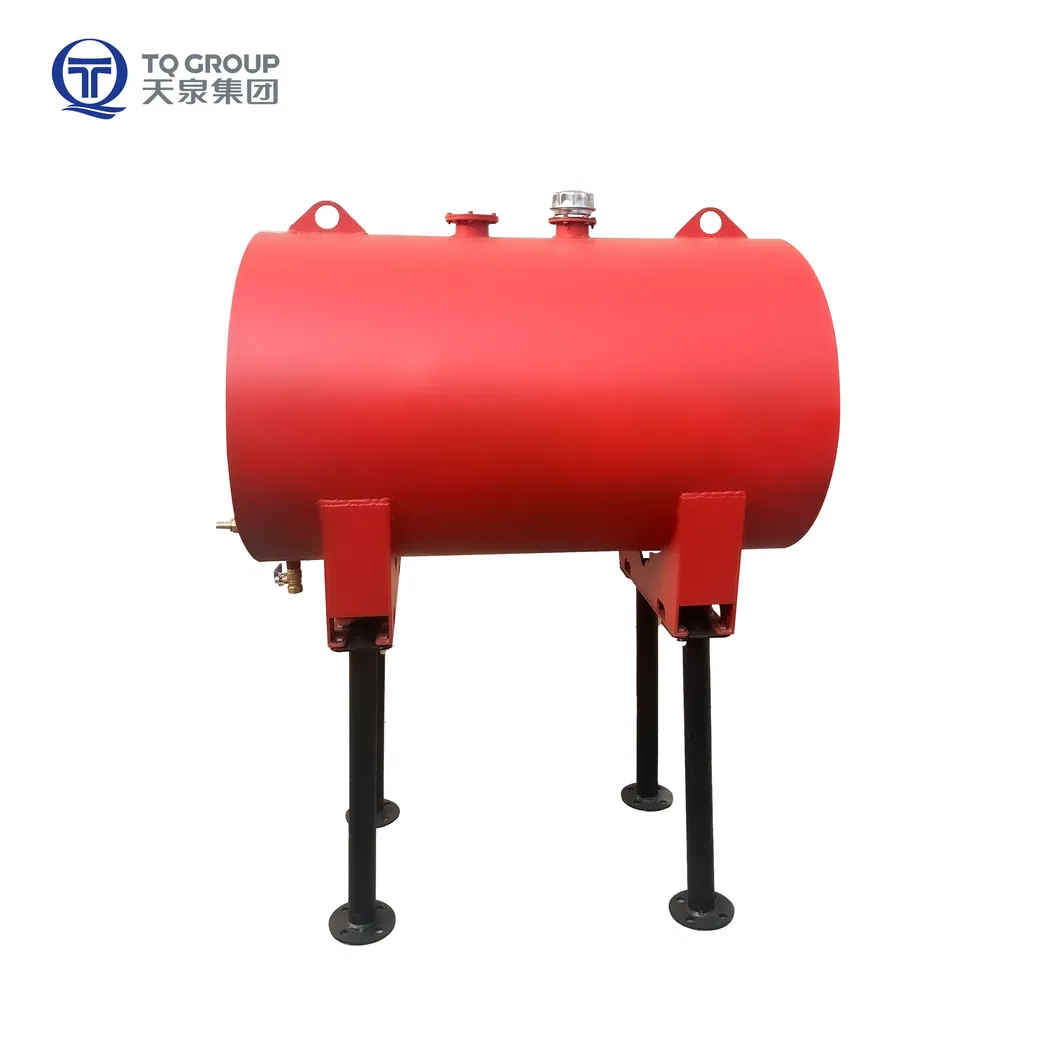

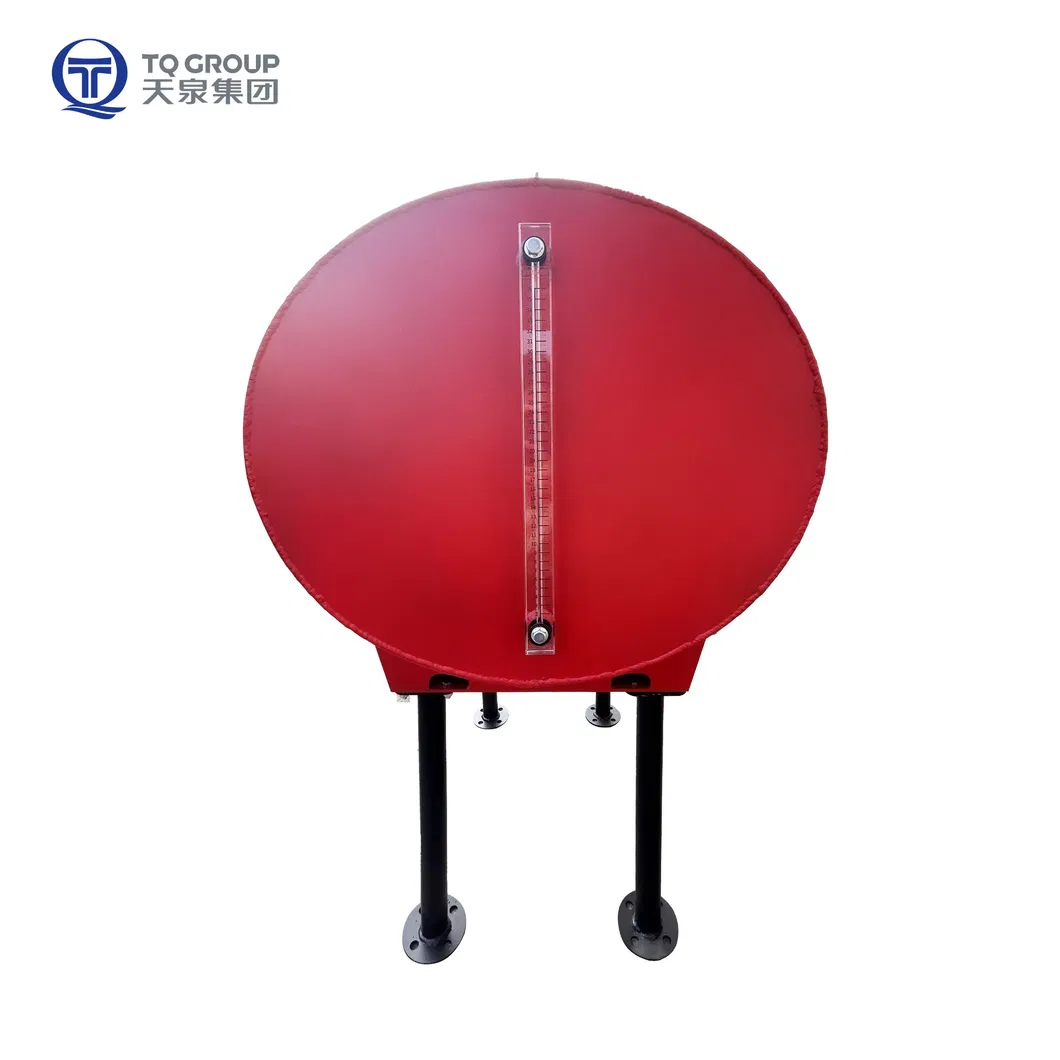

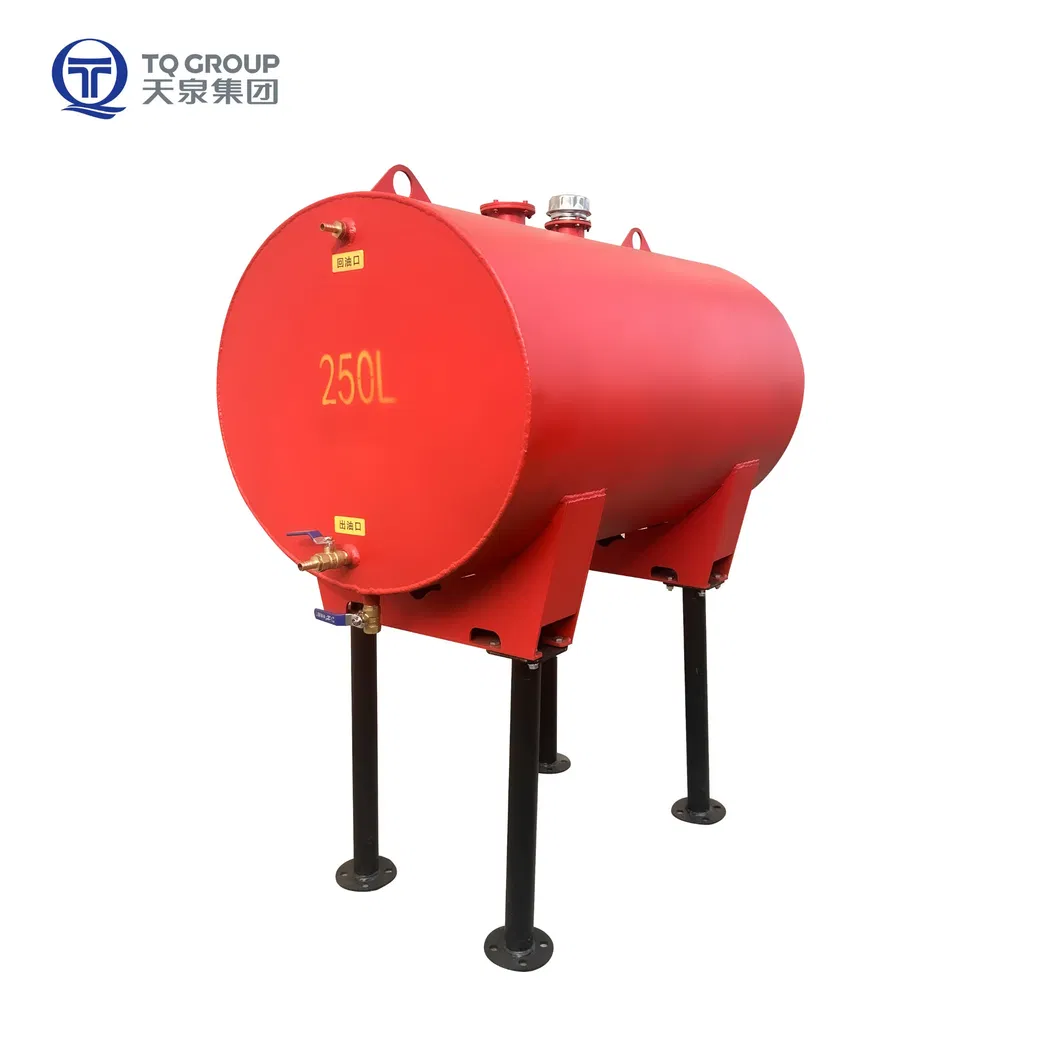

Fuel Tank Specifications

Fuel Tank Volume (L)
Power (kW)	45	55	75	90	100	110	135	155	176	235
Volume (L)	50	100	150	150	150	200	200	300	300	500

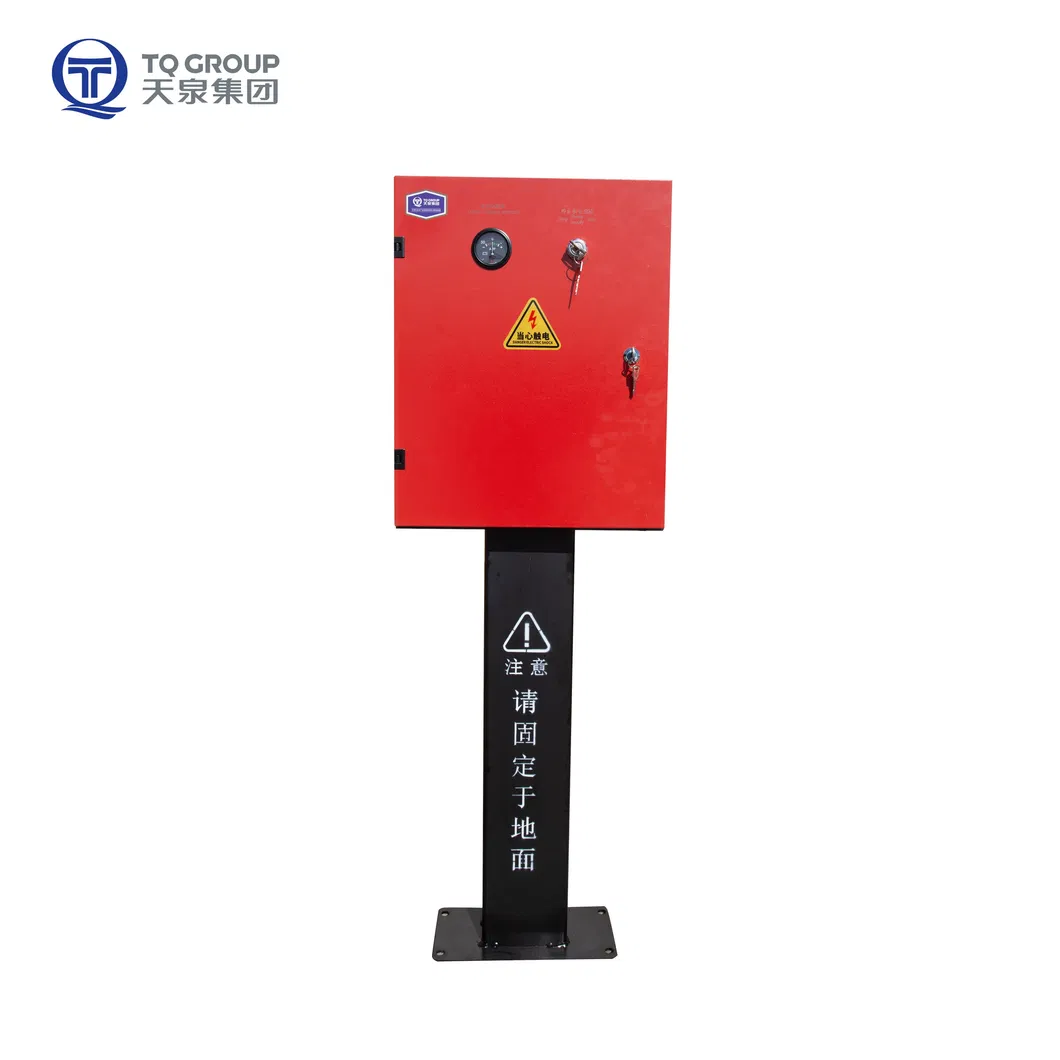

Remote Control Cabinet Function

Standard Functions
Start/Stop	Manual/Auto (Pressure signal/Fire linkage), Remote port, Emergency stop
Monitoring	Speed, Voltage, Current, Oil/Water Temperature
Battery	Manual/Automatic charging
Protection	Low oil pressure, High water temp, Over/Under speed protection

📋 Product Parameters

Item No.	Flow (Q)			Head (H)		Diesel Engine (Horizontal End Suction)
Item No.	US.GPM	m³/h	L/S	Bar	PSI	Model	KW	HP	RPM
1	600	136	38	6	87	XBC6.0/40G-TQW	55	75	3000
2	600	136	38	7	101.5	XBC7.0/40G-TQW	55	75	3000
3	600	136	38	8	116	XBC8.0/40G-TQW	75	100	3000
4	600	136	38	9	130.5	XBC9.0/40G-TQW	90	125	3000

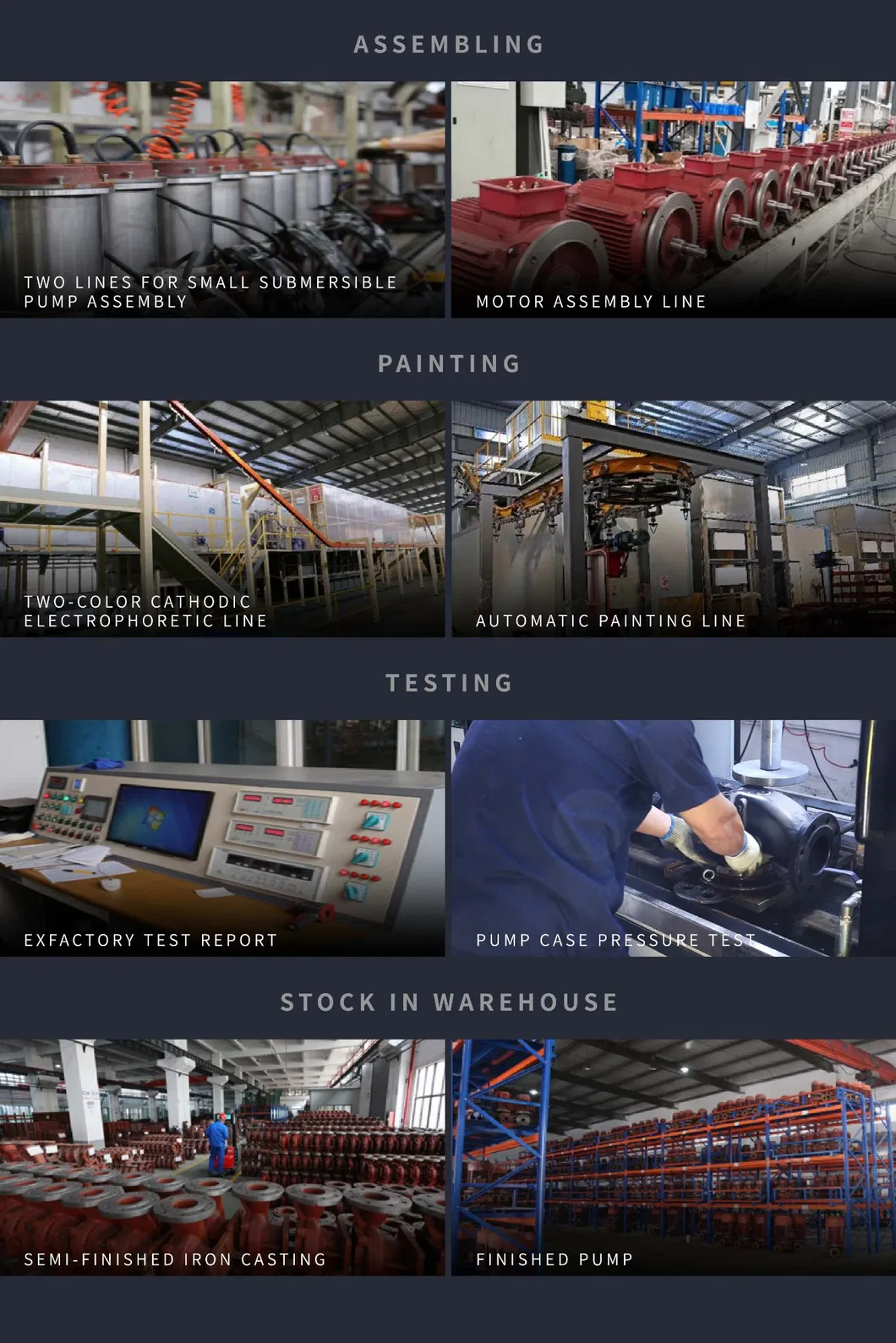

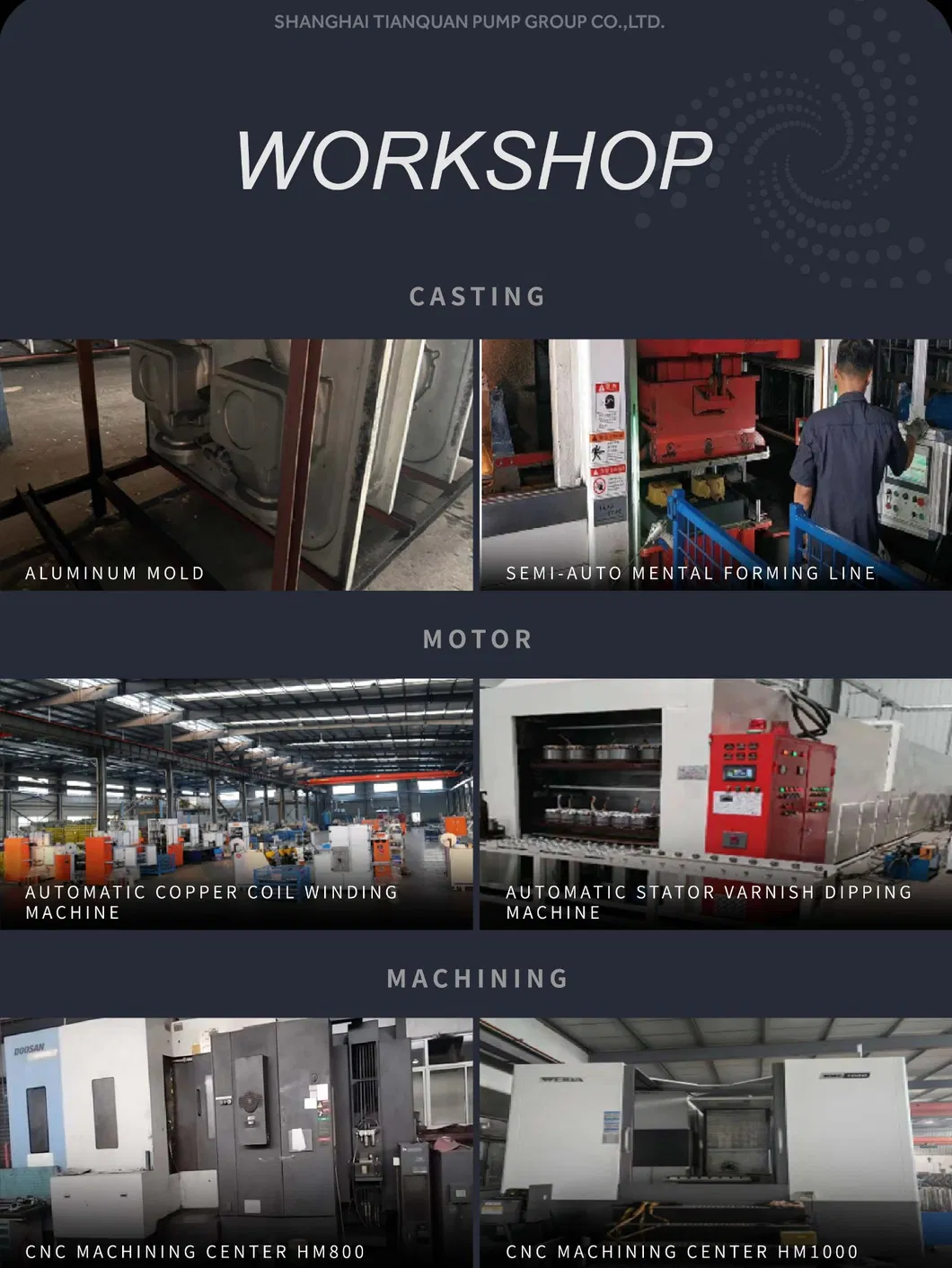

🏢 Company Profile & Quality Assurance

Frequently Asked Questions

What is the standard flow rate of this fire pump?

The 600GPM series is designed to deliver up to 227m³/h (1000GPM) depending on the specific model configuration.

What kind of protection does the diesel engine include?

The engine features low oil pressure protection, high water temperature protection, overspeed, and underspeed protection via integrated sensors.

Are the impellers resistant to corrosion?

Yes, the wet parts are constructed from stainless steel or brass, and impellers are made of SS304 to ensure longevity and resist corrosion.

Does this fire pump comply with international standards?

Yes, it is designed to meet the four critical performance requirements of the NFPA20 standard and carries CCCF certification.

What is the maximum head/pressure of these models?

These pumps can achieve a head of up to 120 meters, equivalent to approximately 174 PSI.

Can the pump start automatically during a power outage?

Absolutely. The diesel engine-driven system is specifically designed for emergency situations where electrical power is unavailable, featuring automatic starting through pressure signal control.
