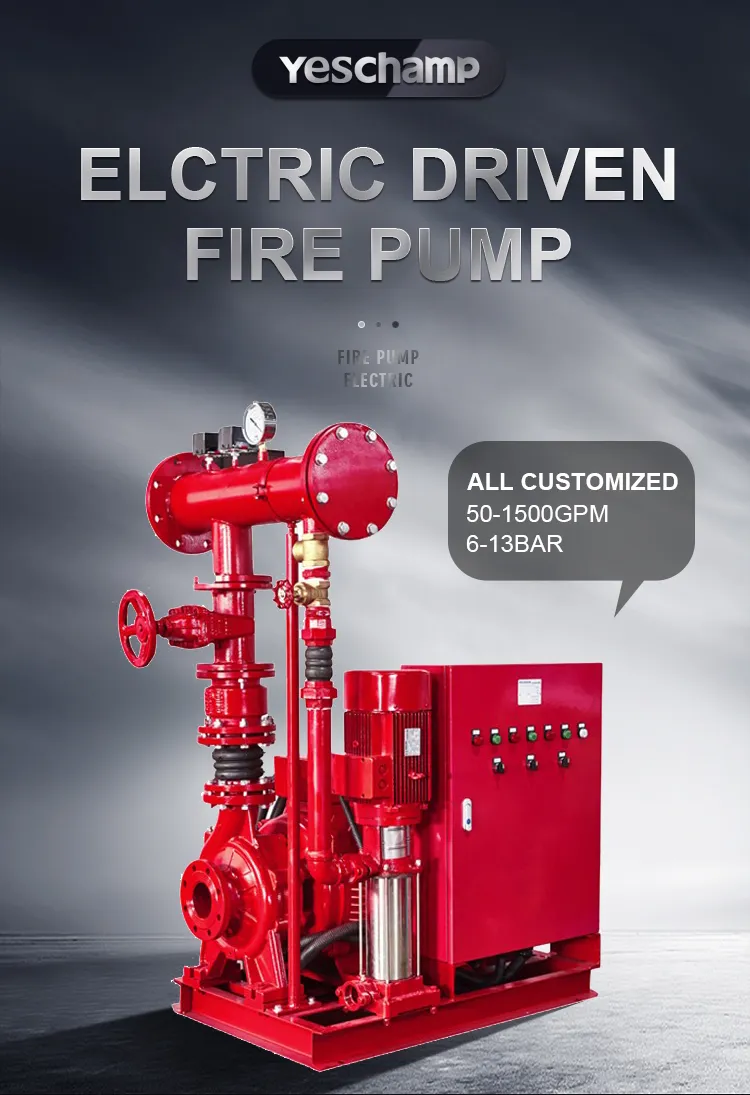

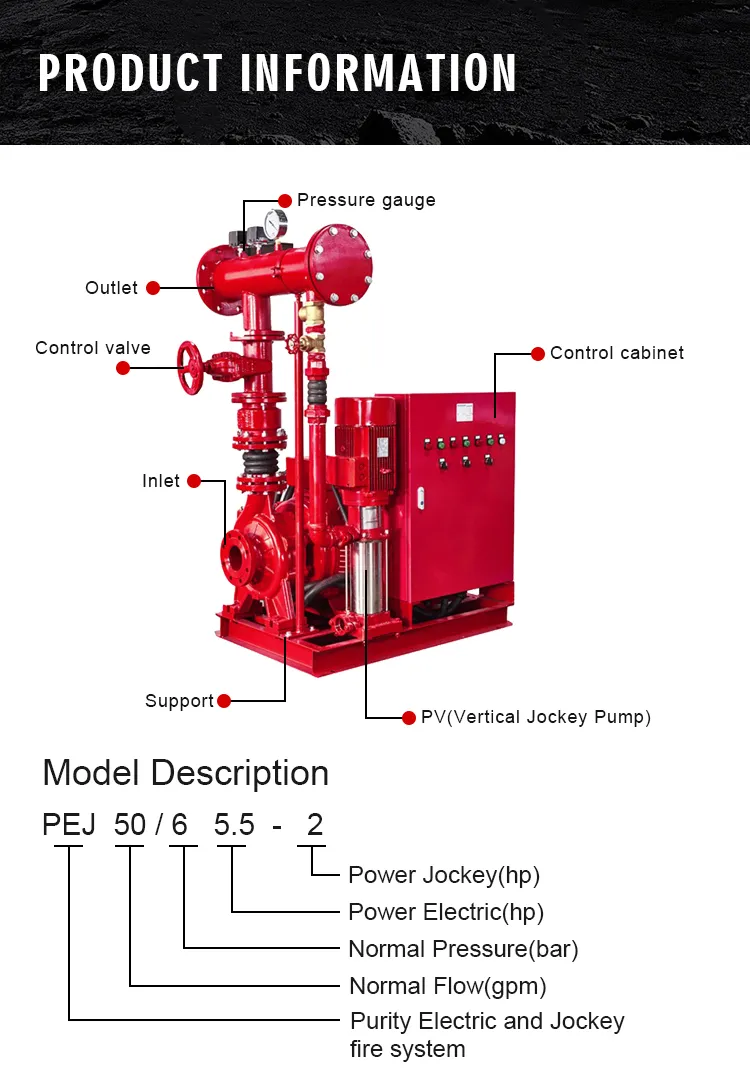

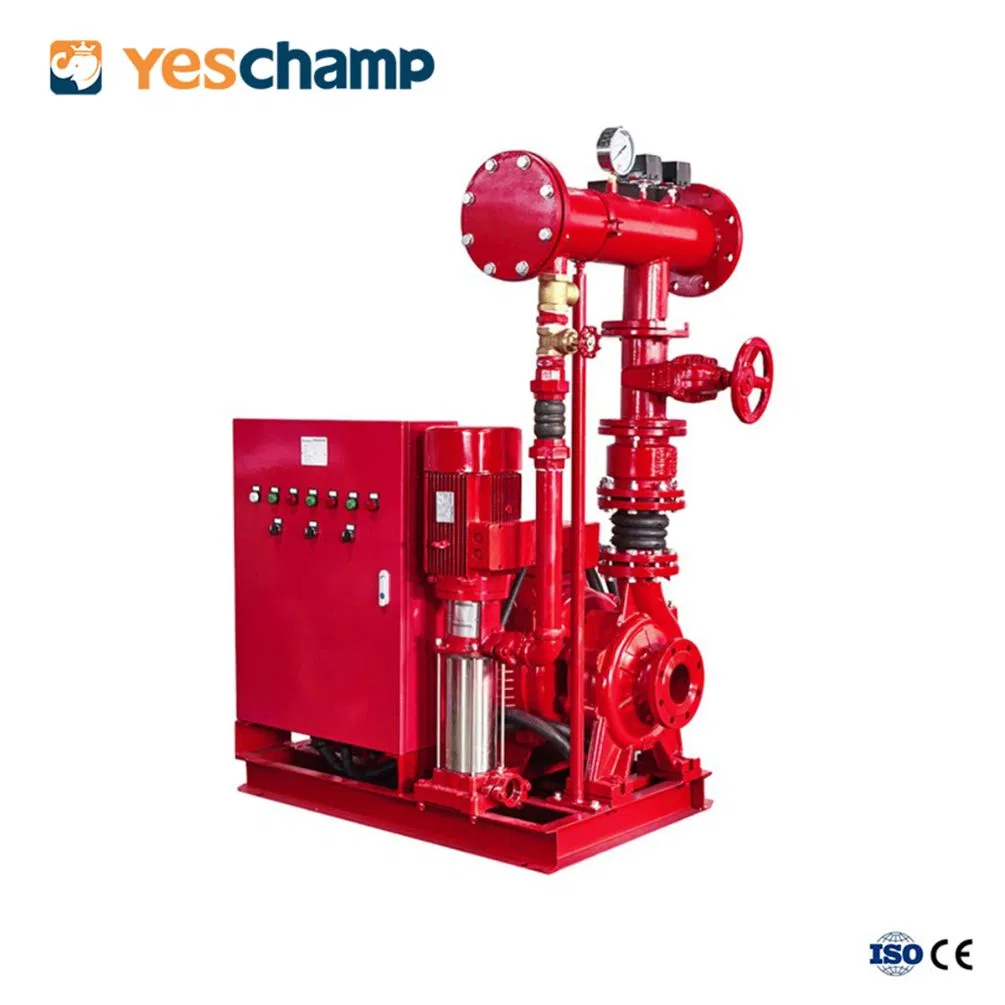

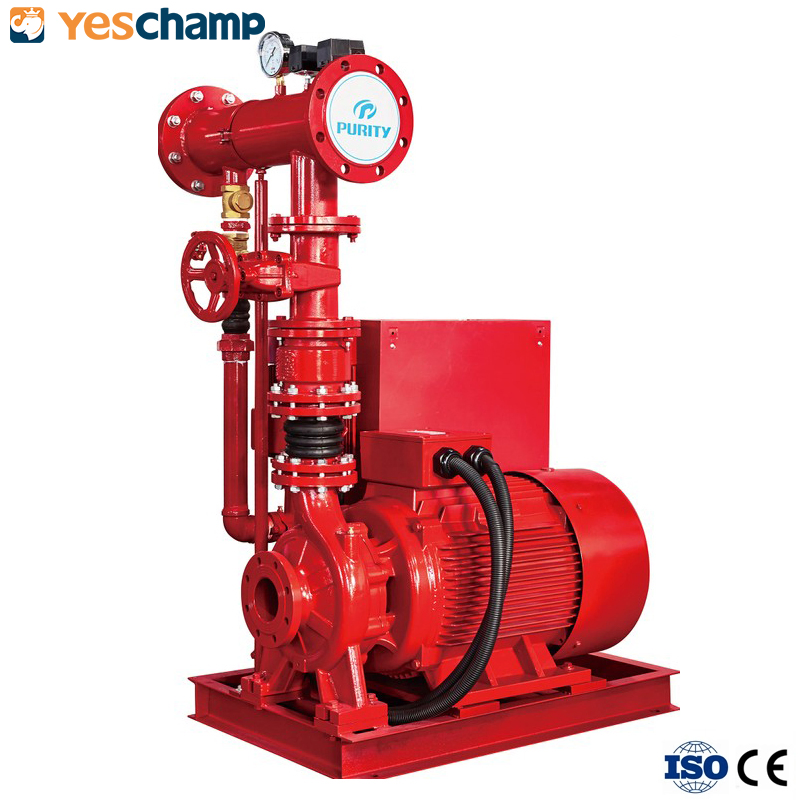

The fire pump set consists of one main pump coupled to an electric motor, one jockey pump and pressure vessel, a controller for manual or automatic operation of the system, and standard accessories mounted on the base frame. This set is ideal for fire hose systems, sprinkler systems, water monitors, and hydrant systems.

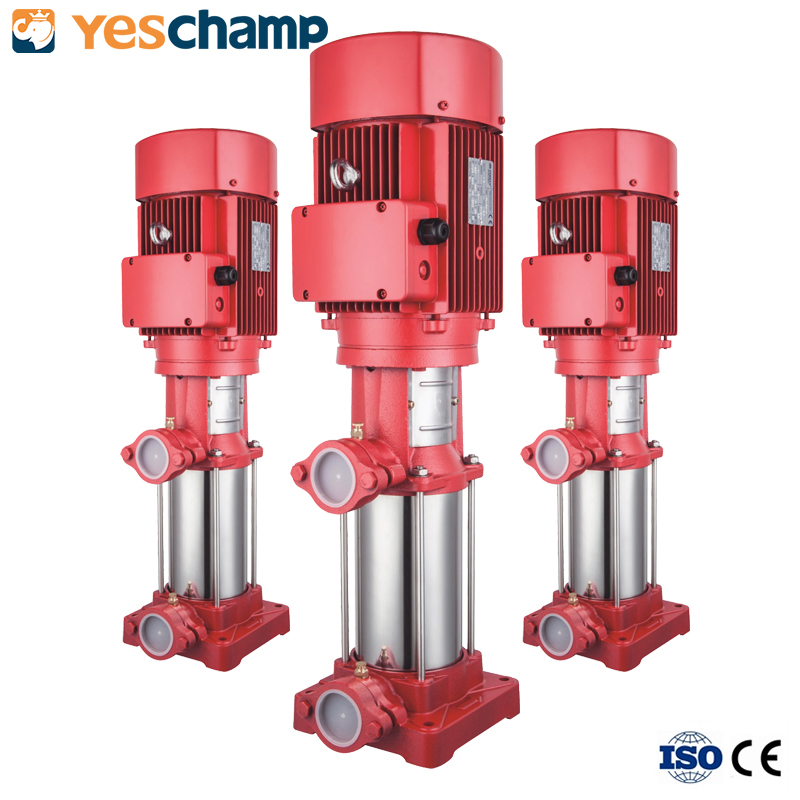

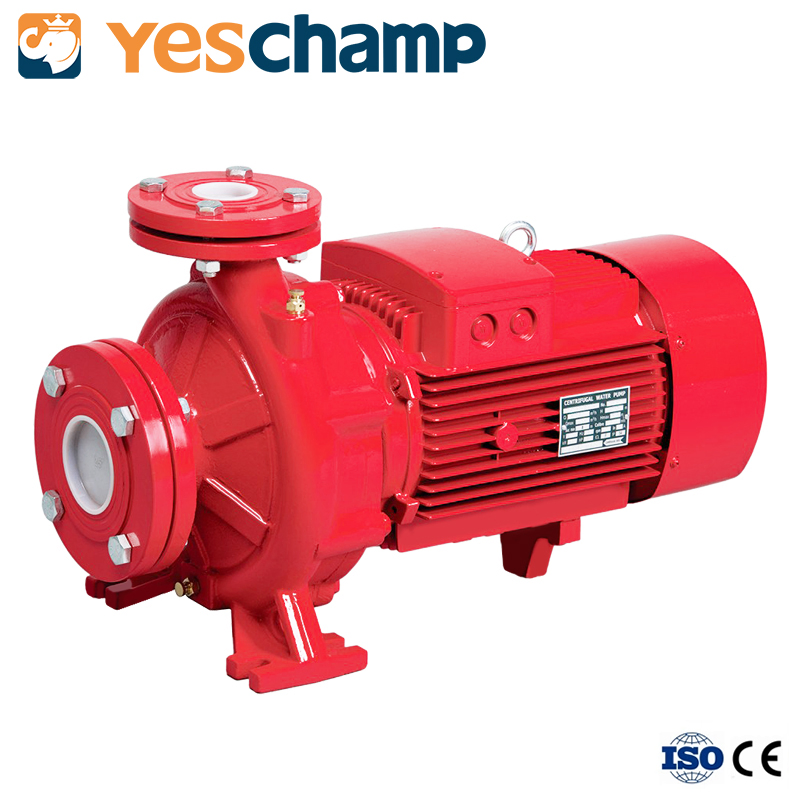

Electric pumps can utilize end-suction, multi-stage, or double-suction split case configurations. The construction typically features rugged cast iron or corrosion-resistant stainless steel. The electric pump is a closed-coupled centrifugal unit with a cast iron casing and impellers available in cast iron, stainless steel, or brass. The shaft is high-grade stainless steel with a carbon/ceramic mechanical seal.

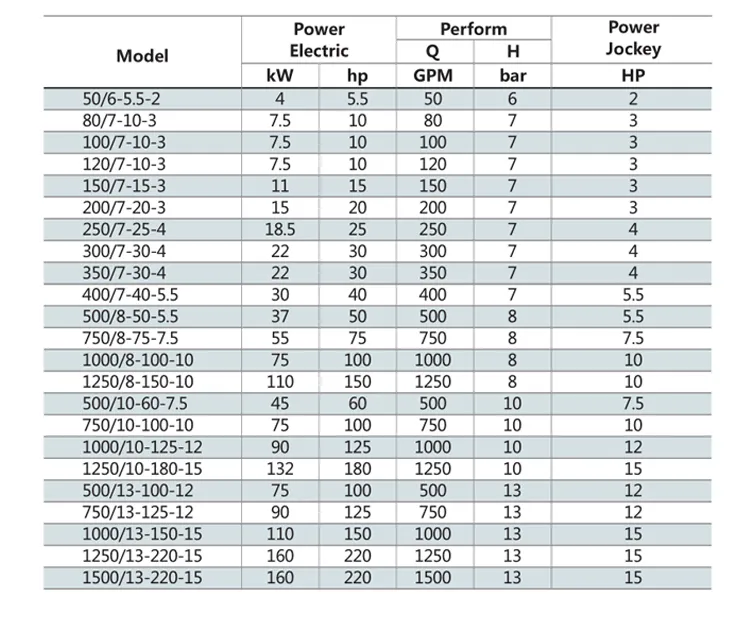

| Parameter | Range / Specifications |
|---|---|
| DN Range of Suction Pipe | 50-400 mm (2"-16") |
| DN Range of Discharge Pipe | 32-350 mm (1.5"-14") |
| Flow Capacity Range | 50-5000 GPM |
| Head/Pressure Range | 4-14 Bar |
| Power Range | 4-325 Kw |

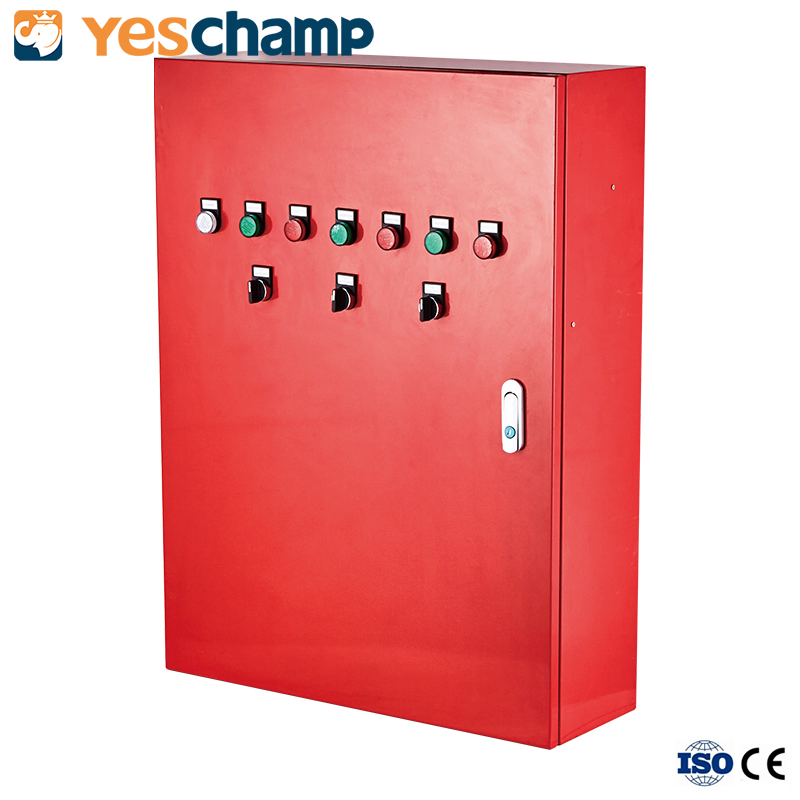

This pump set refers to the electric pump combinations, control cabinet, instrumentation, and related accessories, providing a continuous water supply through a pre-programmed fire control network.

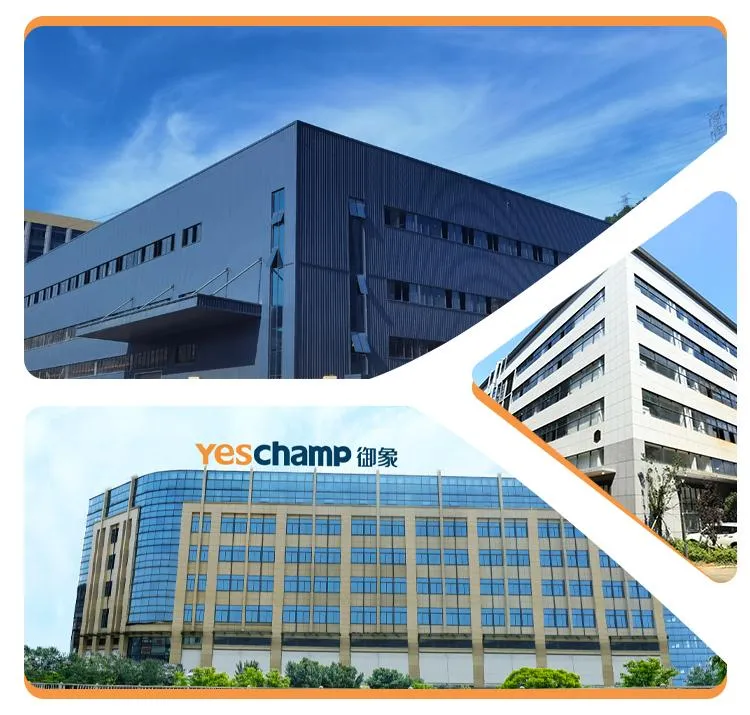

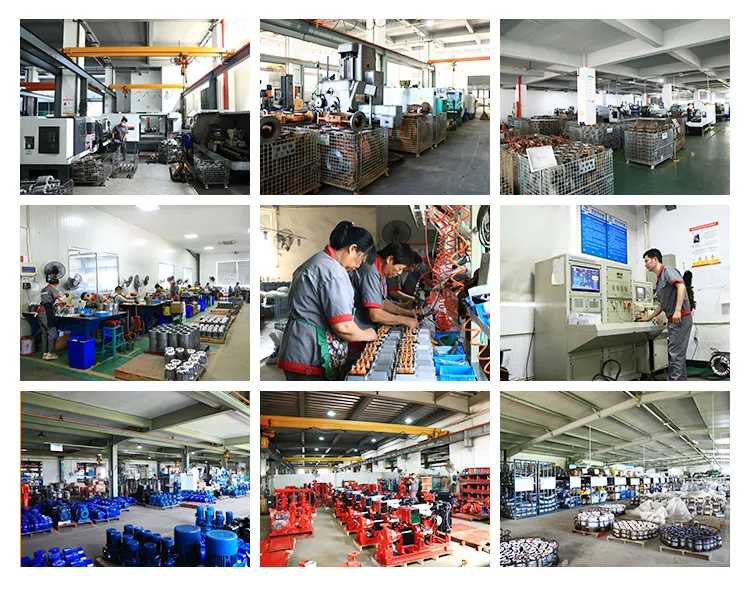

Specializing in the manufacturing of quality pumps and engines, products are exported to more than 60 countries. The range includes centrifugal pumps, fire fighting systems, industrial and domestic pumps, solar solutions, and irrigation equipment. With over a decade of production experience, the technical team ensures strict quality control and efficient equipment performance.
