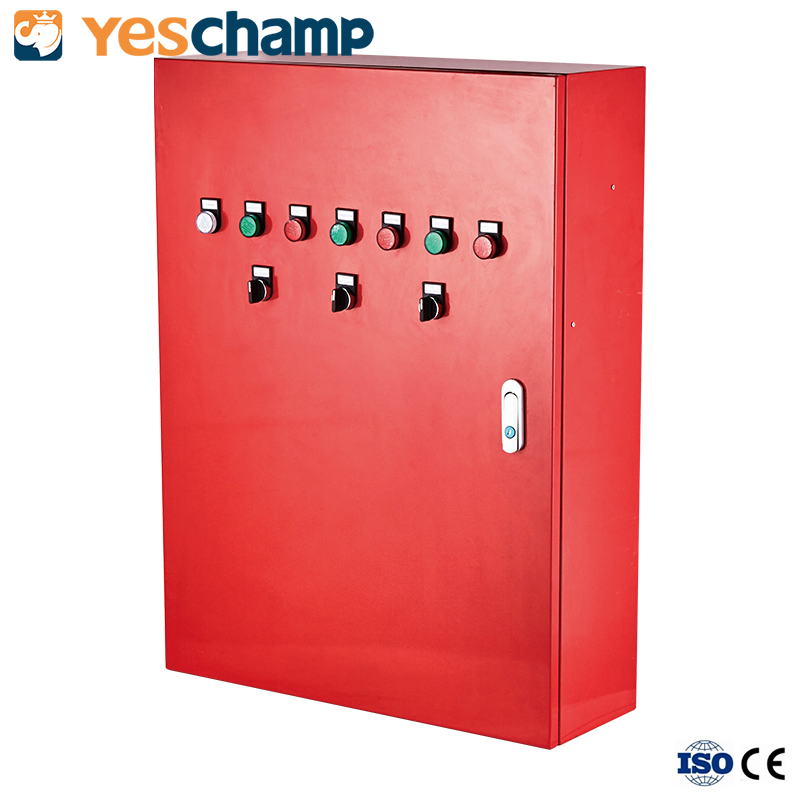

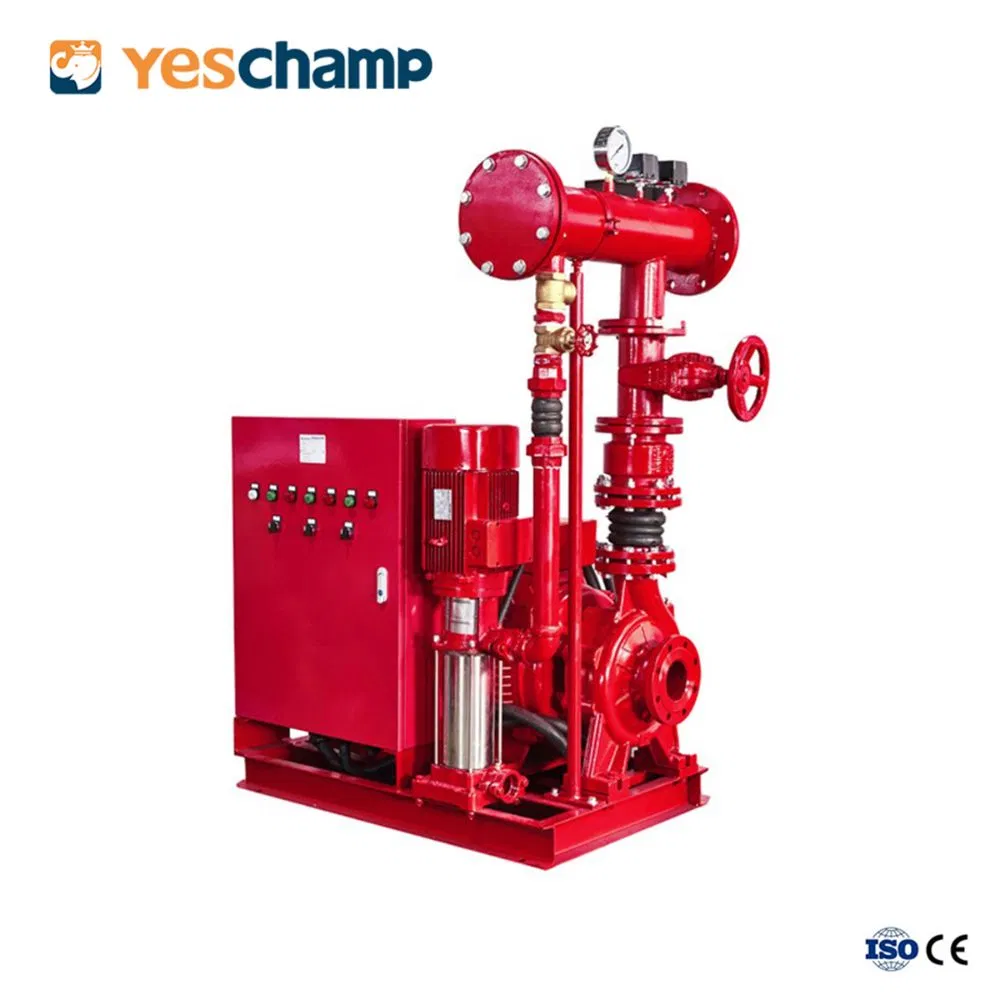

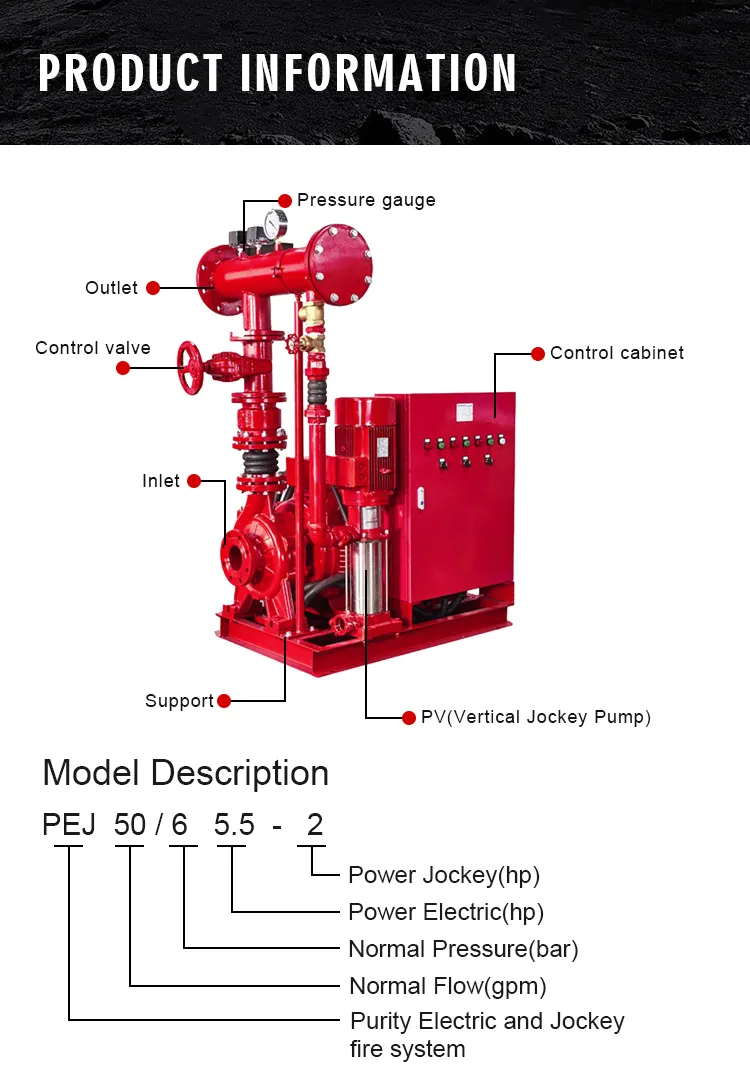

PEJ Fire pump set consists of one main pump coupled to an electric motor, one jockey pump and pressure vessel, a controller for manual or automatic operation of the system, and standard accessories mounted on the base frame. This fire pump set can be used for fire hose and fire hose reel systems, fire sprinkler systems, fire water monitor systems, fire alarm systems, and fire hydrant systems.

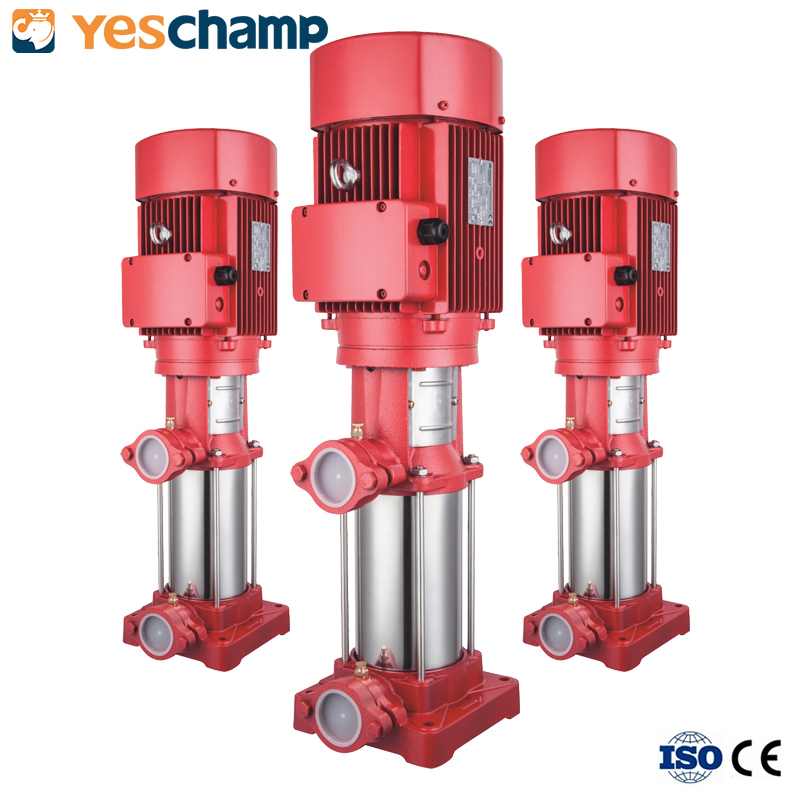

Electric pumps can use end-suction pumps, multi-stage pumps, and double-suction split case pumps. The material is usually cast iron or stainless steel. The EJ series fire pump set is mainly installed in fire trucks, fire extinguishing systems, or other fire control facilities, used to convey liquids such as water or foam solution agents.

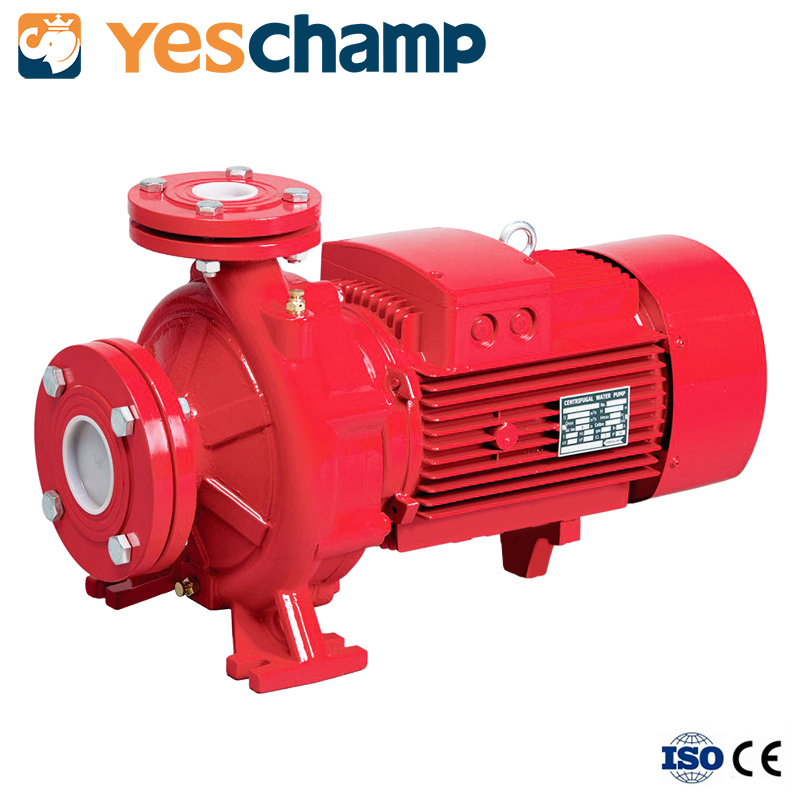

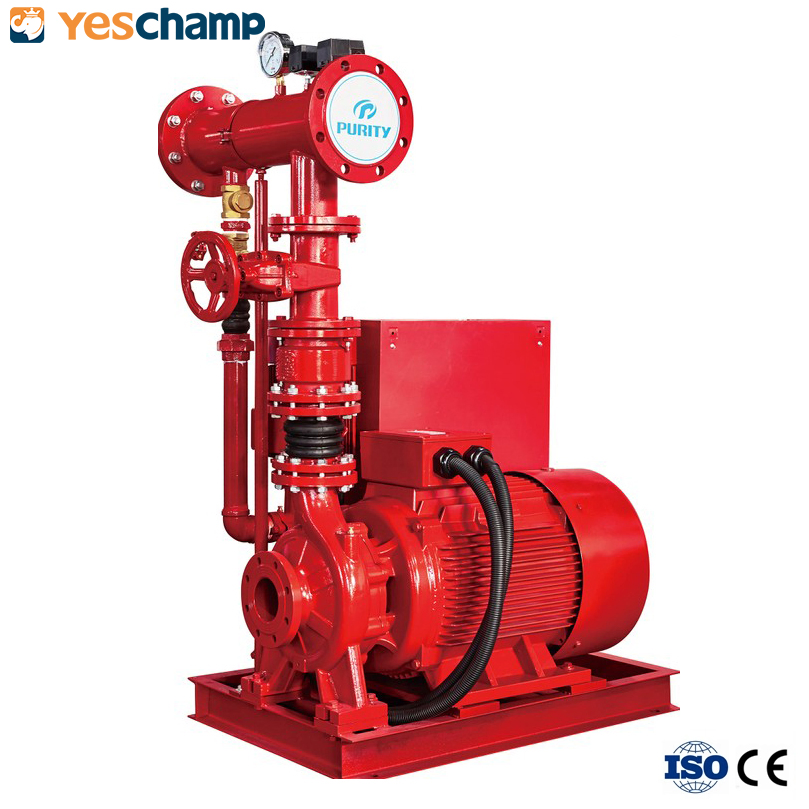

The electric pump is a closed-coupled centrifugal pump; the pump casing is made from cast iron, and the impeller can be cast iron, stainless steel, or brass. The shaft material is stainless steel, and the mechanical seal is carbon/ceramic.

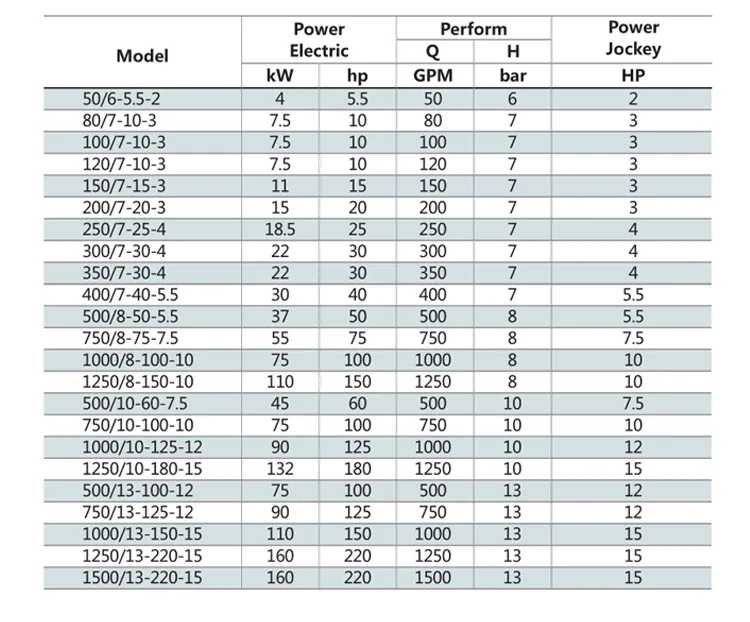

| DN Range of Suction Pipe | 50-400 mm (2"-16") |
| DN Range of Discharge Pipe | 32-350 mm (1.5"-14") |
| Flow Capacity Range | 50-5000 GPM |
| Head/Pressure Range | 4-14 Bar |
| Power Range | 4-325 Kw |
The manufacturer is a professional supplier of quality pumps and engines exported to more than 60 countries with competitive prices. Main products include centrifugal pumps, fire pumps and systems, industrial pumps, solar pumps, and irrigation pumps. With over 10 years of production experience and a dedicated technical team, the company provides comprehensive one-stop services.

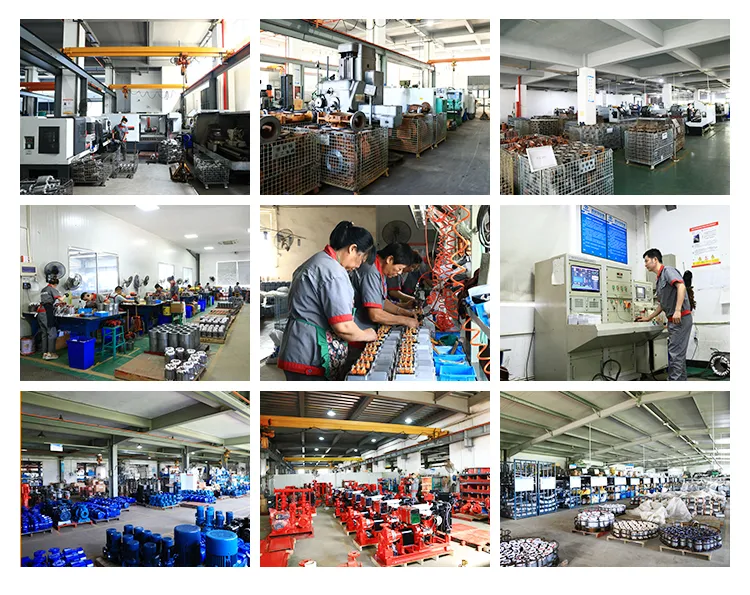

Equipped with the latest technology and strict quality control systems, the focus remains on innovation and customer satisfaction to ensure equipment is efficiently running and properly used.
