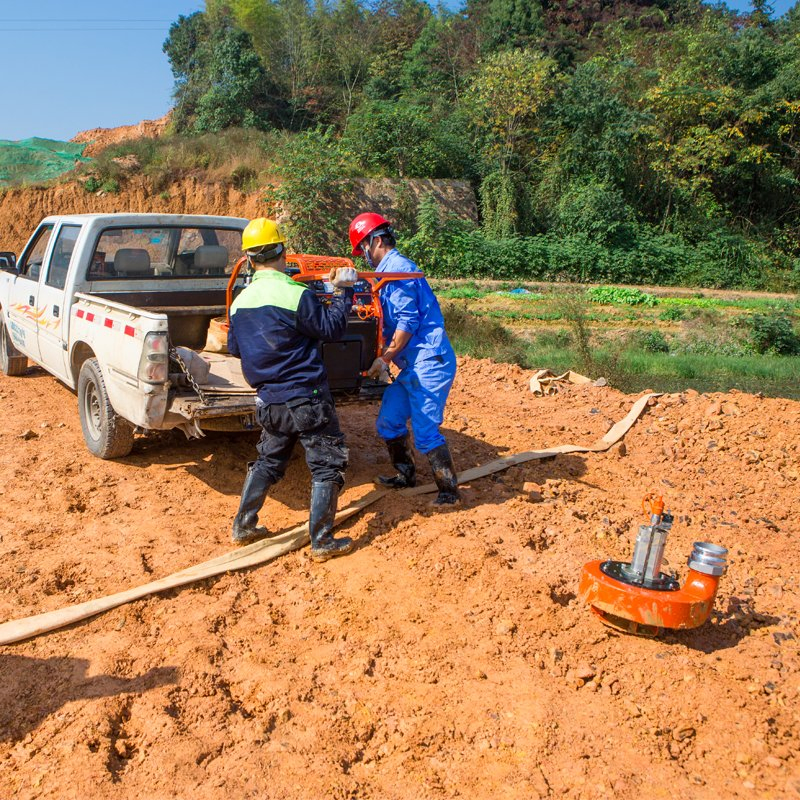

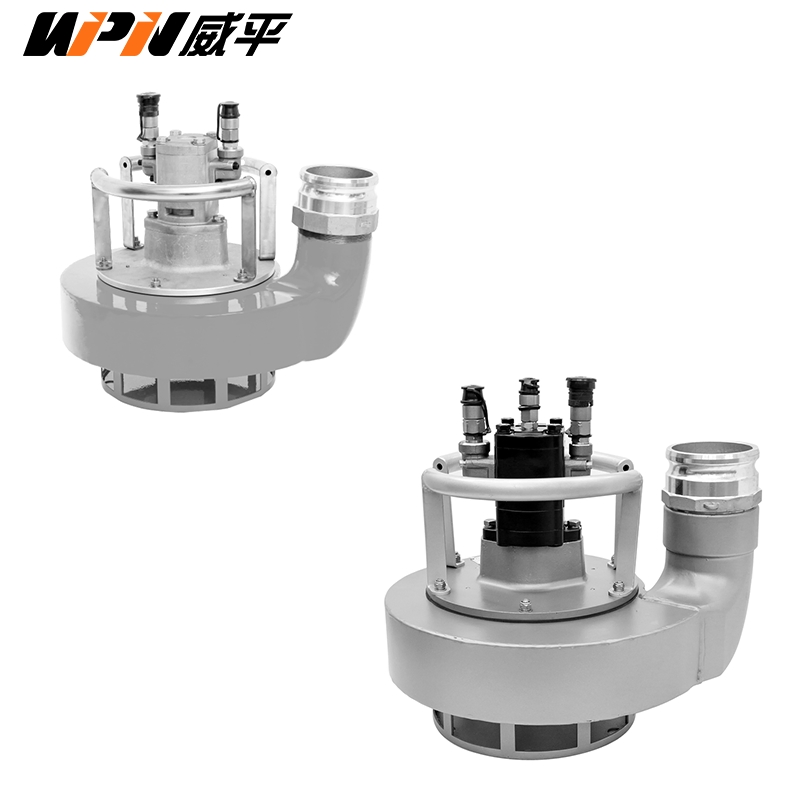

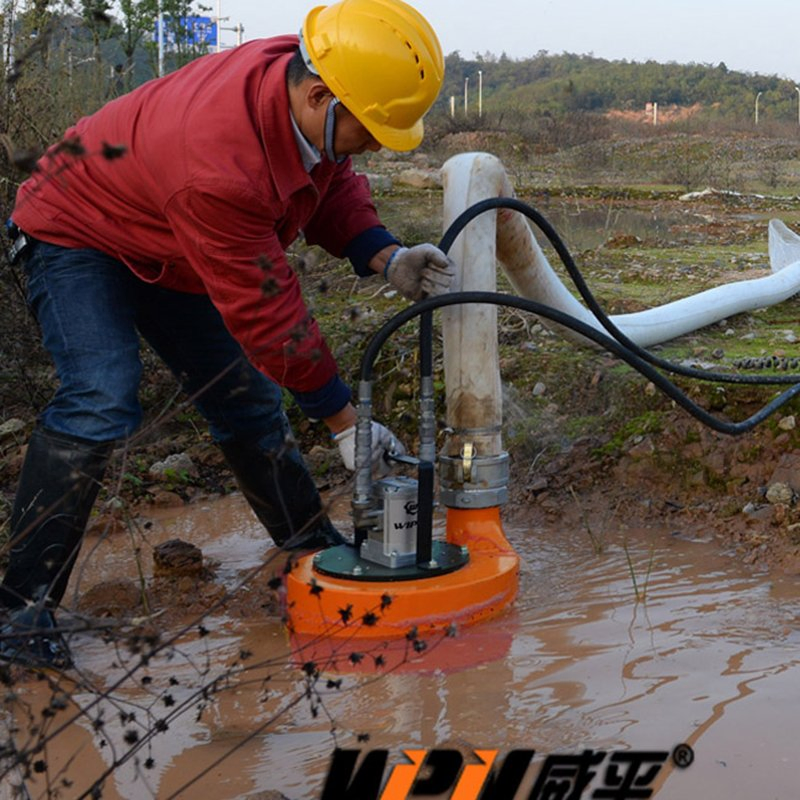

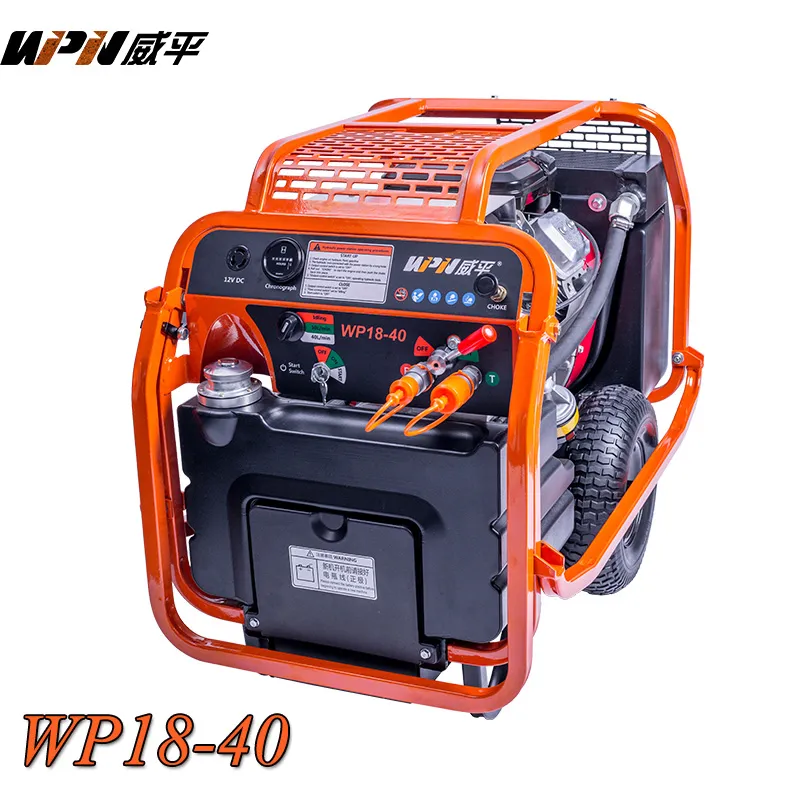

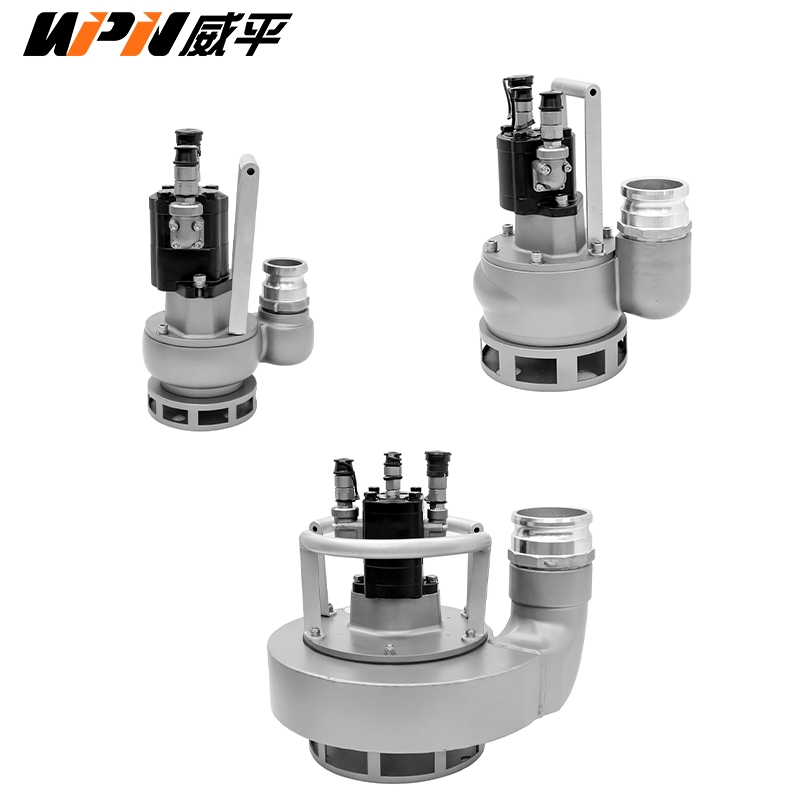

The WPP-80 hydraulic trash pump is one of the most powerful pump in WIPIN . it's in a class of its own. With a capacity of up to 200 m³/h it can be used even in ground water lowering applications, where usually much bigger and extremely expensive pumps are being used. Paired with for instance our 18HP gasoline hydraulic power station it is a heavy duty solution with remarkable cost reductions compared with other pumping systems. It will work all day every day, because of the Hydraulic direct drive motor that will make sure that the pump can run dry without damage to the motor or seals. This makes it an ideal Submersible utility pump as there is no need for priming. This allows your team to focus on their tasks all the while the pump takes care of slurry and sewage. WPP-80 are used in a wide range of applications,it's suitable for maintenance work urban networks, in municipalities, water and waste utilities or rescue services, when pumping clean or contaminated water or slurry on building sites, in flooded excavations, in cellars and in wells etc. The clever impeller design ensure that the pump is unaffected of particles size up to Ø73 mm.
| Model No. | WPP40 | WPP60 | WPP80 | WPP100 | WPP100-1 | WPP150 | WPP650 | WPP400 | WPP550 |
| Weight | 11 kg | 14 kg | 29 kg | 40kg | 35 kg | 40 kg | 112 kg | 27 kg | 37 kg |
| Discharge Size | 2"(50mm) | 3"(76mm) | 4"(100mm) | 4"(100mm) | 4"(100mm) | 6"(150mm) | 8"(200mm) | 8"(200mm) | 8"(200mm) |
| Max Capacity | 48 m³/H | 60m³/H | 200 m³/H | 200 m³/H | 200m³/H | 300m³/H | 650m³/H | 390 m³/H | 550 m³/H |
| Max Head | 30 m | 16m | 18m | 25 m | 60 m | 35m | 35 m | 8m | 12 m |
| Working oil flow | 20~30 lpm | 26~34 lpm | 30~40 lpm | 45~50 lpm | 45~50 lpm | 45~50 lpm | 140~160 lpm | 35~45 lpm | 80~90 lpm |
| Max oil pressure | 155 bar | 155 bar | 155 bar | 250 bar | 250 bar | 250 bar | 250 bar | 200 bar | 250 bar |
| Body material | Aluminium | Alunimium | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Impeller material | Ductile Iron | Ductile Iron | Ductile Iron | Ductile Iron | Ductile Iron | Ductile Iron | Ductile Iron | Stainless Steel | Stainless Steel |
| Size | 240*170*350mm | 235*290*405mm | 380*480*470mm | 490*380*550mm | 410*300*450mm | 490*380*550mm | 705*500*600mm 810*600*720mm-- | 370*256*610mm | 330*310*535mm |
Q1: Why choose us WIPIN?
A1: We focus on HYDRAULIC POWER PACK and HYDRAULIC TOOLS since 2010,our aim is "HYDRAULIC EXPERT" in this industry.
Q2: What is your advantage?
A2: Wonderful quality,competitive price and experienced engineer,etc.
Q3: What is the guarantee?
A3: We offer 1 years guarantee for customer.
Q4: Do you offer customized for products?
A4: Yes,we do.
Q5: What is your quality control system?
A5: Our product achieve the ISO 9001 Quality Management Standard and CE certification provided.
Q6: What is your terms of payment?
A6: T/T, Global PAY,Western union,30% T/T in advance,balance before shipment etc.
Q7: Can you do OEM for me?
A7: We accept all OEM orders,just contact us with detailed requirement. we will offer you a reasonable price and make samples for you ASAP.
Q8: How can I place the order?
A8: 1. Direct order from Made-in-China.
2. Sign the PI → Pay (1. Sample in stock with full payment. ) → Arrange shipping
(2.Large order, 30% deposit, arrange production.) →Balance payment→Arrange Shipping.
More details please discuss with Luna.
