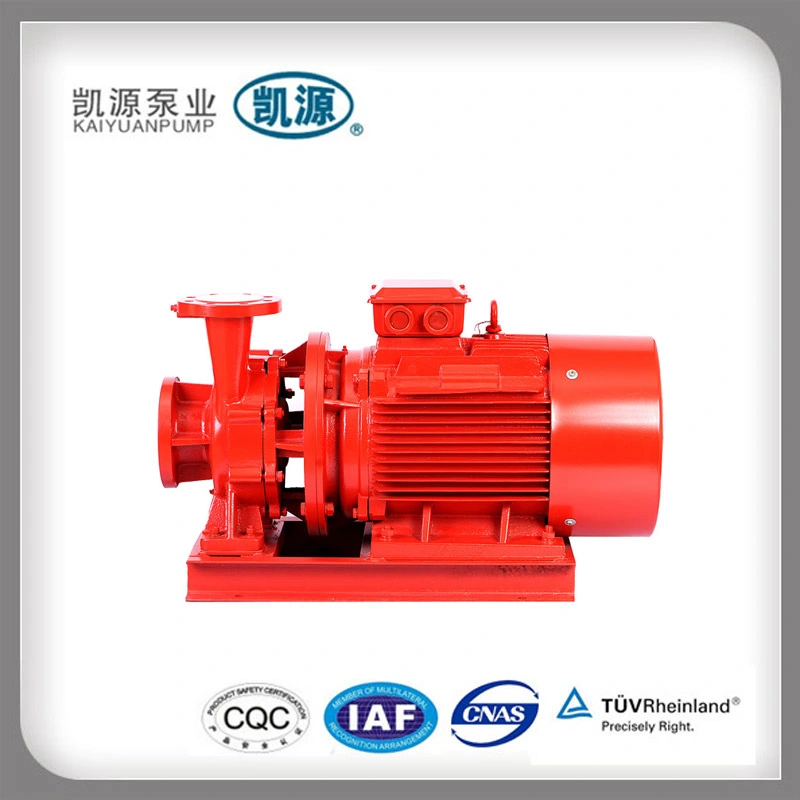

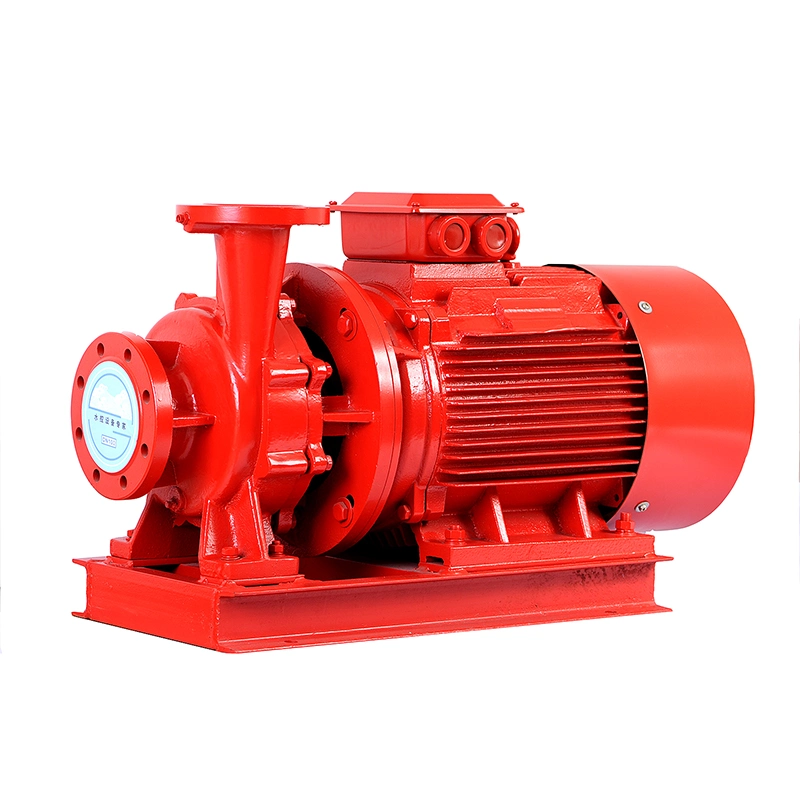

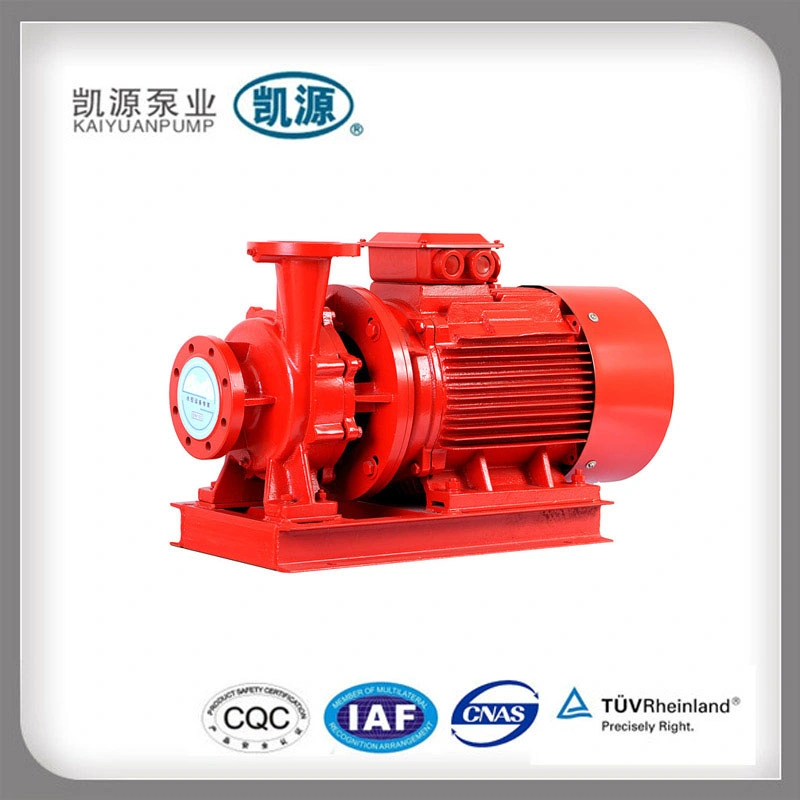

3.7kw Horizontal Centrifugal Fire-Fighting Pump, End Suction Fire-Fighting Water Pump

3.7kW Horizontal Centrifugal Fire-Fighting Pump (End Suction)

This 3.7kW horizontal centrifugal fire-fighting pump is a high-efficiency energy-saving product designed by adopting international centrifugal pump property data and the unique advantages of vertical pumps. It strictly complies with the ISO2858 world standard and the national standard JB/T53058-93.

This versatile hydraulic series can be configured as:

• KYWR/KYLR: Hot water pump
• KYHL: Chemical engineering pump
• KYYG: Oil pump
• KYHY: Explosion-proof chemical pump

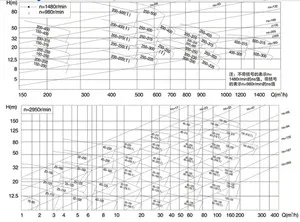

• Capacity: 4-1200m3/h
• Head: 8-150m
• Speed: 2900, 1450 r/min
• Power: 0.75-250kW
• Flange Size: 25-350mm
• Medium Temperature: ≤80ºC (Standard)

KYL/KYW Series: Used for industrial and urban water supply, drainage, high-rise building booster supply, garden irrigation, and fire-fighting systems. Medium temperature < 80ºC.

KYLR/KYWR Series: Ideal for hot water booster cycles, heat stations, metallurgy, and industrial boilers. Medium temperature < 120ºC.

KYHL/KYHW Series: Designed for corrosive liquids without solid particles. Suitable for chemical, petroleum, electricity, and pharmaceutical industries. Temp range: -20ºC to 120ºC.

YG Series: Specialized for non-corrosive, inflammable, and non-explosive oil transport. Density < 1000kg/m³.

Example: KYW 65-160 (I) (A/B)

• KYW: Single Stage Single Suction Horizontal Pump
• 65: Inlet & Outlet Diameter (mm)
• 160: Outer Diameter of Impeller
• (I): Flow Classification
• A/B: Impeller Cutting Code
