3600m3/H Fifi System Pump Fire Fighting Pump Set with Diesel Engine Sea Water Fire Pump

1 / 5

3600m3/H Fifi System Pump Fire Fighting Pump Set with Diesel Engine Sea Water Fire Pump

Customization:	Available
Certificate:	CCS, BV, ABS Fifi System Fire Fighting Pump
Model:	Cxb500-400c

Send Inquiry

Product Description

Basic Information

Model NO.

CXB500-400 Fire Fighting Pump

Capacity

150~3600m3/H Fire Pump

Pump Head

140m

Pump Speed

1800 Rpm

Driven

Diesel Engine

Pump Shell Material

Nodular Cast Iron

Shaft

Stainless Steel

Pump Inlet

Dn500

Pump Outlet

Dn400

Transport Package

Plywood Case

Specification

CCS, BV FIFI System Fire Fighting Pump

Origin

China

Product Description

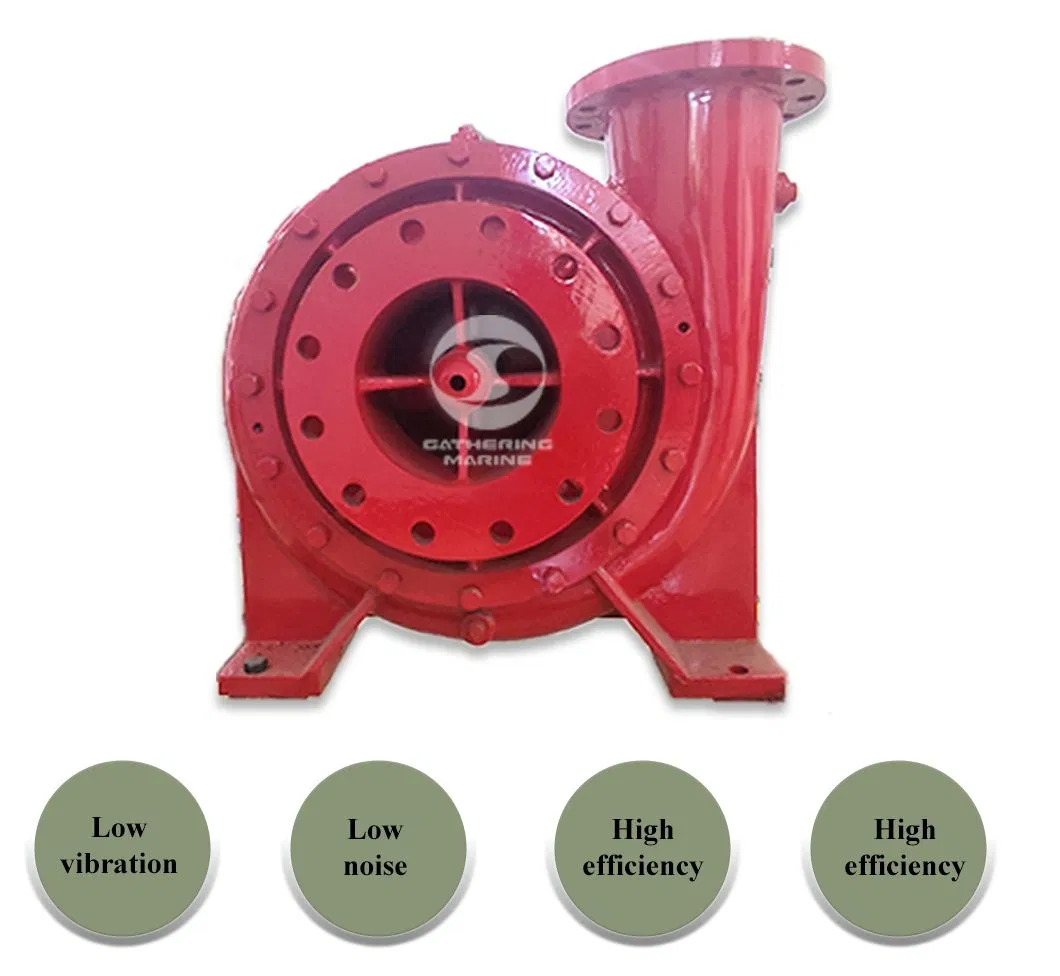

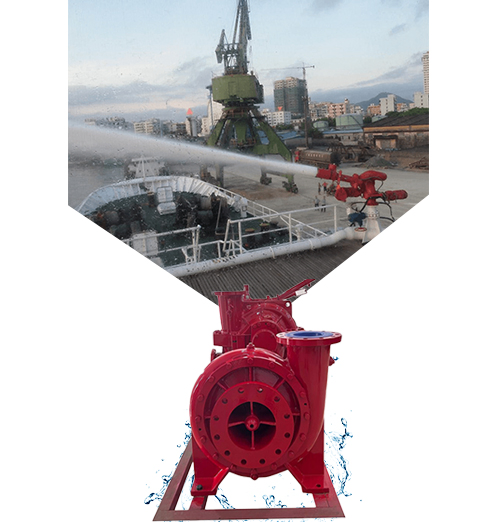

3600 M3/H FIFI System Pump Fire Fighting Pump Set

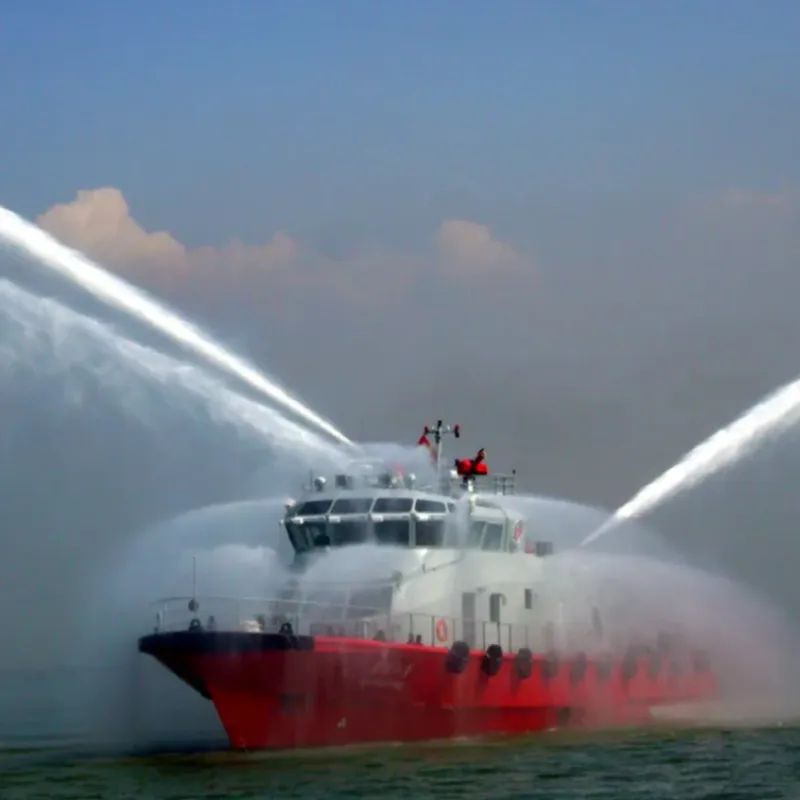

Fire pumps are generally centrifugal pumps used for emergency fire fighting. These pumps are mainly driven by a diesel engine. Most ships require more than one of these fire fighting equipment sets. These pumps are used to deliver seawater or foam to quickly extinguish fires before they get out of control.

Specification of Water Pump:

Type: Horizontal single stage centrifugal pump
Medium: Seawater
Capacity: 120~3600 m3/h
Pump head: 140m
Pump speed: 1800 r/min
Power absorbed: 1890kw
Dimension of pump inlet: DN500
Dimension of pump outlet: DN400

Main Material:

Pump shell: Nodular cast iron
Impeller: Ni-Al bronze
Shaft: Stainless steel
Shaft sealing: Soft sealing

Flow (m³/h)	Range (m)	Speed (rpm)
120 - 180	120	2950
160 - 400	120 - 145	2960
400 - 720	120 - 150	1800 / 1450
400 - 900	120 - 145	1800
1000 - 1800	120 - 160	1800
1200 - 2000	110 - 150	1800
1500 - 2800	120 - 175	1800
1800 - 3600	120 - 165	1300

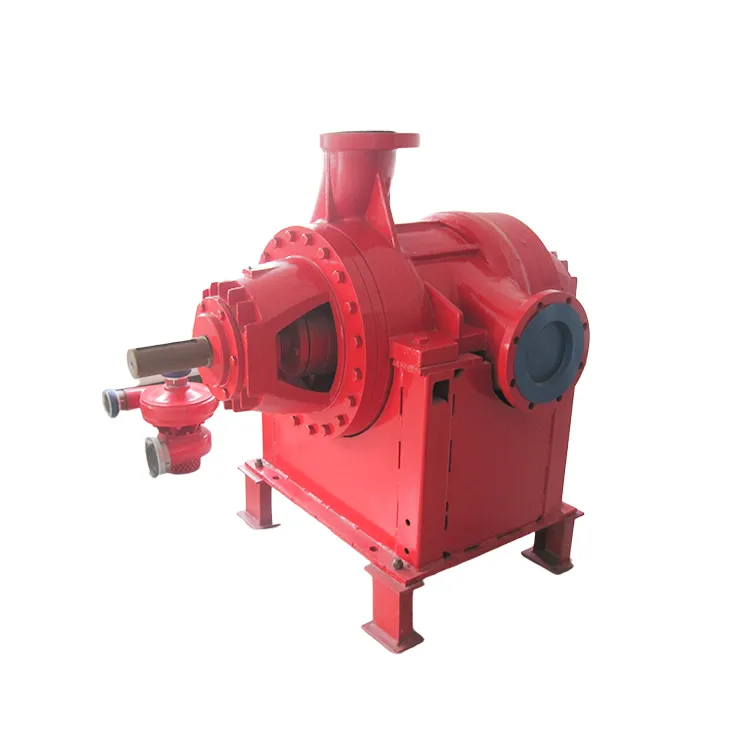

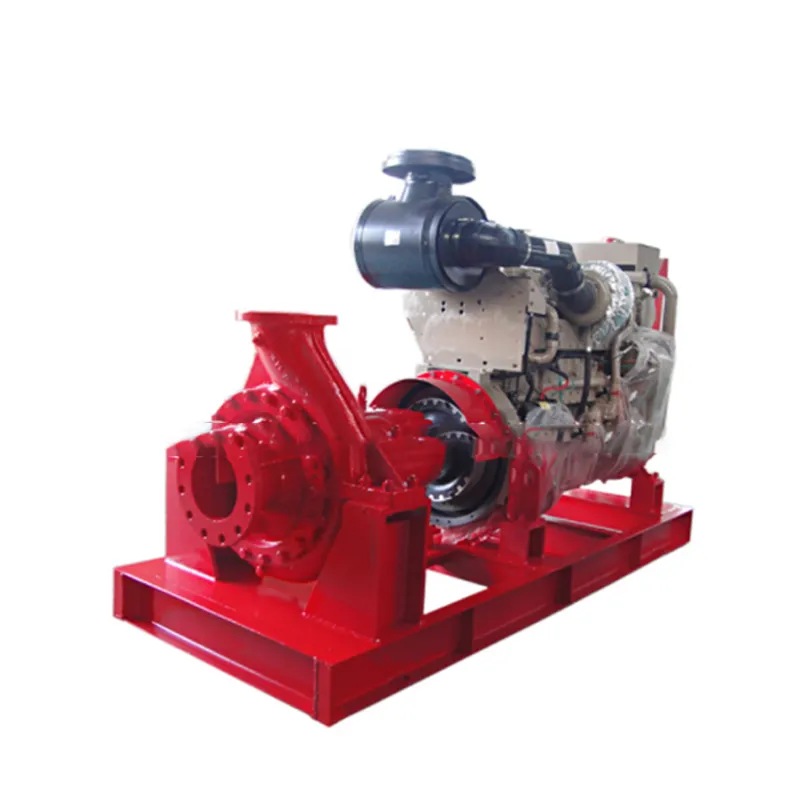

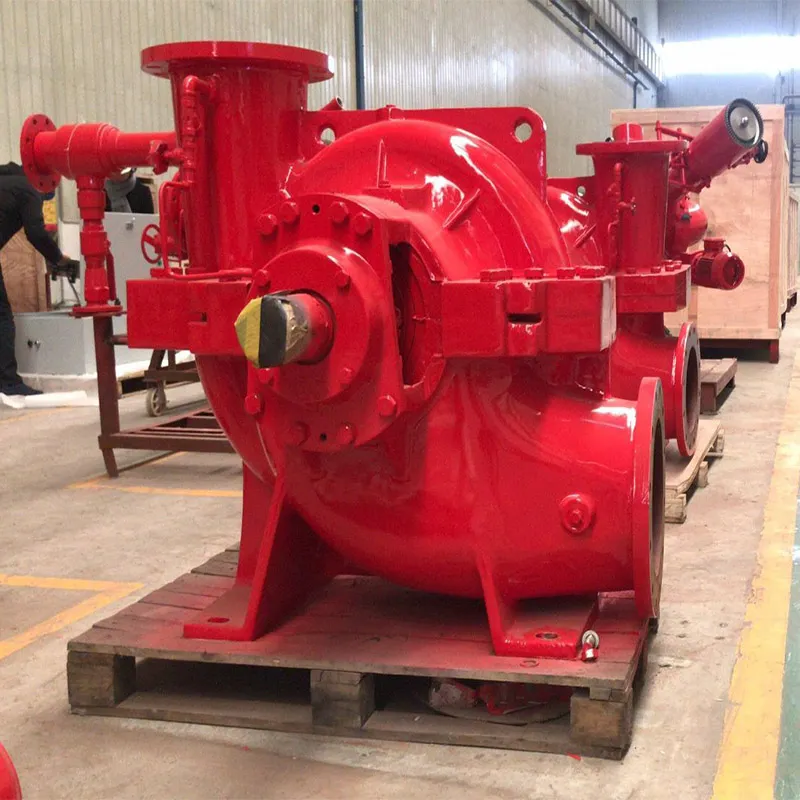

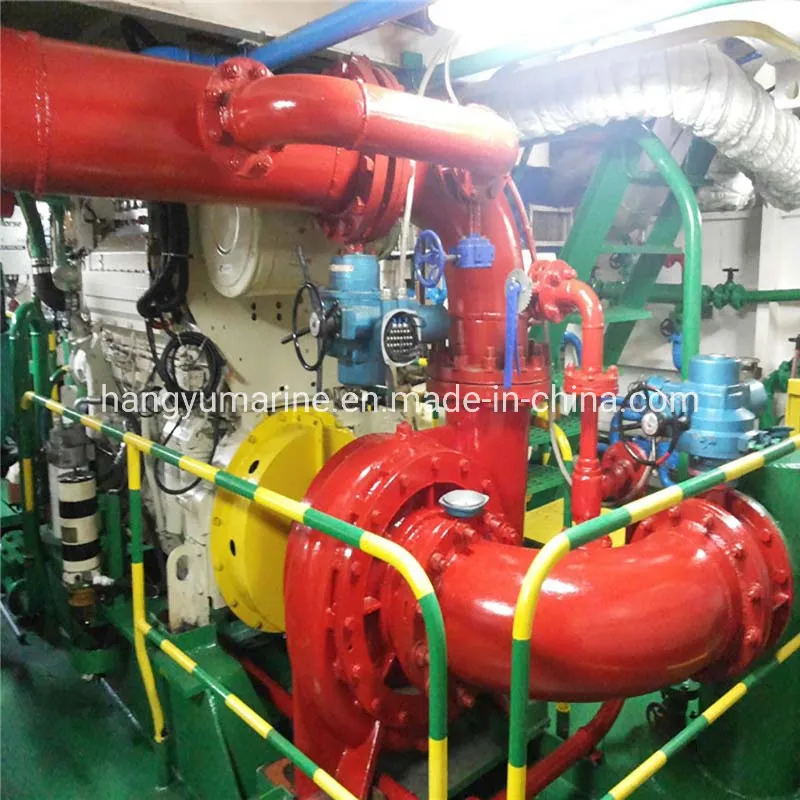

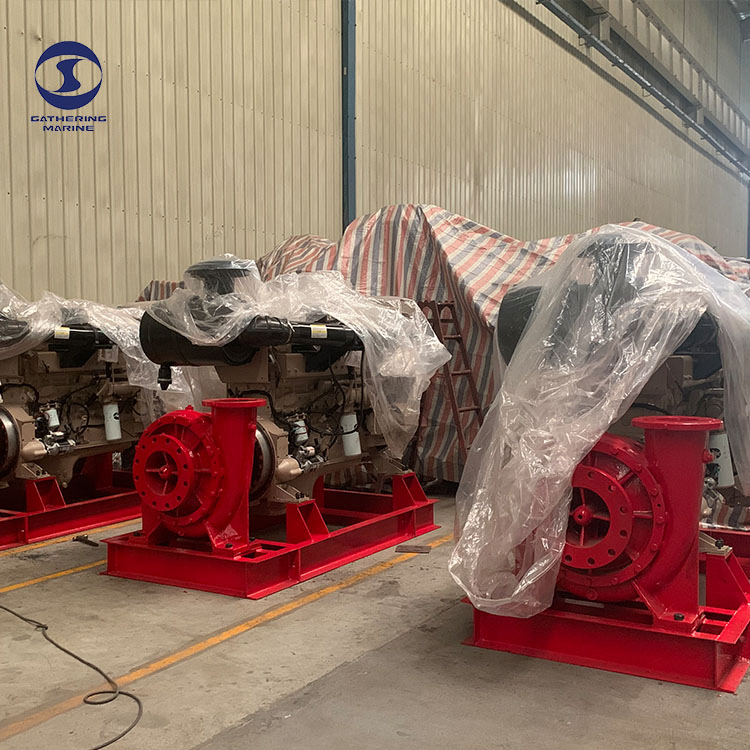

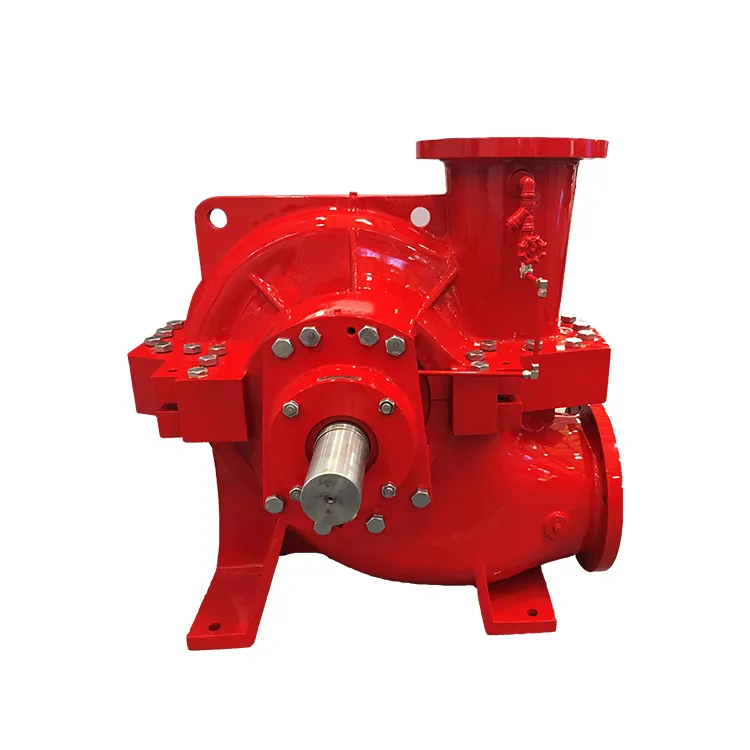

Detailed Photos

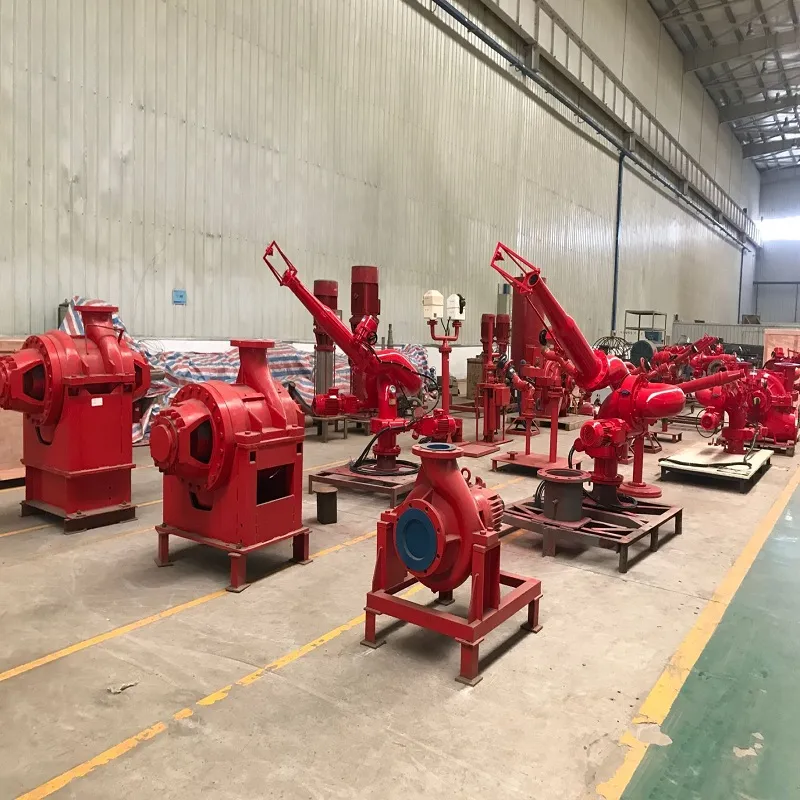

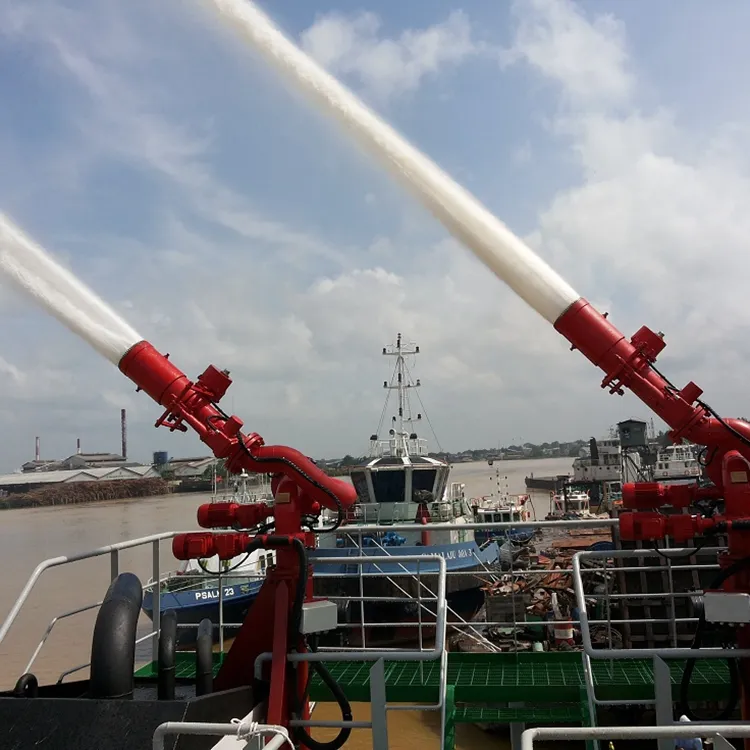

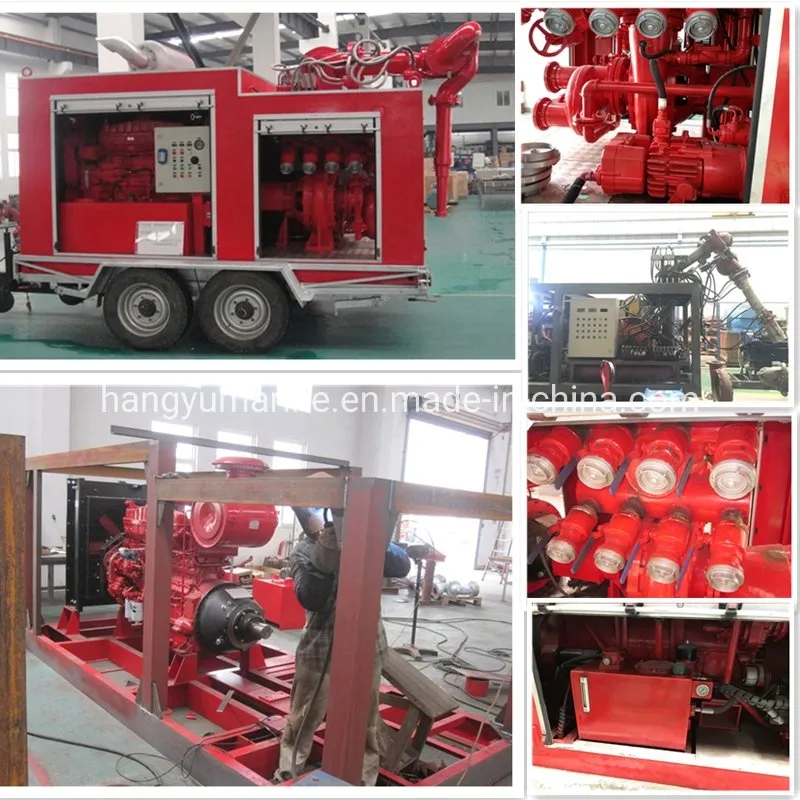

Other Products - External Fire Fighting System

Certifications

Frequently Asked Questions

What is the capacity range of the CXB500-400 fire fighting pump?

The pump offers a wide capacity range, typically from 150m³/h up to 3600m³/h, depending on the specific configuration and speed requirements.

What type of engine is used to drive this fire fighting pump set?

This fire fighting pump set is primarily driven by a high-performance diesel engine, ensuring reliable operation during emergency fire fighting situations on ships.

Which materials are used for the pump's main components?

The pump shell is constructed from durable nodular cast iron, the impeller is made of corrosion-resistant Ni-Al bronze, and the shaft is made of high-grade stainless steel.

What certifications do your FIFI system pumps hold?

Our fire fighting pumps and FIFI systems are designed to meet international maritime standards and can be supplied with CCS and BV certifications.

What are the inlet and outlet dimensions for the DN500 model?

For the CXB500-400 model, the pump inlet dimension is DN500 and the pump outlet dimension is DN400.

Is this pump suitable for seawater applications?

Yes, the pump is specifically designed to handle seawater or foam, making it ideal for marine external fire fighting systems.
