315kw High-Power Submersible Pumps for Mines, Emergency Drainage

1 / 5

315kw High-Power Submersible Pumps for Mines, Emergency Drainage

Customization:	Available
After-sales Service:	12 Months
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.	BQ Series
Max. Head	1720m
Max. Capacity	1500m3/H
Material	Nodular Cast Iron
Structure	Multistage Pump
Application	Submersible Pump, Sewage Pump, Slurry Pump
Ex-Proof Grade	Exd I
Rated Voltage	6000V/10000V

Product Description

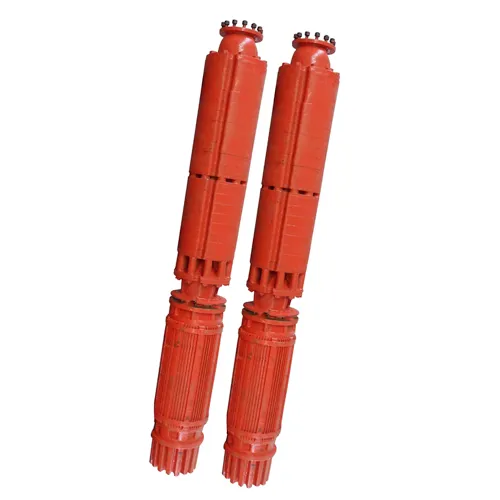

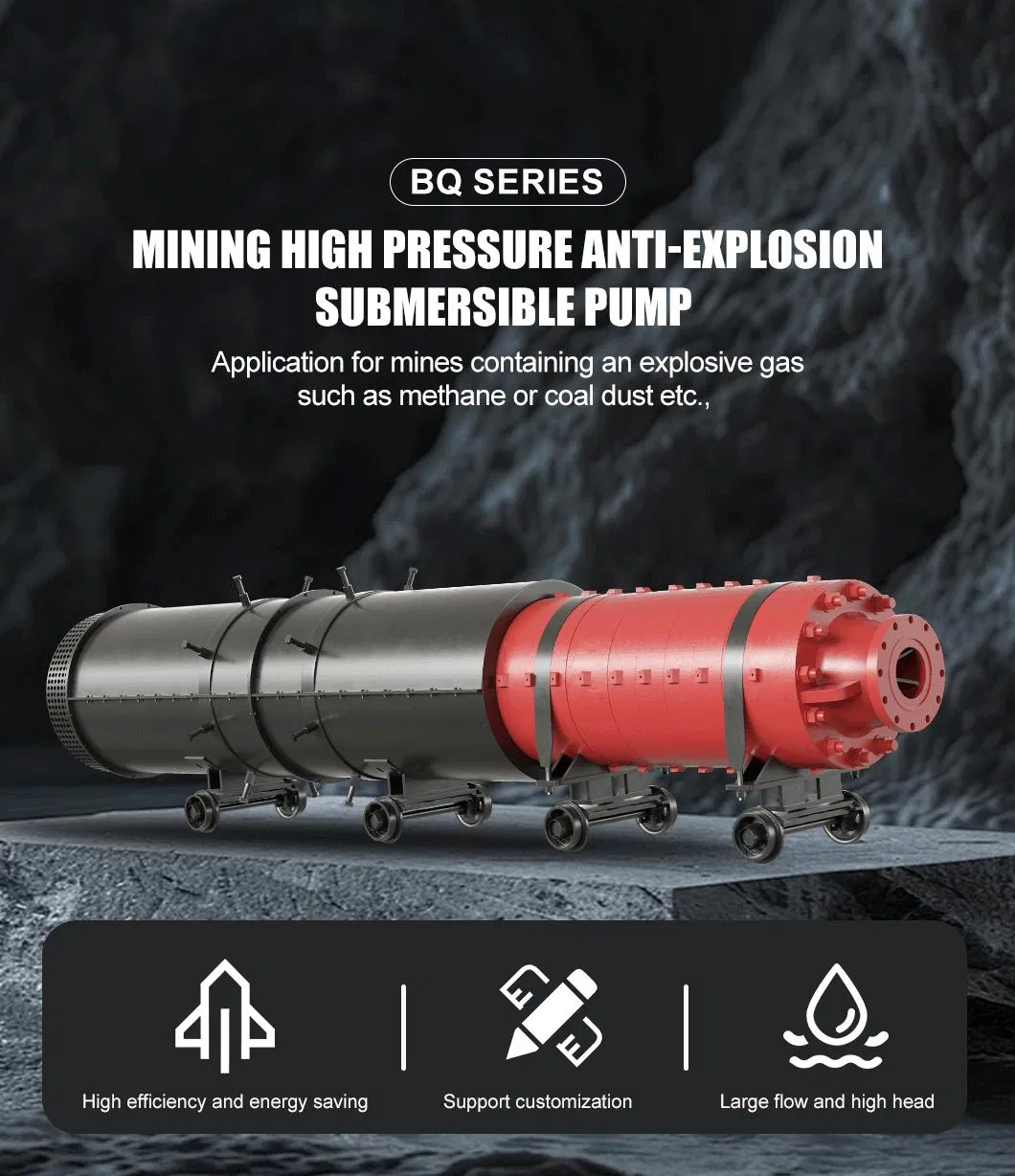

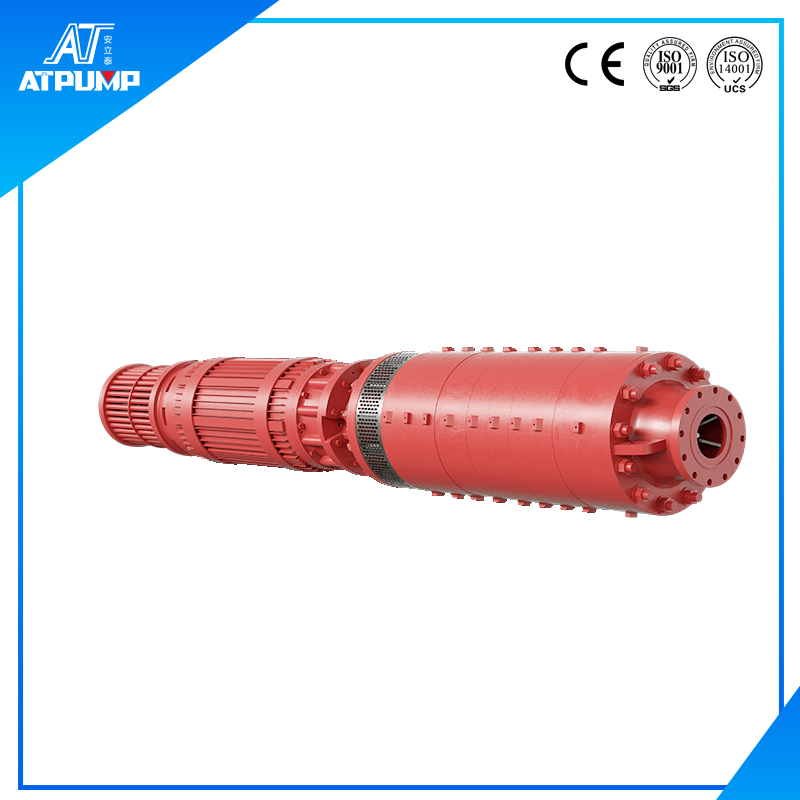

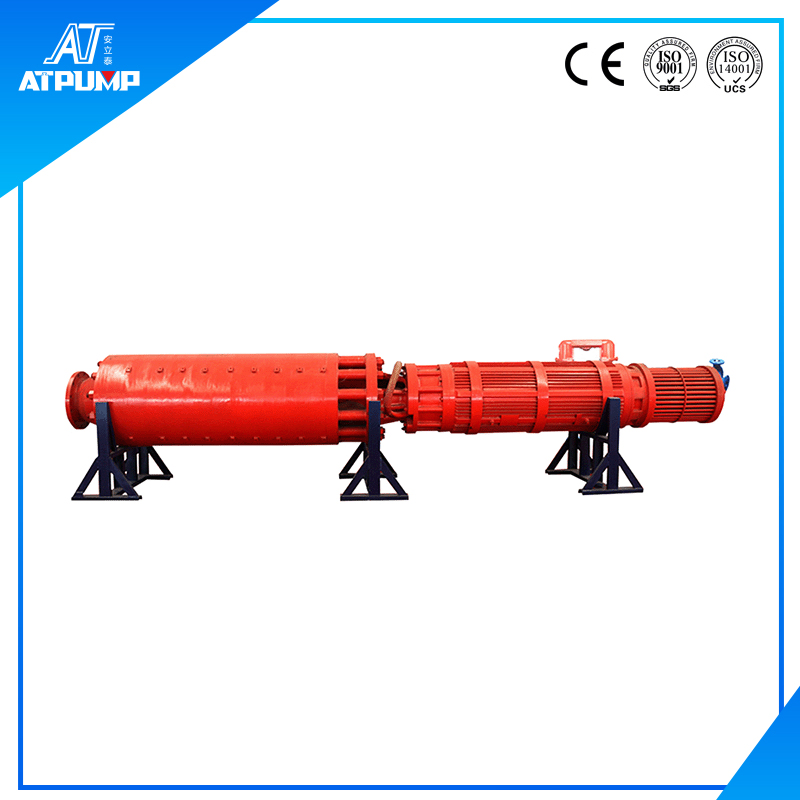

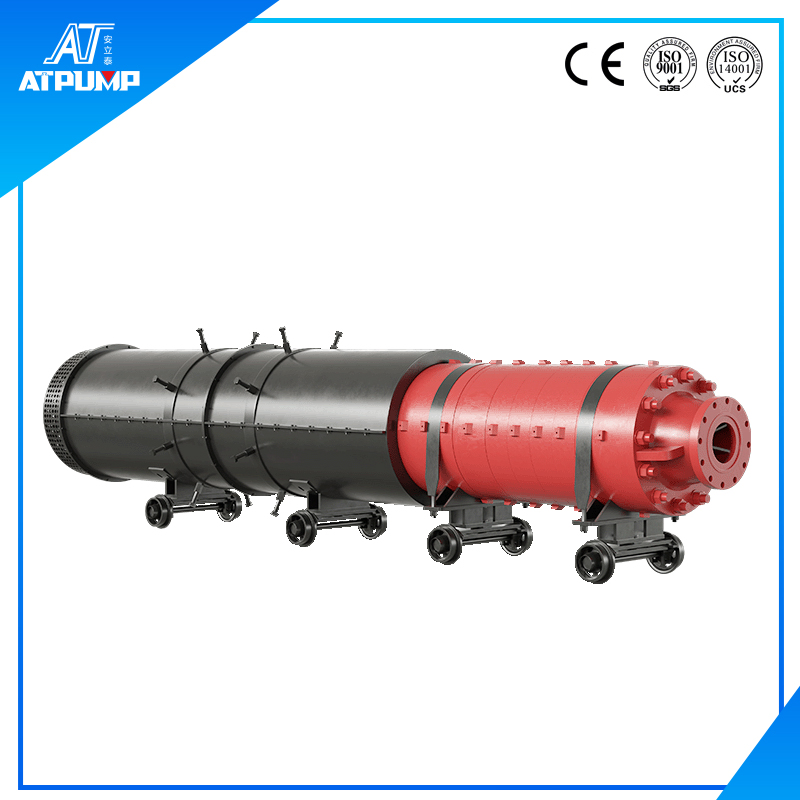

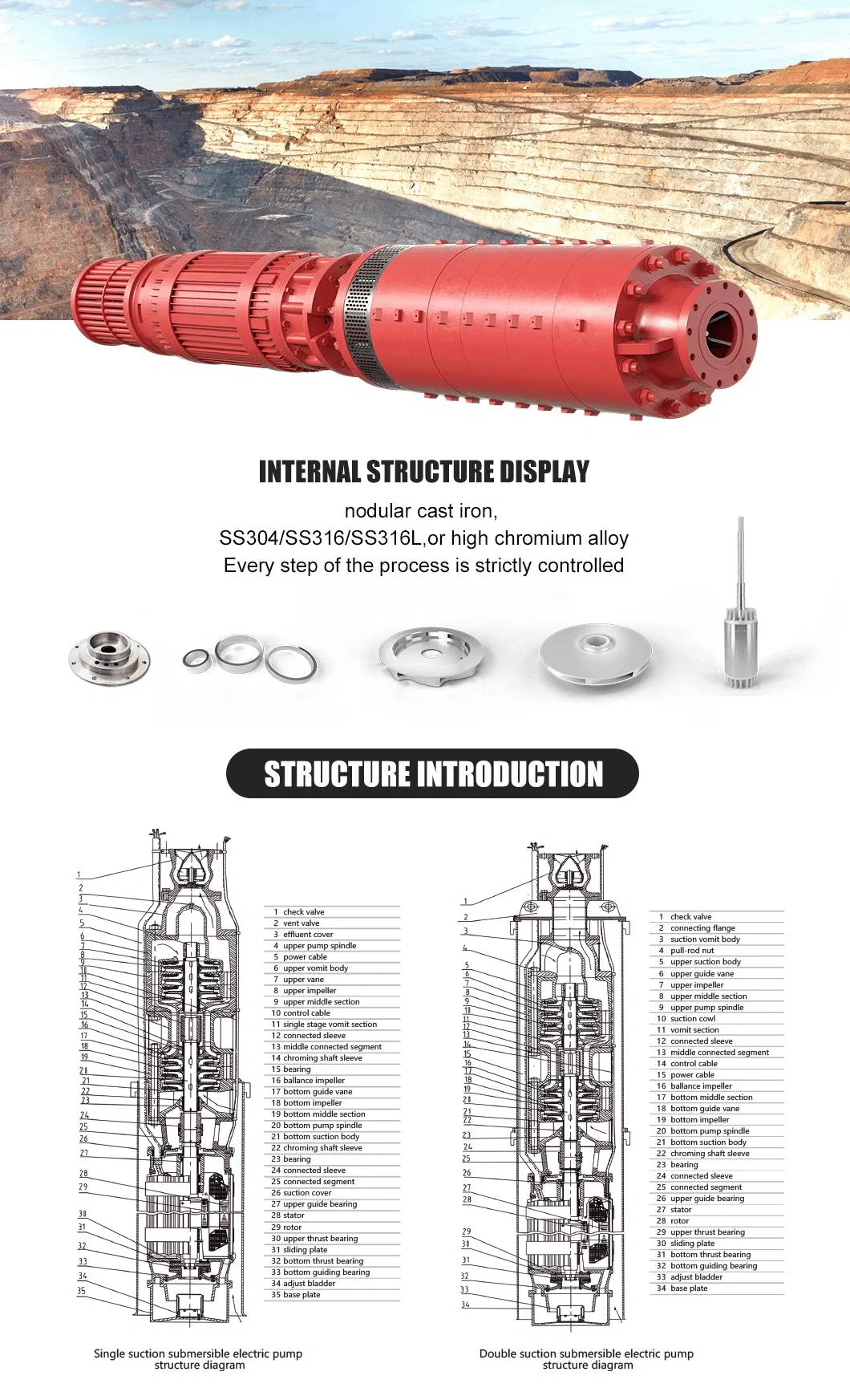

BQ series mining flame-proof submersible electric pumps are the latest large-scale pumping equipment designed for extreme environments. Developed with extensive professional rescue and drainage expertise, this equipment is engineered for high-performance mine recovery and disaster relief. This product features a double or single suction multistage centrifugal pump integrated with a water-filled, high-pressure submersible three-phase asynchronous motor.

🔹 Working Conditions

Voltage: 6000V or 10000V
Medium PH: 4-10
Water Temp: ≤50ºC
Solid Content: ≤10%
Depth: Submergence depth up to 700m

The pump is driven by a specialized wet stator submersible motor. Unlike standard IP68 motors, the wet stator housing is filled with water, utilizing special windings with IPX8 protection, allowing for unrestricted submergence depth and superior cooling efficiency in harsh mining conditions.

Product Parameters

Model	Flow (m³/h)	Head (m)	Impeller Stage	Efficiency (%)	Speed (r/min)	Power (kW)	Voltage (KV)
BQ100-595/6-355	100	595	6	47.9	1500	355	6/10
BQ100-850/10-500	100	850	10	48.4	1500	500	6/10
BQ150-600/7-500	150	600	7	52.8	1500	500	6/10
BQ150-935/11-800	150	935	11	53.4	1500	800	6/10
BQ200-510/6-500	200	510	6	57.2	1500	500	6/10
BQ200-1110/13-1120	200	1110	13	58.2	1500	1120	6/10

Core Features

Remote automatic technology for pump stations
Wet stator motor with optimal heat dissipation
Low noise operation even at high power
Explosion-proof (Ex-proof) safety design

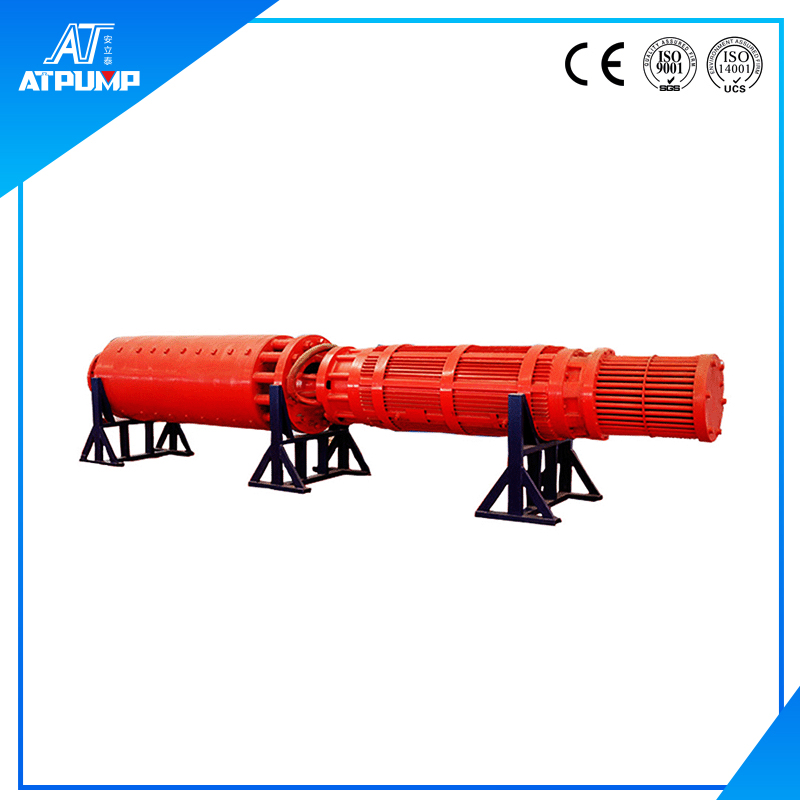

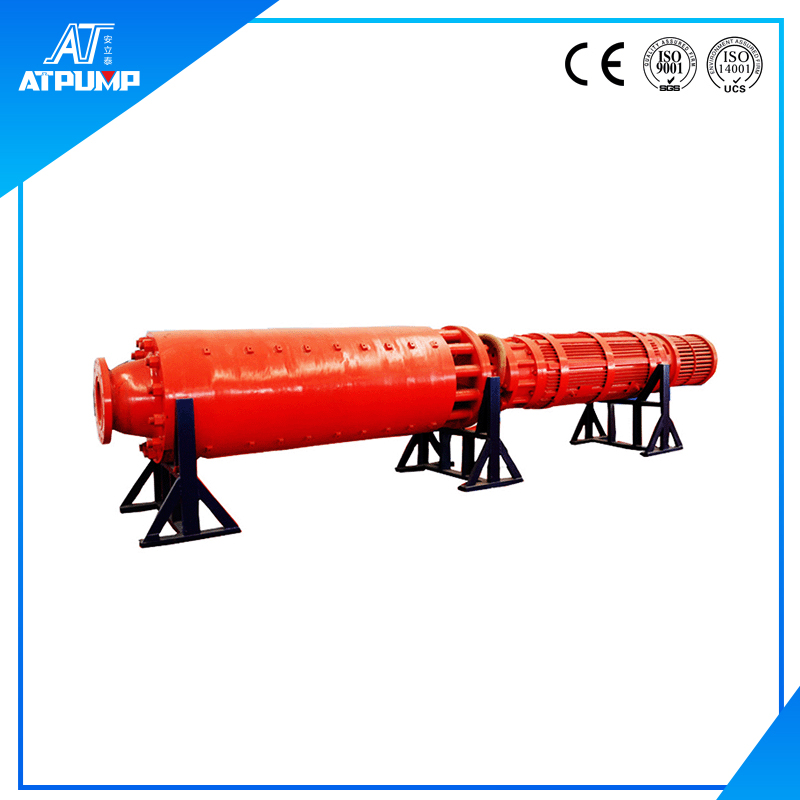

Flexible installation: Vertical, Horizontal, or Inclined
Self-balancing axial force for extended service life

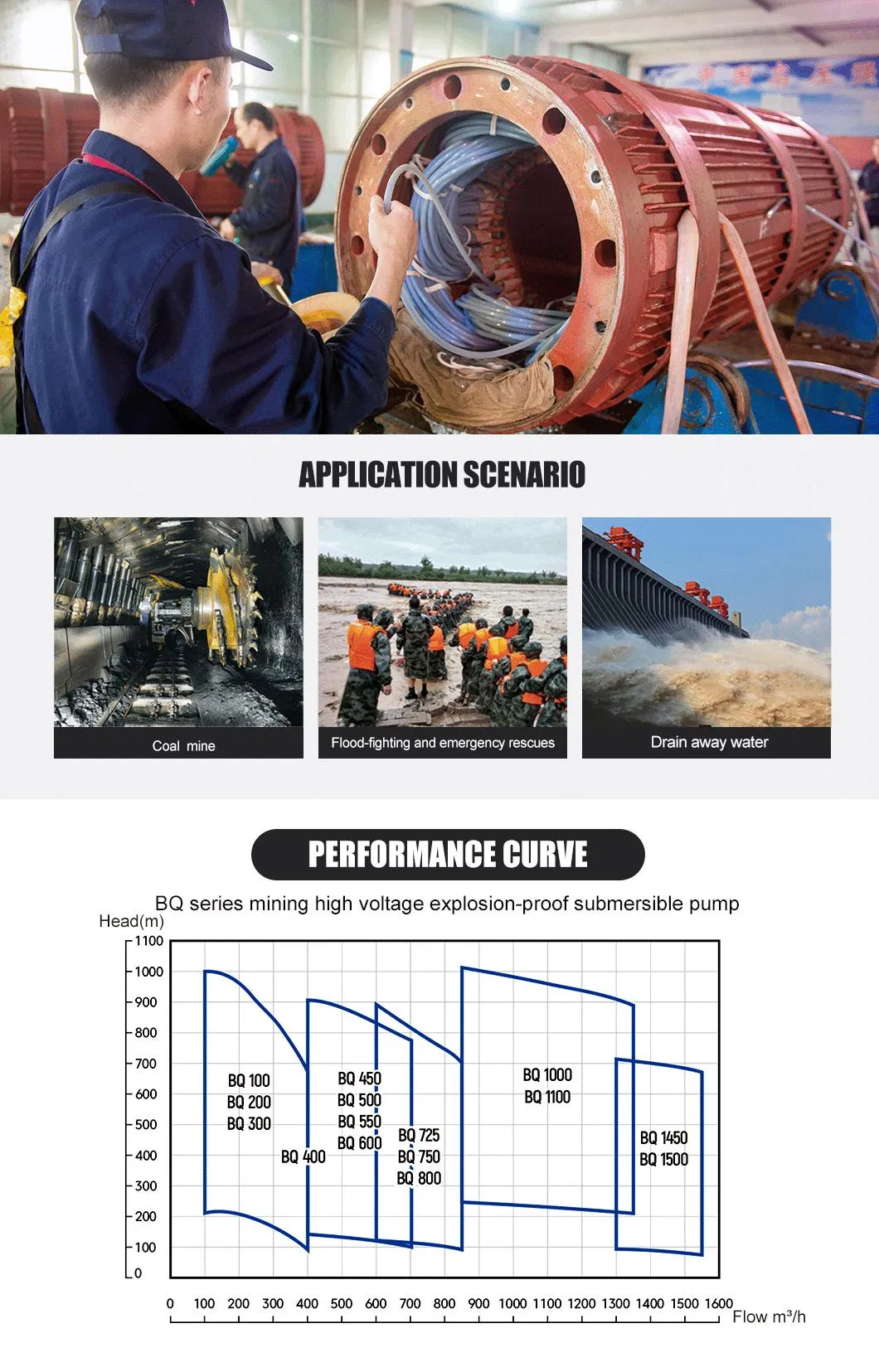

Applications

Coal & Metal mine drainage
Emergency flood rescue and relief
High-pressure industrial water supply
Non-metal mine drainage systems

Quality & Packaging

Strict Inspection: All products undergo rigorous testing before dispatch.

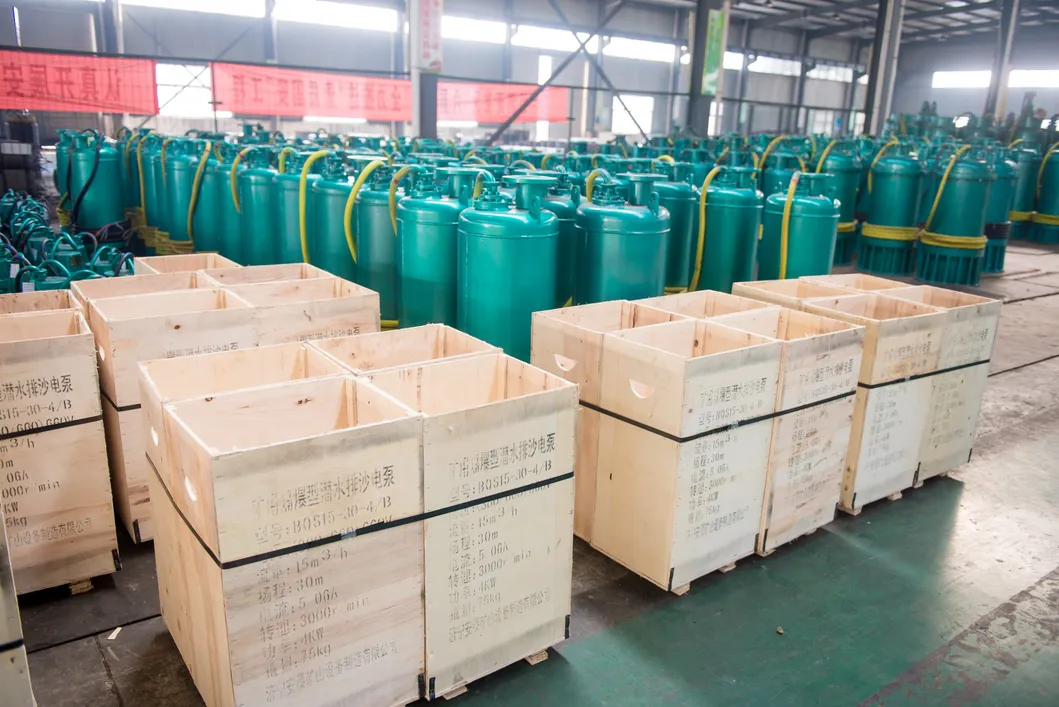

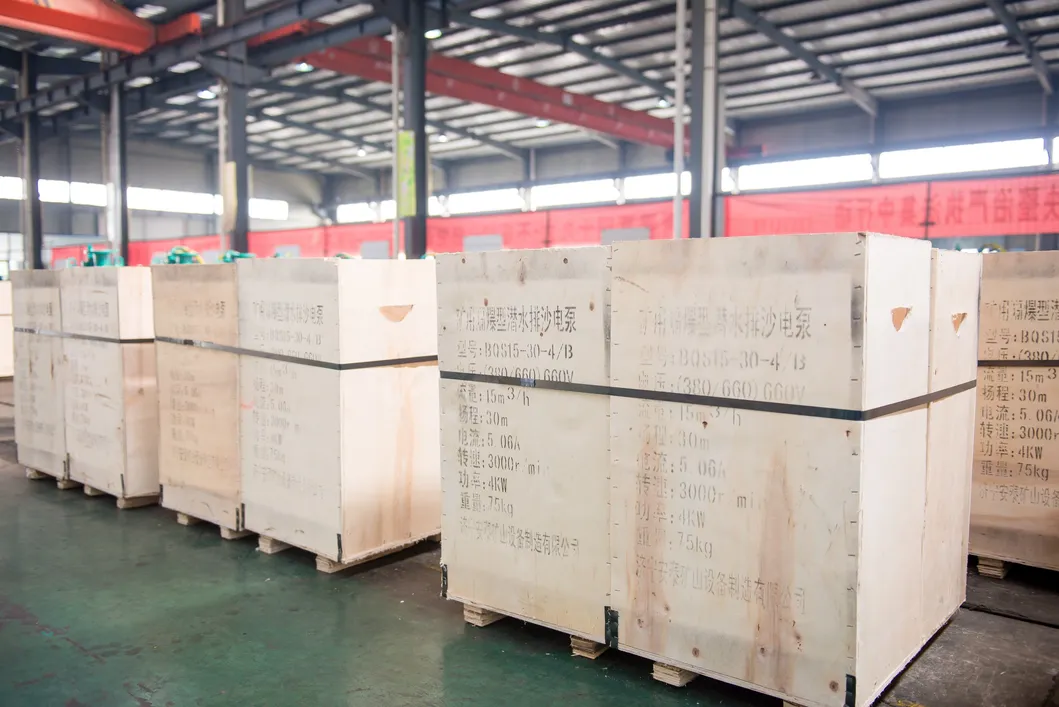

Export Standard: Goods are packed in heavy-duty wooden cases designed to withstand long-distance transit and protect against moisture and impact.

Professional Manufacturer

With over 20 years of expertise, our facility spans 200,000 square meters, integrating R&D, advanced manufacturing, and global service. We specialize in high-voltage explosion-proof submersible pumps, pneumatic diaphragm pumps, and sewage drainage solutions. Our products are widely used in petrochemical, natural gas, and civil engineering sectors across the world, including Australia, Russia, and South Africa.

Frequently Asked Questions

What types of pumps do you specialize in?

We specialize in mining submersible pumps, specifically high-power, flame-proof, and high-pressure drainage systems designed for mine recovery and industrial applications.

Do you offer customization for specific mining environments?

Yes, we provide customized services for high-pressure needs, large flow requirements, and special installation orientations (vertical, horizontal, or inclined) based on your site conditions.

What is the standard lead time for production?

The typical production time is approximately 30 working days, depending on the order quantity and specific customization requirements.

How are the pumps protected during shipping?

We use export-standard wooden cases that are reinforced to protect the equipment from physical damage and environmental factors during sea or air freight.

What are your quality certifications?

Our products are manufactured under ISO9001, ISO14001, and CE standards, and carry necessary flame-proof certifications for hazardous mining environments.

What are the main advantages of a wet stator motor?

The wet stator motor provides superior heat dissipation as the stator is submerged in water, allowing it to operate at much greater depths than standard submersible motors without overheating.
