Product Description

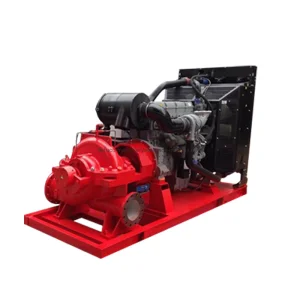

Diesel engine-driven fire pumps are vital for providing a reliable water supply in emergency situations, especially when electrical power is unreliable or unavailable, ensuring effective fire suppression in various locations.
TECHNICAL SPECS
- Flow: up to 227m3/h (1000GPM)
- Head: up to 120m (174 PSI)
- Speed: 3000RPM

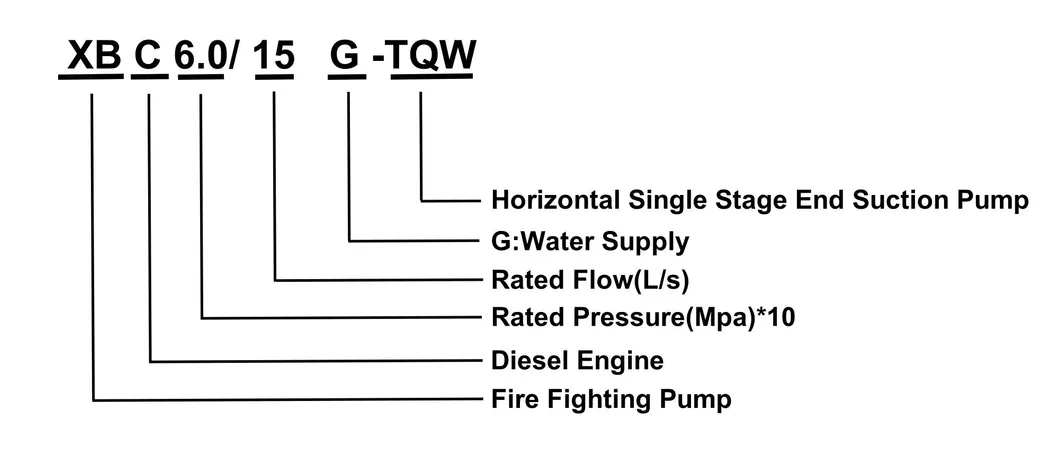

- Pump Type: Horizontal Single Stage End Suction Pump
APPLICATIONS
- Standby fire pump in the fire fighting system.
- Ensuring safety of hospitals, schools, airports, and other public buildings.
- Installed in industrial facilities and commercial buildings.
- Boost water pressure from city mains, tanks, or reservoirs.
FEATURES
- Meets NFPA20 performance requirements (rated point, 1.5 times flow point, power, shut off point).
- Impressive speed of 3000 RPM for high performance.
- Wet parts made of stainless steel/brass with 2cr13 shafts to prevent corrosion and extend life.

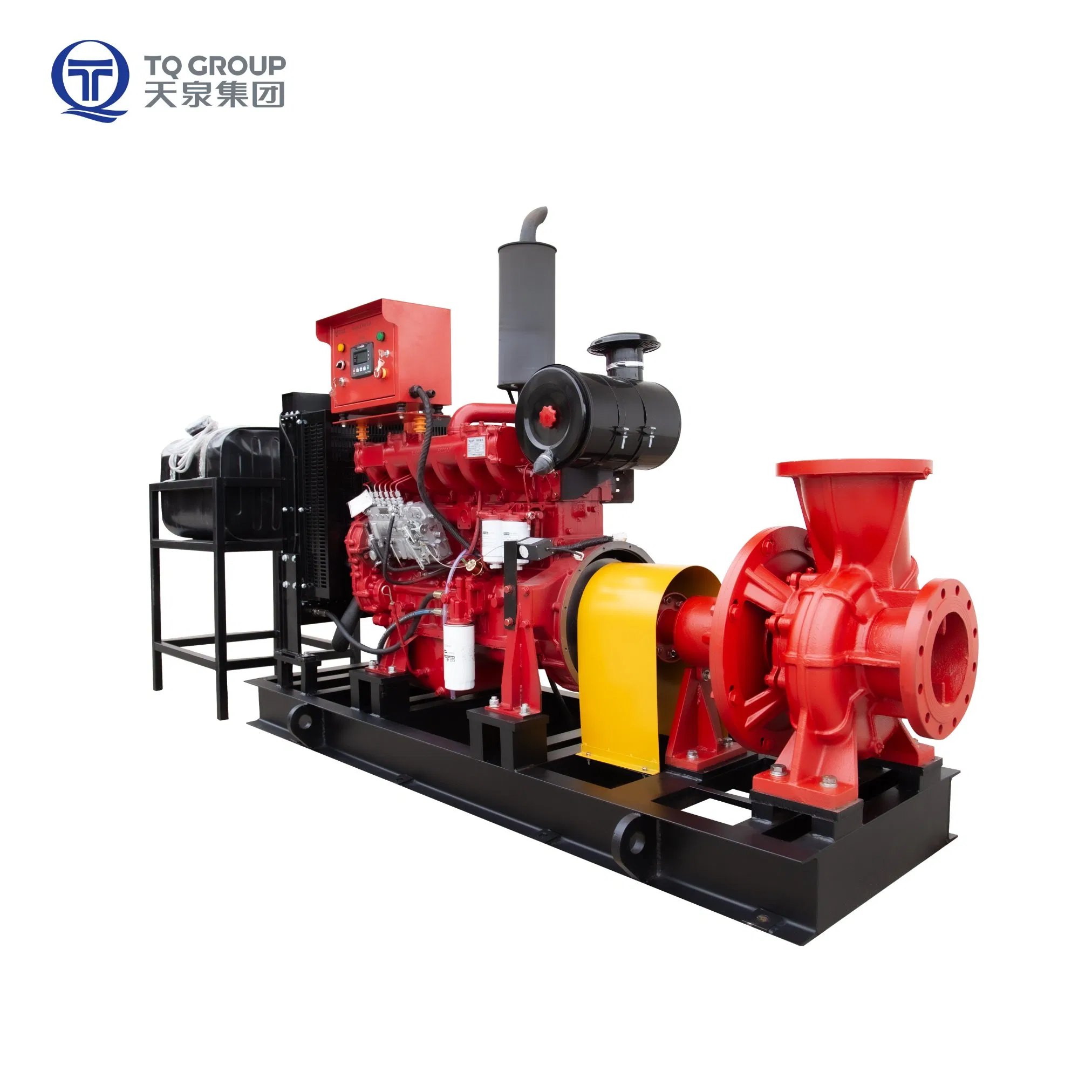

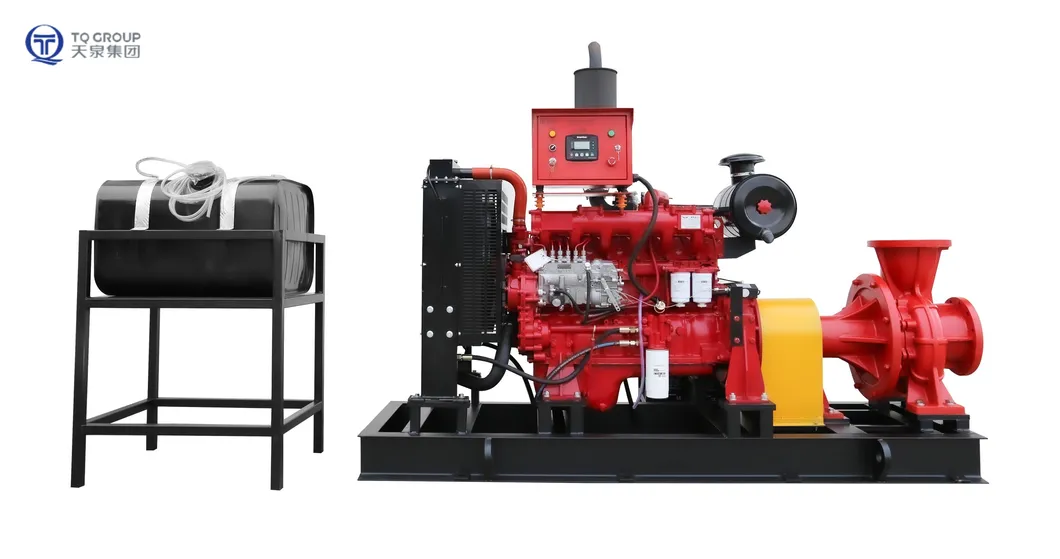

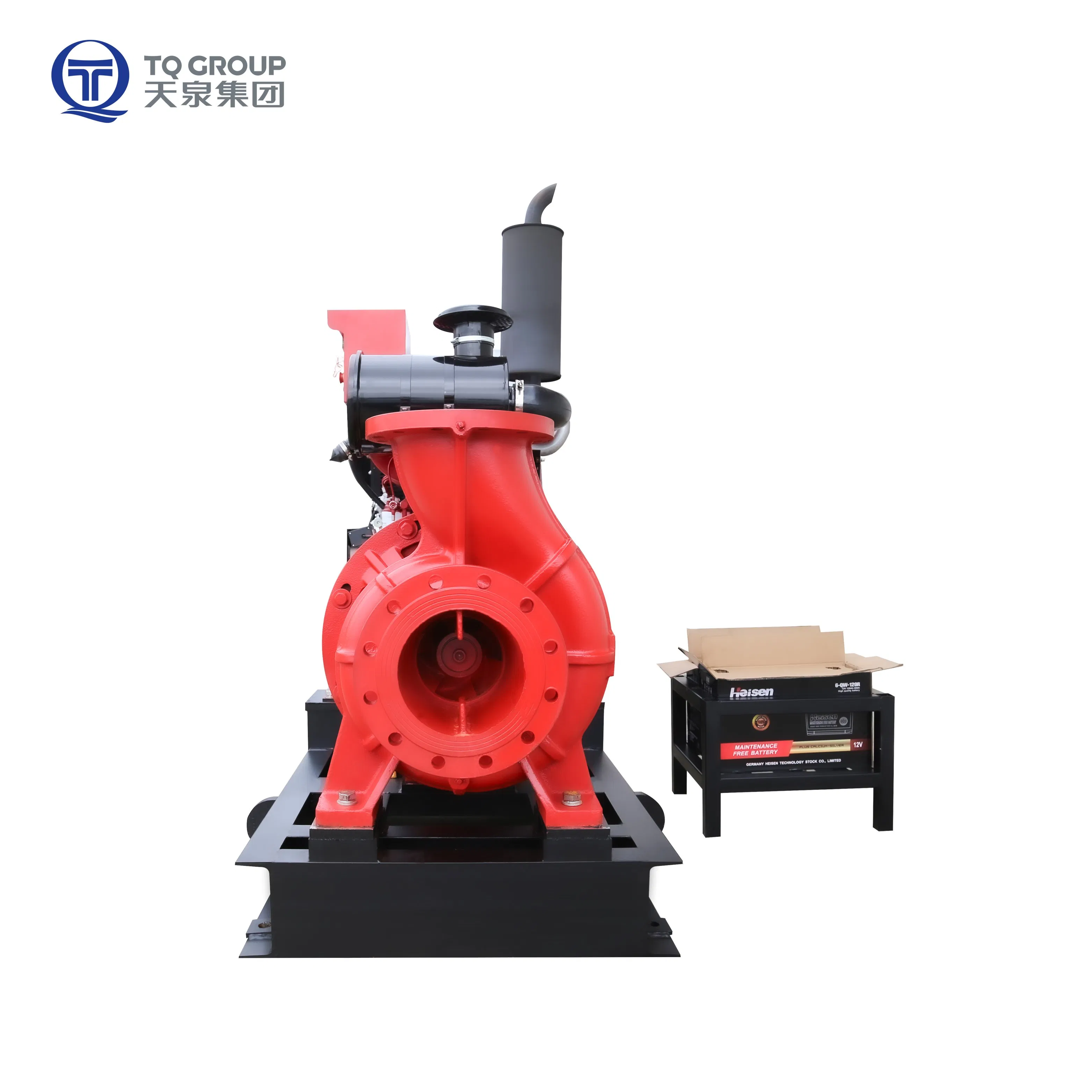

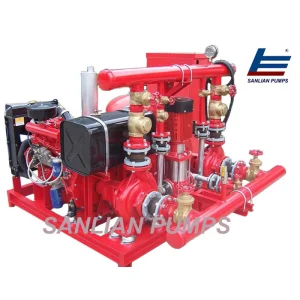

Detailed Photos & Components

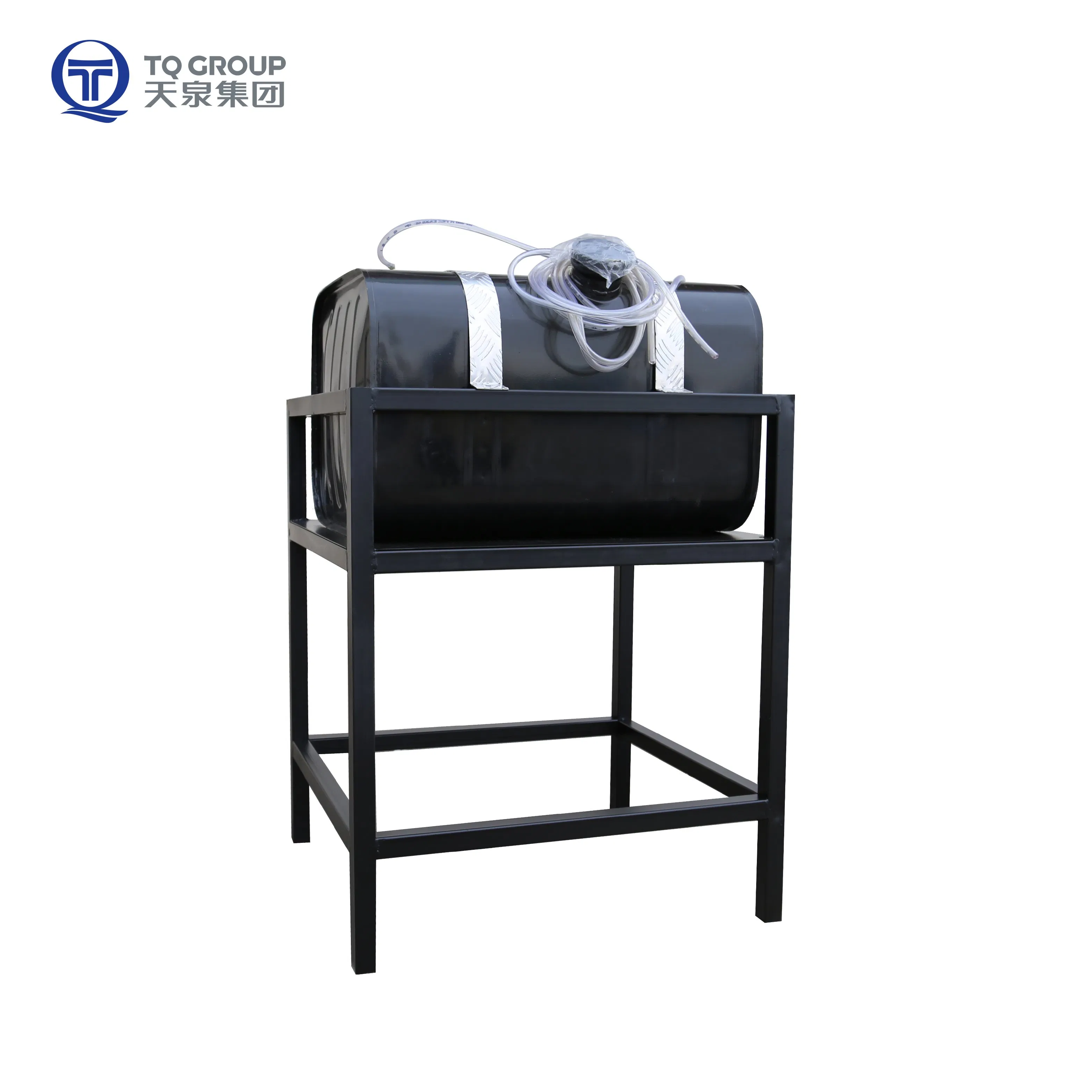

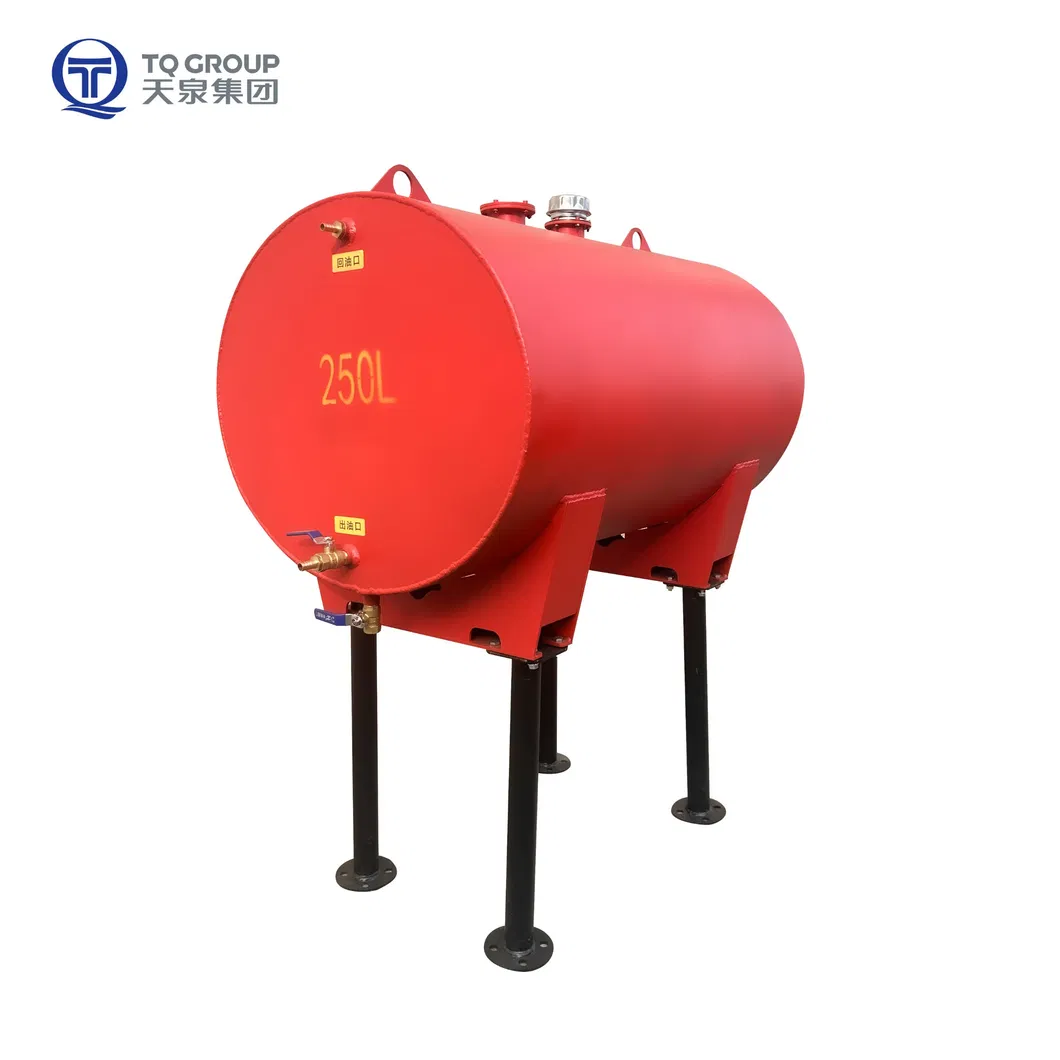

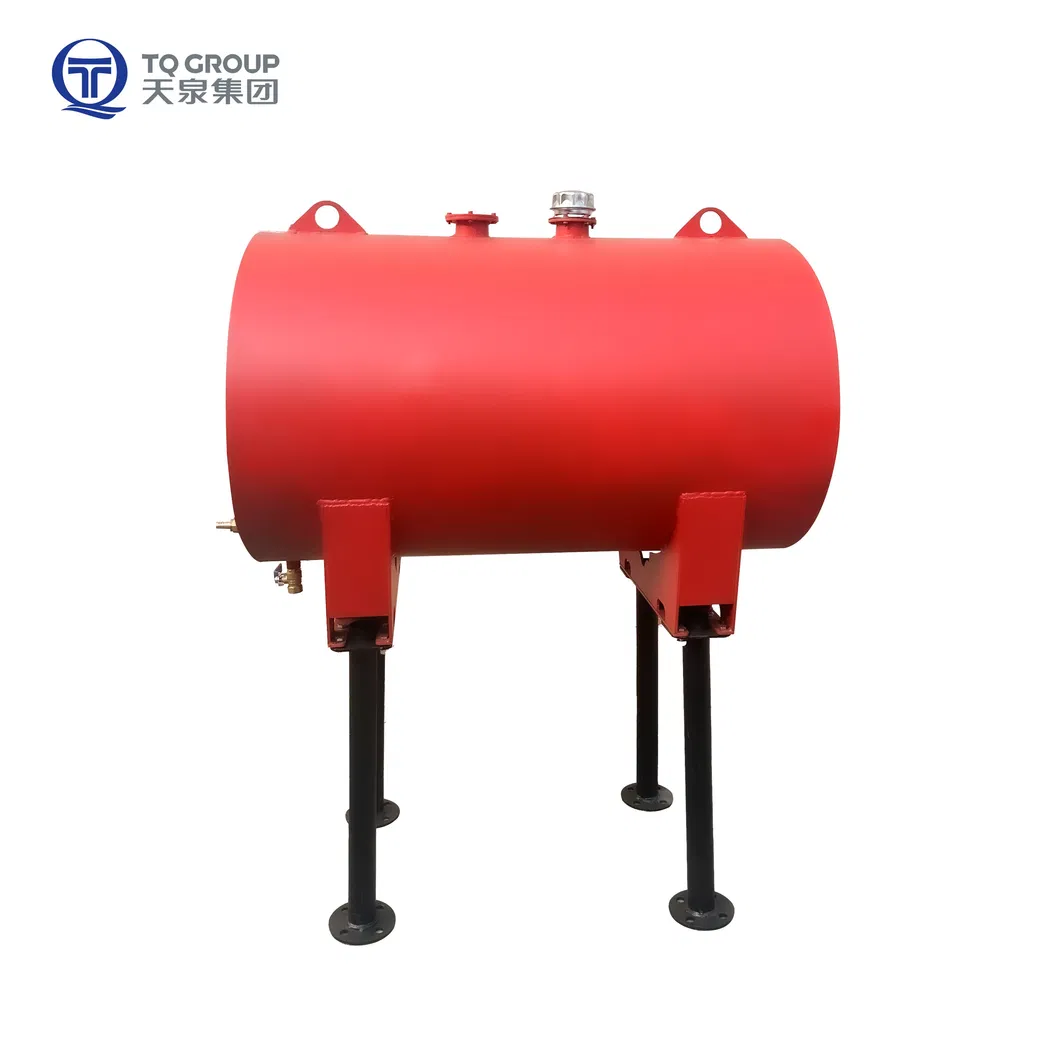

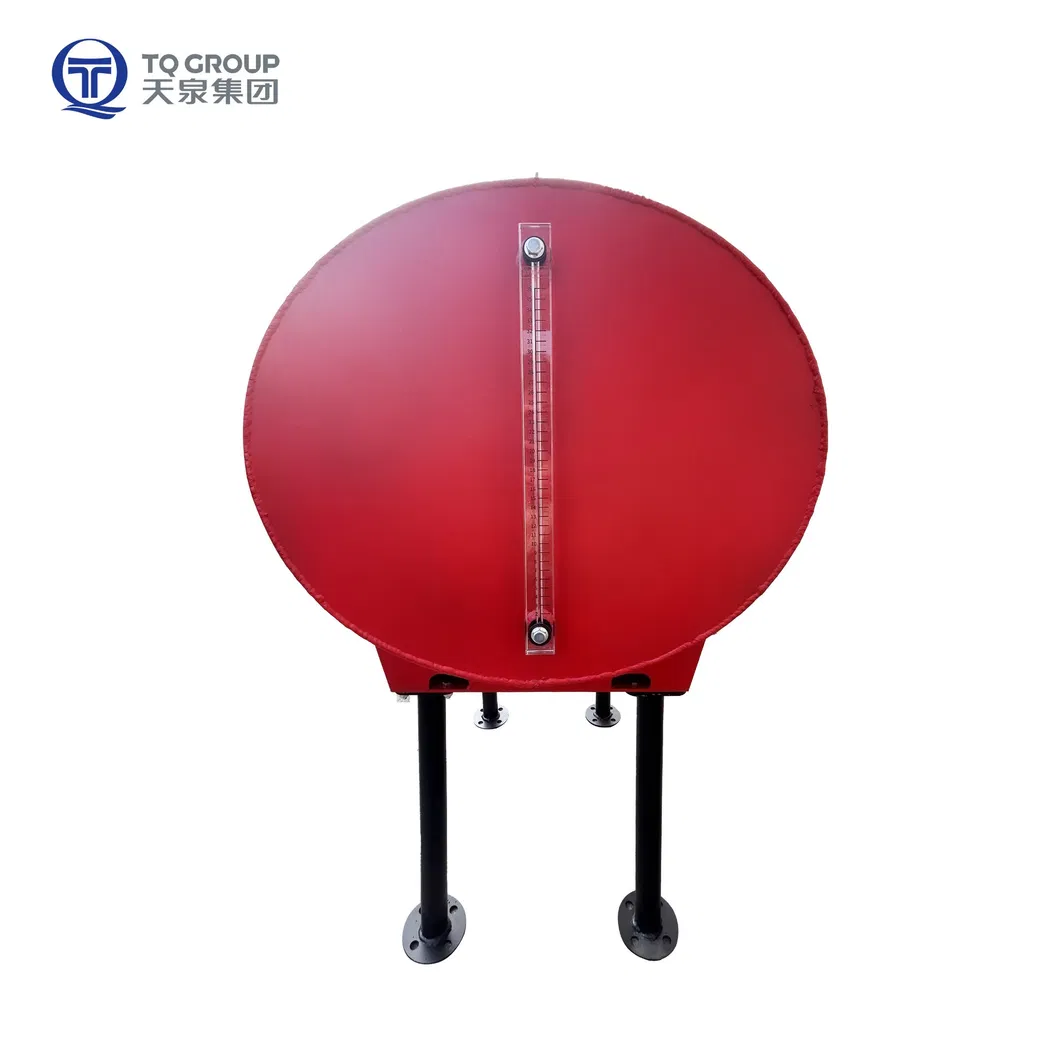

Fuel Tank Volume Specifications (L)
| Fuel Tank Volume (L) |
| Power (kW) |
45 | 55 | 75 | 90 | 100 | 110 | 135 | 155 | 176 | 235 |
| Tank (L) |
50 | 100 | 150 | 150 | 150 | 200 | 200 | 300 | 300 | 500 |

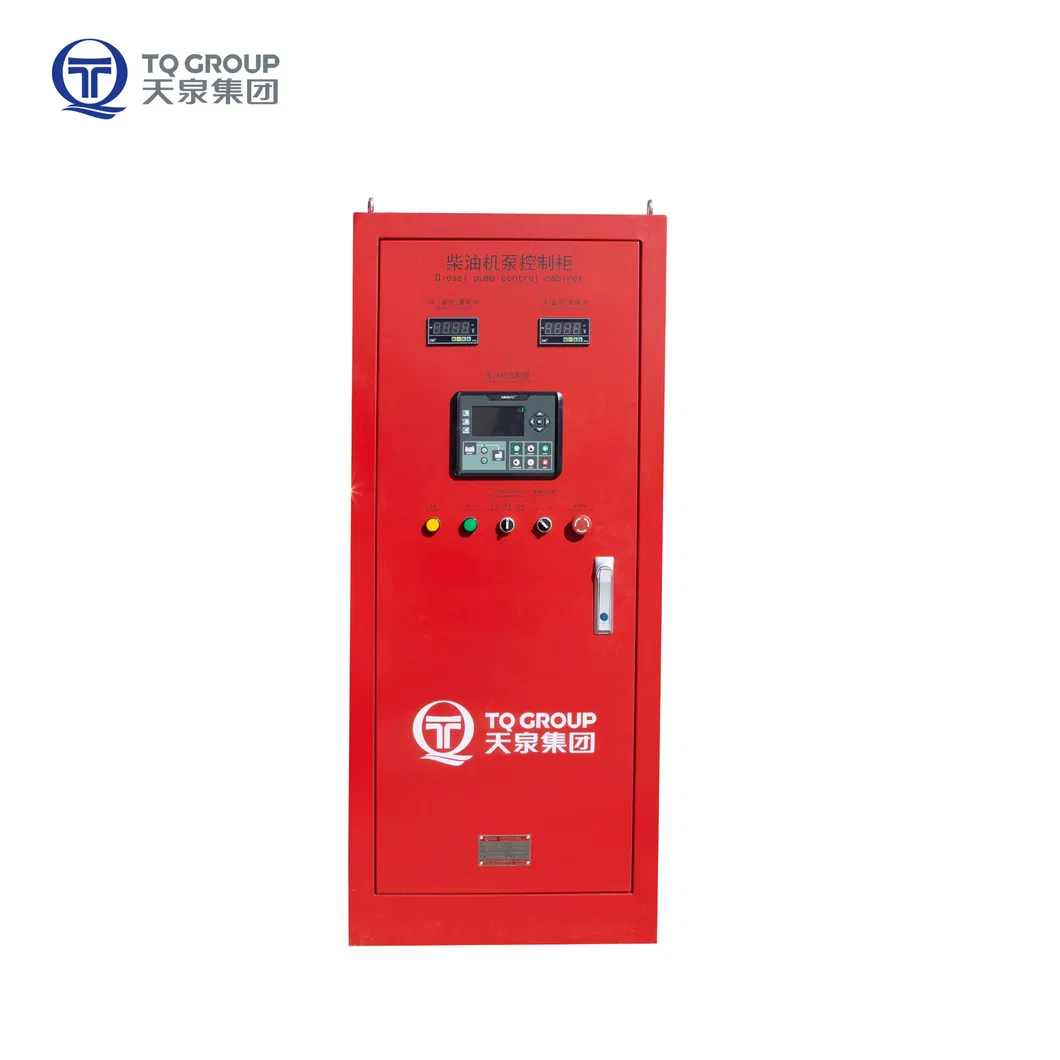

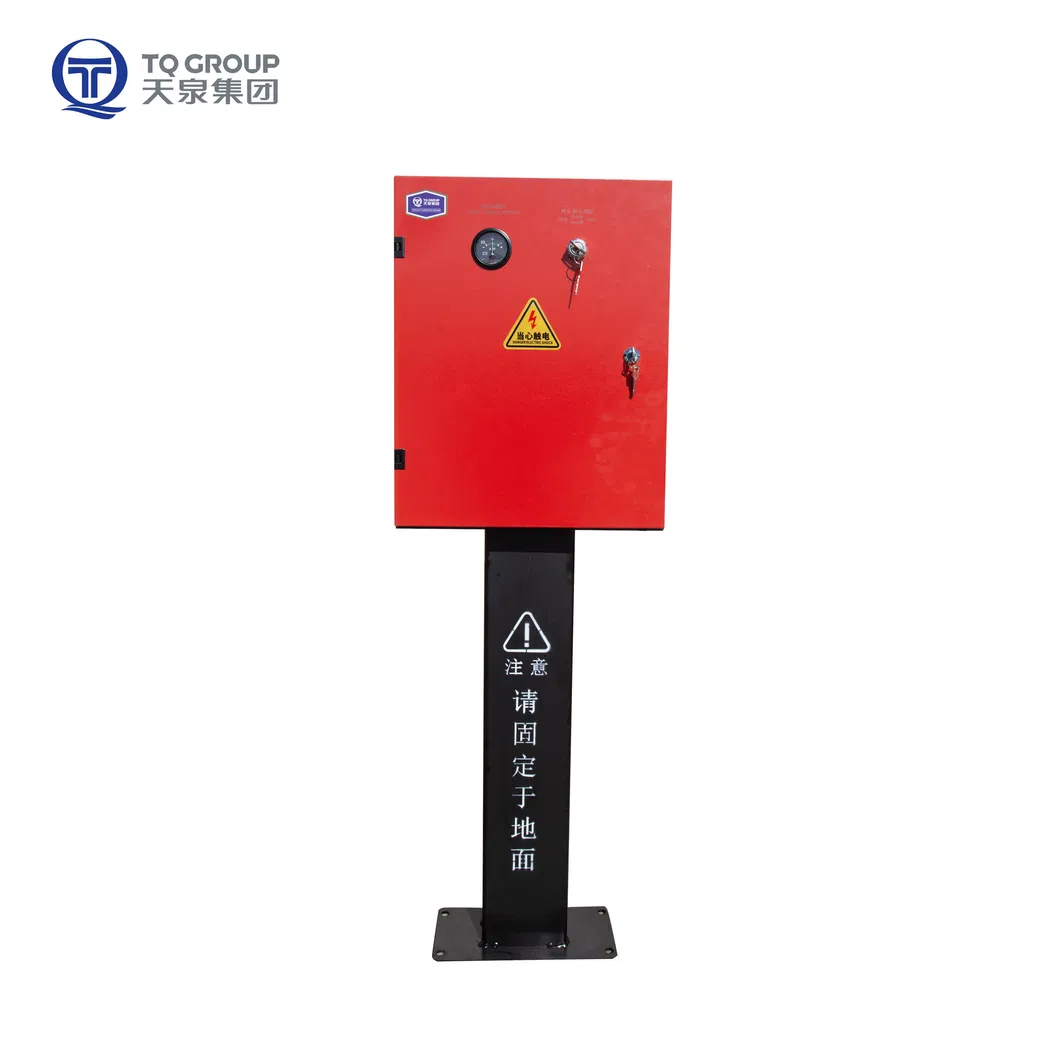

Remote Control Cabinet Standard Function
| Category |
Standard Function Description |
| Start and Stop | Manual/Automatic (pressure signal & fire-fighting linkage), reserve remote control port, emergency stop. |
| Data Monitoring | Speed, Voltage, Current, Oil Temperature, Water temperature. |
| Battery Charge | Manual/automatic battery charging. |
| Protection | Low oil pressure, high water temperature, overspeed, underspeed protection (includes all sensors). |
Frequently Asked Questions (FAQ)
1. Why use a diesel engine driven fire pump instead of an electric one?
Diesel fire pumps provide a reliable water supply during emergency situations where electrical power is unavailable or unreliable, which is critical for fire suppression systems.
2. Does this pump meet NFPA20 standards?
Yes, the pump is designed to meet the four performance requirements of NFPA20, including rated point, 1.5 times flow point, power, and shut-off point power.
3. What are the material advantages of your fire pump?
The wet parts are constructed from stainless steel or brass, paired with 2cr13 shafts and ss304 stainless steel impellers to prevent corrosion and significantly extend the pump's service life.
4. What is the maximum flow and head capacity for this series?
This series can reach a flow rate of up to 227 m³/h (1000 GPM) and a head of up to 120m (174 PSI) at a speed of 3000 RPM.
5. What safety monitoring functions does the control cabinet include?
The control cabinet includes standard functions like low oil pressure protection, high water temperature protection, overspeed/underspeed protection, and data monitoring for speed, voltage, and oil/water temperature.
6. Is the system capable of automatic startup?
Yes, the remote control cabinet supports both manual and automatic startup triggered by pressure signals or fire-fighting linkage controls.
