TECHNICAL DESCRIPTION
KEY FEATURES
| Model | PDP 20D | PDP 30D | PDP 40D | PDP 60D |
|---|---|---|---|---|
| Type | Self-priming Centrifugal Pump | |||
| Suction/Delivery (mm) | 50x50 | 80x80 | 100x100 | 155x155 |
| Total Head (m) | 46 | 32 | 28 | 15 |
| Suction Head (m) | 8 | 8 | 8 | 6 |
| Max Volume (m3/h) | 36 | 60 | 80 | 200 |
| Mechanical Seal | Ceramic Carbon | |||
| Engine Output (kw/hp) | 3.0/4.0 | 4.4/5.9 | 6.6/8.9 | 8.5/11.5 |
This pump is powered by a diesel engine, designed for high efficiency and low fuel consumption.

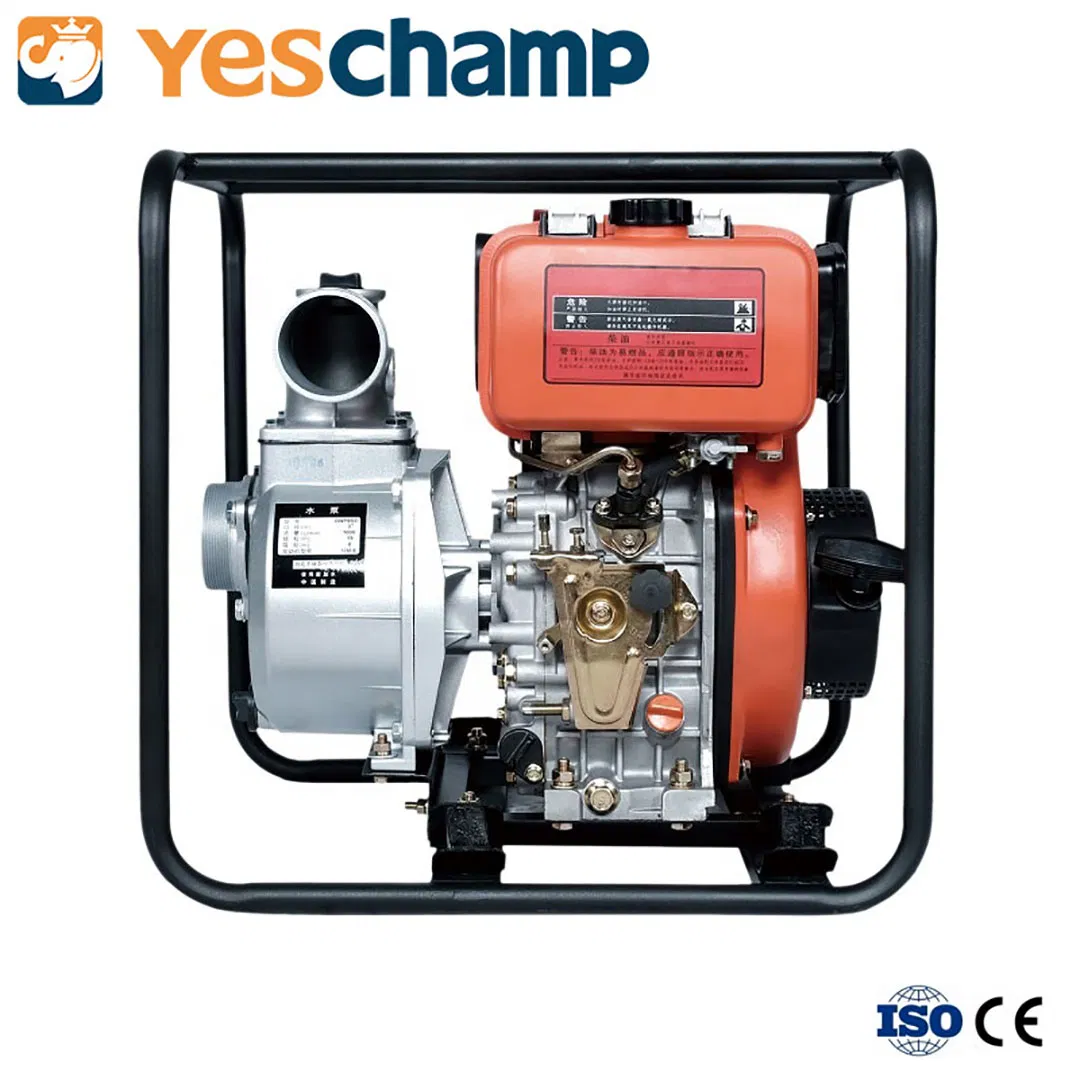

Yes, it is specifically designed as a portable irrigation and fire pump with self-priming capabilities.
The pump features strong and lightweight die-cast aluminum and cast iron components for maximum durability.
The pump comes with both Manual and Electric Start options to suit different operational requirements.
Depending on the model, the maximum suction head ranges from 6 to 8 meters.
The unit utilizes an air-cooled system, making it suitable for portable use in various outdoor environments.
