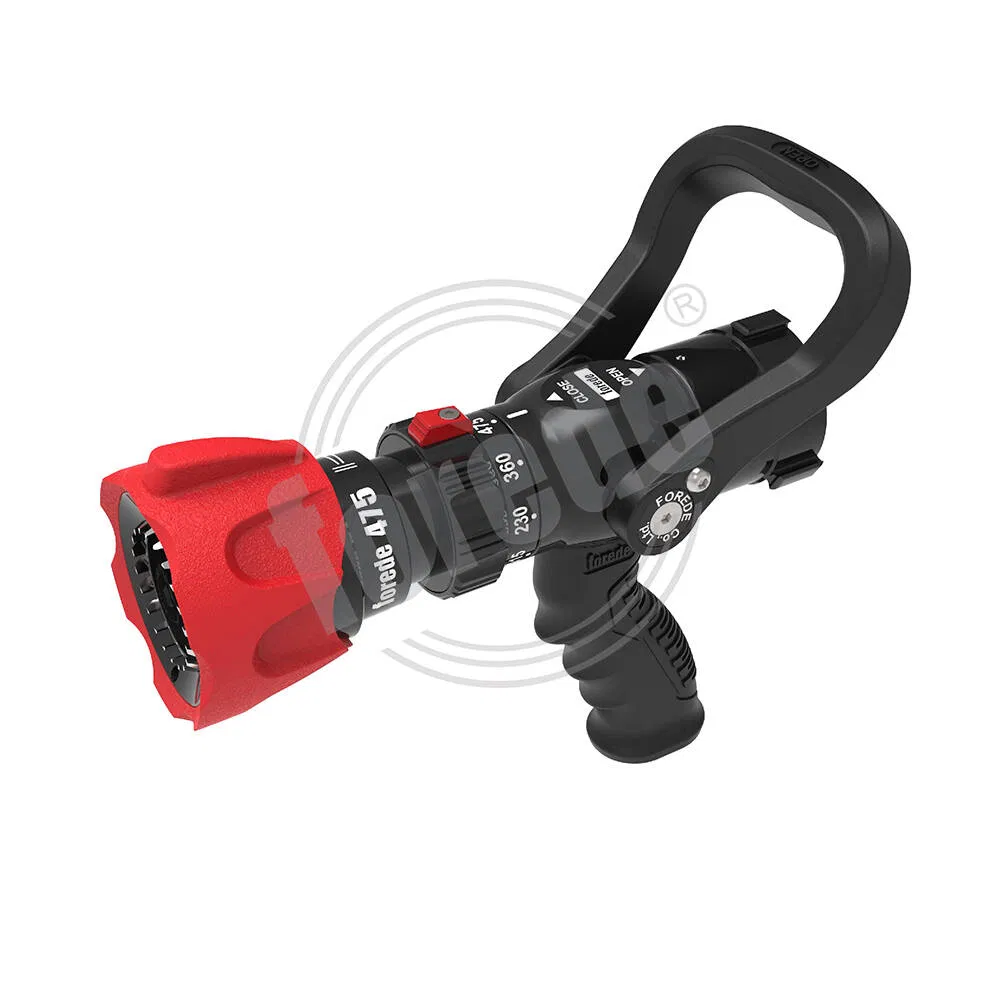

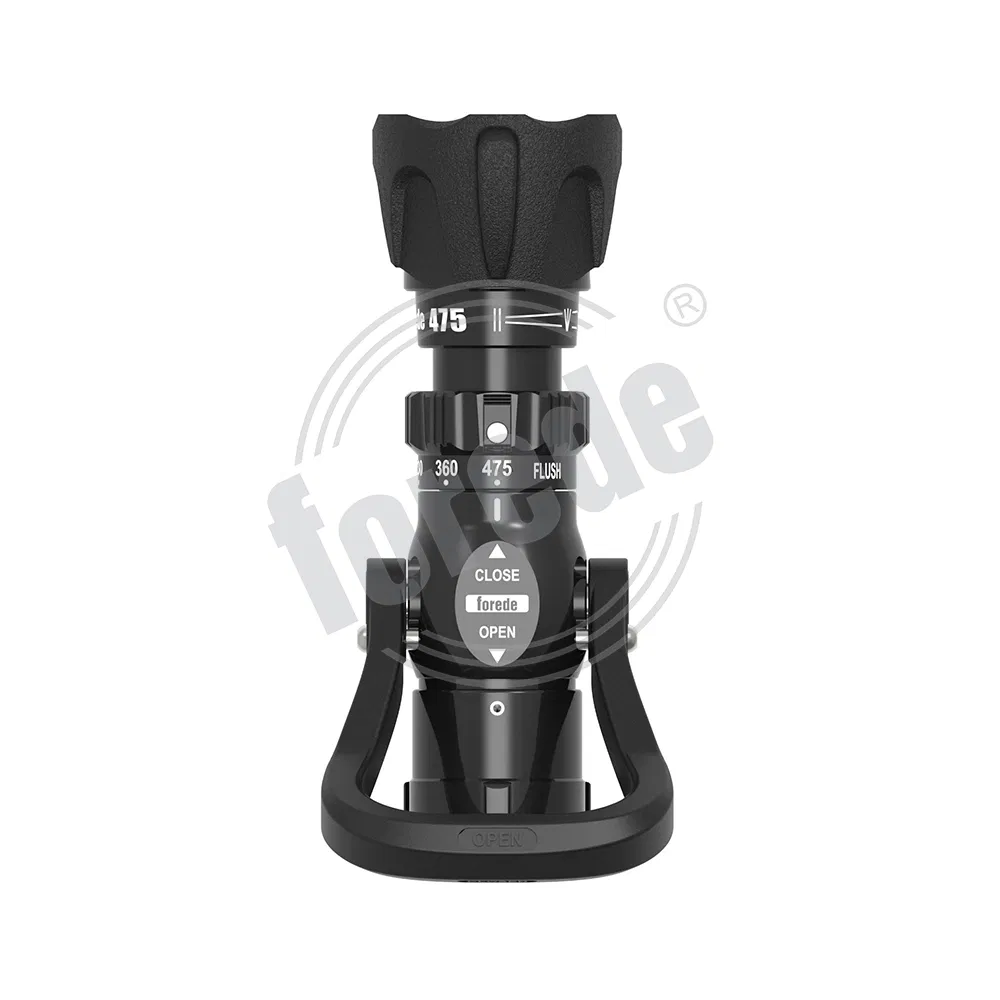

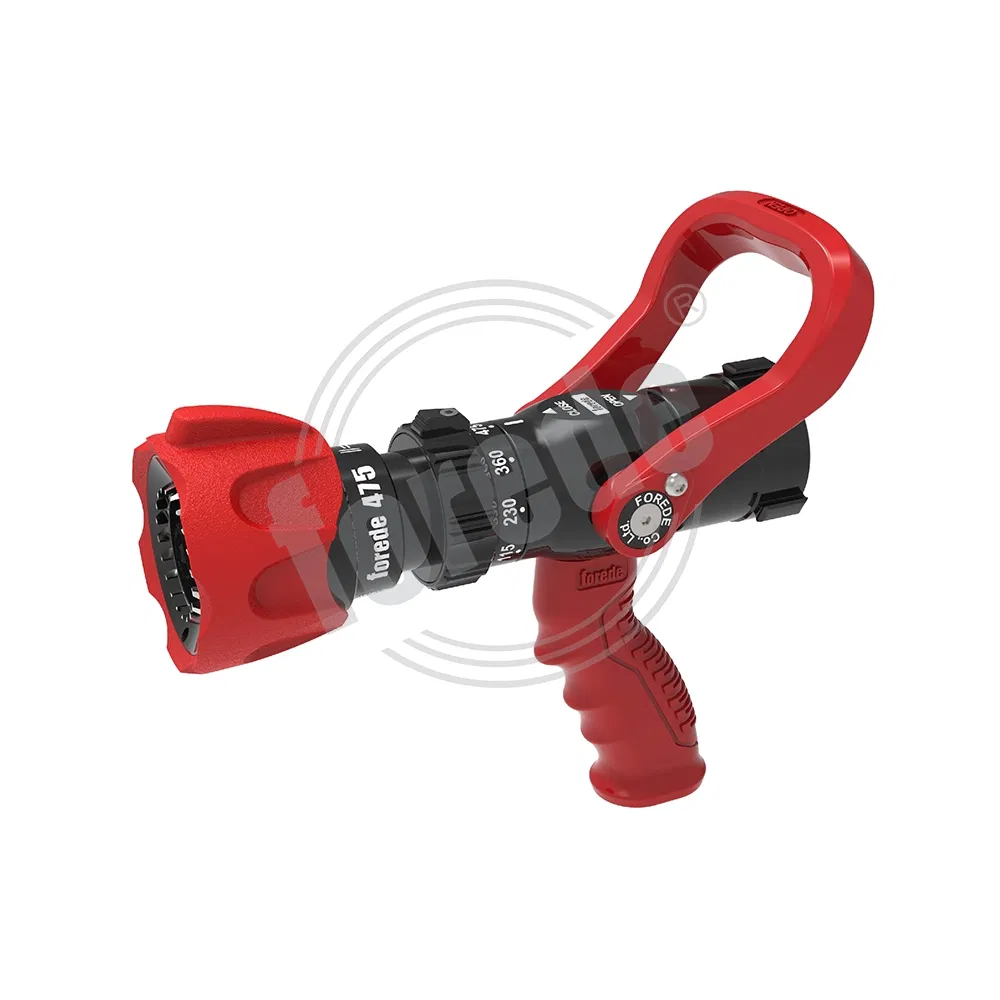

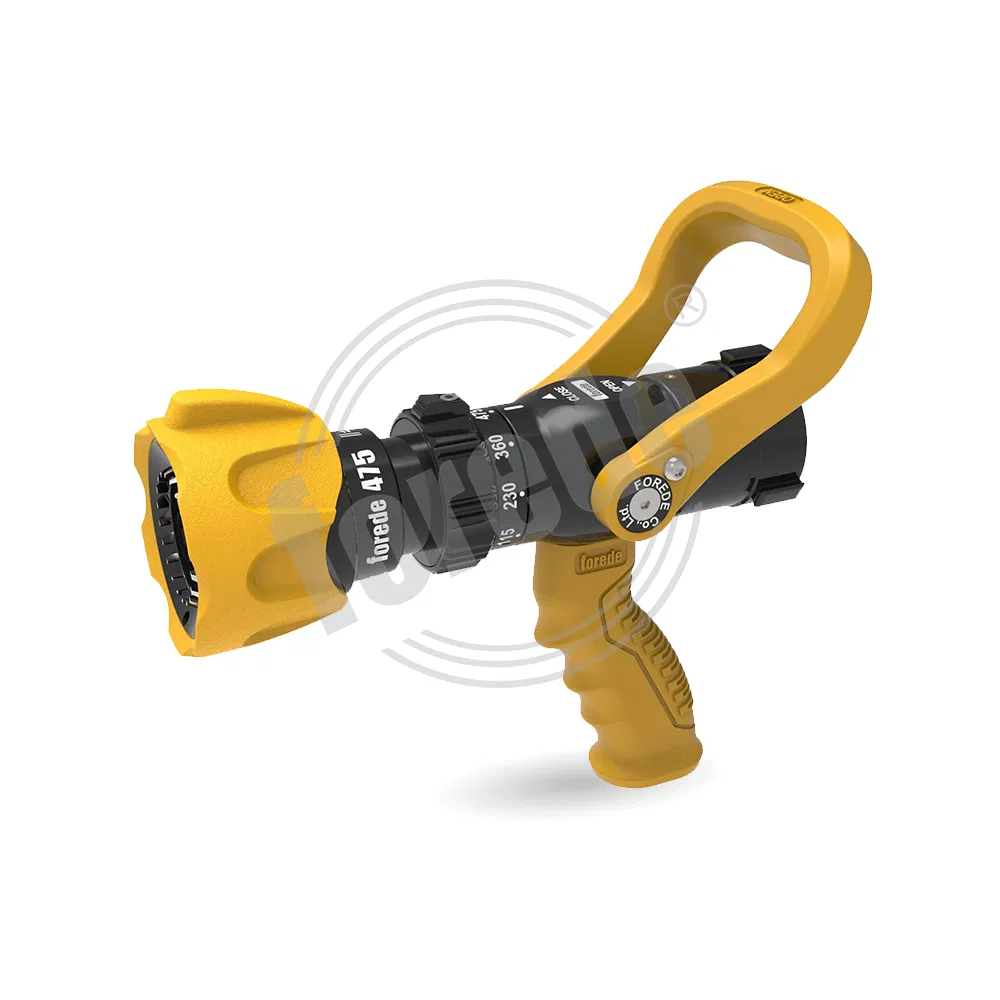

2.5 Inch Selectable Flow Pistol Grip Fire Nozzle with for Fire Fighting

1 / 5

2.5 Inch Selectable Flow Pistol Grip Fire Nozzle with for Fire Fighting

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

QLD6.0/8III

Pressure Range

Low-Pressure Water Gun

Jet Type

Straight Stream and Fog

Flow Rate

115-230-360-475 Lpm

Working Pressure

7 Bar

Inlet Size

1.5" / 2" / 2.5"

Max Reach

42 Meters

Max Fog Angle

120 Degree

Application

Fire Fighting, Fire Safety

Product Description

The Selectable Flow Fire Nozzle is a high-performance fire-fighting tool constructed from durable aluminum alloy. This versatile nozzle offers a selectable flow range between 115 and 475 LPM. When connected to a fire hose, it provides a dense and substantial water flow, making it an essential instrument for effective fire suppression.

Selectable Flow Rates: 115 - 230 - 360 - 475 LPM (with Flush mode).

Multiple Jetting Patterns: Straight stream, Narrow fog, and Wide fog.

Quick Adjustment: 1/4 turn from straight stream to wide fog.

Swivel Inlet: 360° Full-time swivel inlet, even after tightening.

Universal Compatibility: Compatible with Quick Attach Foam Tubes and various couplings (Storz, NH, INST, etc.).

Technical Specifications

Feature	Specification
Model	QLD6.0/8III
Working Pressure	0.7MPa (7 bar)
Flow Rate	115-230-360-475 LPM
Inlet Size Options	1.5", 2", 2.5"
Max. Fog Angle	120°
Max. Reach	40 m @ 7 bar
Material	Hard-anodized Aluminum Alloy

Product Gallery

Packaging & Shipping

Frequently Asked Questions

Q1: What are the flow rate options for this fire nozzle?

The nozzle features a selectable flow range of 115, 230, 360, and 475 Liters Per Minute (LPM), including a flush setting for debris removal.

Q2: Can I adjust the spray pattern during operation?

Yes, you can easily switch from a straight stream to a wide fog (up to 120°) with just a 1/4 turn of the nozzle head.

Q3: Is the inlet compatible with international hose standards?

Absolutely. We support multiple coupling standards including Storz, NH, Instantaneous (British), Machino, and GOST to ensure compatibility with your existing equipment.

Q4: What material is used to prevent corrosion?

The nozzle is manufactured from high-quality hard-anodized aluminum alloy, which provides excellent durability and resistance to wear and corrosion.

Q5: Does the nozzle allow for movement while pressurized?

Yes, it is designed with a 360° full-time swivel inlet, allowing for freedom of movement and preventing hose kinks even when the nozzle is tightened and under pressure.

Q6: What is the maximum reach of the water stream?

At a standard working pressure of 7 bar, the nozzle can achieve a maximum reach of approximately 40 to 42 meters in straight stream mode.
