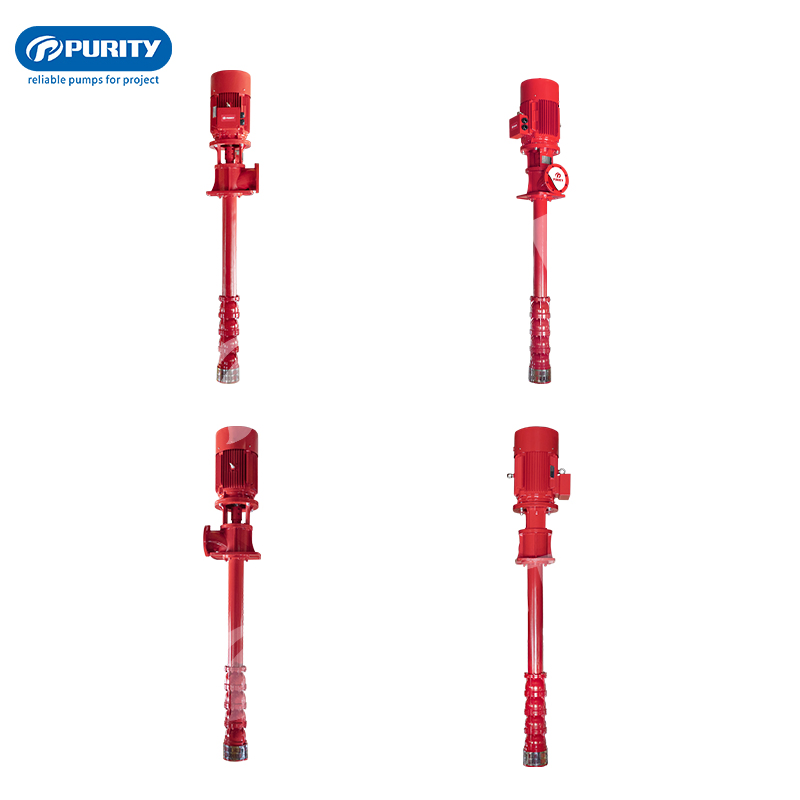

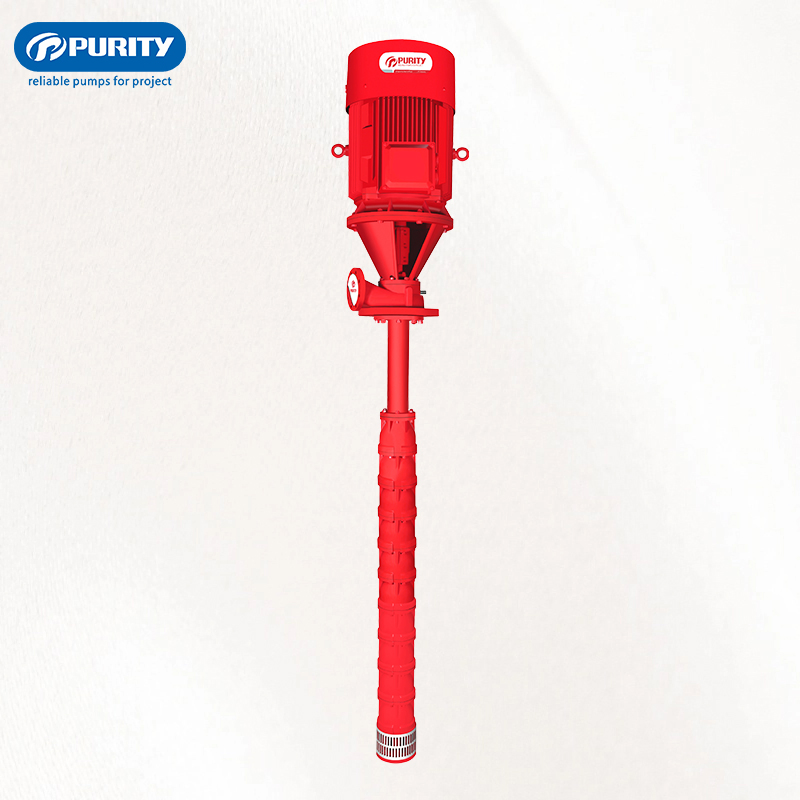

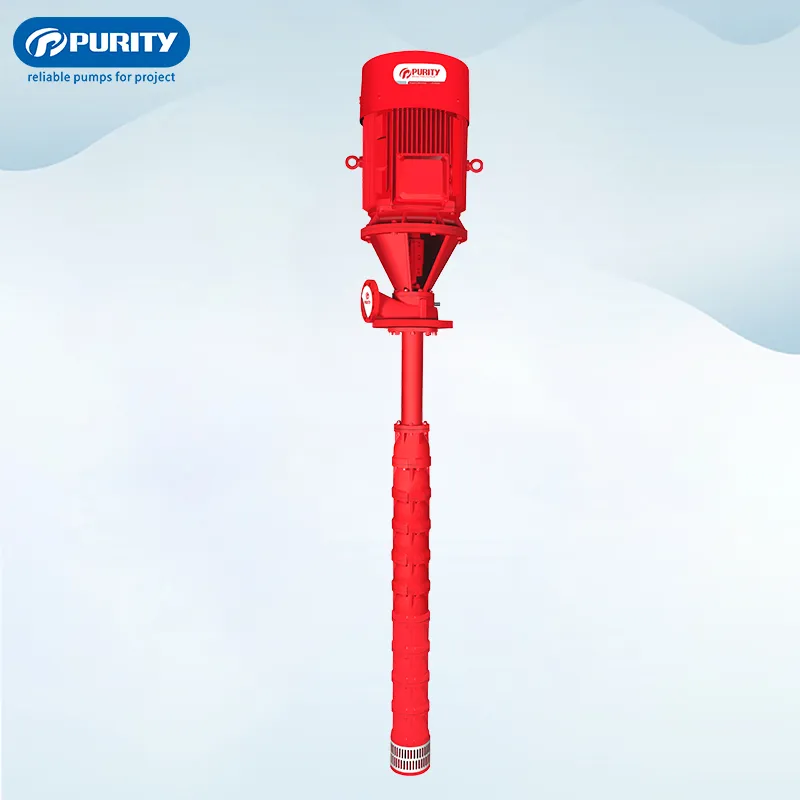

Purity 220V, 37kw Water Supply Vertical Turbine Fire Fighting Pump

1 / 5

Purity 220V, 37kw Water Supply Vertical Turbine Fire Fighting Pump

Customization:	Available
After-sales Service:	One Year
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

XBD

Max. Head

>150m

Max. Capacity

>400 L/min

Driving Type

Motor

Material

Stainless Steel

Structure

Fire Pump

Power

Electric

Theory

Centrifugal Pump

Package Size

96.00cm * 55.00cm * 76.00cm

Gross Weight

135.000kg

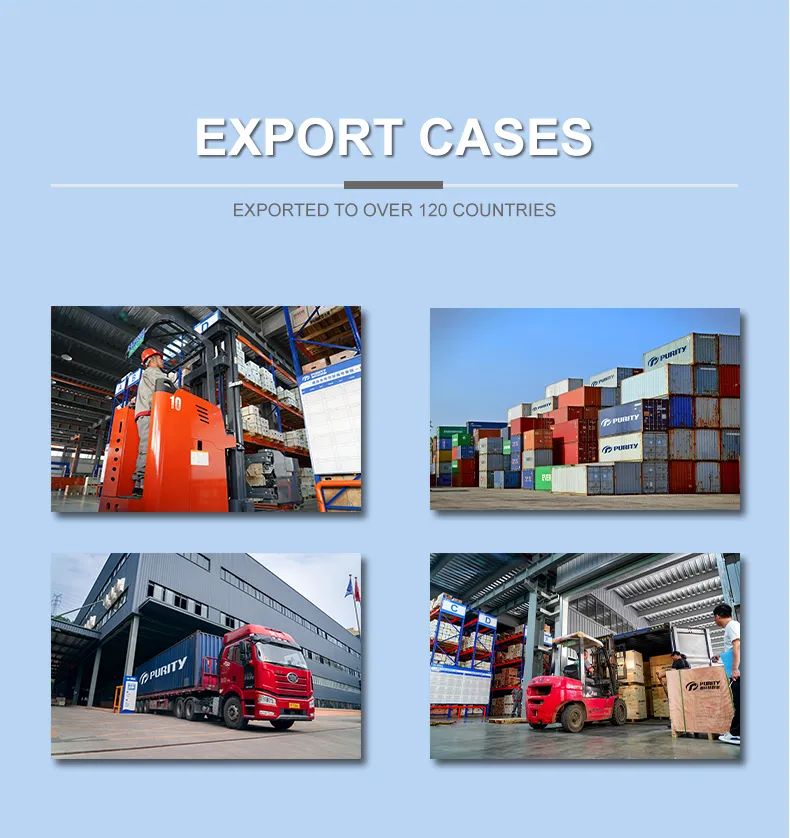

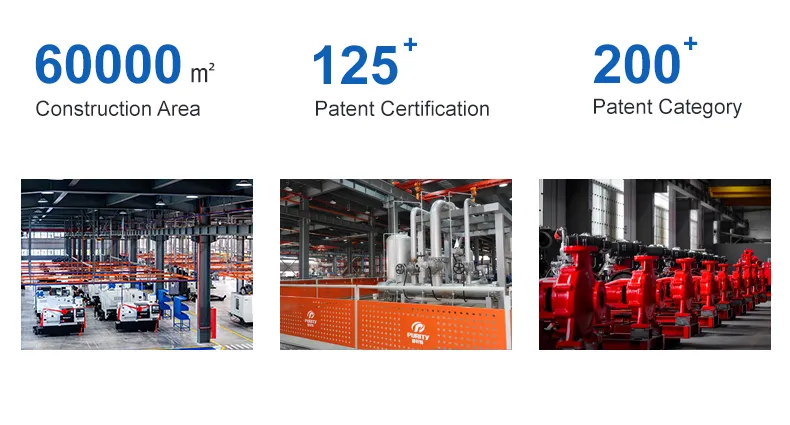

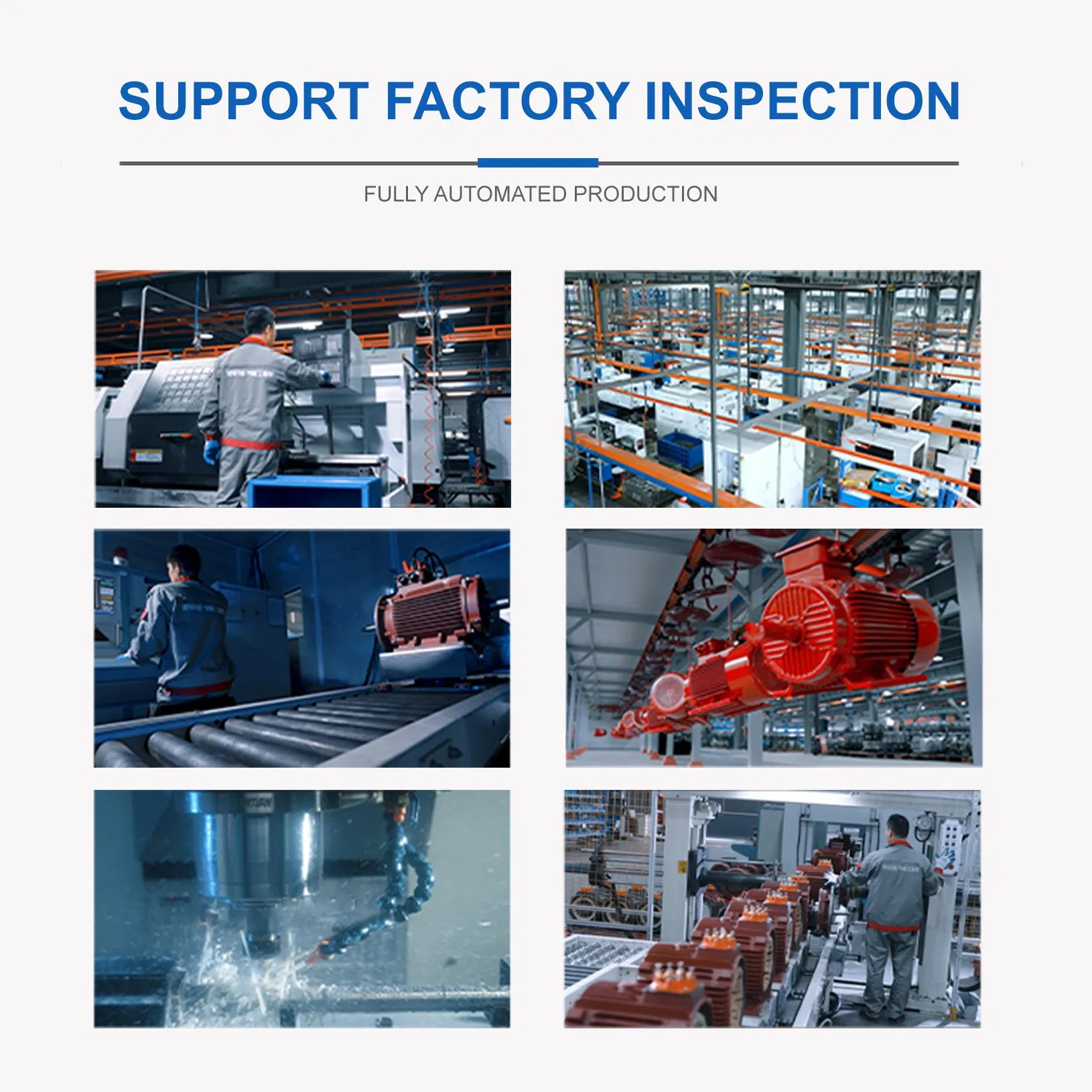

Our engineering team is committed to the research, development, and production of reliable engineering pumps. With a factory area of 60,000 square meters, we produce six major series including fire pump systems, centrifugal pumps, pipeline pumps, sewage pumps, and water supply systems. Our products are exported to more than 120 countries with international certifications such as UL, CE, ISO, and SASO.

Product Description

📌 Short Description:

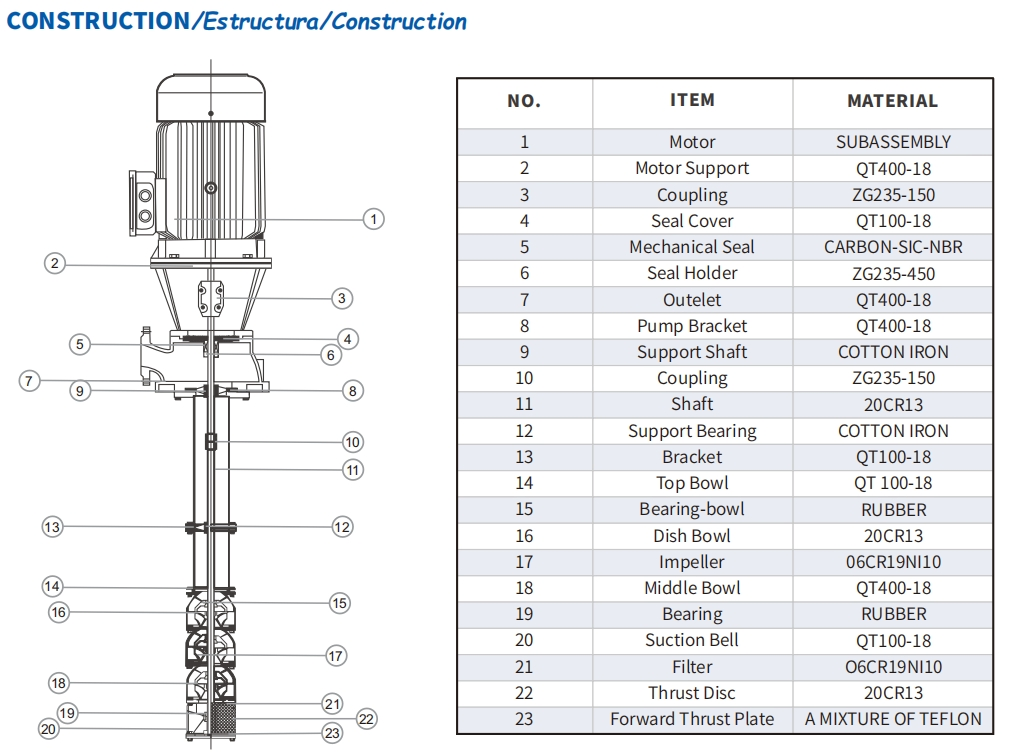

Working Portion: Consists of guide shell, impeller, conical sleeve, shell bearing, and impeller shaft. The impeller features a closed structure for maximum efficiency.
Water Pipe Portion: Includes water pipes, transmission shafts (2Cr13 or stainless steel), couplings, and bracket components connected by flanges.
Surface Portion: Comprises pump base components, motor, motor brackets, and couplings.

🚀 Application:

Turbine fire pumps are primarily utilized for fire hydrant systems, automatic sprinkler fire extinguishing, and other safety systems in industrial enterprises, high-rise buildings, engineering construction, and municipal water supply and drainage.

Support Customized

OEM / ODM Available

Using Limits & Performance

Suitable for generally non-corrosive clean water.
Solid content in water (by weight) ≤ 0.01%.
PH value range: 6.5 - 8.5.
Hydrogen sulfide content ≤ 1.5 mg/L.
Water temperature ≤ 40°C.

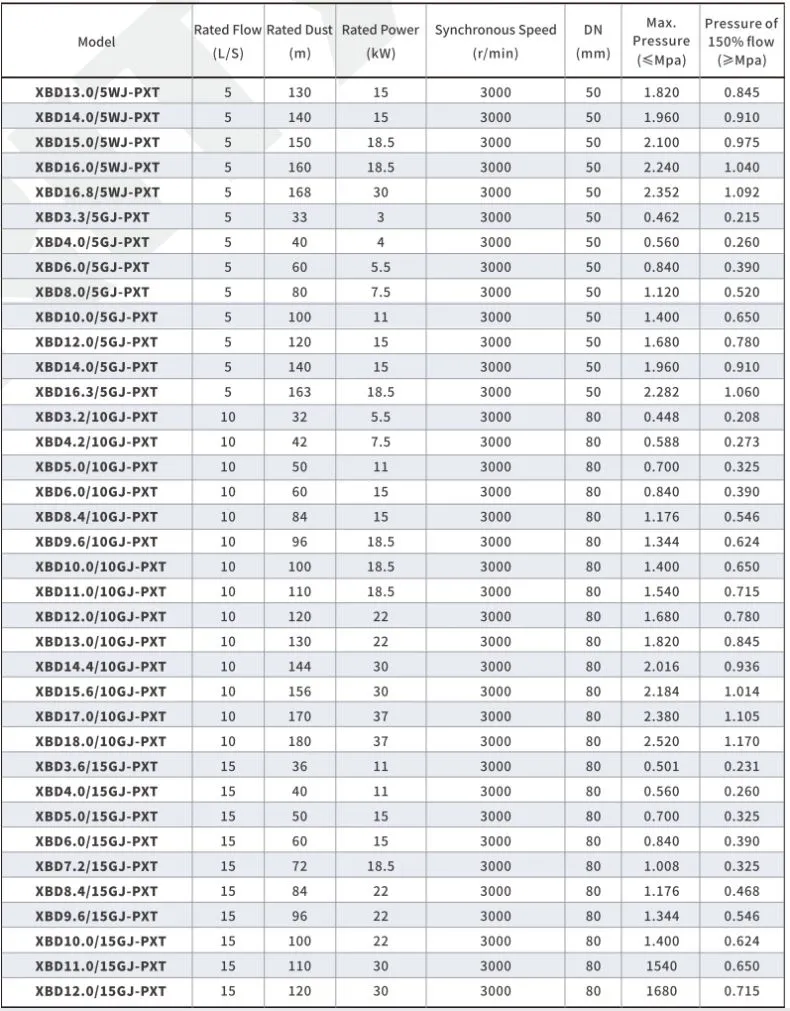

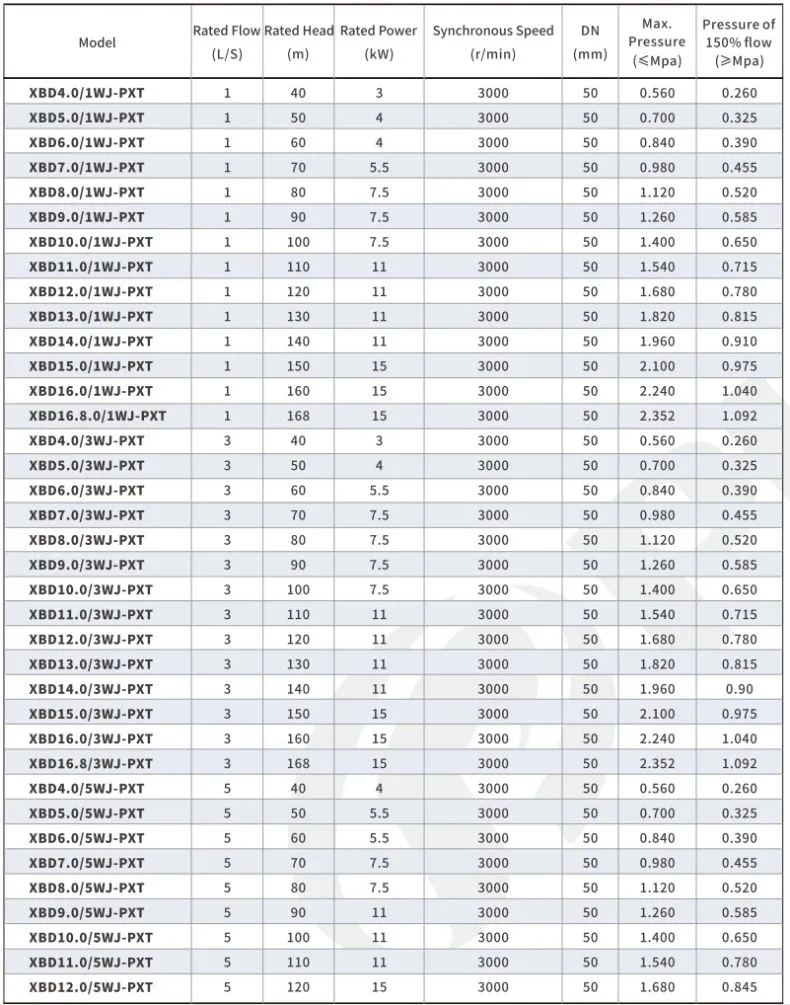

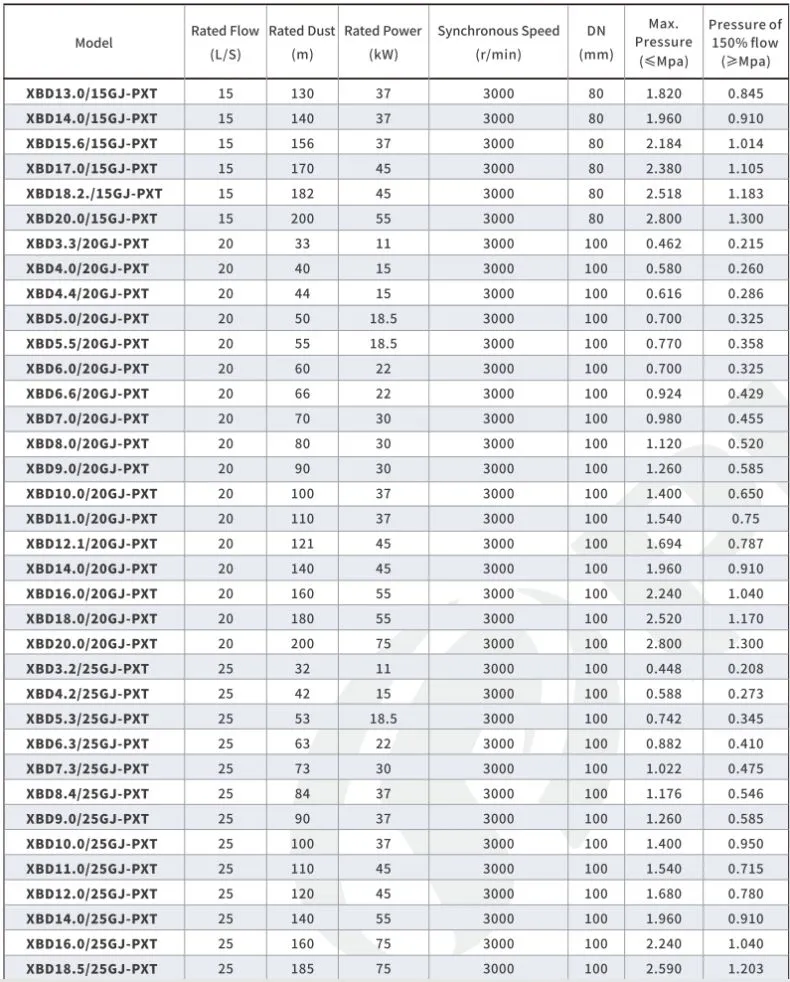

Product Parameters

Frequently Asked Questions

What are the main applications for the XBD series fire pump?

The XBD series is designed for fire hydrant systems, automatic sprinklers, and industrial water supply in high-rise buildings and mining enterprises.

What material is used for the transmission shaft?

The transmission shaft is typically made from 2Cr13 or high-quality stainless steel to ensure durability and corrosion resistance.

Can this pump handle water with high sediment?

It is recommended for clean water with a solid content of no more than 0.01% by weight to prevent damage to the impeller and bearings.

Is the impeller design open or closed?

The turbine fire pump utilizes a closed impeller structure, which provides higher efficiency and better pressure performance for fire fighting needs.

Does the pump support customized orders?

Yes, we support both OEM and ODM services to meet specific project requirements and engineering standards.

What is the maximum head capacity for this model?

The XBD model can achieve a maximum head of over 150 meters, making it suitable for high-rise fire protection.
