2000 Gpm Nfpa20 Standard Split Case Diesel Driven Fire Pump

1 / 6

2000 Gpm Nfpa20 Standard Split Case Diesel Driven Fire Pump

Customization:	Available
After-sales Service:	Online Service
Warranty:	24 Months

Product Description

Overview
Product Description
Product Advantage

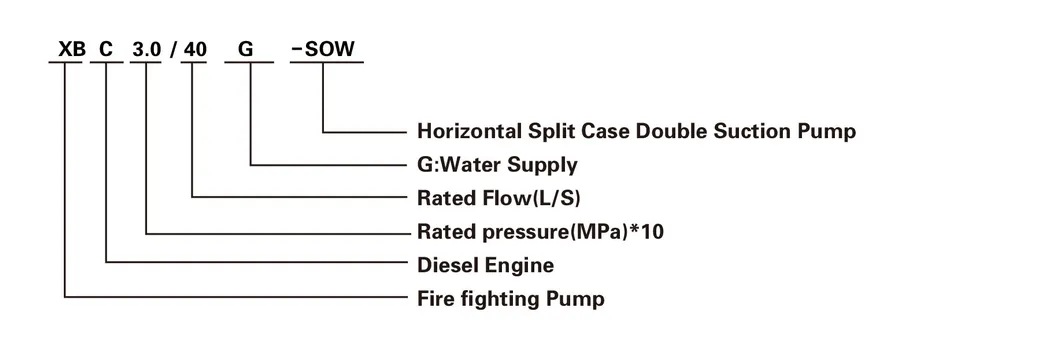

Model Meaning

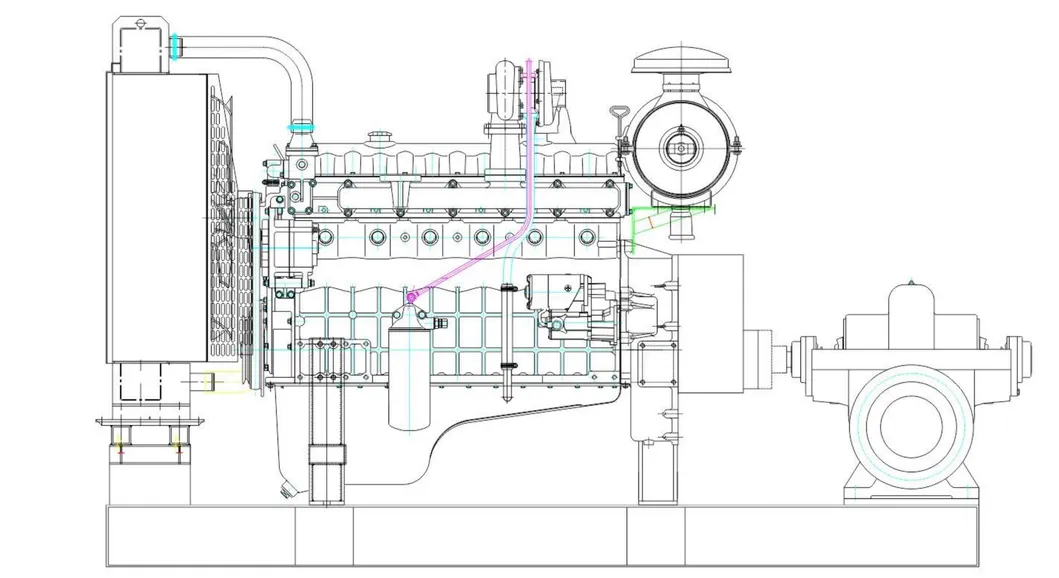

Product Structural Drawing

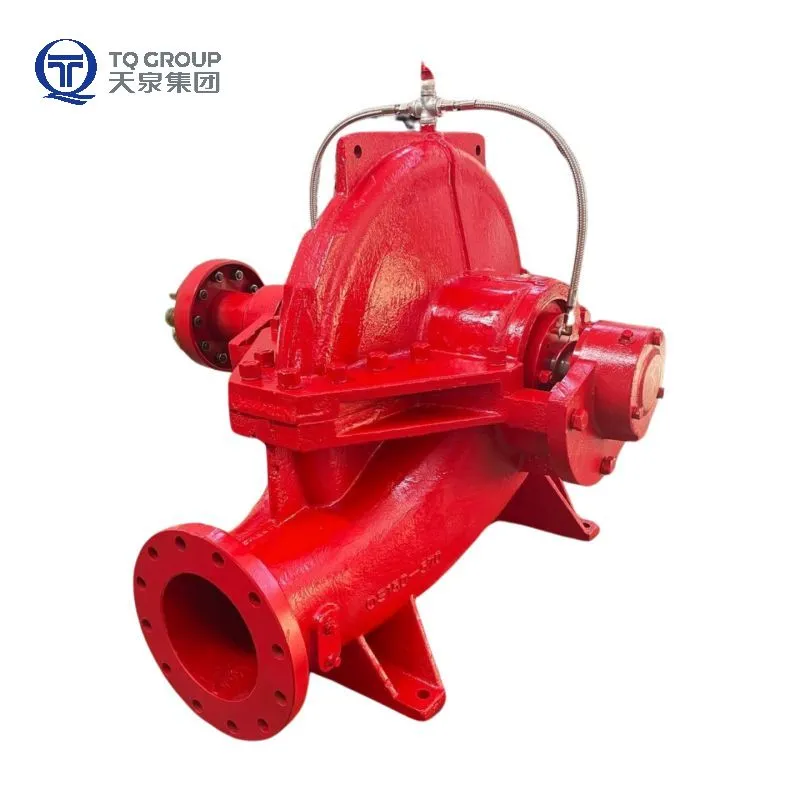

Detailed Photos
Product Parameters

Basic Info.

Model NO.

2000GPM/XBC-SOW

Max.Head

110m-150m

Max.Capacity

>400 L/min

Driving Type

Diesel Engine

Material

Cast Iron

Structure

Single-stage Pump

Assembly

Liquid Pumps

Power

Diesel Engine

Start Up

Electric Pump

Type

Blade Pump

Application

Firefighting

Industry

Building and Construction

Media

Clean Water

Performance

Automatic Pump

Theory

Centrifugal Pump

Impeller Material

Bronze/Brass/ Stainless Steel

Certification

Cccf

Pump Structure

Horziontal Double Suction Pump

Diesel Engine Brand

Weichai/ Customized

Diesel Engine Speed

1500rpm

Diesel Engine Cooling Way

Water Cooled

Intake Type

Turbo-Charging

Trademark

tqpumps

Origin

China

HS Code

8413709990

Production Capacity

1000 Units/Year

Packaging & Delivery

Package Size

2500.00cm * 1500.00cm * 1800.00cm

Package Gross Weight

3000.000kg

Product Description

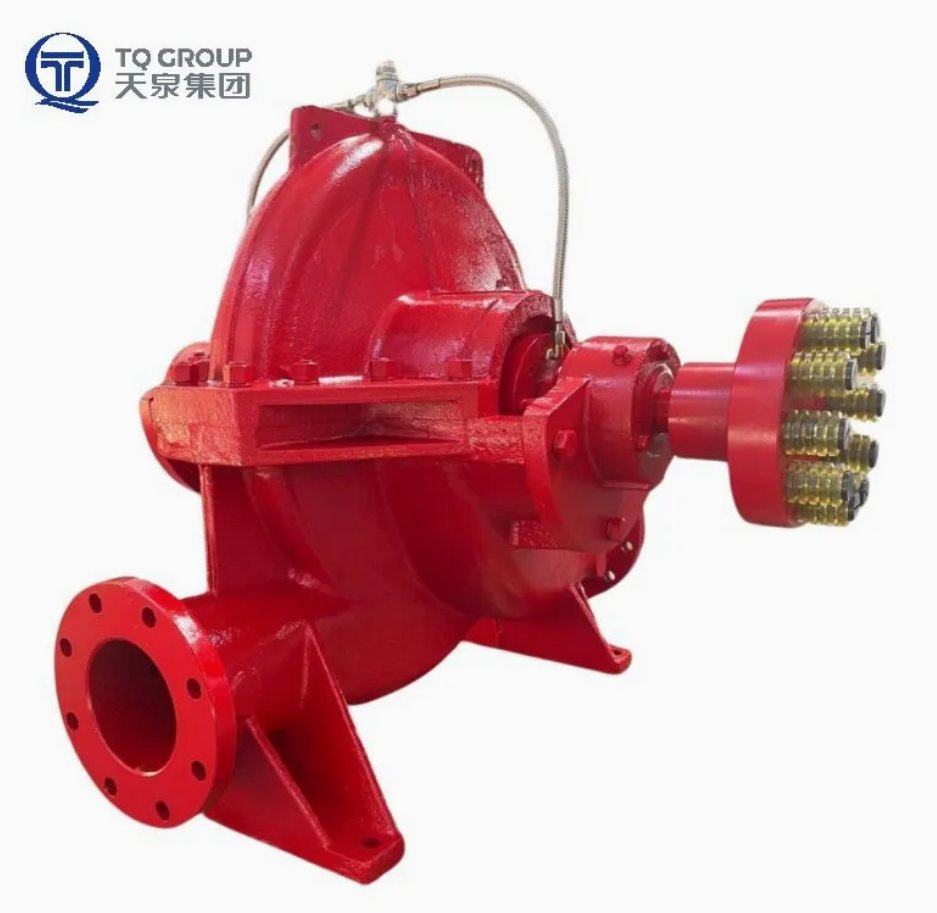

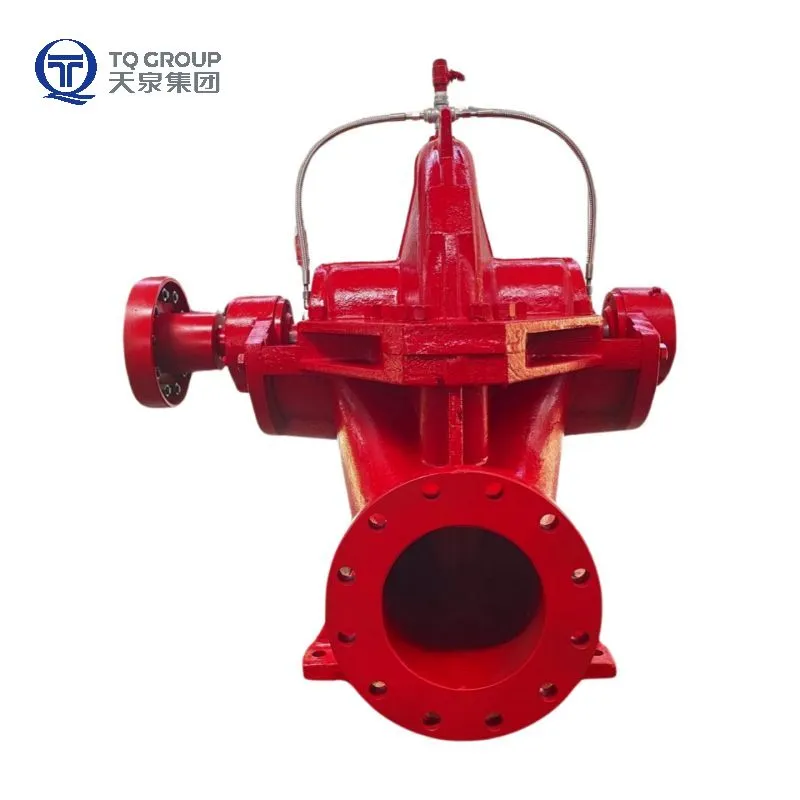

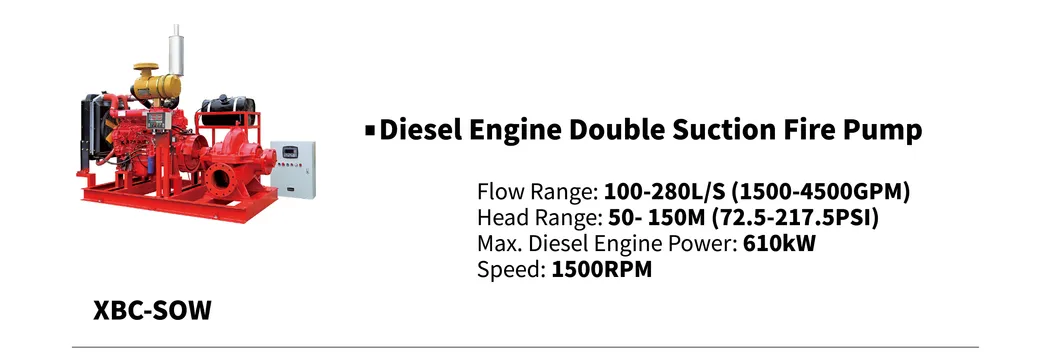

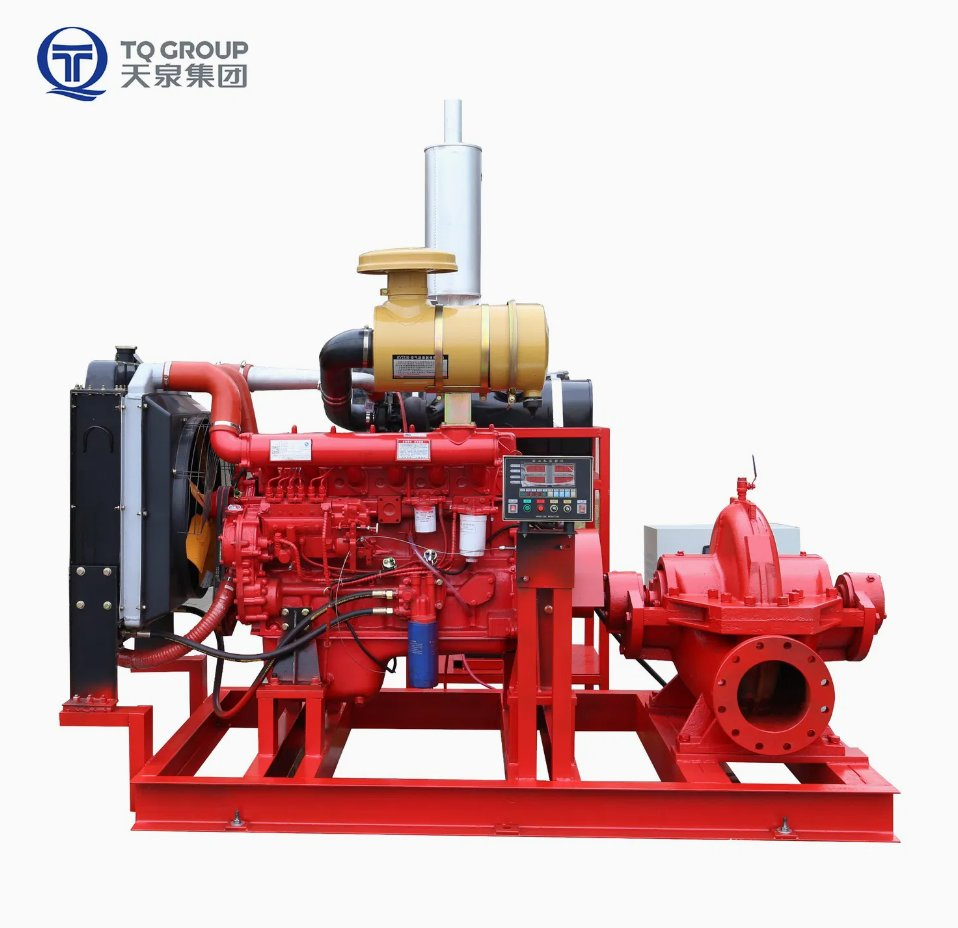

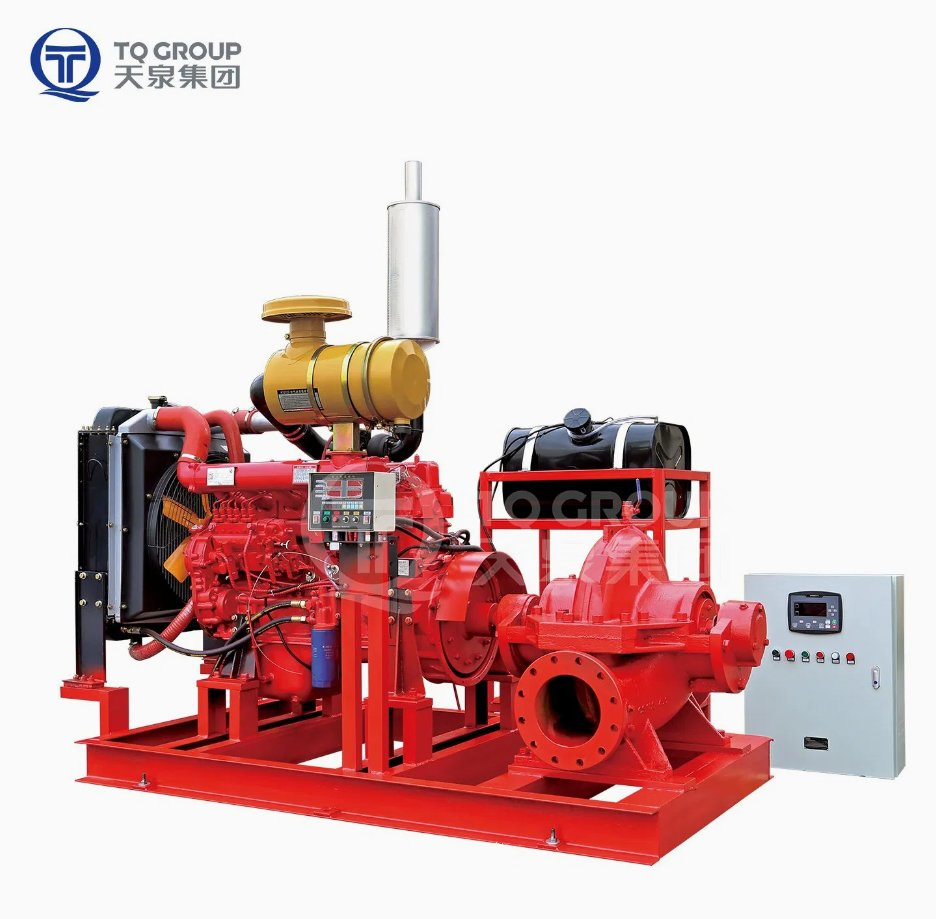

XBC-SOW is a diesel engine-driven horizontal double-suction fire pump. It covers a wide range of flow rates and head pressures. The product includes a diesel engine, water pump, common base, fuel tank, maintenance-free battery, and on-site control cabinet. The diesel engine uses high-quality 1500 RPM high-speed diesel engines from WEICHAI or for Cummins and is connected to the pump side with an elastic pin coupling. The water pump impeller is made of corrosion-resistant stainless steel or brass material, and the pump case is made of ductile iron for high-pressure usage. The product is suitable for supplying water to industrial and factory firefighting systems or emergency firefighting systems.
2000 Gpm Nfpa20 Standard Split Case Diesel Driven Fire Pump

*Product Conformity

The performance of the double suction pump has been fully optimized to meet the four key requirements of the American Fire Protection Standards FM/UL.

1) The performance meets the requirements of rated flow and rated pressure.
2) The outlet pressure at zero flow does not exceed 140% of the rated pressure.
3) At a suction depth of 4.6 meters, when the flow is 150% of the rated flow, the outlet pressure should not be less than 65% of the rated pressure.
4) The performance curve includes a maximum shaft power value, and the driving power provided exceeds this maximum shaft power value.

Materials conform to standard

1) pump case and pump cover: Ductile Iron
2) Impeller: Brass/ SS304
3) Wear ring: Brass/ SS304
4) Sealing: Gland packing/ Mechanical Seal

*APPLICATION

1) They are used to supply high-pressure water to hoses for extinguishing fires, and can also serve as standby fire pumps in fire water systems.
2) They are used in urban water supply systems, water plants, and for supplying water to air-conditioning systems.
3) They are used in various industrial processes, including cooling water supply, sewage systems, petrochemical industries, and paper mills.
2000 Gpm Nfpa20 Standard Split Case Diesel Driven Fire Pump

Item No.	US.GPM	L/MIN	L/S	m³/h	Item No.	PSI	Mpa	M
1	25	95	1.58	6	1	14.5	0.10	10
2	50	189	3.15	11	2	29.0	0.20	20
3	75	284	4.74	17	3	43.5	0.30	30
4	100	379	6.31	23	4	58.0	0.40	40
6	150	568	9.47	34	6	72.5	0.50	50
7	200	758	12.6	45	7	79.8	0.55	55
8	250	947	15.8	57	8	87.0	0.60	60
9	300	1136	18.9	68	9	94.3	0.65	65
11	400	1515	25.3	91	10	101.5	0.70	70
12	450	1705	28.4	102	11	108.8	0.75	75
13	500	1894	31.6	114	12	116.0	0.80	80
14	600	2273	38	136	13	123.3	0.85	85
15	750	2841	47.3	170	14	130.5	0.90	90
18	1000	3788	63.1	227	15	145.0	1.00	100
19	1250	4735	78.9	284	16	152.3	1.05	105
21	1500	5682	94.7	341	17	159.5	1.10	110
22	1750	6600	110	400	18	174.0	1.20	120
23	2000	7576	126.3	455	19	181.3	1.25	125
24	2500	9470	157.8	568	20	188.5	1.30	130
17	3000	11364	189.4	682	21	203.0	1.40	140
18	3500	13258	221.0	795	22	210.3	1.45	145
19	4000	15152	252.5	909	23	217.5	1.50	150
20	4500	17046	284.1	1023	24	224.8	1.55	155
21	5000	18939	315.7	1136	25	232.0	1.60	160

Double suction pum

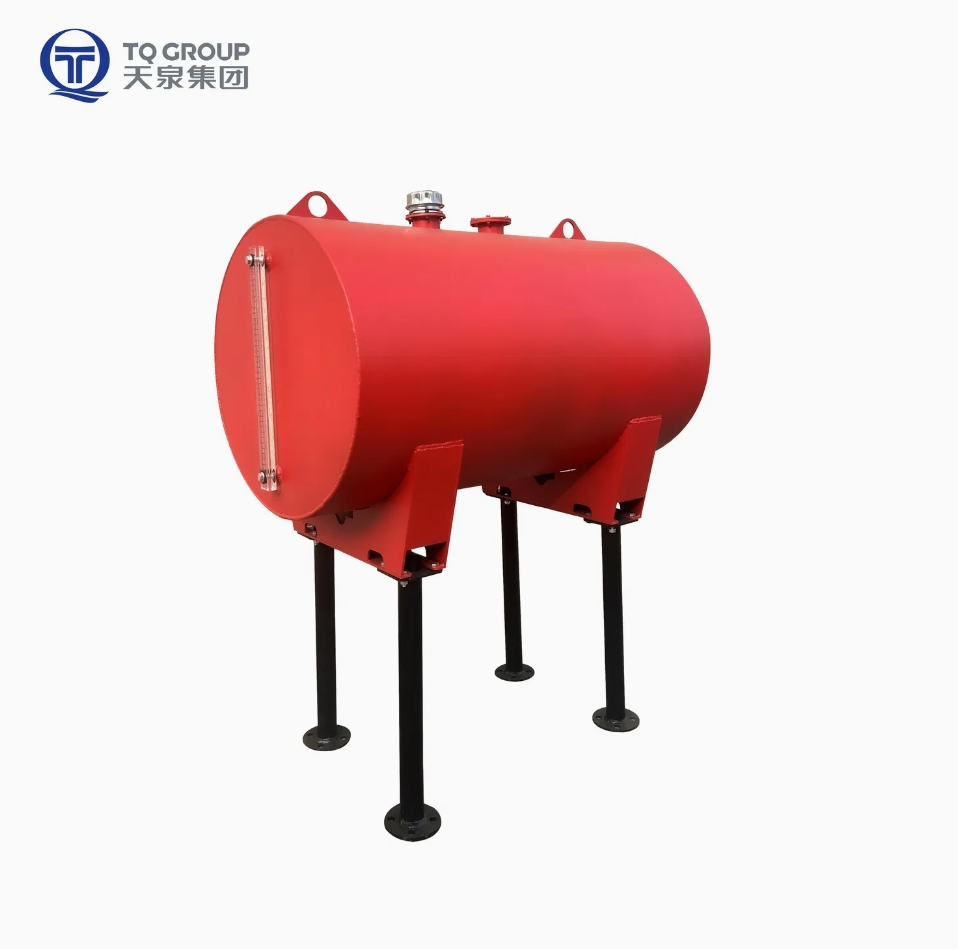

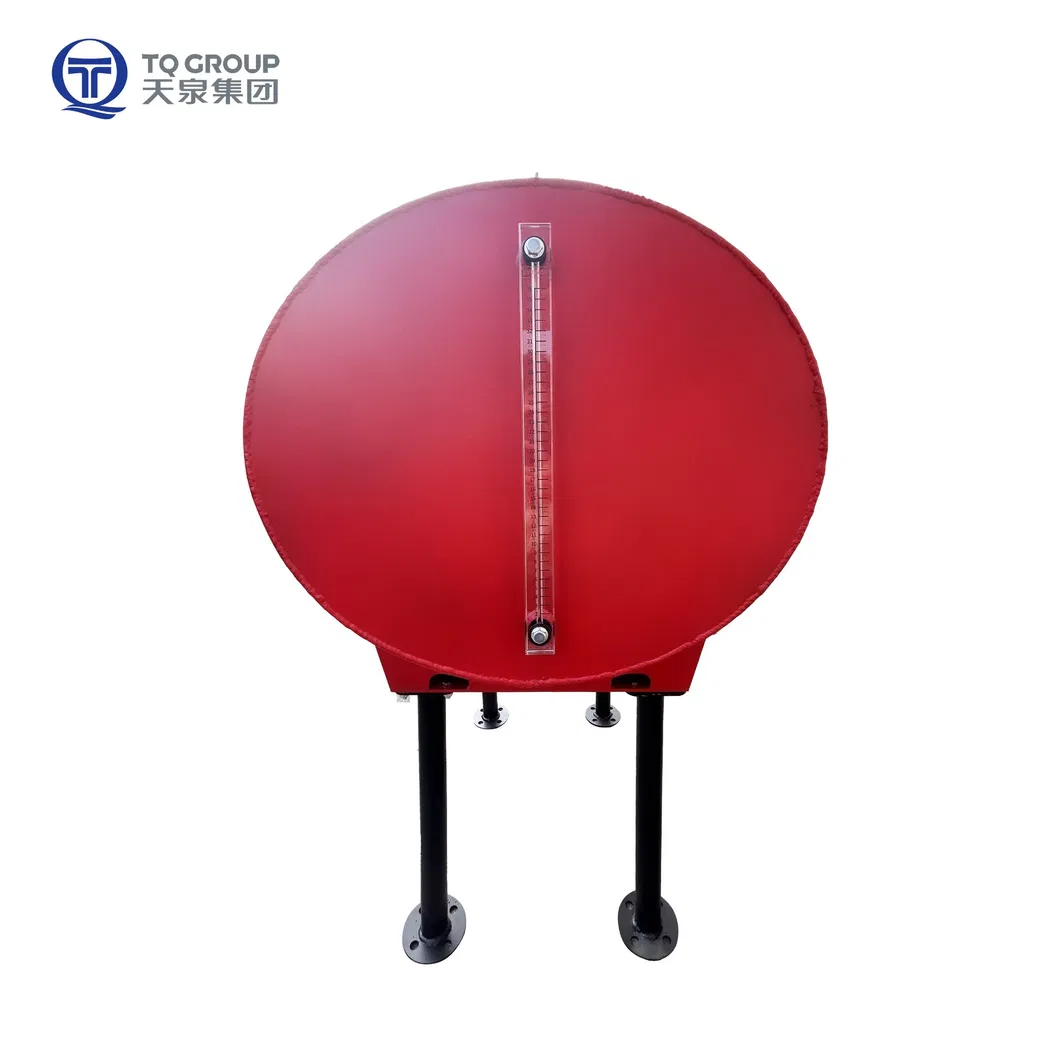

Fuel Tank

Fuel Tank Volume (L)
Diesel Engine Power(kW)	45	55	75	90	100	110	135	155	176	235
Fuel Tank (L)	50	100	150	150	150	200	200	300	300	500
Diesel Engine Power(kW)	288	305	330	368	405	459	505	565	602	618
Fuel Tank (L)	500	500	800	800	800	800	1000	800	800	800

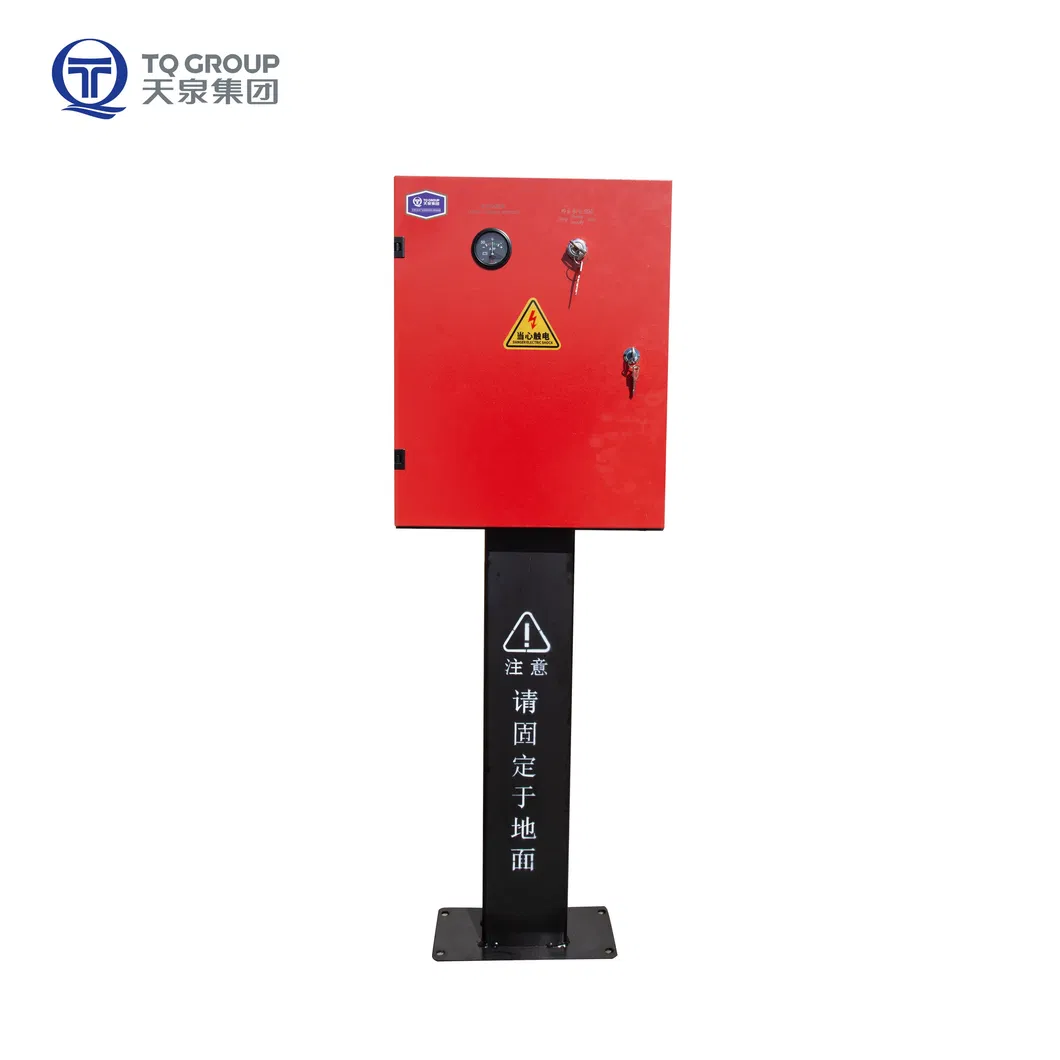

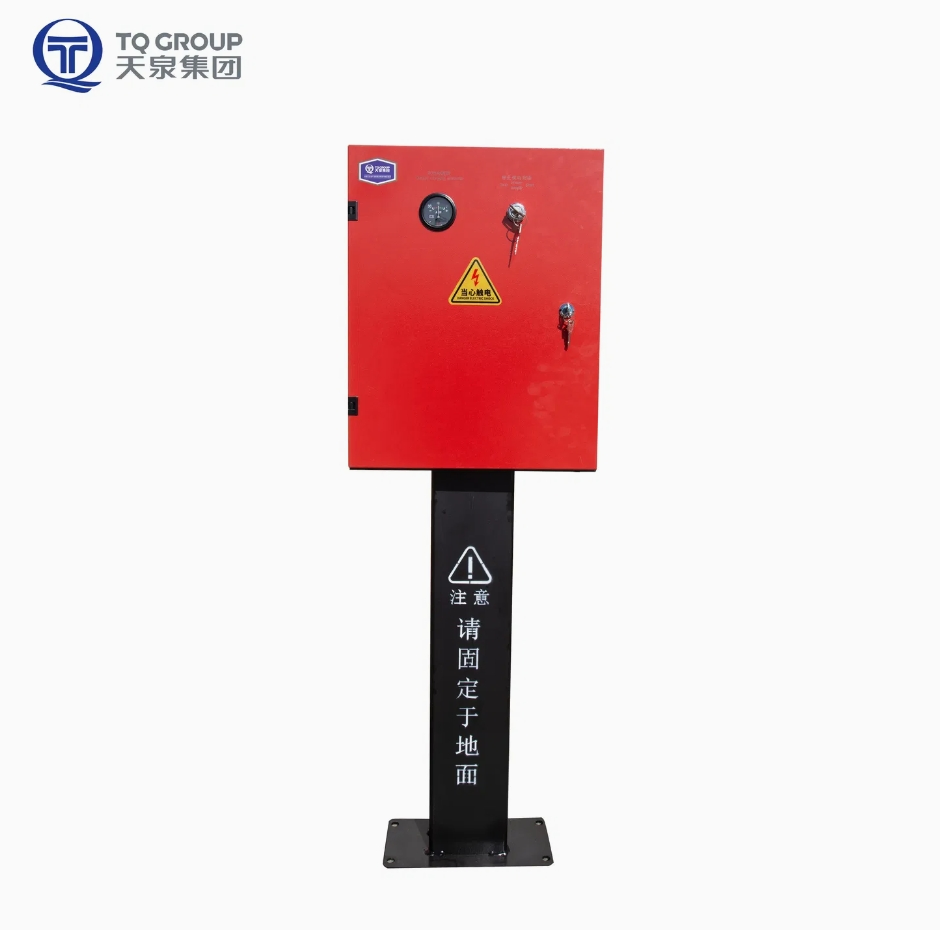

Diesel Pump Controller

	Flow Q			Head H		Diesel Engine Driven Horizontal Split Case Pump
Item No.	US.GPM	m³/h	L/S	Bar	PSI	Model	KW	HP	RPM
1	2000	455	130	6	87	XBC6/130G-SOW	135	184	1500
2	2000	455	130	7	101.5	XBC7/130G-SOW	155	211	1500
3	2000	455	130	8	116	XBC8/130G-SOW	235	320	1500
4	2000	455	130	9	130.5	XBC9/130G-SOW	235	320	1500
5	2000	455	130	10	145	XBC10/130G-SOW	235	320	1500
6	2000	455	130	11	159.5	XBC11/130G-SOW	288	392	1500
7	2000	455	130	12	174	XBC12/130G-SOW	305	415	1500
8	2000	455	130	13	188.5	XBC13/130G-SOW	330	449	1500
