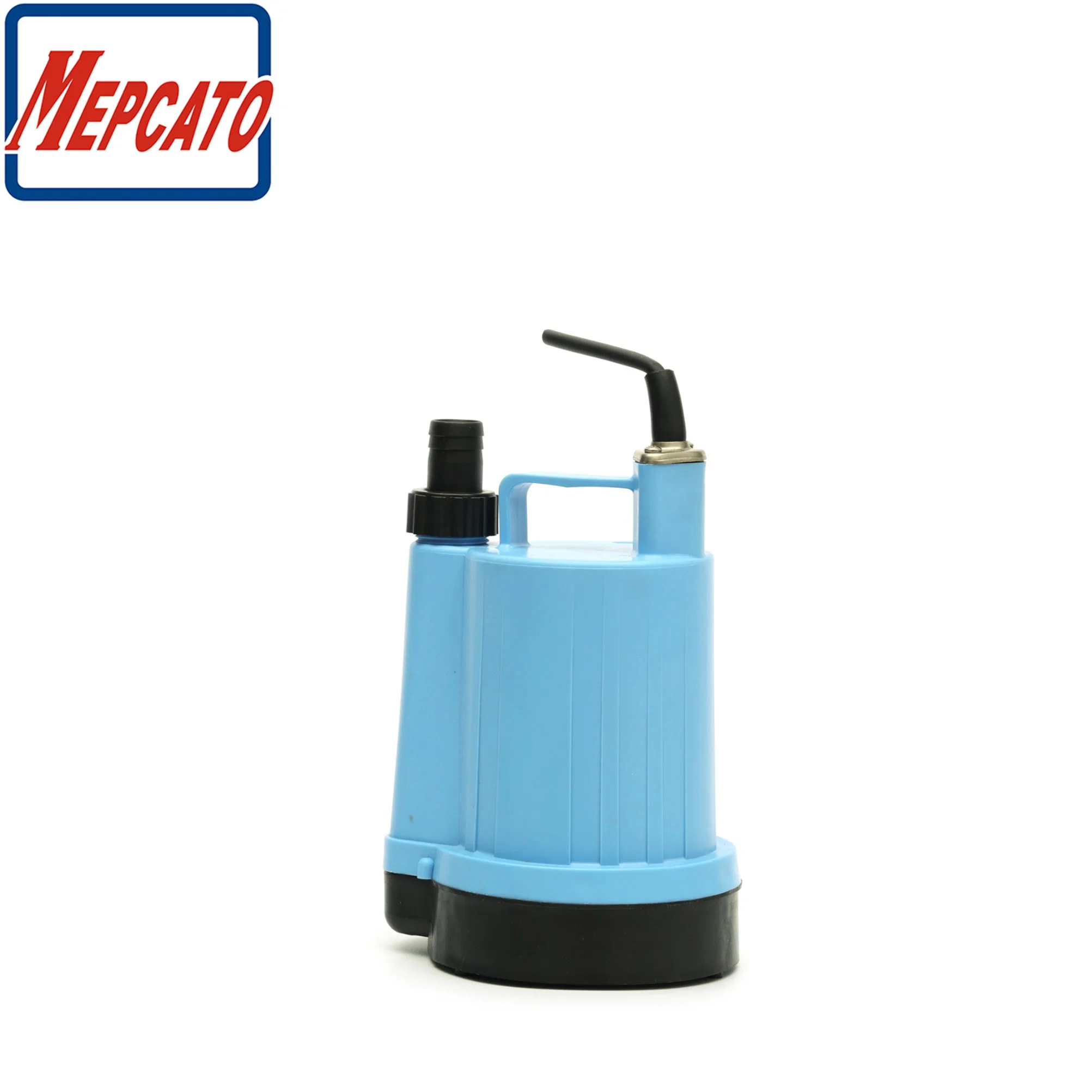

1mm Low Level Residue Water Drainage Small Portable Electric Utility Centrifugal Submersible Garden Pond Pool Tank Sump Basement Dewatering Suction Pump Bomba
1mm Low Level Residue Water Drainage Small Portable Electric Utility Centrifugal Submersible Garden Pond Pool Tank Sump Basement Dewatering Suction Pump Bomba
1mm Low Level Residue Water Drainage Small Portable Electric Utility Centrifugal Submersible Garden Pond Pool Tank Sump Basement Dewatering Suction Pump Bomba
1mm Low Level Residue Water Drainage Small Portable Electric Utility Centrifugal Submersible Garden Pond Pool Tank Sump Basement Dewatering Suction Pump Bomba
1mm Low Level Residue Water Drainage Small Portable Electric Utility Centrifugal Submersible Garden Pond Pool Tank Sump Basement Dewatering Suction Pump Bomba
1 / 5
1mm Low Level Residue Water Drainage Small Portable Electric Utility Centrifugal Submersible Garden Pond Pool Tank Sump Basement Dewatering Suction Pump Bomba
1mm Low Level Residue Water Drainage Small Portable Electric Utility Centrifugal Submersible Garden Pond Pool Tank Sump Basement Dewatering Suction Pump Bomba
1mm Low Level Residue Water Drainage Small Portable Electric Utility Centrifugal Submersible Garden Pond Pool Tank Sump Basement Dewatering Suction Pump Bomba
1mm Low Level Residue Water Drainage Small Portable Electric Utility Centrifugal Submersible Garden Pond Pool Tank Sump Basement Dewatering Suction Pump Bomba
1mm Low Level Residue Water Drainage Small Portable Electric Utility Centrifugal Submersible Garden Pond Pool Tank Sump Basement Dewatering Suction Pump Bomba

1mm Low Level Residue Water Drainage Small Portable Electric Utility Centrifugal Submersible Garden Pond Pool Tank Sump Basement Dewatering Suction Pump Bomba

Customization: Available
After-sales Service: on-Line
Warranty: 1 Year
Send Inquiry

Product Description

Product Overview
Model NO.
M-100/MF-100/M-100A
Max.Head
6.5m
Max.Capacity
95L/Min
Driving Type
Motor
Material
PP+Fiberglass
Structure
Single-stage Pump
Power
Electric (130W Input)
Theory
Centrifugal Pump
Outlet
3/4"; 1"
Media
Water
Application
  • Suitable for clean water, slight dirty water and marine equipment.
  • For domestic emergencies where a small area must be drained to the lowest level possible.
  • Ideal for complete drainage of flat surfaces: basement, cellar, rooftops, garages, pools.
  • Apply to fish tank and water tank cleaning.
Pump Application
Key Features
  • Residue Drainage: Pumps residue water down to 2 mm.

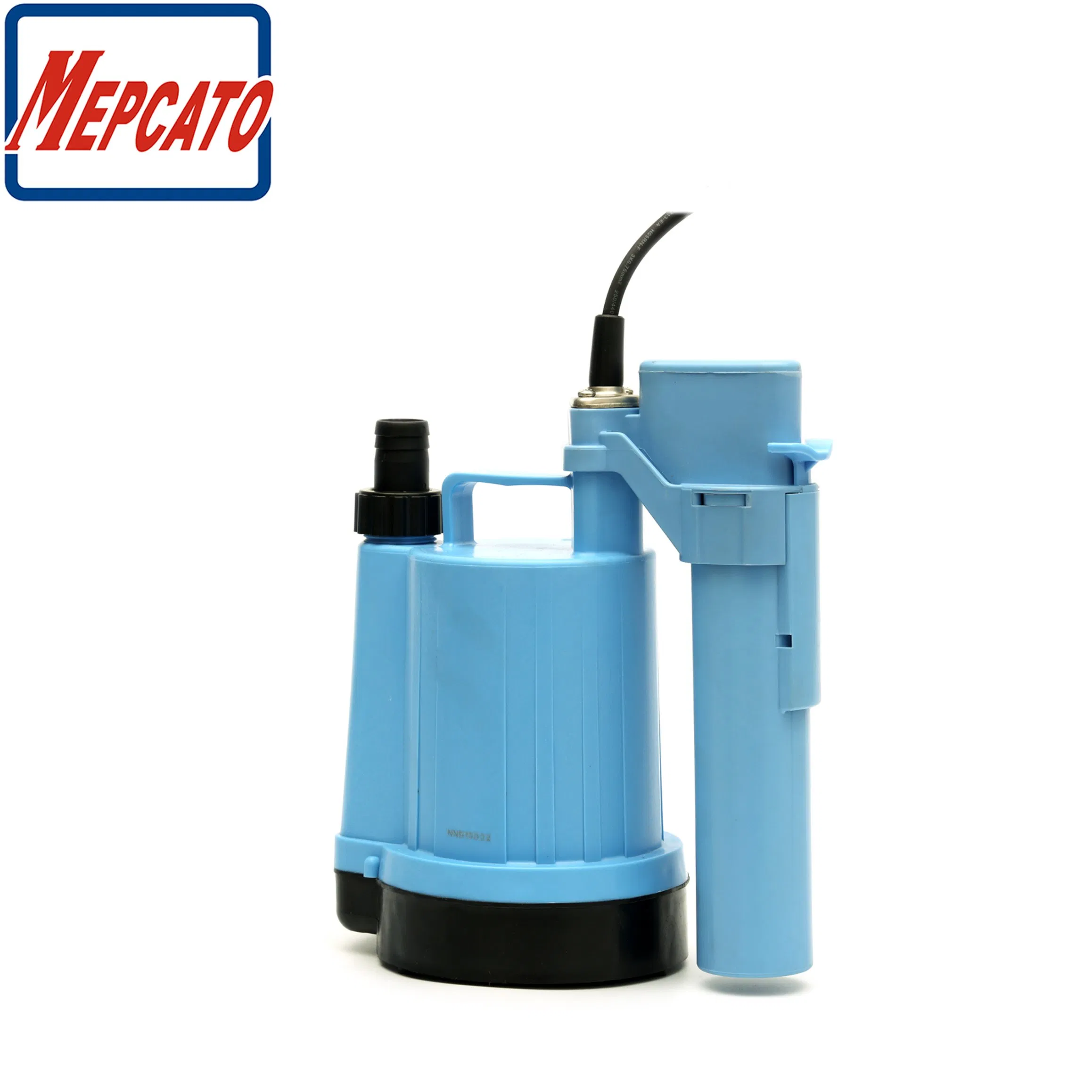

  • Dual Operation Modes: New A type of Auto-Manual switch available with M-100A.

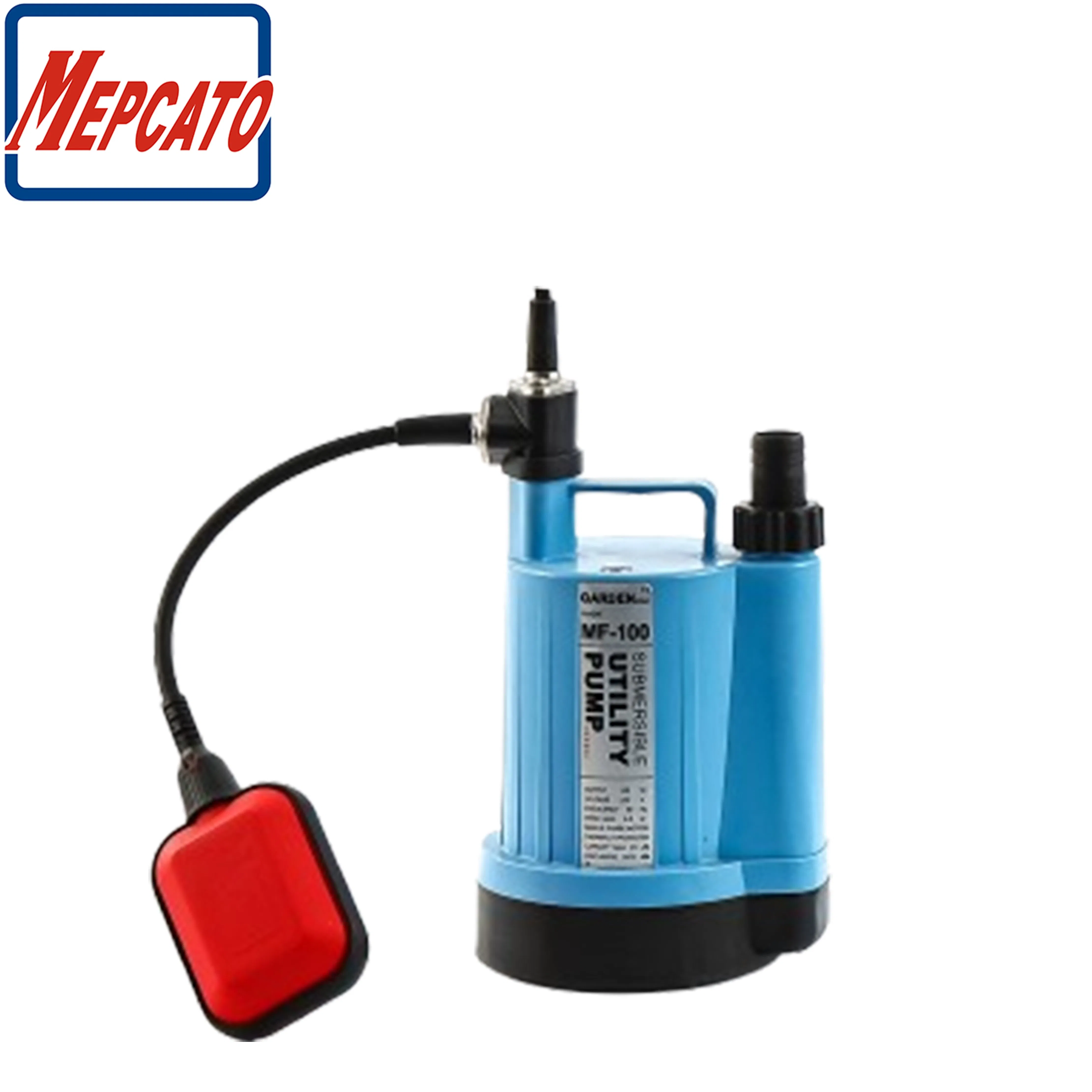

  • Automatic Operation (A): Integrated float switch starts and stops the pump automatically.
  • Manual Operation (M): Start the pump manually by lifting the knob indicator.
Technical Performance

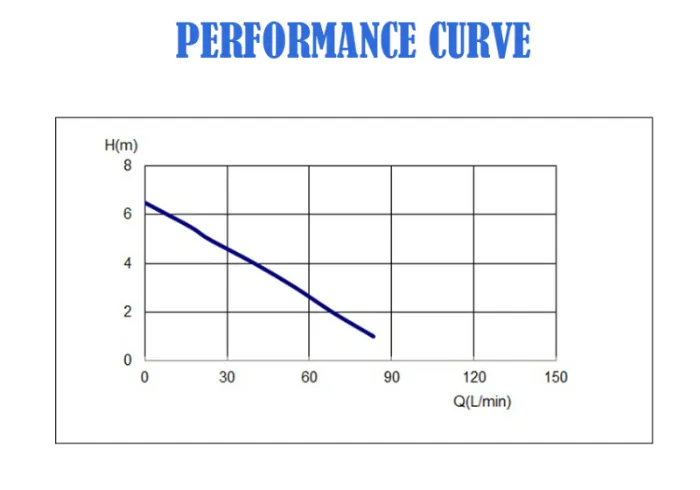

Performance Curve
Model Input Power Output Power Outlet Voltage Max Flow Max Head Dimensions (L x W x H)
Watt Watt Inch V/Hz L/min m cm cm cm

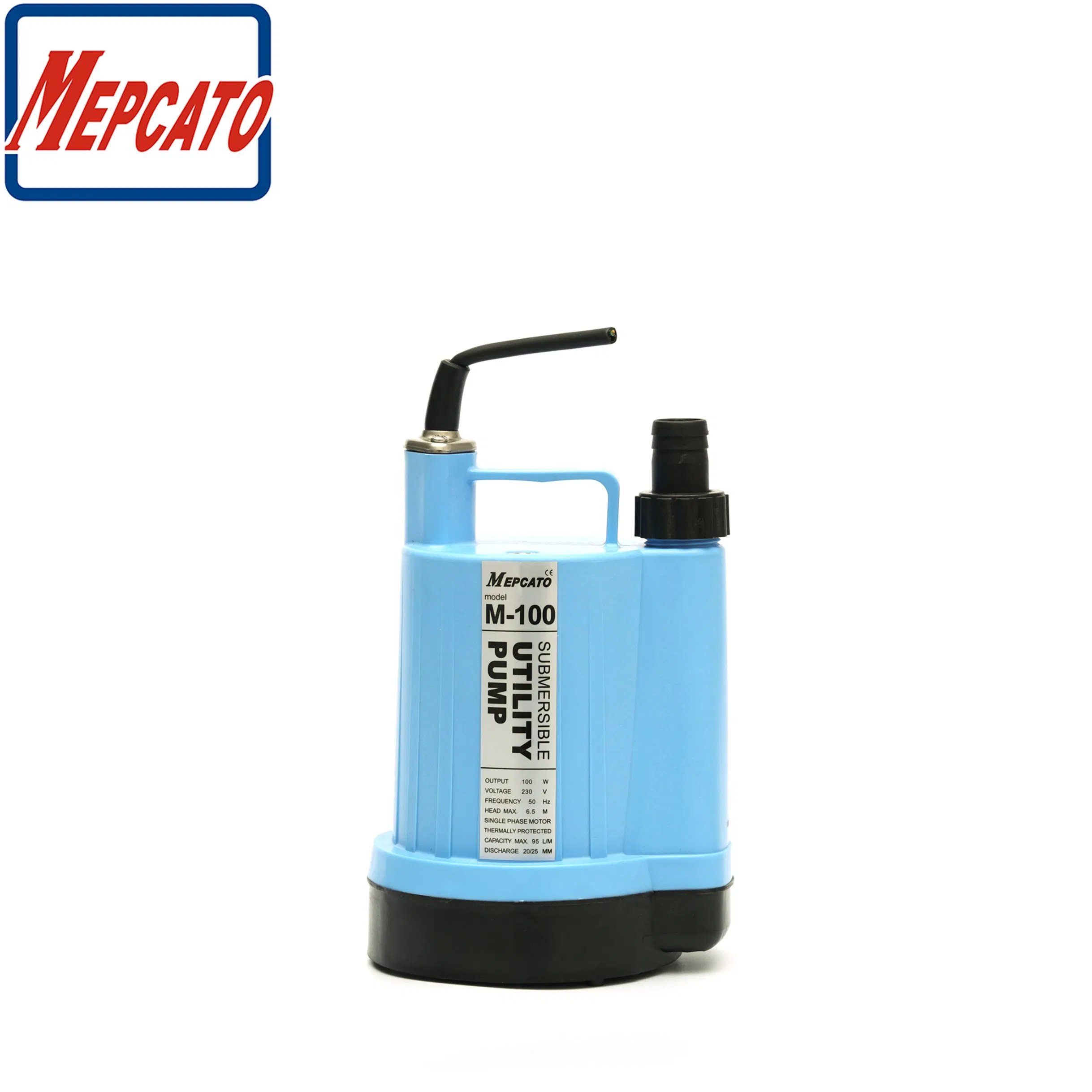

M-100 (Manual) 130 100 3/4; 1 110/230V
50/60Hz		 95 6.5 16 13.9 27

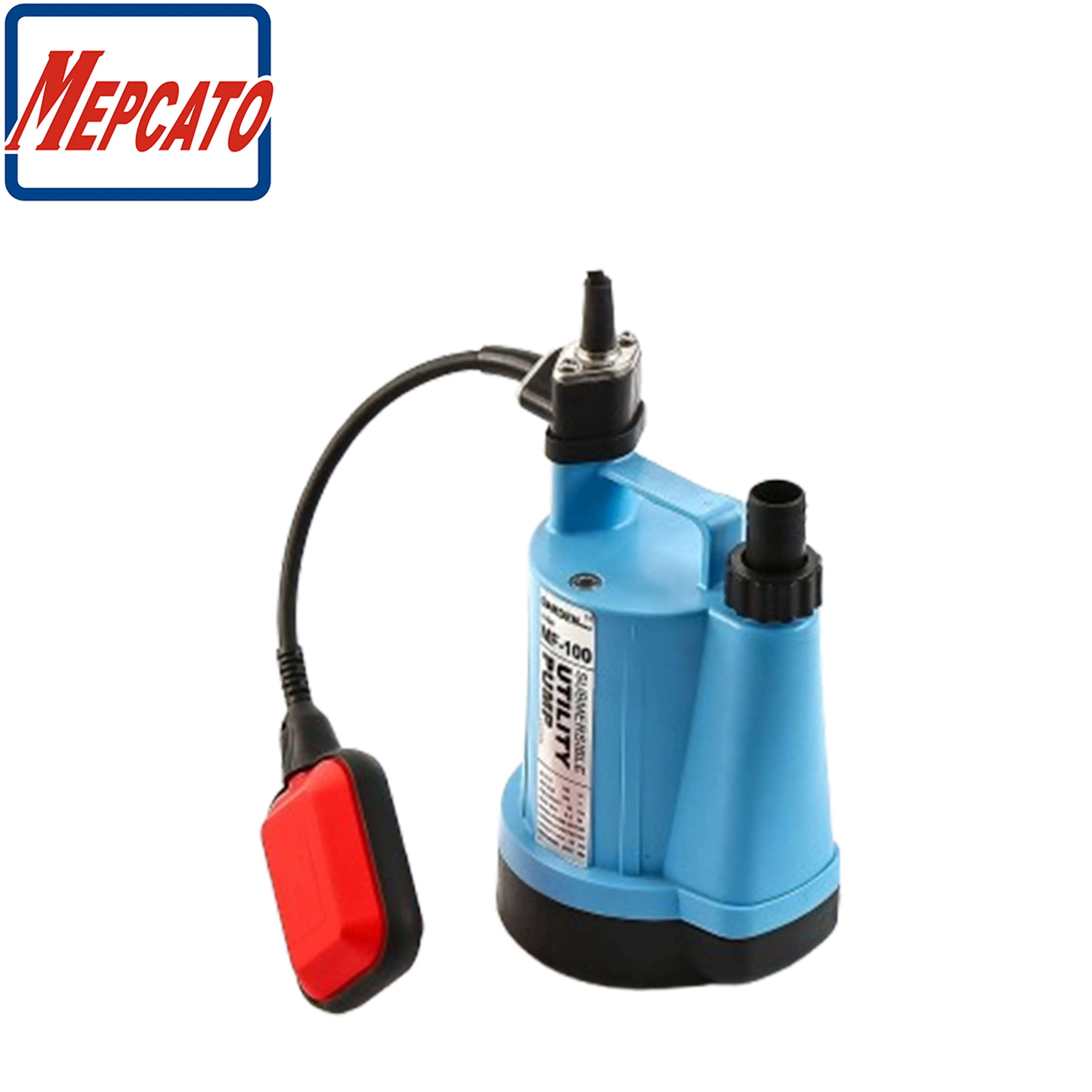

MF-100 (Auto) 18 13.9 30
M-100A (Auto/Manual) 23.2 13.9 28.5

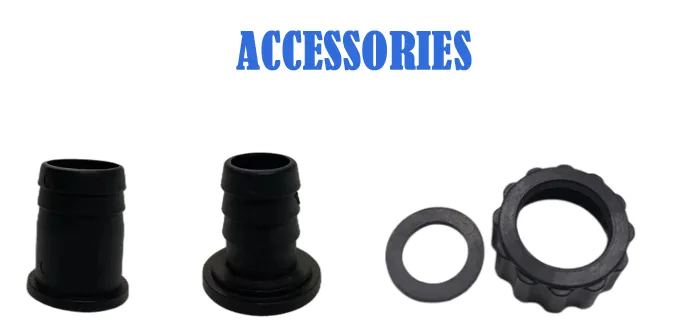

Accessories & Packaging
Accessories Shipping Info
Our Advantages
  • Highly efficient motor design for 24 hours continuous duty use.
  • Adopt Italian imported mechanical seal for double waterproof protection.
  • Design with Oil Chamber for durable seal lubrication and cooling.
  • Motor with Thermal Protector to prevent failure from dry running.
  • Power cable rubber seal designed with epoxy filling for humidity-resistance.
  • All pumps are 100% tested including low voltage start-up tests.
Product Quality
Frequently Asked Questions
What is the minimum water level the M-100 pump can drain?
The M-100 low-level submersible pump is designed to drain residue water down to as low as 2 mm.
Can this pump operate continuously?
Yes, the pump features a highly efficient motor design that supports 24-hour continuous duty use.
What is the difference between the M-100 and M-100A models?
The M-100 is a manual model, while the M-100A includes a specialized switch that allows for both Automatic (A) and Manual (M) operation.
Does the pump have protection against overheating?
Yes, the motor is equipped with a Thermal Protector to prevent failure due to accidental run-dry conditions or pump blockages.
What kind of water is this pump suitable for?
It is ideal for clean water, slightly dirty water, and applications involving marine equipment, basements, pools, and fish tanks.
What is the maximum flow rate and head?
The pump has a maximum capacity of 95 Liters per minute and a maximum head of 6.5 meters.
