⚙️Product Description
XBC-SOW is a diesel engine-driven horizontal double-suction fire pump. It covers a wide range of flow rates and head pressures. The product includes a diesel engine, water pump, common base, fuel tank, maintenance-free battery, and on-site control cabinet. The diesel engine uses high-quality 1500 RPM high-speed diesel engines from WEICHAI or for Cummins and is connected to the pump side with an elastic pin coupling. The water pump impeller is made of corrosion-resistant stainless steel or brass material, and the pump case is made of ductile iron for high-pressure usage.
⭐Product Advantages
Product Conformity: The performance of the double suction pump has been fully optimized to meet the four key requirements of the American Fire Protection Standards FM/UL:
- The performance meets the requirements of rated flow and rated pressure.
- The outlet pressure at zero flow does not exceed 140% of the rated pressure.
- At a suction depth of 4.6 meters, when the flow is 150% of the rated flow, the outlet pressure is not less than 65% of the rated pressure.
- The performance curve includes a maximum shaft power value, and the driving power provided exceeds this value.
Standard Materials: Pump case and cover (Ductile Iron), Impeller (Brass/SS304), Wear ring (Brass/SS304), Sealing (Gland packing/Mechanical Seal).
❓Frequently Asked Questions
What are the primary applications for the XBC-SOW fire pump?
It is designed for high-pressure water supply in industrial and factory firefighting systems, emergency fire standby, urban water plants, and HVAC systems.
What brands of diesel engines are compatible with this system?
The system utilizes high-quality 1500 RPM diesel engines from renowned brands such as WEICHAI or Cummins.
Does the pump meet international firefighting standards?
Yes, the double suction pump performance is optimized to meet the key requirements of American Fire Protection Standards (FM/UL).
What materials are used for the pump construction?
The pump case is made of ductile iron for high-pressure durability, while the impeller and wear rings are crafted from corrosion-resistant brass or SS304.

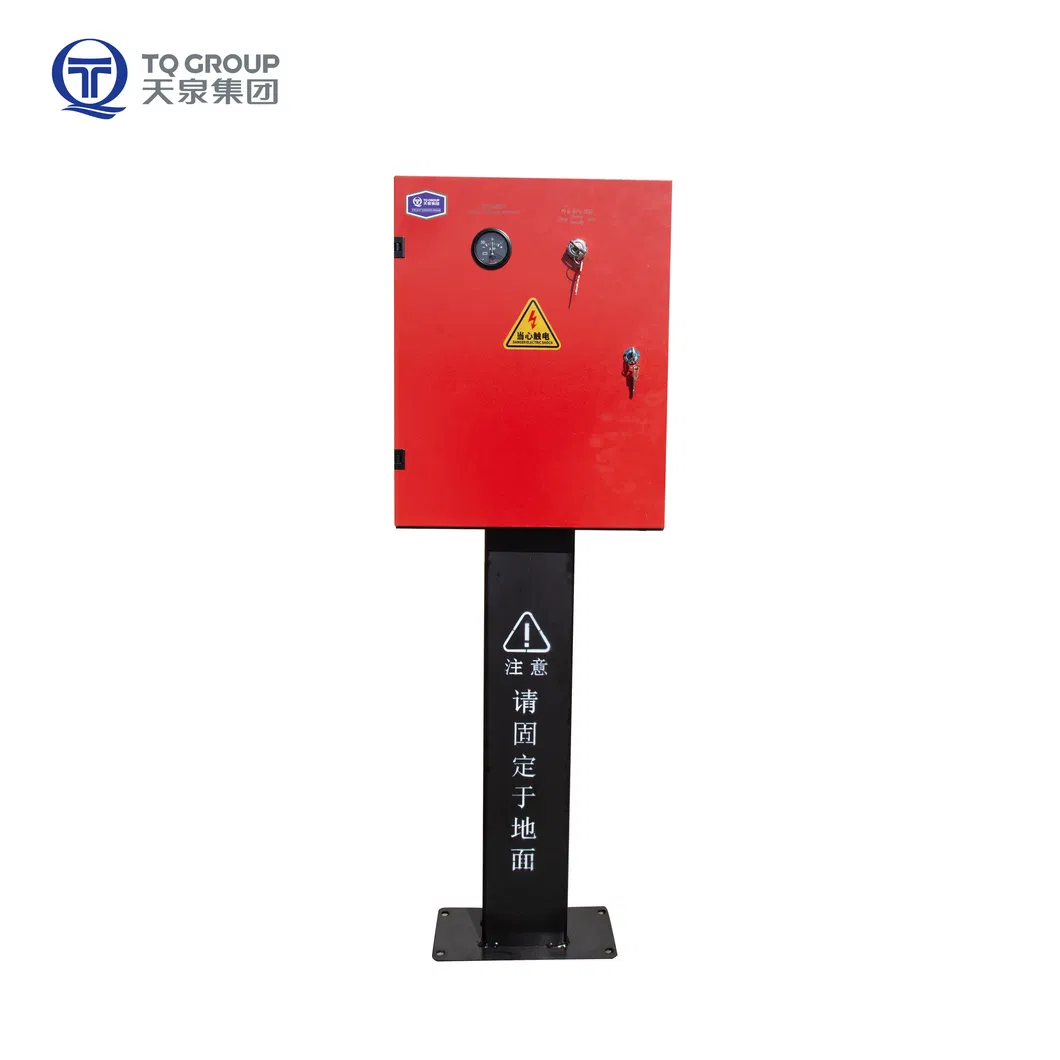

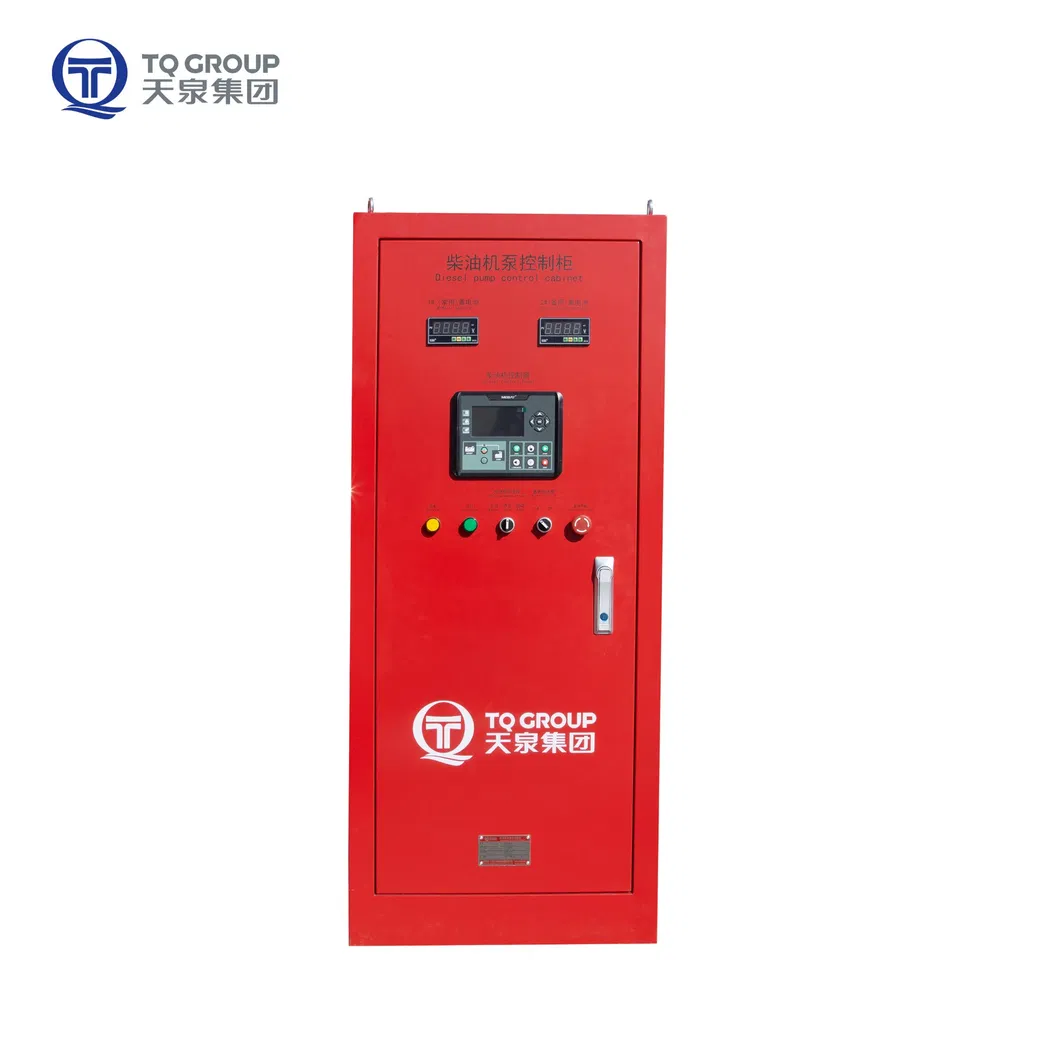

What monitoring features does the control cabinet provide?
The controller monitors speed, voltage, current, oil temperature, and water temperature. it also includes protection for low oil pressure and overspeed.
Is the fuel tank size customizable?
The fuel tank volume varies based on the diesel engine power, ranging from 50L to 1000L to ensure adequate operation time during emergencies.
