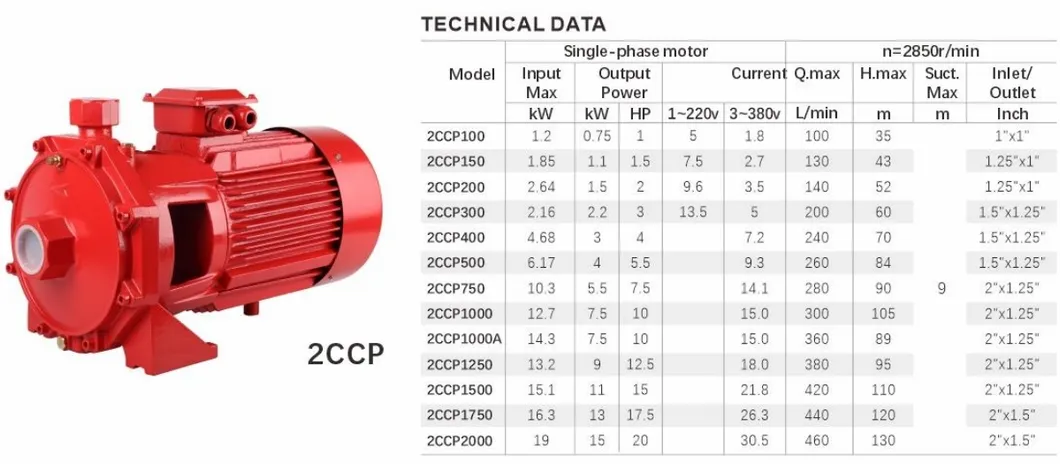

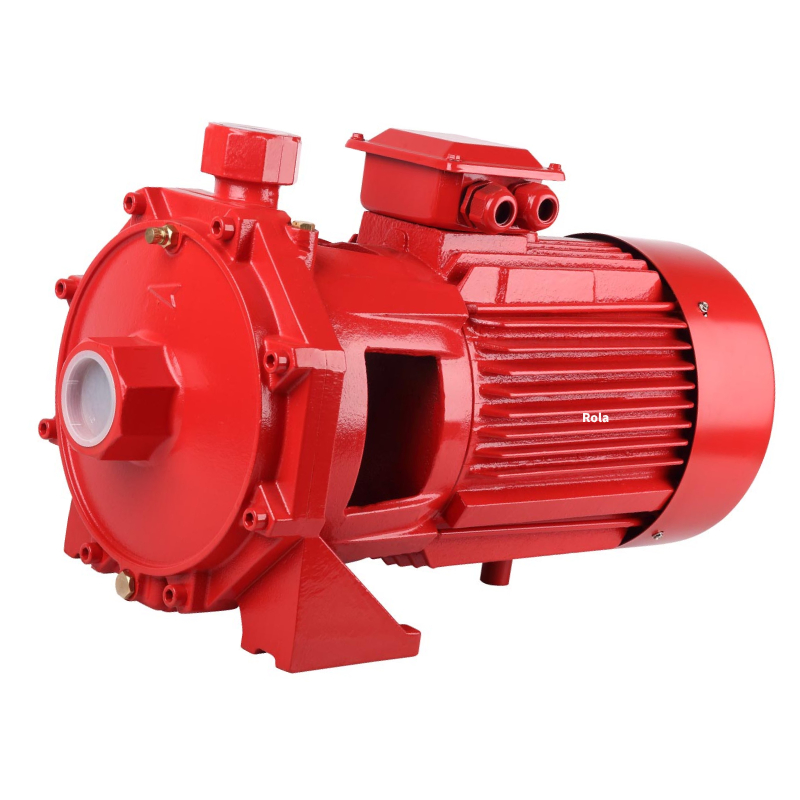

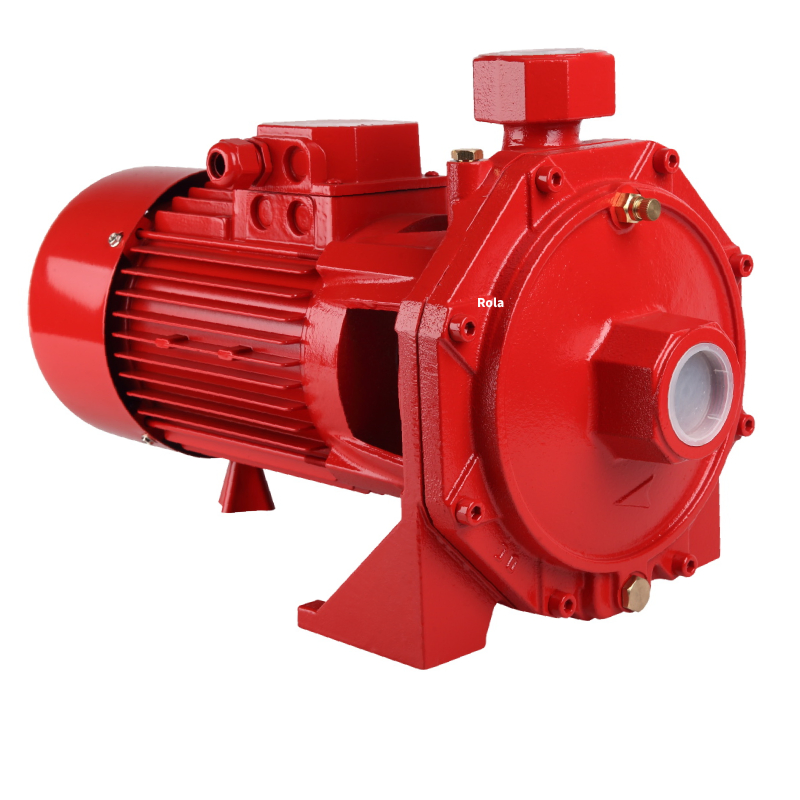

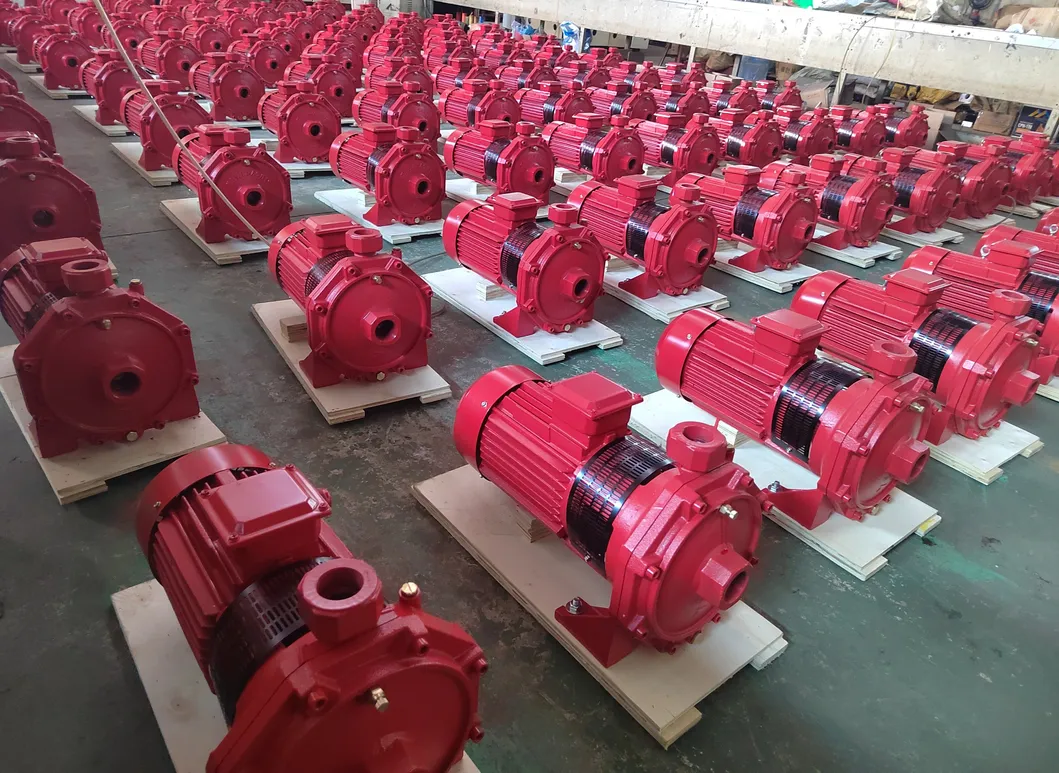

The 2CCP series are designed with two back-to-back impellers. It is used for high head values that are difficult to reach with single impeller centrifugal pumps. It is suitable for fire fighting pumps, civil, and industrial uses to pump clean water and chemically non-aggressive liquids. It is particularly used for increasing supply pressure, feeding boilers, and loading extremely. These pumps should be installed in a covered area, protected against the weather.
Operating Limitations:
- Max ambient temperature up to 40ºC
- Max fluid temperature up to 40ºC
- Max pressure up to 10 bar
| Pump Body: | Cast iron |
| Shaft: | Stainless steel AISI 420 |
| Impeller: | Double brass impeller |
| Motor: | Closed, externally ventilated |
| Insulation Class: | B/F |
| Protection Class: | IP44/IP54 |
| Duty: | Continuously rated |
| Mechanical Seal: | φ16, φ18, φ25 silicon carbide/graphite |

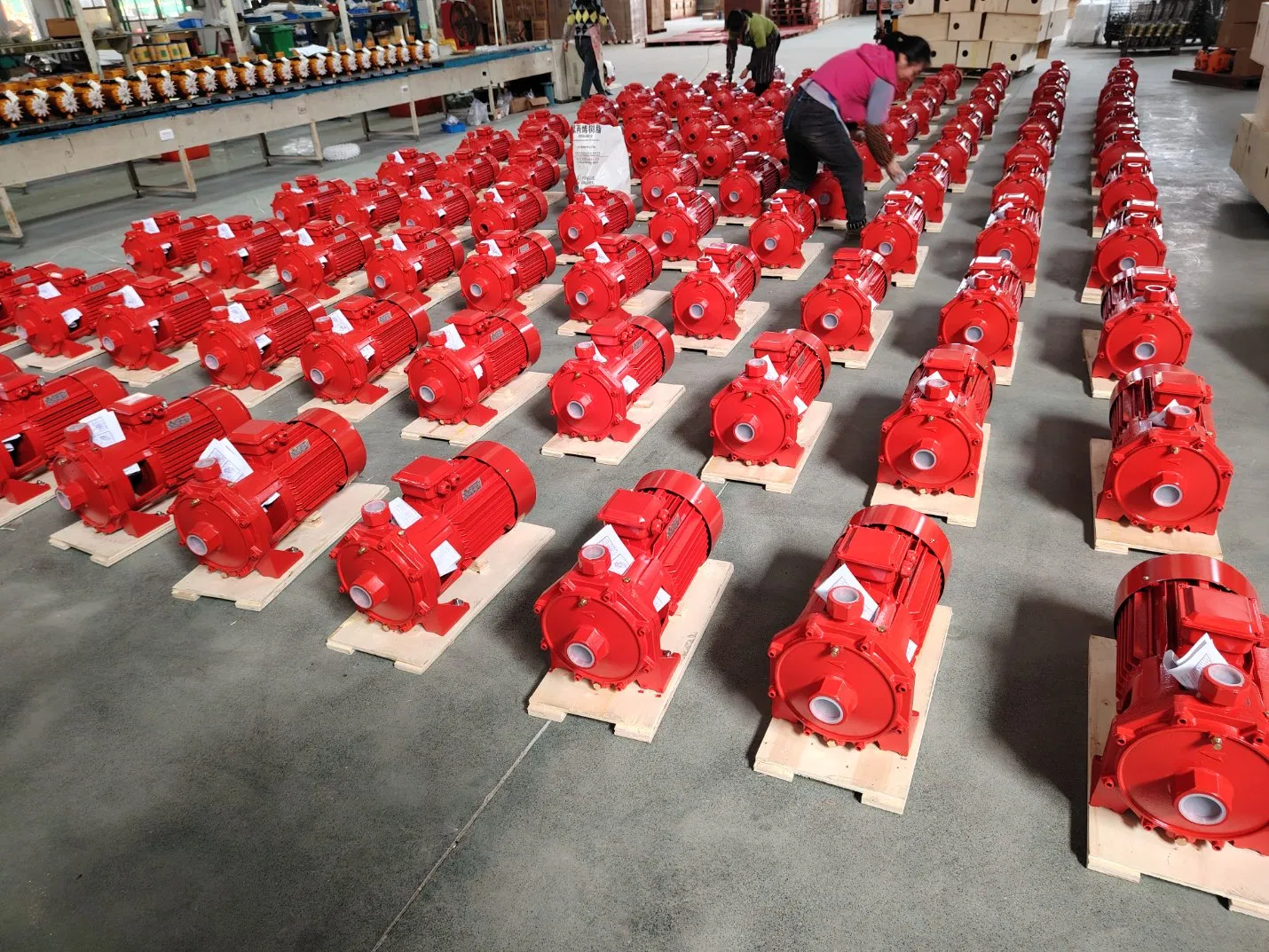

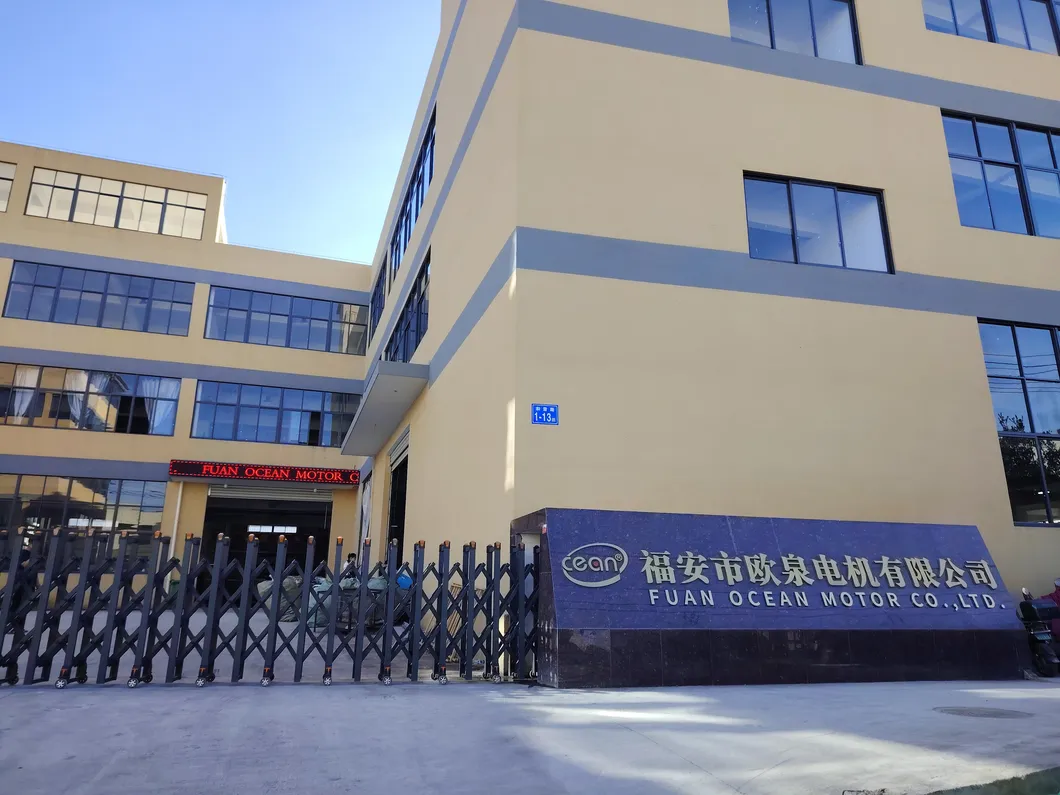

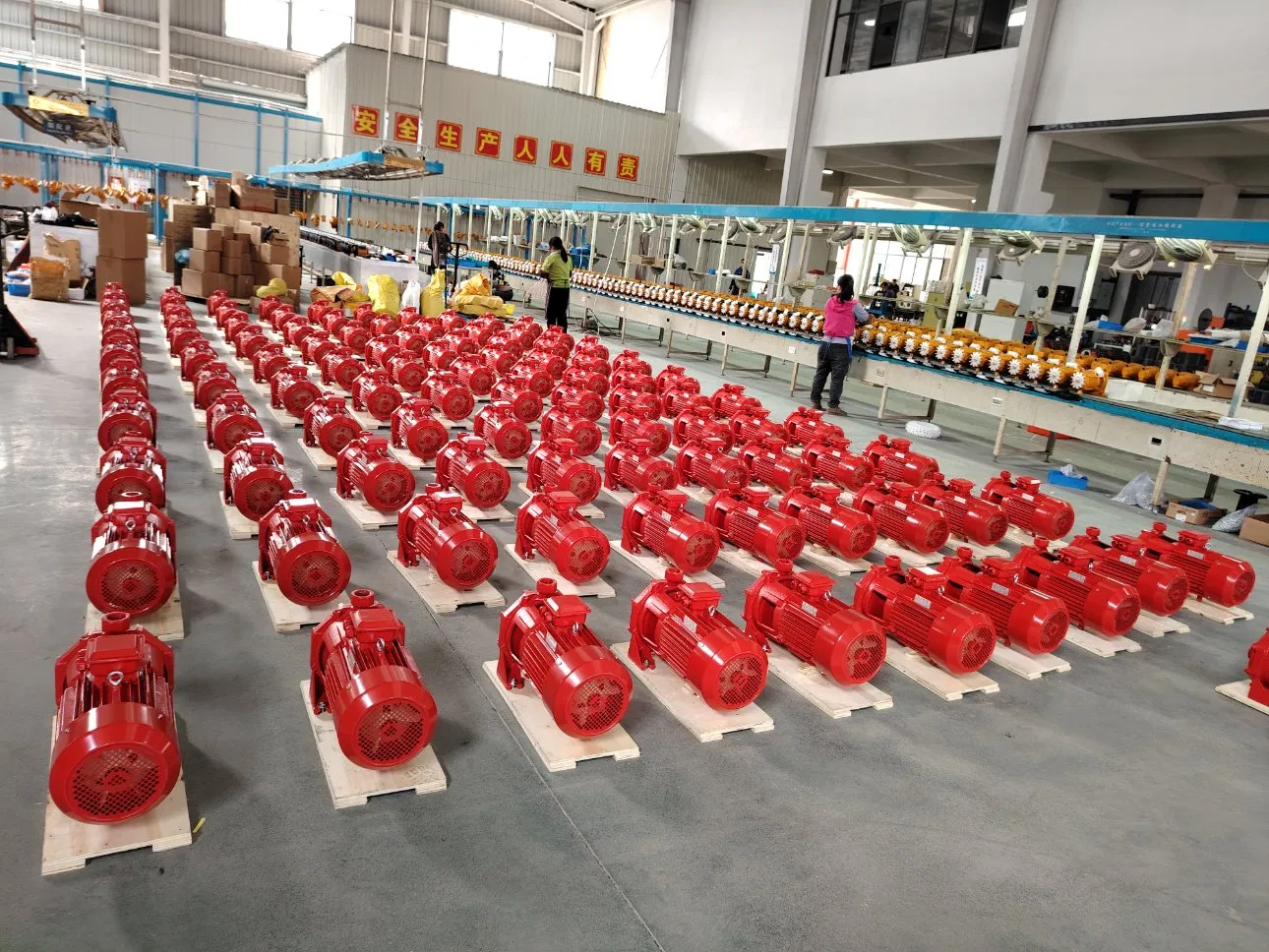

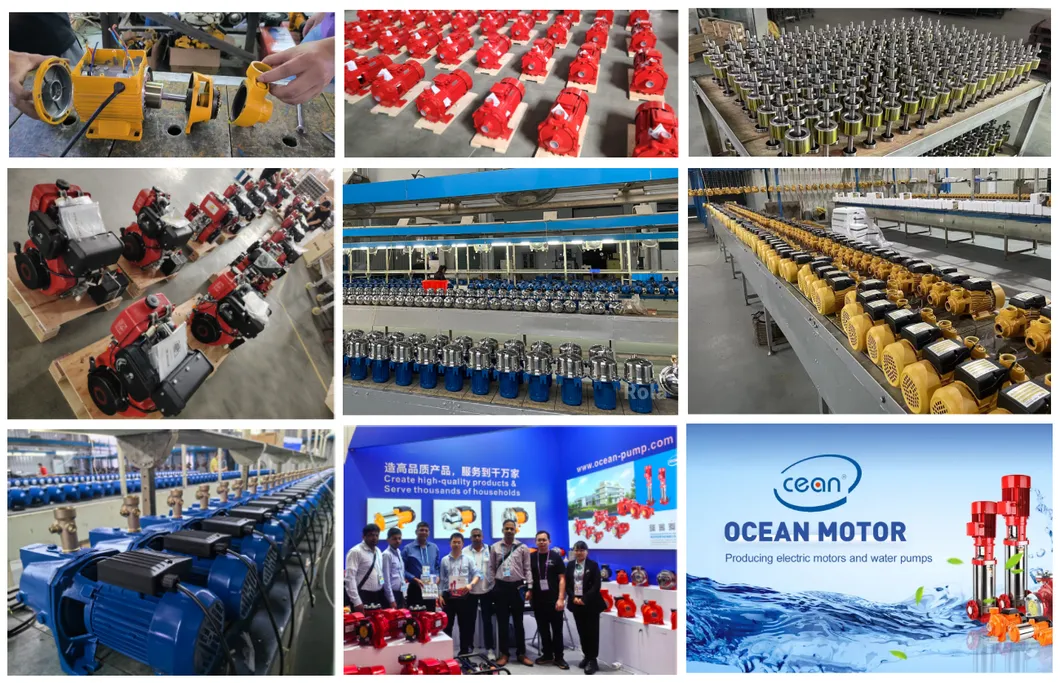

Our company is located in a region famous for its electric motors and water pumps. Our facilities occupy about 10,000 square meters, employing over 100 skilled workers, engineers, and technical personnel. We are an international and standard enterprise specialized in researching, producing, sales, and services. As a machinery exporting base permitted by relevant government departments, we utilize advanced international production equipment and test apparatus, following leading administration systems. We insist that high quality is the life of our enterprise and strive to provide excellent products and sales services.
