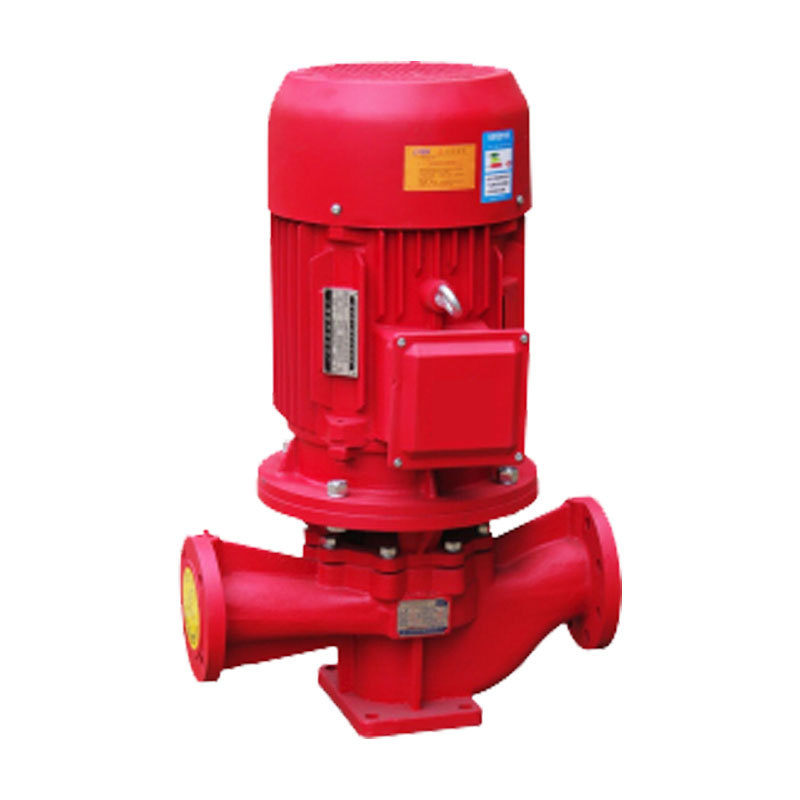

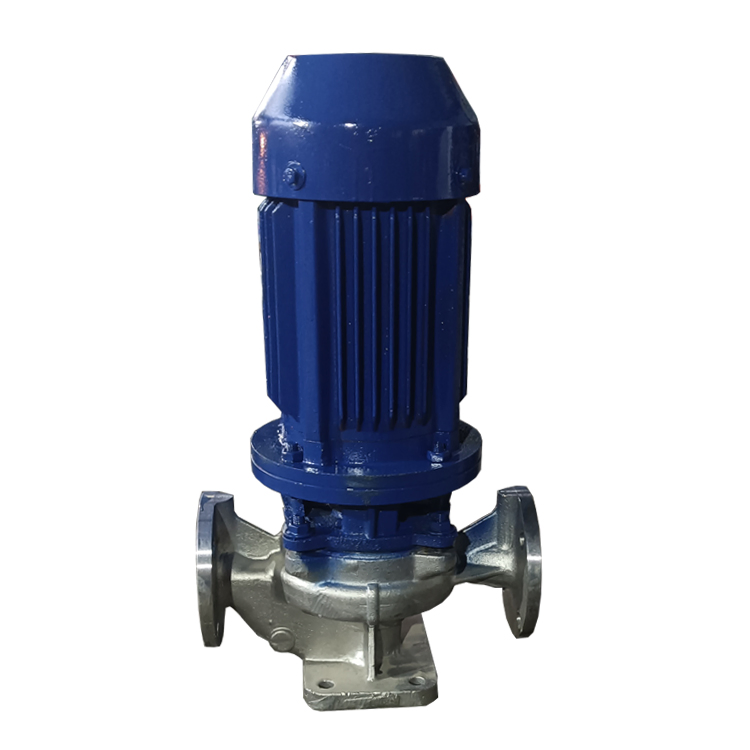

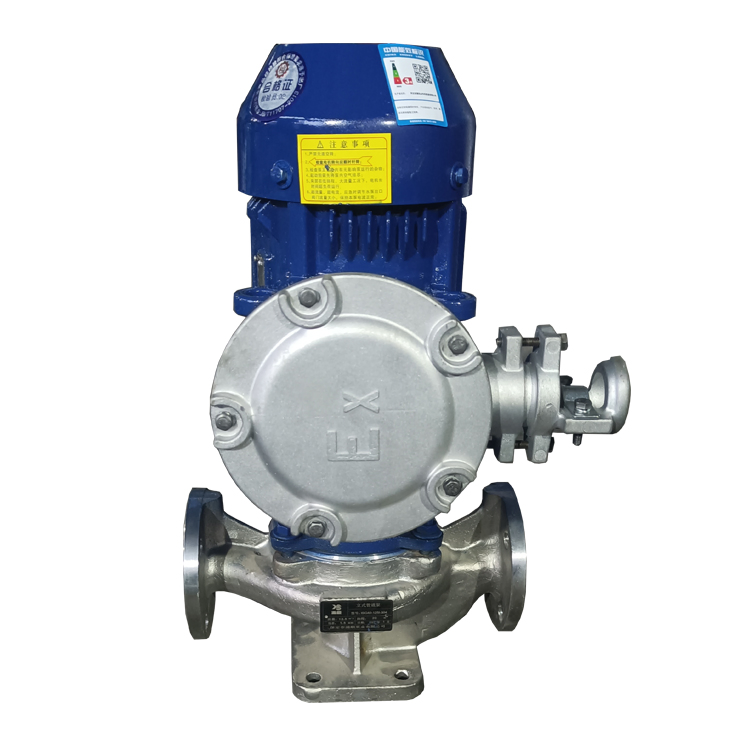

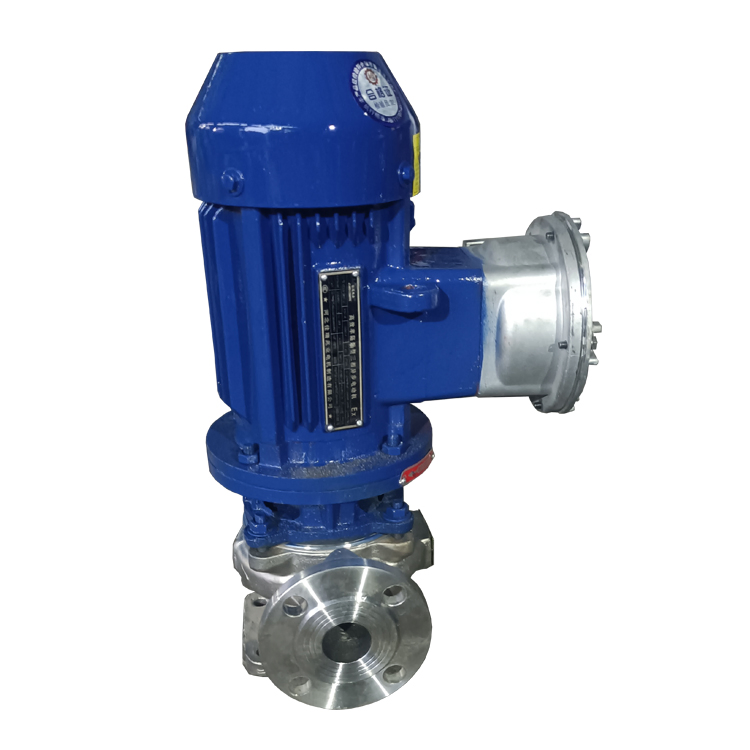

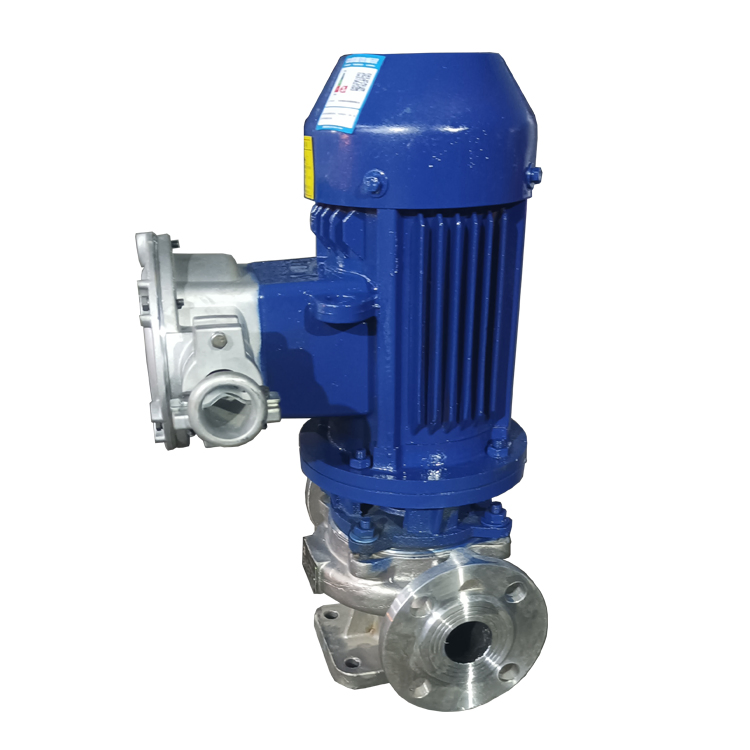

15HP Vertical Inline Centrifugal Pump for Fire Fighting Industrial Pipeline Solutions

📊 Basic Specifications

Model NO.

ISG

Max. Head

160 M

Max. Capacity

1440 M3/H

Driving Type

Motor

Material

Cast Iron

Structure

Single-stage Pump

Assembly

Pipeline Pump

Power

Electric

Start Up

Electric Pump

Type

Blade Pump

Speed

1450/2900 R/Min

Voltage

380V/415V/440V/460V/3kv/6kv/10kv

Efficiency

19%-87%

HS Code

8413709990

📝 Product Description

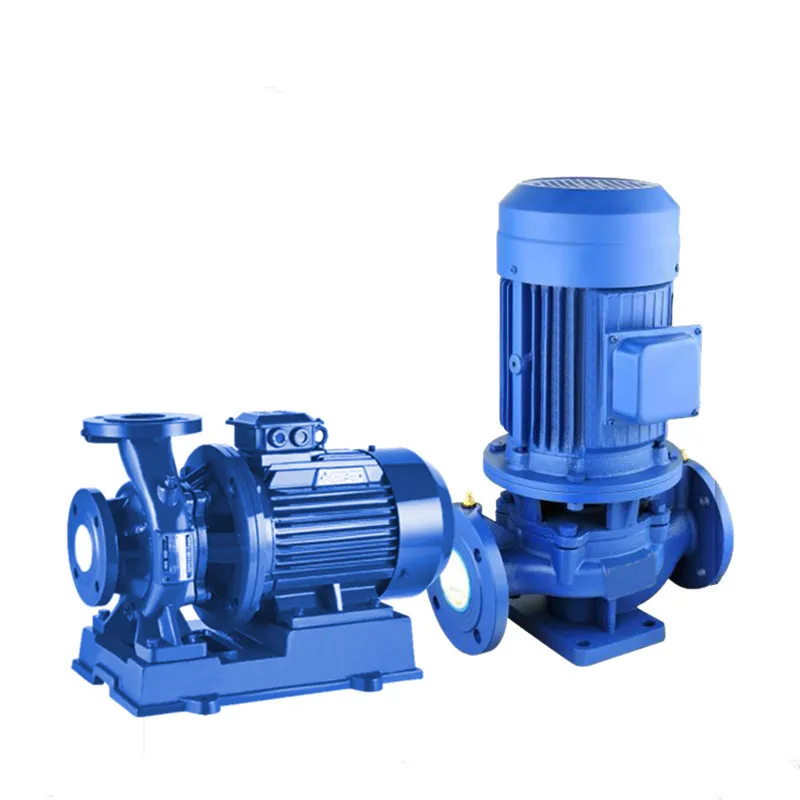

Horizontal & Vertical Centrifugal Pipeline Booster Pump

ISW ISG series pumps are horizontal/vertical single-stage single-suction centrifugal pipeline pumps. They are widely used for industrial and urban water supply, high-rise building pressurization, garden sprinkler irrigation, fire protection, long-distance transport, and heating/cooling water circulation.

Comprehensive Performance: High head capacity reaching up to 160m; series connection can be used to increase head.
High Flow Rate: Capacity up to 1440m³/h, with parallel connection options for higher demand.
Wide Material Selection: Available in cast iron, cast steel, stainless steel, or custom materials.
Universal Application: Suitable for both clean water and sewage transport.
Flexible Installation: Can be installed vertically or horizontally depending on on-site conditions.
Energy Saving: Advanced water conservancy design for maximum utilization and cost reduction.
Smooth Operation: Dynamic and static balance of the impeller ensures vibration-free operation and low noise.
Leak-Free: Equipped with corrosion-resistant hard alloy mechanical seals.
Easy Maintenance: No need to disassemble the pipeline; components are easily accessible.

⚙️ Pump Construction

ISW Series Construction

ISG Series Construction

📏 Product Parameters

Model	Power (kw)	Capacity		Head (m)	Speed (r/min)	Eff. (%)	NPSH (m)	Diameter (mm)
Model	Power (kw)	m³/h	L/S	Head (m)	Speed (r/min)	Eff. (%)	NPSH (m)	Inlet	Outlet
ISW15 / ISG15	0.18	1.1-2	0.3-0.56	7-8.5	2900	26-34	2.5	15	15
ISW25 / ISG25	0.75-1.5	2.5-5.2	0.69-1.44	13.5-33	2900	24-42	2.5	25	25
ISW50 / ISG50	0.75-30	7.1-32.5	1.97-9.03	8.4-128	2900	29-69	2.5	50	50
ISW100 / ISG100	4-90	56-192	15.6-53.3	8.8-156	2900	55-79	4.5	100	100
ISW200 / ISG200	11-132	112-520	31.1-144.4	8.5-85	1450	66-84	5.5	200	200
ISW350 / ISG350	75-250	625-1440	173.6-400	13.5-55	1450	78-86	5.5	350	350

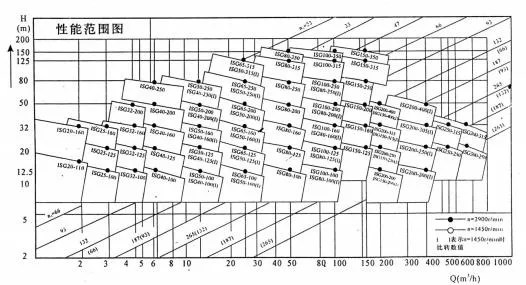

Performance Chart

🏢 Applications

High-rise Buildings

Landscape Irrigation

Fire Pressurization

Bathroom Circulation

Industrial Water Supply

Urban Drainage

📦 Packaging & Shipping

We provide professional packaging including boxing, nailing, and secure loading. We support multiple transportation methods including sea, air, and express delivery to ensure your products arrive safely at their destination.

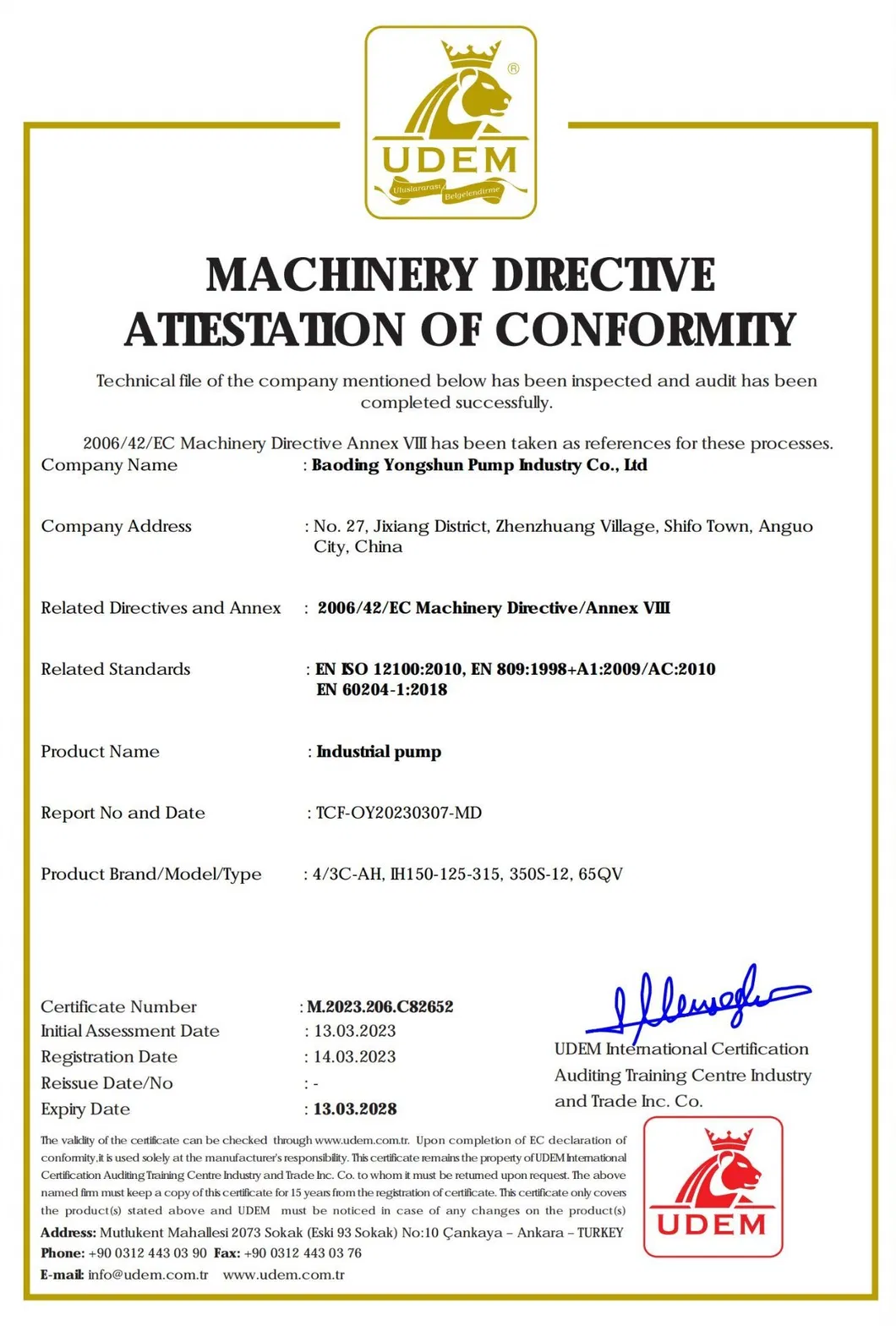

📜 Certifications

2006/42/EC CE M.2023.206.C82652	ISO9001 626018Q12046R6S	Credit Level Certificate ZXXY-ZXDJ20158

2006/42/EC CE
M.2023.206.C82652

ISO9001
626018Q12046R6S

Credit Level Certificate
ZXXY-ZXDJ20158

❓ Frequently Asked Questions

What are the primary applications for these pumps?

They are ideal for urban water supply and drainage, high-rise building water pressurization, landscape sprinkler irrigation, and fire protection systems.

How long is the delivery time?

Normally, delivery takes 3-7 working days after confirmation, depending on the order quantity.

Is there a minimum order quantity (MOQ)?

The minimum order quantity is just 1 set.

What is the warranty period for the products?

We offer a 2-year warranty period, excluding wearing parts. We provide free replacement or repairs for manufacturing defects.

Can I purchase spare parts separately?

Yes, all pump components and spare parts are available for separate purchase to ensure easy maintenance.

Which payment methods are accepted?

We accept T/T, L/C, Western Union, and Paypal for your convenience.
