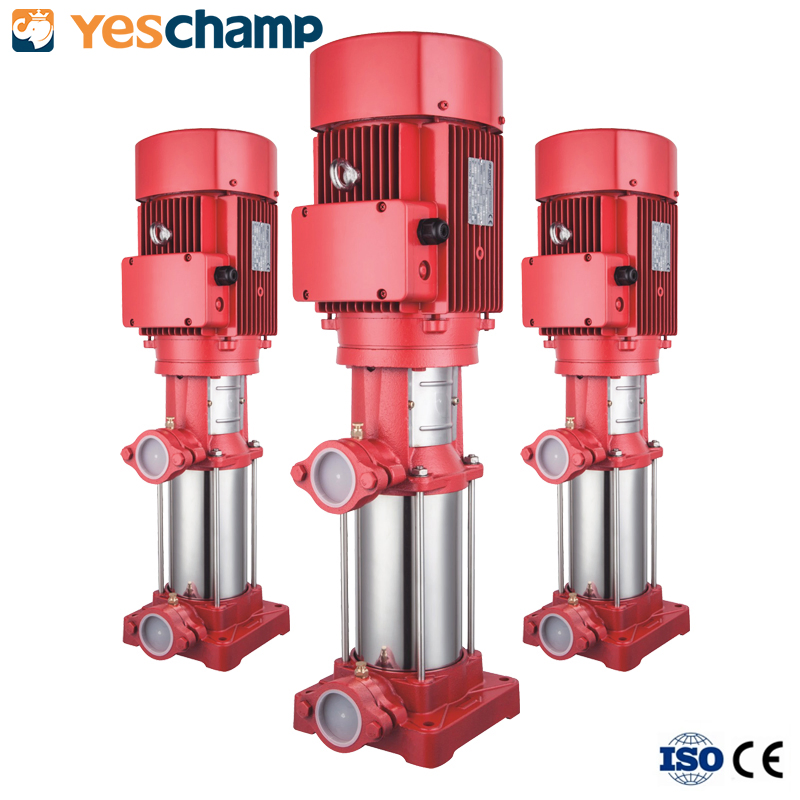

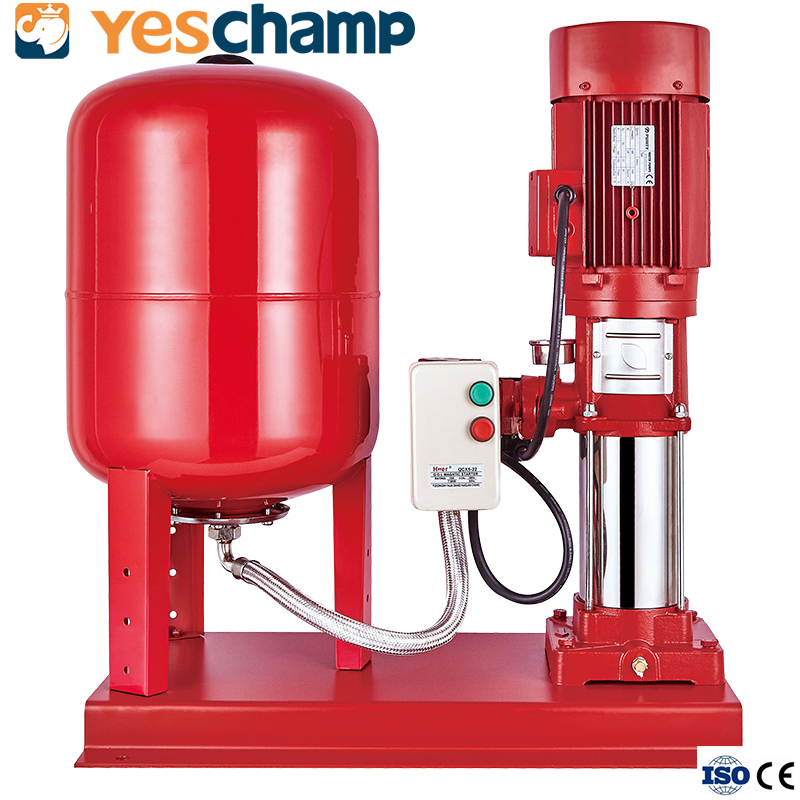

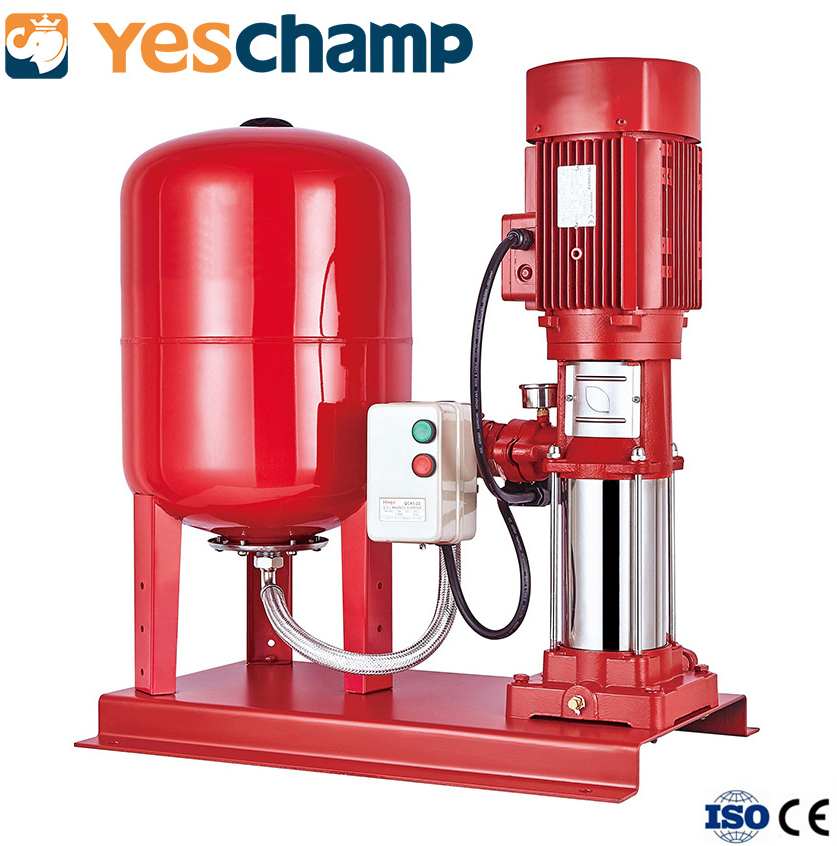

11HP Vertical Multistage Jockey Pump Fire System with Pressure Tank

11HP Vertical Multistage Jockey Pump Fire System With Pressure Tank

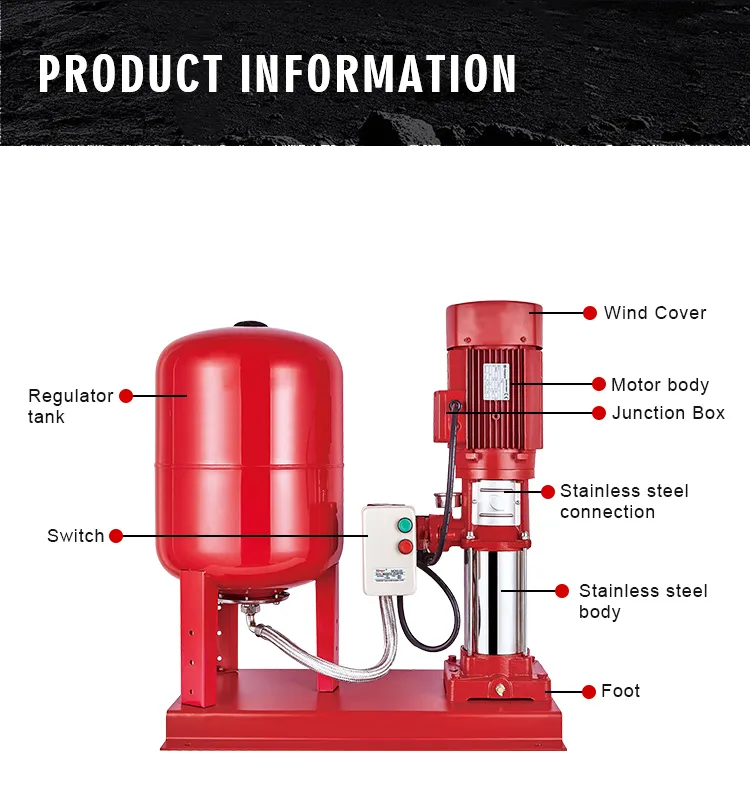

PVK is a new structure of a jockey pump with a pressure system tank combo. The PVK series pump has the advantage of a highly effective and full-automatic control design, usually used as a jockey pump in fire fighting systems to keep the fire system pressurized during non-fire conditions. This prevents unnecessary cycling of the main fire pump and offers a technically advanced design to meet the hydraulic demand of any fire suppression system.

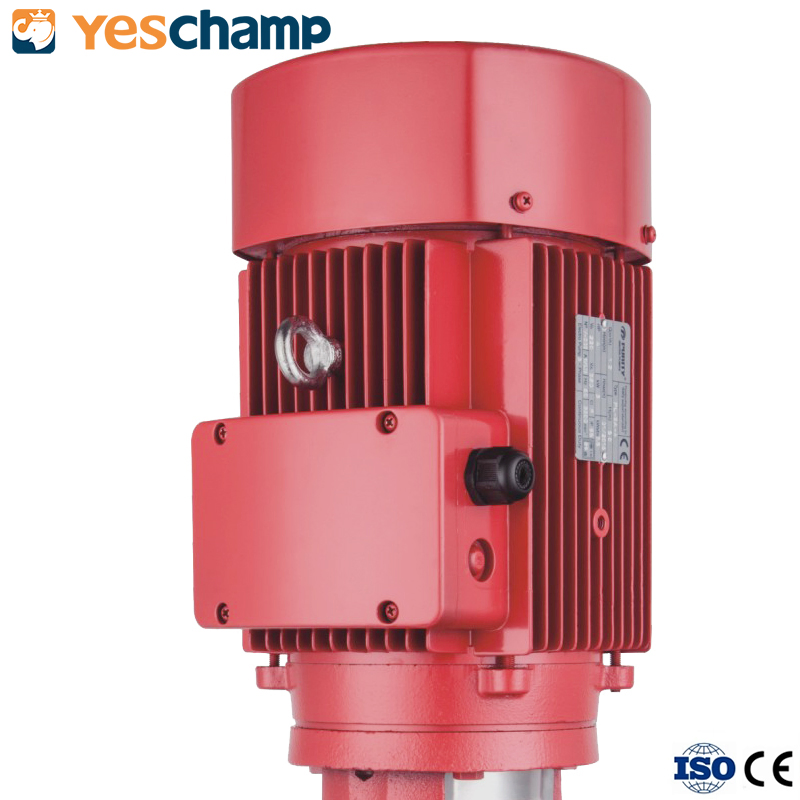

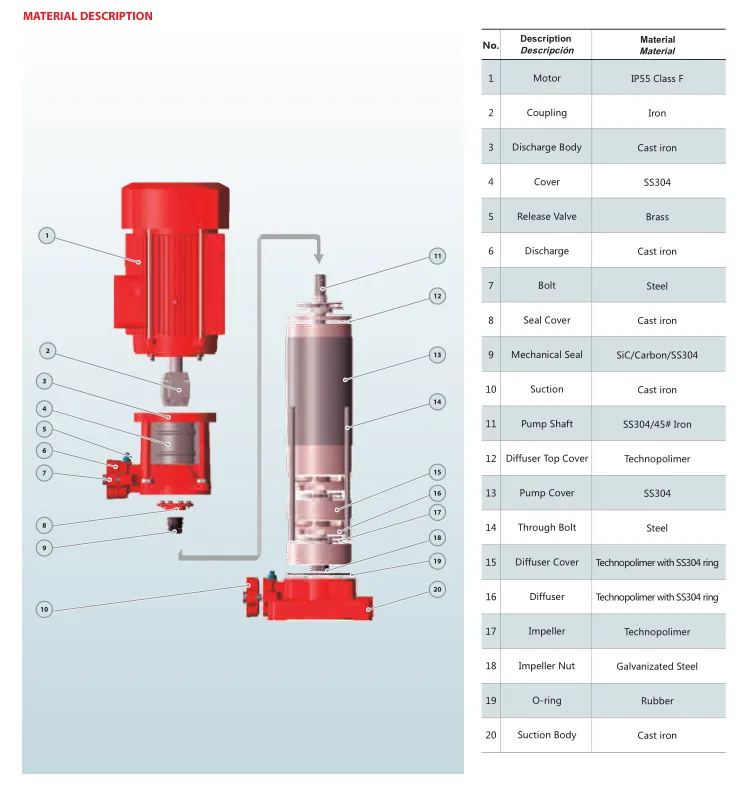

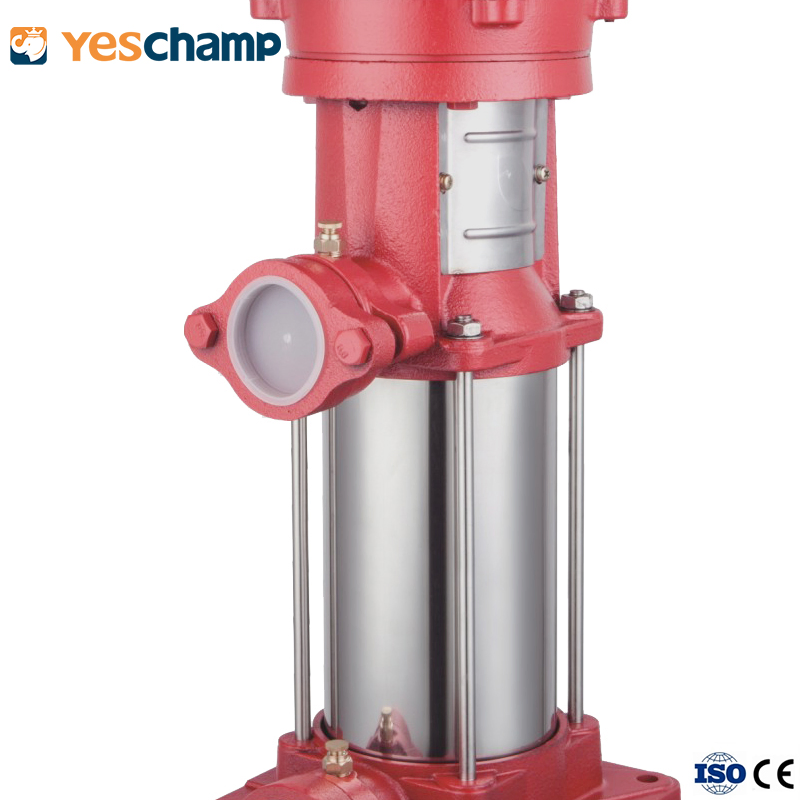

Direct coupled with YE3 highly efficient motor, the PVK series vertical multistage pump for fire fighting has its strength of IP55 protection, class F insulation, and 2 pole speed. It features a PPO high-temperature resistant impeller, which maintains performance while optimizing cost. The suction and discharge ports are G20 thread with the same diameter, constructed from durable cast iron.

Mainly used in fixed fire fighting systems in enterprises, institutions, project construction, and high-rise buildings to ensure constant pressure maintenance.
