Automatic FM200 Fire Suppression System - High-Quality 100kg Fire Fighting Equipment

Customization:	Available
Agent:	FM200/Hfc-227ea
Certification:	CCCF, GB8013-2005, CCC, CE

Overview & Basic Information

Product Name	FM200 Fire Extinguisher	Model Number	FM200
Selling Units	Single Item	Color	Red
Material	Metal	Single Gross Weight	500.000 Kg
Function	To prevent high-value assets from fire	Production Capacity	4500 Piece/Pieces Per Month
Packaging Details	Standard Carton Package or as Customized

Product Description

The FM-200 Fire Extinguishing System is a state-of-the-art solution meticulously crafted for comprehensive protection of invaluable assets. FM200, also recognized as HFC227ea, is a revolutionary waterless fire protection system. This system is not only colorless and non-toxic but also perfectly suited for environments typically occupied by people, ensuring safety where human presence is significant. With an impressive rapid discharge capability, it floods the risk area in a mere 10 seconds, delivering immediate and effective fire suppression.

Product Parameters

📦

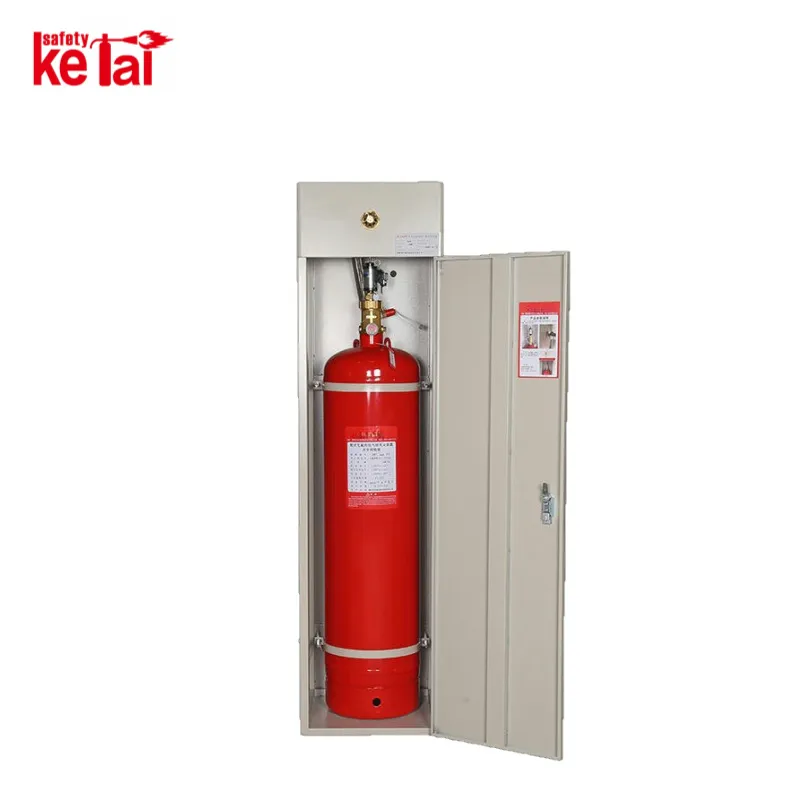

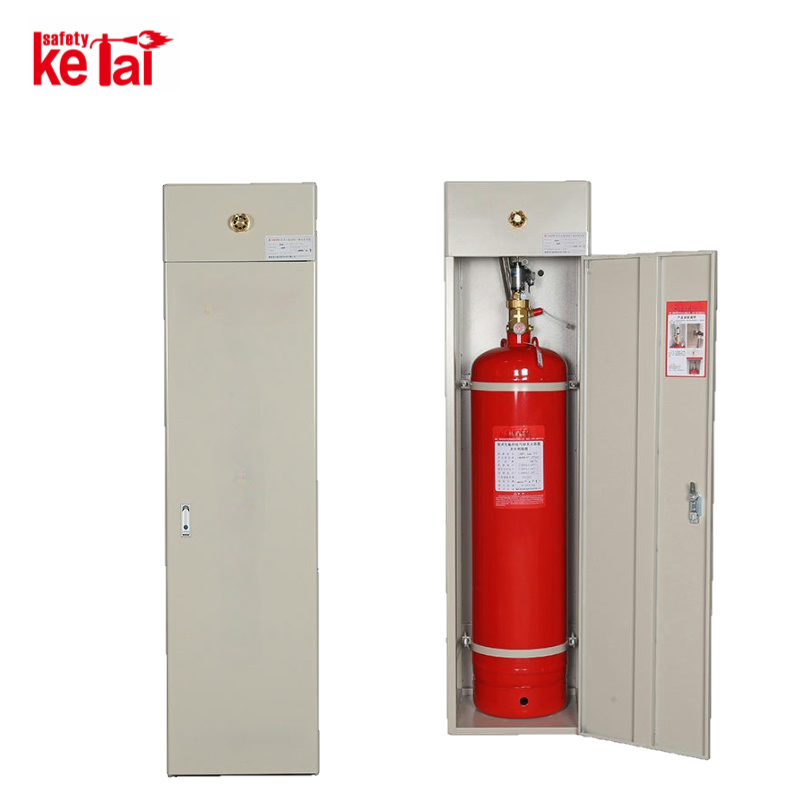

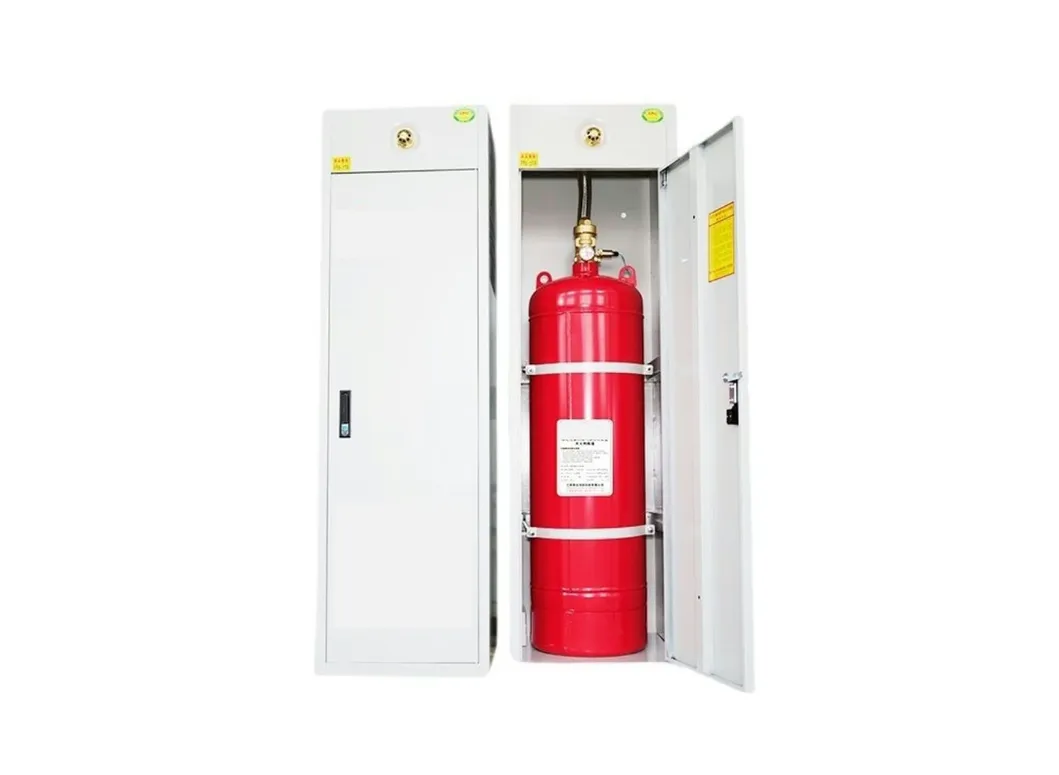

Cabinet type: Available in capacities of 40L, 70L, 90L, 120L, 150L. Operates at 25 Bar (2.5 MPa). Features Automatic and Manual operation. Ideal for single rooms without ceiling and sub-flow.

🛡️

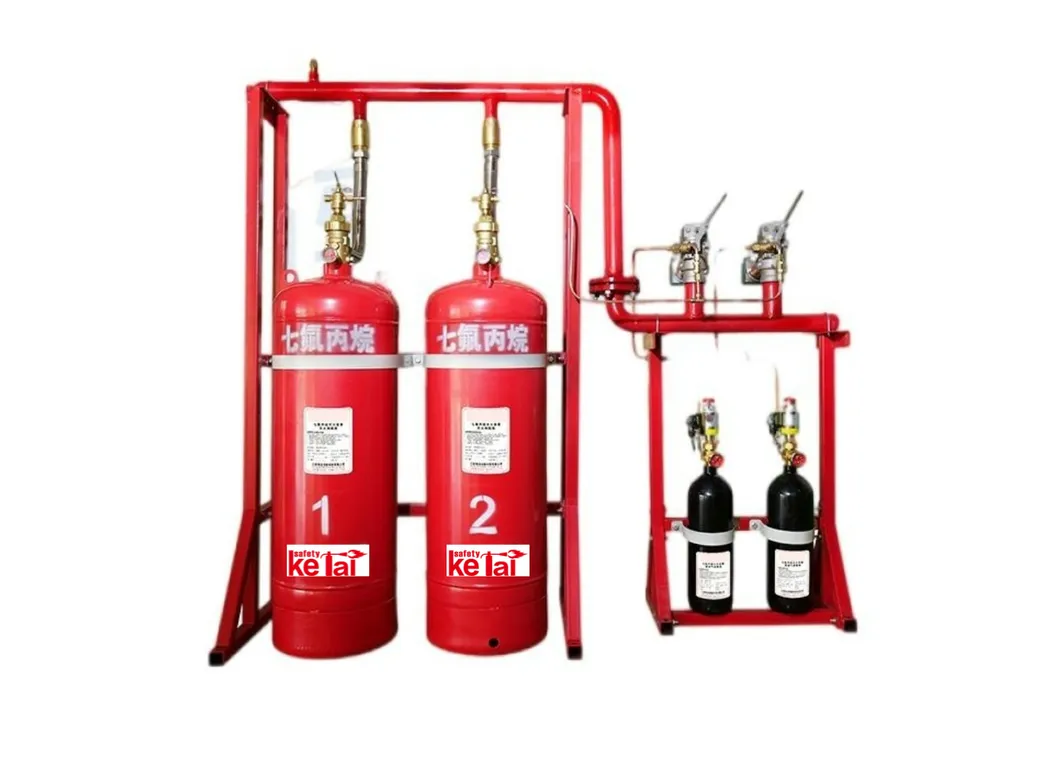

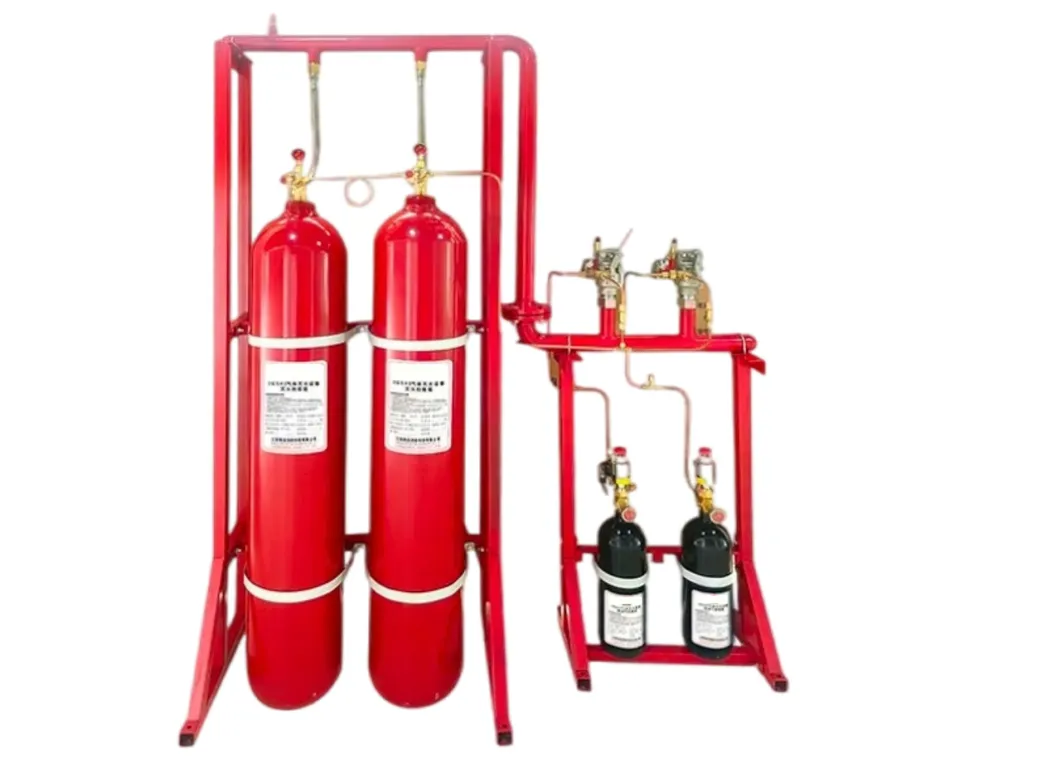

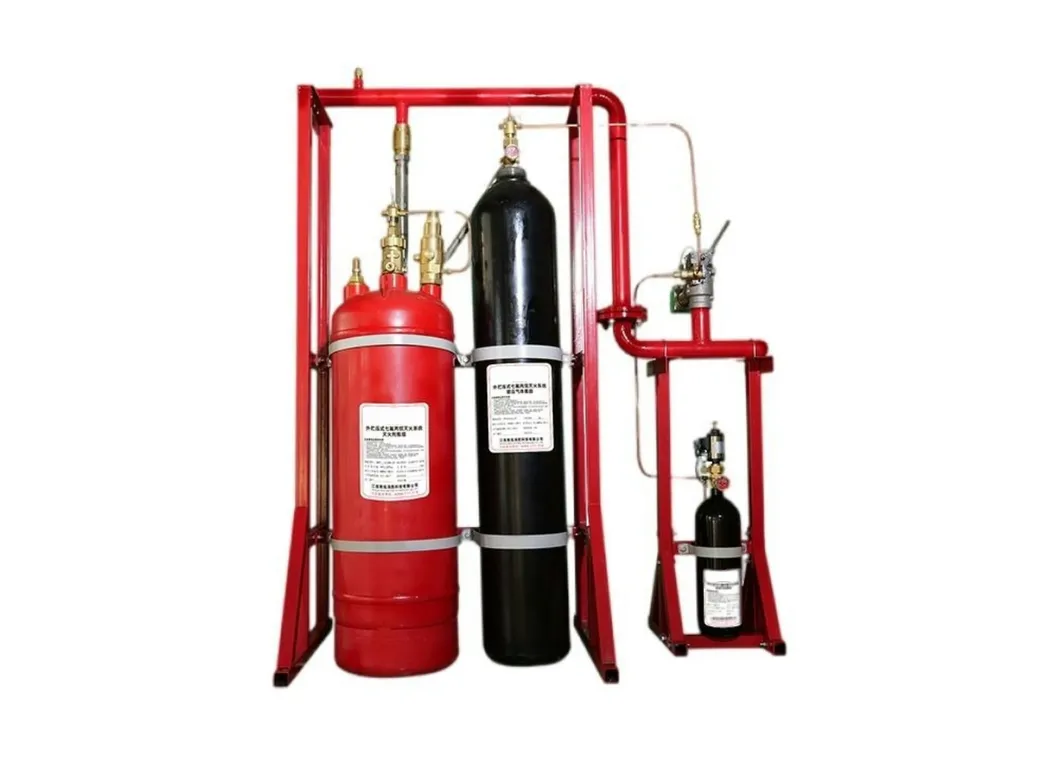

N2 network pipe type: Operates at 42 Bar (4.2 MPa). Capacities: 40L to 150L. Supports Automatic, Manual, and Mechanical emergency modes. Designed for multiple rooms or areas with ceiling/sub-floor setups.

Model	Max Filling (KG)	Min Filling (KG)	Height (mm)	Diameter (mm)	Valve Type	Empty Weight (kg)
FMC4042	40	20	768	300	QRF32	45
FMC7042	70	35	940	350	QRF32	73
FMC9042	90	45	1140	350	QRF32	88
FMC12042	120	60	1140	350	QRF40	109
FMC15042	150	75	1390	400	QRF40	123

Certifications

Packaging & Shipping

Our Advantages

⚡

Space-Efficient & Cost-effective: Uses minimal agent compared to traditional CO2 systems, reducing cylinder count and optimizing space.

🚀

Rapid Fire Extinguishing: Extinguishes fires in just 10 seconds, minimizing potential damage to critical infrastructure.

👤

Safety Assured: Operates at a molecular level with low pressure; non-toxic and safe for human-populated environments.

After Sales Service

Our product safeguards include secure payments fortified with robust SSL encryption and PCI DSS data protection protocols. Standard refund policies are in place, granting claims for refunds if the order is not shipped, is missing, or encounters issues upon arrival. We ensure protection for all orders placed and paid through the platform.

Company Overview

Frequently Asked Questions

What is FM200 (HFC227ea)?

FM200 is a waterless, colorless, and non-toxic fire suppression agent that extinguishes fires at a molecular level. It is highly effective and leaves no residue.

Is the FM200 system safe for human-occupied areas?

Yes, the system is specifically designed for environments where people work, as the agent is non-toxic when used at standard concentrations.

How fast does the system discharge?

The FM200 system features a rapid discharge capability, flooding the protected area in approximately 10 seconds to suppress fire immediately.

What are the different types of FM200 systems available?

We offer two main types: Cabinet type (ideal for single rooms) and N2 network pipe type (designed for multiple rooms or areas with sub-floors/ceilings).

What capacities are available for the cylinder containers?

Standard capacities include 40L, 70L, 90L, 120L, and 150L, catering to various room sizes and fire risk levels.

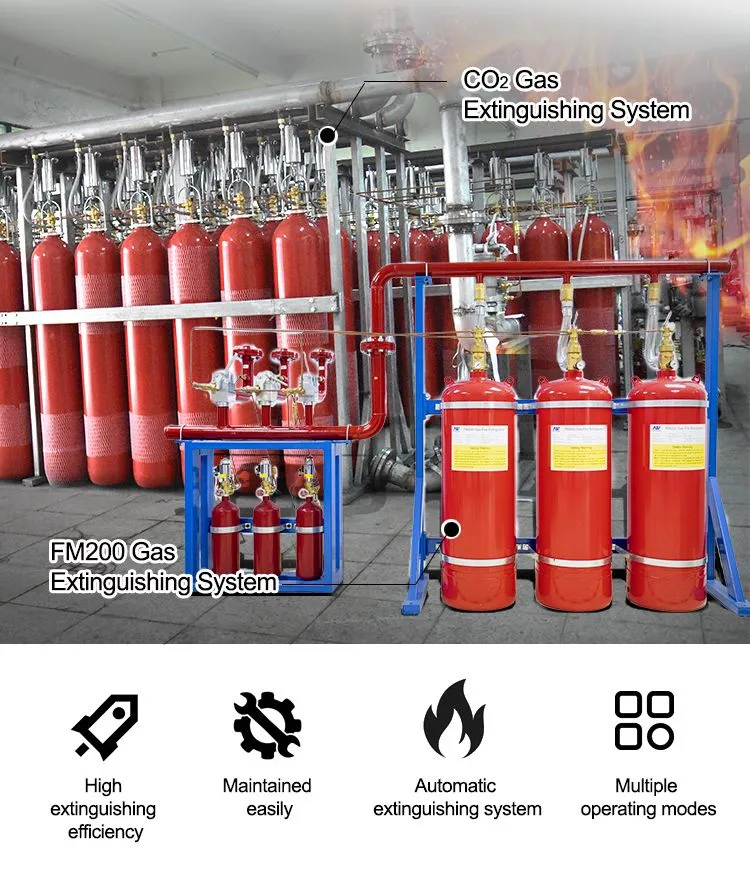

Why choose FM200 over CO2 fire suppression systems?

FM200 is more space-efficient, requiring fewer cylinders than CO2 systems, and is safer for human life as it operates at a lower pressure and is non-toxic.
