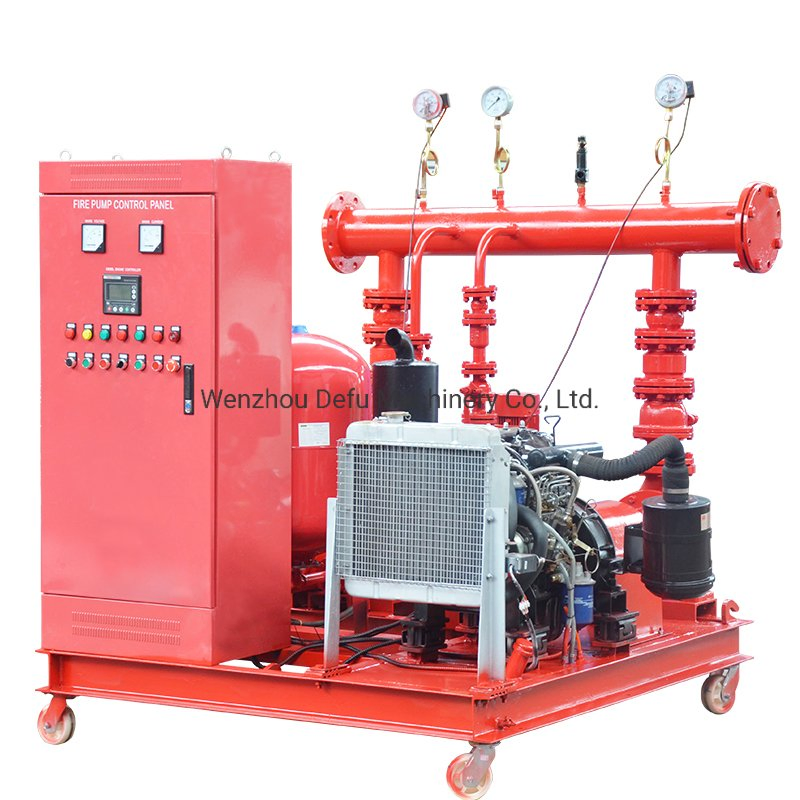

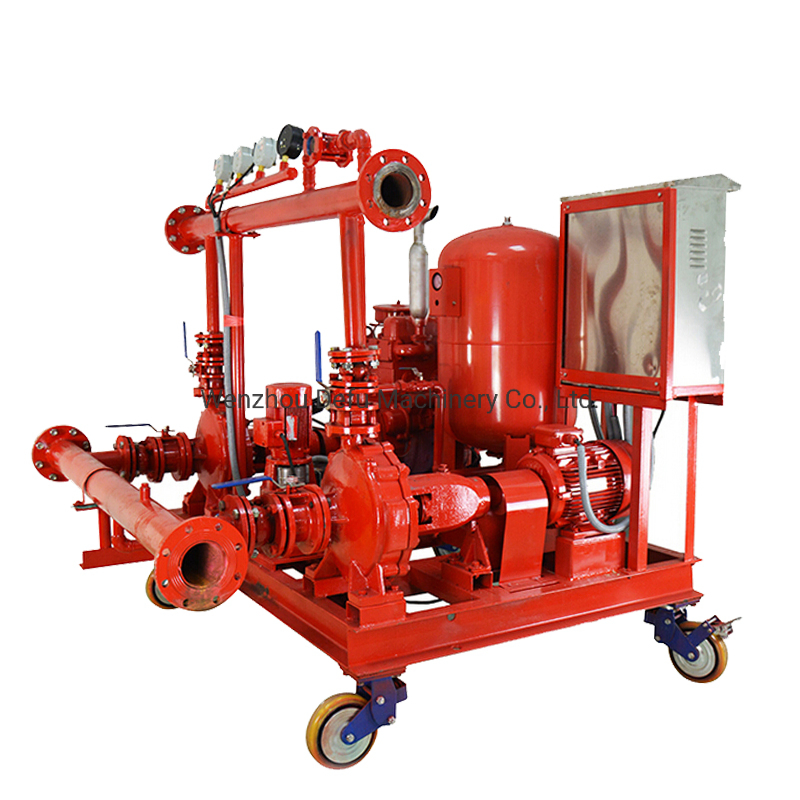

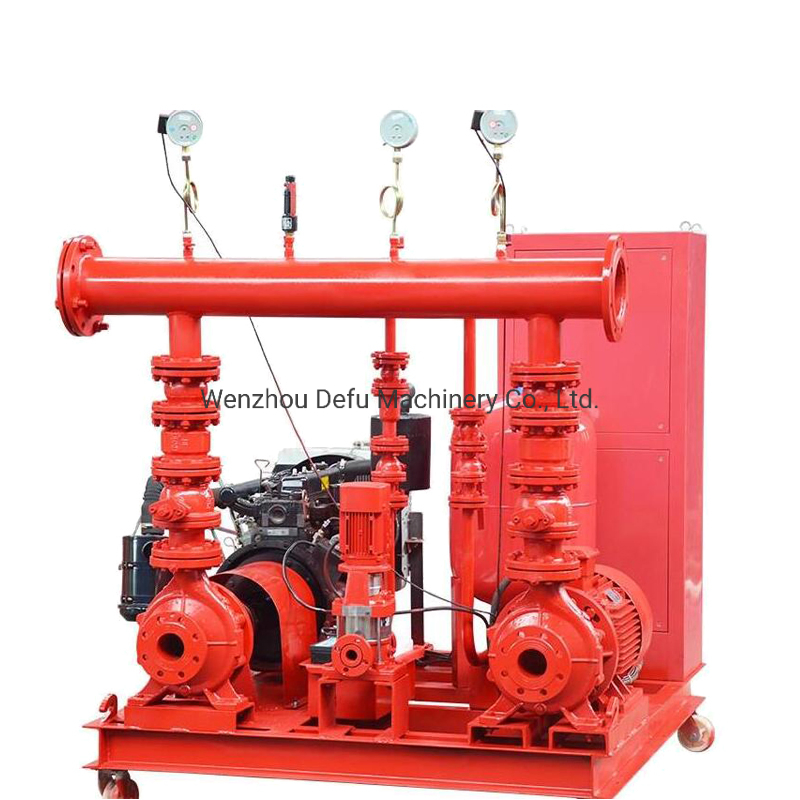

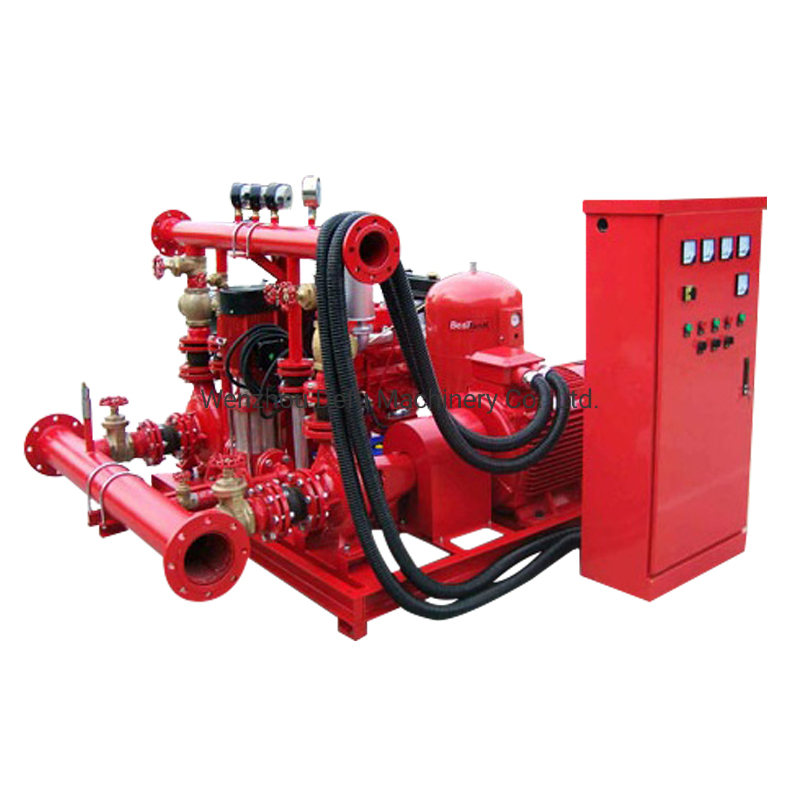

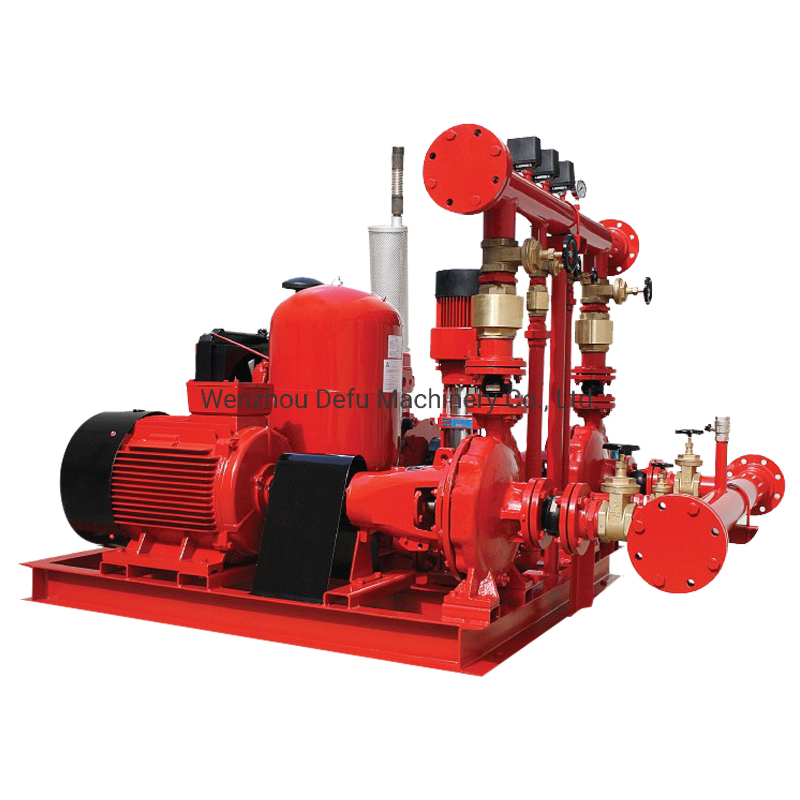

Hot Sale 1000gpm Diesel Engine Driven Fire Pump Set Boosting Fire Pump UL Listed

EDJ series is a packaged fire pump set, generally an automatic fire water supply system. It consists of a main pump (driven by an electrical motor), a stand-by pump (driven by diesel engine), and a jockey pump. This model comes equipped with a separate controller or one that is attached to the skid. The package also contains discharge valves, a common header, and essential accessories.

Generally, the pipeline network's pressure is maintained between low pressure P1 and high pressure P2. When pressure falls below P1, the jockey pump starts automatically until it reaches P2. In the event of high water consumption or a fire, if pressure drops to P3, the main electric pump activates. If the main power fails or the electric pump fails, the pressure will drop to P4, triggering the diesel pump set automatically. Pumps are stopped manually after the situation is assessed.

• Timely Delivery Delivery as per contract. Usually 25 working days for diesel engine pumps and 15 working days for bare shaft pumps.
• Comprehensive Warranty 12 months for the pump body and 3 months for the main working parts.
• Durable Packaging We use plywood cases suitable for long-distance ocean transport to ensure safety.
• Quality Assurance All pumps are tested before delivery. We follow up on working conditions every three months after installation.
