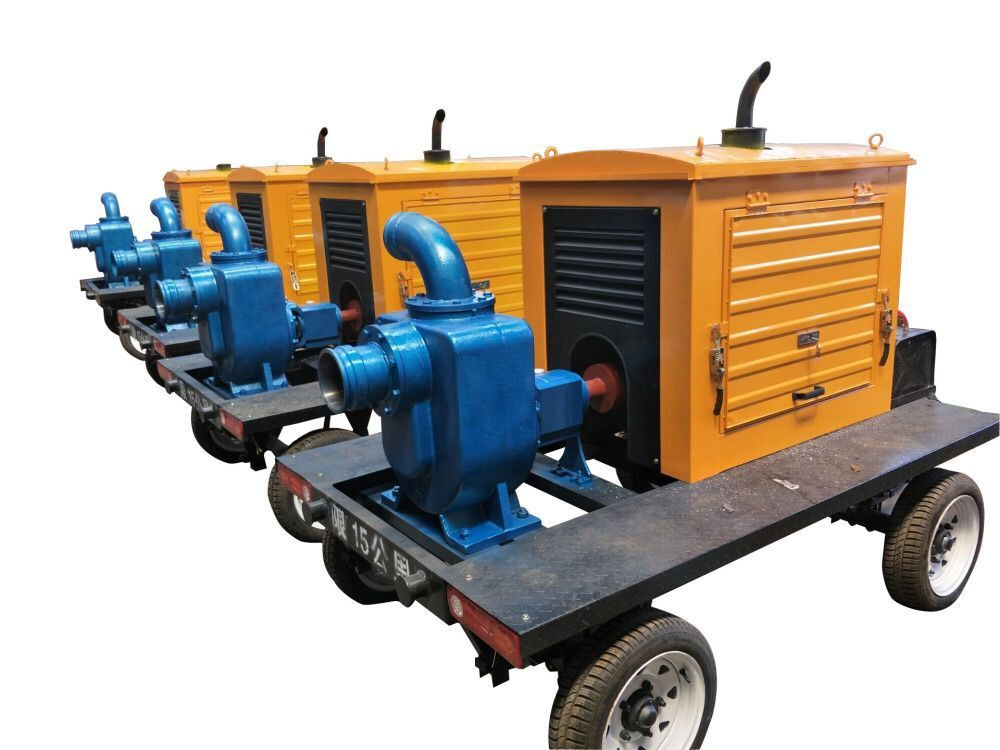

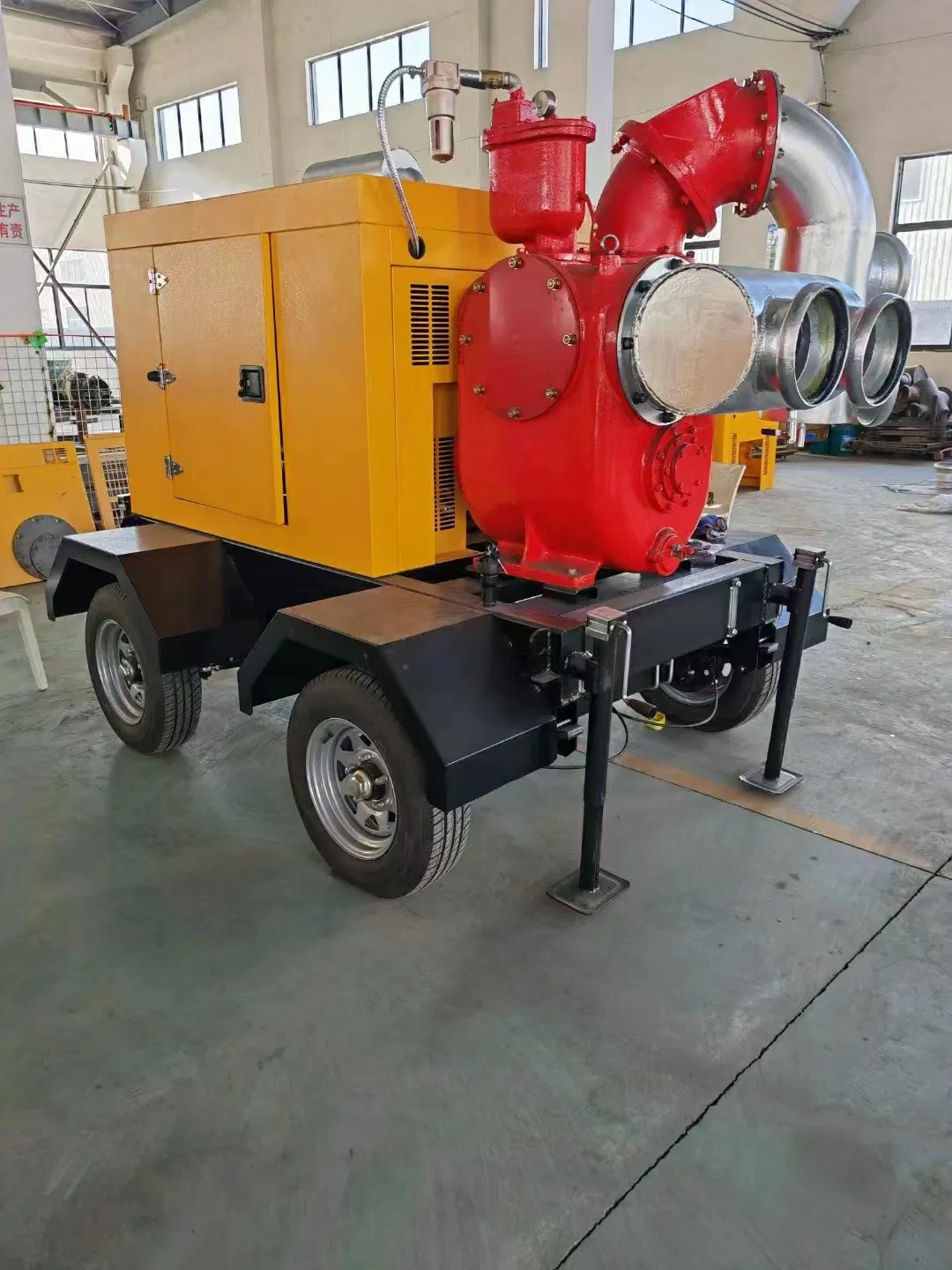

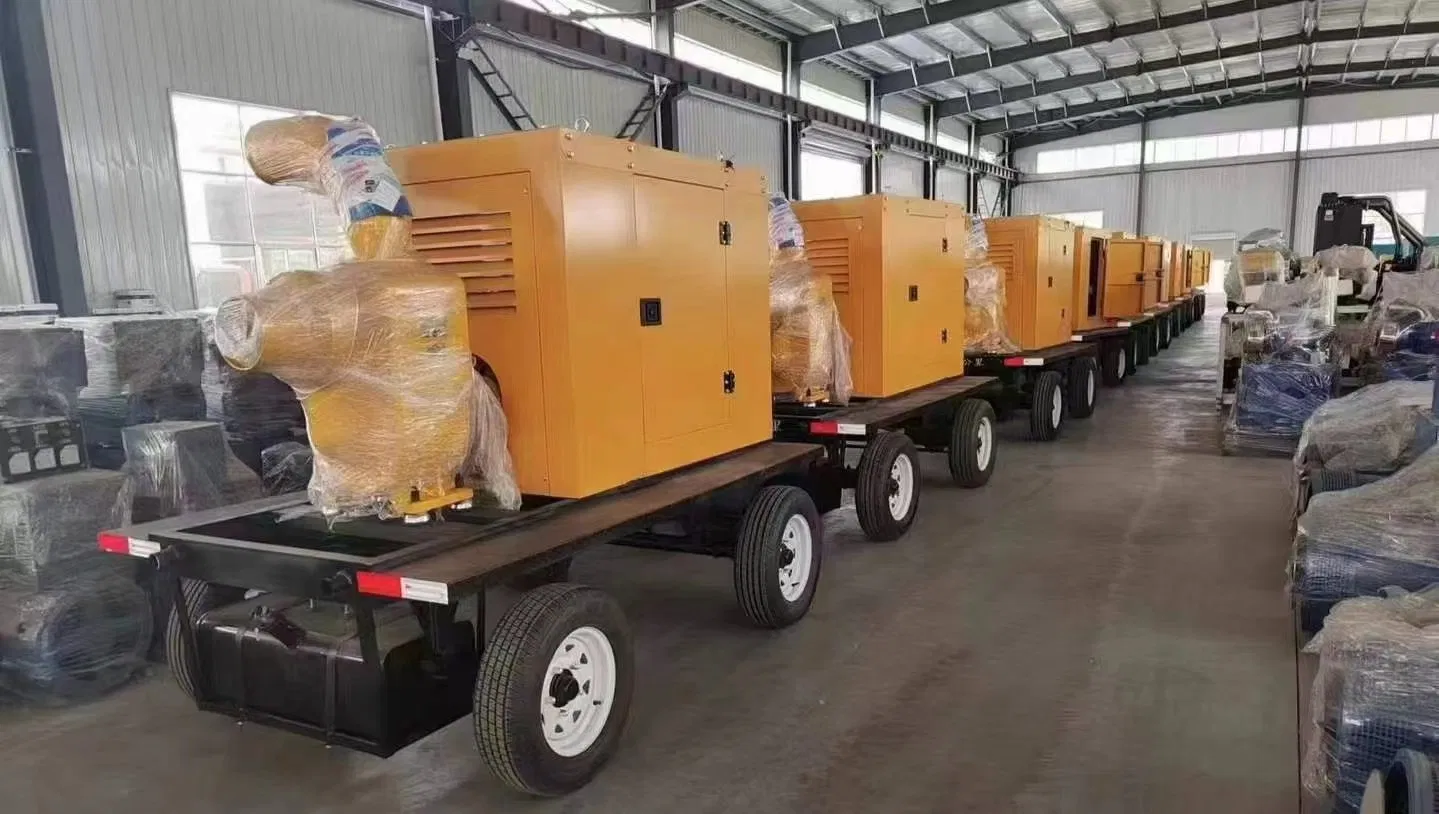

10 Inch Self-Priming Diesel Water Pump, Drainage Pump, Fire-Fighting Pump, Irrigation Pump, Flood Control Pump, Trash Pump,
10 Inch Self-Priming Diesel Water Pump, Drainage Pump, Fire-Fighting Pump, Irrigation Pump, Flood Control Pump, Trash Pump,
10 Inch Self-Priming Diesel Water Pump, Drainage Pump, Fire-Fighting Pump, Irrigation Pump, Flood Control Pump, Trash Pump,
10 Inch Self-Priming Diesel Water Pump, Drainage Pump, Fire-Fighting Pump, Irrigation Pump, Flood Control Pump, Trash Pump,
10 Inch Self-Priming Diesel Water Pump, Drainage Pump, Fire-Fighting Pump, Irrigation Pump, Flood Control Pump, Trash Pump,
1 / 5
10 Inch Self-Priming Diesel Water Pump, Drainage Pump, Fire-Fighting Pump, Irrigation Pump, Flood Control Pump, Trash Pump,
10 Inch Self-Priming Diesel Water Pump, Drainage Pump, Fire-Fighting Pump, Irrigation Pump, Flood Control Pump, Trash Pump,
10 Inch Self-Priming Diesel Water Pump, Drainage Pump, Fire-Fighting Pump, Irrigation Pump, Flood Control Pump, Trash Pump,
10 Inch Self-Priming Diesel Water Pump, Drainage Pump, Fire-Fighting Pump, Irrigation Pump, Flood Control Pump, Trash Pump,
10 Inch Self-Priming Diesel Water Pump, Drainage Pump, Fire-Fighting Pump, Irrigation Pump, Flood Control Pump, Trash Pump,

10 Inch Self-Priming Diesel Water Pump, Drainage Pump, Fire-Fighting Pump, Irrigation Pump, Flood Control Pump, Trash Pump,

Customization: Available
After-sales Service: 24 Hours Online
Warranty: 1 Years or 1000 Hours
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
RZ10-800
Max.Head
10-30m
Max.Capacity
>400 L/min
Driving Type
Diesel Engine
Material
Cast Iron
Structure
Self Priming Pump
Power
Diesel Engine
Start Up
One Key Start, Automatic Start
Application
Sewage Pump, Slurry Pump, Waste Water Pump
Max. Flow
800 Cubic Meter /Hr
Suction Lift
8.5 M
Engine Power
90 Kw
⭐

Why Choose Our Solutions?

  • Specialized production Manufactory for Self-priming Pump
  • Focus on technological innovation, Over Industry leading level
  • Good experience at Domestic and oversea market
  • Carefully paint for Good appearance
  • Years of International service standards, Engineer one-to-one service
⚙️

Sewage Pump (Trailer Type)

This trailer type sewage pump adopts advanced strong self-priming pump and diesel engine with excellent performance as power. It is suitable for handling non-flammable and explosive liquids; rainwater and general sewage. Ideal for municipal sewage projects, construction sites, civil air defense system drainage stations, and general industrial wastewater.

Key Features:

  • Stable performance and reliable use.
  • Fast self-priming, high suction lift, with vacuum assist system.
  • Rear pull-out structure for convenient maintenance and troubleshooting.
  • Semi-open impeller structure, non-clogging design, strong passing capacity.
  • Easy to use: self-priming height up to 9 meters.
📊

Technical Parameters

MODEL RZ6-300 RZ6-500 RZ8-600 RZ10-800 RZ10-1000 RZ12-1500
PUMP PARAMETERS
Flow (m³/h) 300 500 600 800 1000 1500
Max Suction (m) 8.5 8.5 8.5 8.5 8.5 8.5
Lift (m) 20 25 16 20 16 16
ENGINE PARAMETERS
Rated Power (KW) 23 36 72 90 120 160
Fuel Tank (L) 60 100 150 200 250 350
📸

Product Showcase

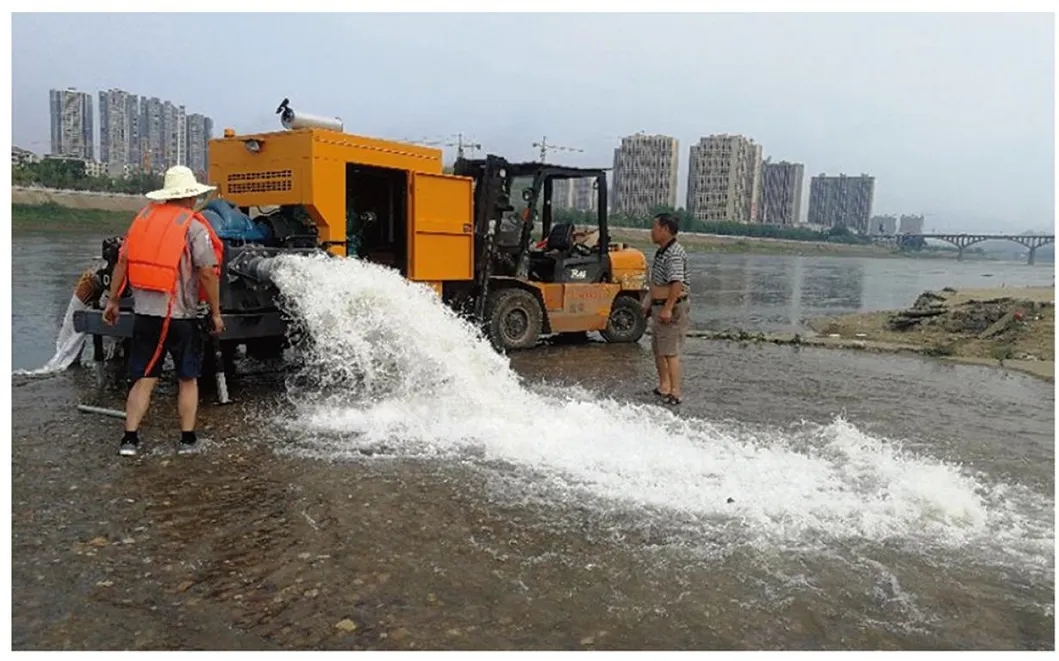

Diesel Water Pump 1

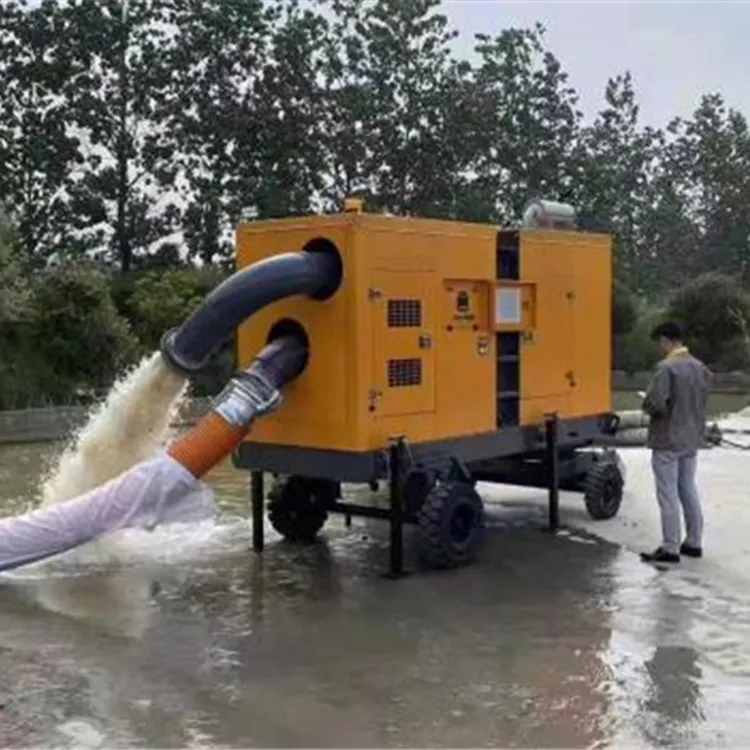

Diesel Water Pump 2

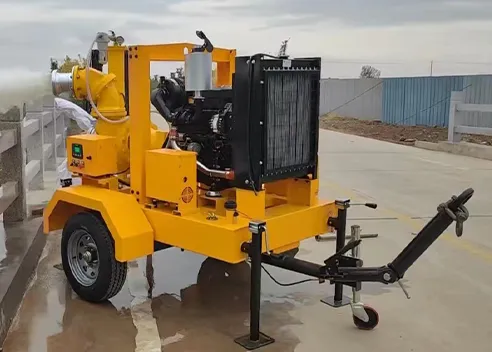

Diesel Water Pump 3
💡

Convenient and Practical Functions

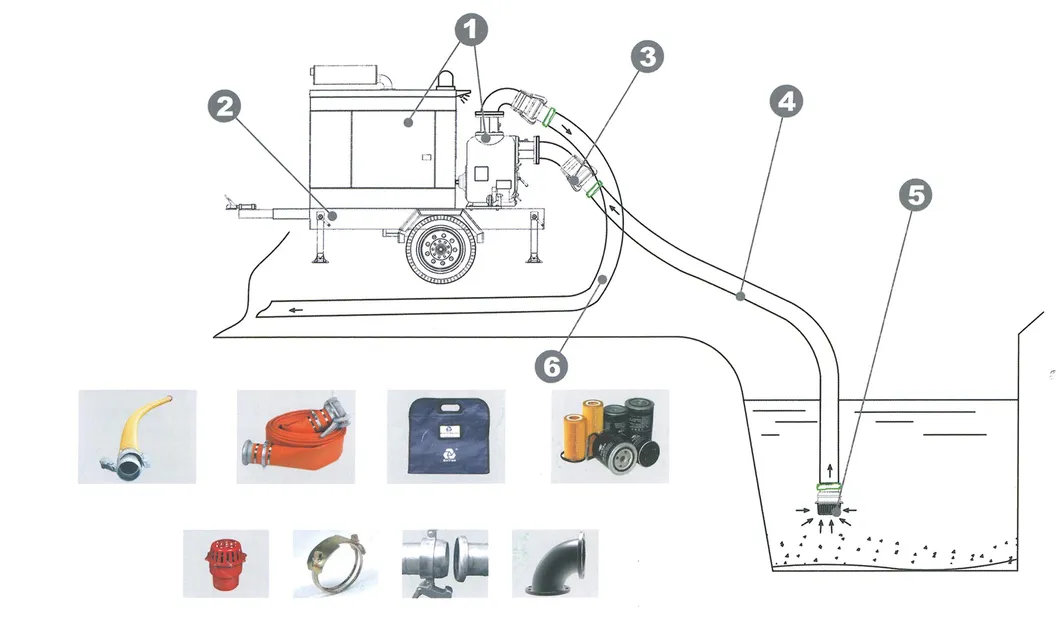

Function Diagram
  • PLC automatic control for easy and safe operation.
  • Integrated mobile unit, easy to move in different environments.
  • Automatic high water drainage function.
  • High-quality muffler design using 50mm flame retardant silencer cotton.
  • Wheeled chassis with reserved traction device for balance.
🌍

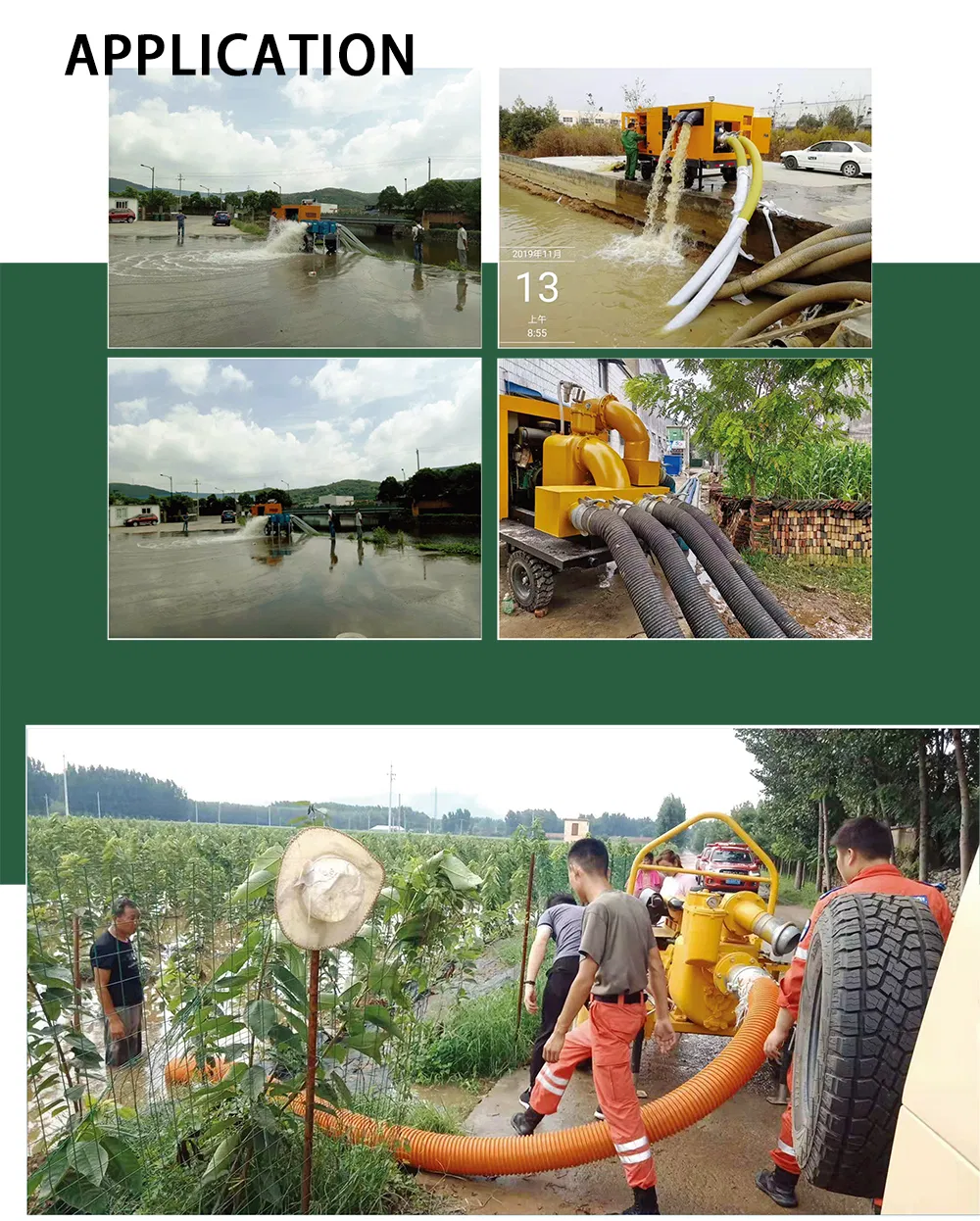

Application Scenarios

  • Municipal drainage & Flood control
  • Mining & Oil field operations
  • Agricultural irrigation
  • Construction industry drainage
  • Water treatment & Paper industry
Application scenarios
📜

Quality Certification

We hold full export qualifications and CE certification, with direct authorization from well-known engine manufacturers to ensure high-quality product delivery.

Certification
❓

Frequently Asked Questions

Q: Are you a manufacturer or a trading company? A: We are a professional manufacturer and exporter. You are welcome to visit our factory facilities.
Q: What is the range of your diesel water pumps? A: We can provide solutions with a flow of up to 4000 m³/hr and a head of up to 450 m, customized to your specific needs.
Q: Can the diesel pump set be customized with my own branding? A: Yes, we offer OEM and ODM services, including customized logos and packaging based on your brand authorization.
Q: What is the typical delivery time for an order? A: Standard delivery takes about 5-14 days after receiving the deposit. Large customized orders may take up to 30 days.
Q: What is the warranty period for your products? A: Our standard warranty is 12 months or 1000 working hours, whichever comes first. Extension services are also available.
Q: Do you test the products before shipping? A: Yes, we perform 100% factory testing on all units and can provide test videos for our customers.
